    Steel Low-Profile Binding Barrel and Screw

    Black-Oxide, 8-32 Thread, for 1.5" to 1.75" Material Thickness

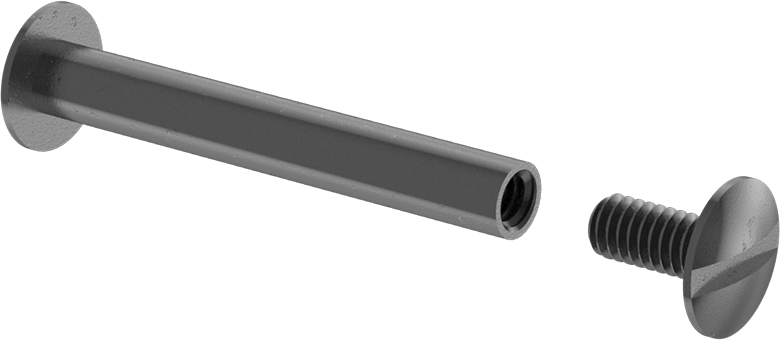

    Image of Product. Front orientation. Steel Low-Profile Binding Barrel and Screw, Black-Oxide, 8-32 Thread, for 1.5" to 1.75" Material Thickness .

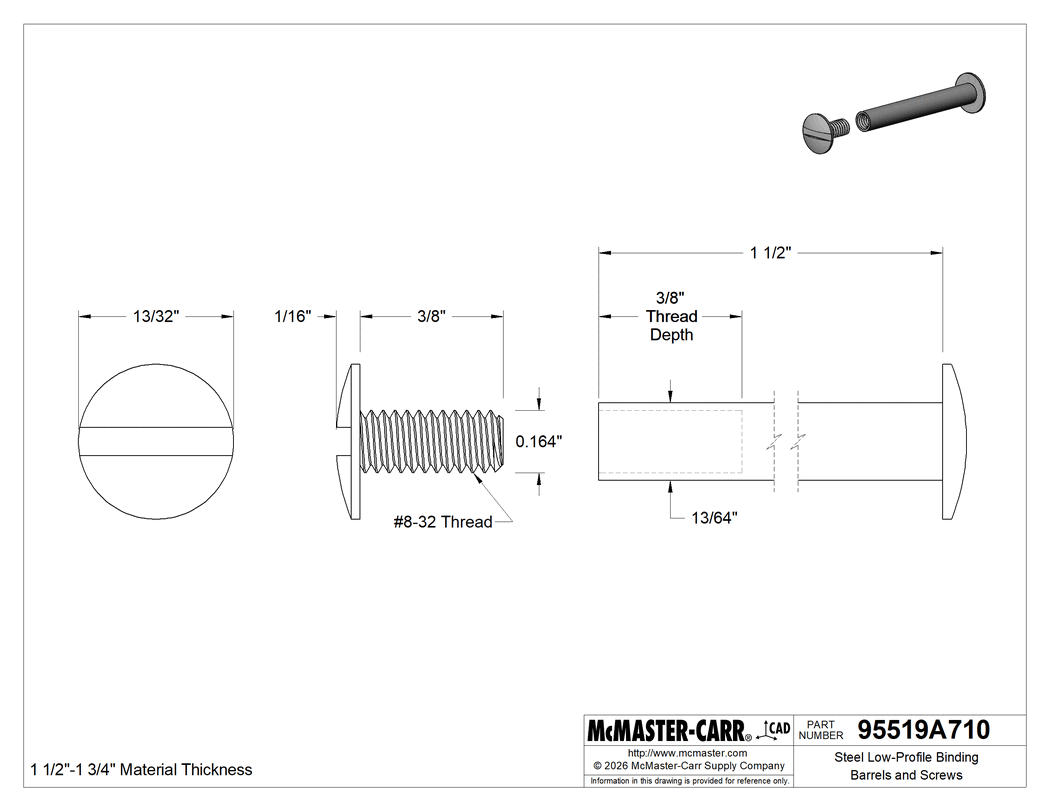

    Technical Drawing of Steel Low-Profile Binding Barrel and Screw, Black-Oxide, 8-32 Thread, for 1.5" to 1.75" Material Thickness .
    Image of ProductInUse. Front orientation. Contains Border. Steel Low-Profile Binding Barrel and Screw, Black-Oxide, 8-32 Thread, for 1.5" to 1.75" Material Thickness .
    2-D PDF
    00000 per pack of 1
    95519A710
    In stock
    95519A710
    00000 per pack of 1
    Pack of 1
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Material

    Black-Oxide Steel

    Thread Size

    8-32

    For Material Thickness

    1 1/2" to 1 3/4"

    Barrel

    Length

    1 1/2"

    Diameter

    13/64"

    Head Diameter

    13/32"

    Head Height

    1/16"

    Thread Depth

    3/8"

    Drive Style

    No Drive

    Tensile Strength

    Not Rated

    Screw

    Length

    3/8"

    Head Diameter

    13/32"

    Head Height

    1/16"

    Drive Style

    Slotted

    Includes

    Barrel, Screw

    Binding Barrel Component

    Post and Screw

    Fastener Head Type

    Rounded

    Hardness

    Rockwell B80

    Rounded Head Profile

    Low, Wide

    Rounded Head Style

    Truss

    Screw Size Decimal Equivalent

    0.164"

    System of Measurement

    Inch

    Thread Direction

    Right Hand

    Thread Spacing

    Coarse

    Thread Type

    UNC

    Threading

    Fully Threaded

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant with Exemptions

    RoHS Exemptions

    6(a)

    Schedule B Number

    731816.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    These binding barrels and screws have a thin head that provides a nearly flush finish with the material surface. Barrel length and screw length are measured from under the head.

    Black-Oxide Steel—Black-oxide steel barrels and screws have a dark surface color and are mildly corrosion resistant in dry environments.
