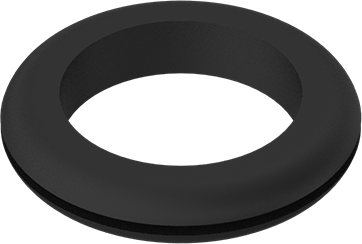

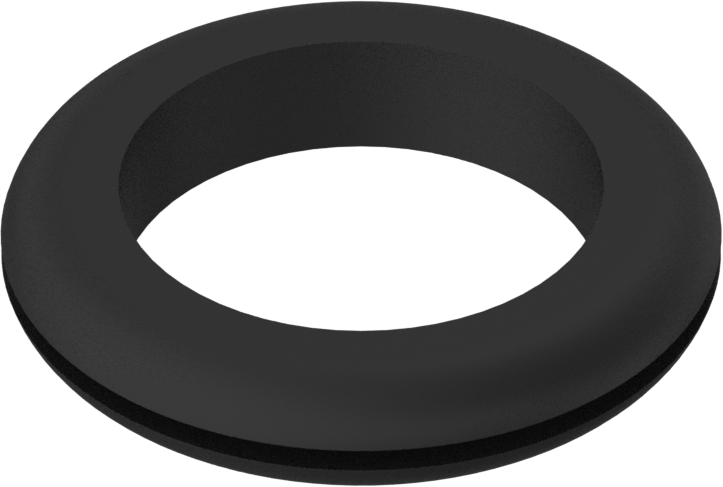

SBR Rubber Grommet
for 1-1/2" Hole Diameter and 1/16" Material Thickness
Mount Type | Push In |
For Use With | Wire, Cable, Cords |
Style | 1 |
Finished Material | SBR |
For Hole Diameter | 1 1/2" |
For Material Thickness | 1/16" |
ID | 1 1/4" |
Flange Diameter | 1 7/8" |
Overall Height | 11/32" |
Temperature | -30° F to 170° F |
For Use Outdoors | No |
Color | Black |
Application | Multipurpose |
Hardness | Durometer 55A |
Hardness Rating | Medium |
Shape | Round |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 401699.6000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Protect wire, cable, and cords from holes with sharp or rough edges. Found everywhere from enclosures to machine panels, these grommets keep cords from fraying to extend service life and prevent electrical shorts. With a flexible rubber design, they push easily into holes and reduce vibration in and around sensitive components.
Multipurpose SBR Rubber—These durable grommets resist cracking and other signs of wear over long periods. However, they're not for use outdoors or with oil and harsh chemicals.

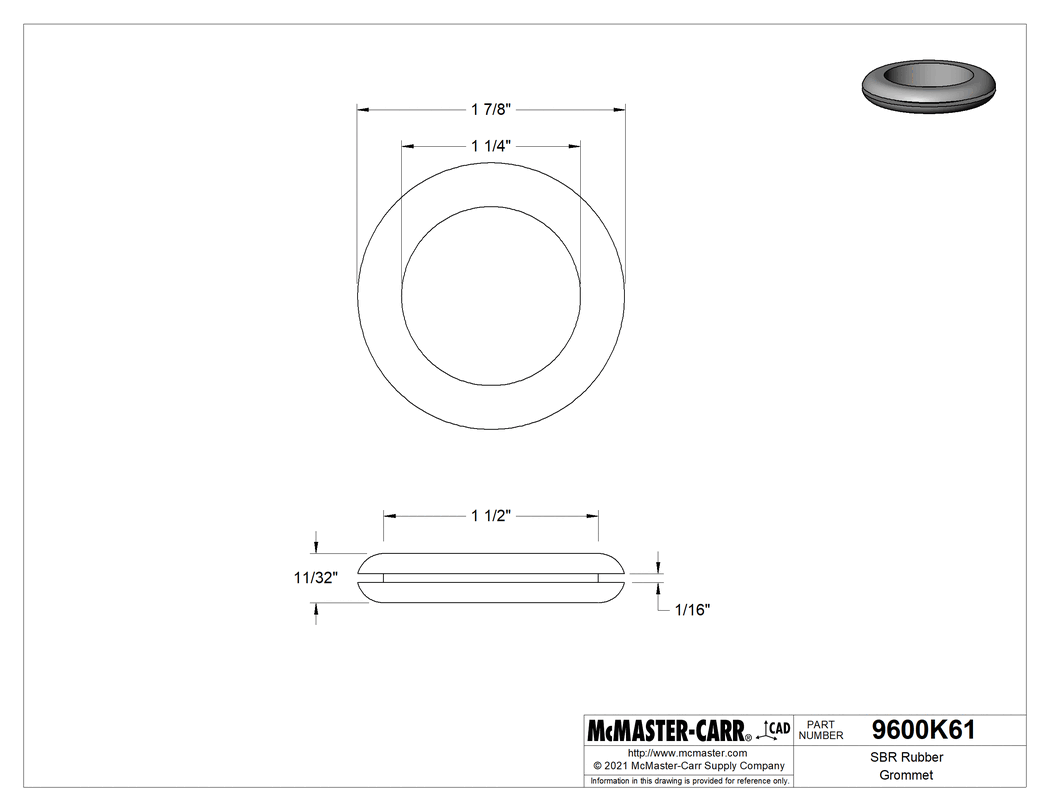

The information in this 3-D model is provided for reference only.
