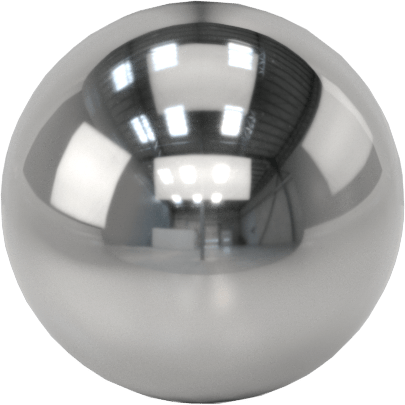

Highly Corrosion-Resistant 316 Stainless Steel Ball
6 mm Diameter
Precision Ball Grade | 100 |
Shape | Ball |
Diameter | 6 mm |
Diameter Tolerance | -0.013 mm to 0.013 mm |
Mechanical Finish | Tumbled |
Hardness | Rockwell C25 (Hard) |
Specifications Met | ISO 3290 |
Magnetic Properties | Nonmagnetic |
Appearance | Mirror Like |
Certificate Form | Digital |
Certificate Type | Material Certificate with Traceable Lot Number |
Construction | Solid |
Elongation | Not Rated |
Finish | Passivated |
Finished Material | Passivated 316 Stainless Steel |
Heat Treatable | No |
Material | 316 Stainless Steel |
Material Composition | |
Carbon | 0.08% Max. |
Chromium | 16% to 18% |
Iron | 64.44% to 70.44% |
Manganese | 2% Max. |
Molybdenum | 2% to 3% |
Nickel | 10% to 14% |
Nitrogen | 0.10% Max. |
Phosphorus | 0.045% |
Silicon | 1% Max. |
Sulfur | 0.03% Max. |
Maximum Temperature | 1,110° F |
Minimum Temperature | Not Rated |
Performance | Highly Corrosion Resistant, Highly Chemical Resistant, Ultra Formable, Highly Weldable |
Tolerance Rating | Standard |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Yield Strength | Not Rated |
Country of Origin | China, India, Japan |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 732690.8695 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Trusted in marine and chemical-processing valves, these balls stand up to some of the most highly corrosive environments. Made of 316 stainless steel, they hold up to sulfuric acid, chlorine, and other harsh chemicals in temperatures as high as 1500° F. They’re a step up from balls made of 304, which have similar strength and temperature performance. They’re passivated to wash away surface particles that cause rust, and they’re polished to a mirror-like finish that contaminants can’t stick to. The result is balls that stay smooth and stand the test of time. They’re made to strict ISO 3290 standards for roundness and surface quality.
Although 316 balls aren’t as wear resistant as 440C balls, they’re easier to fabricate. They’re also nonmagnetic.
Grade 100—Great for mechanical applications where you don’t need the exacting tolerances of Grade 25.

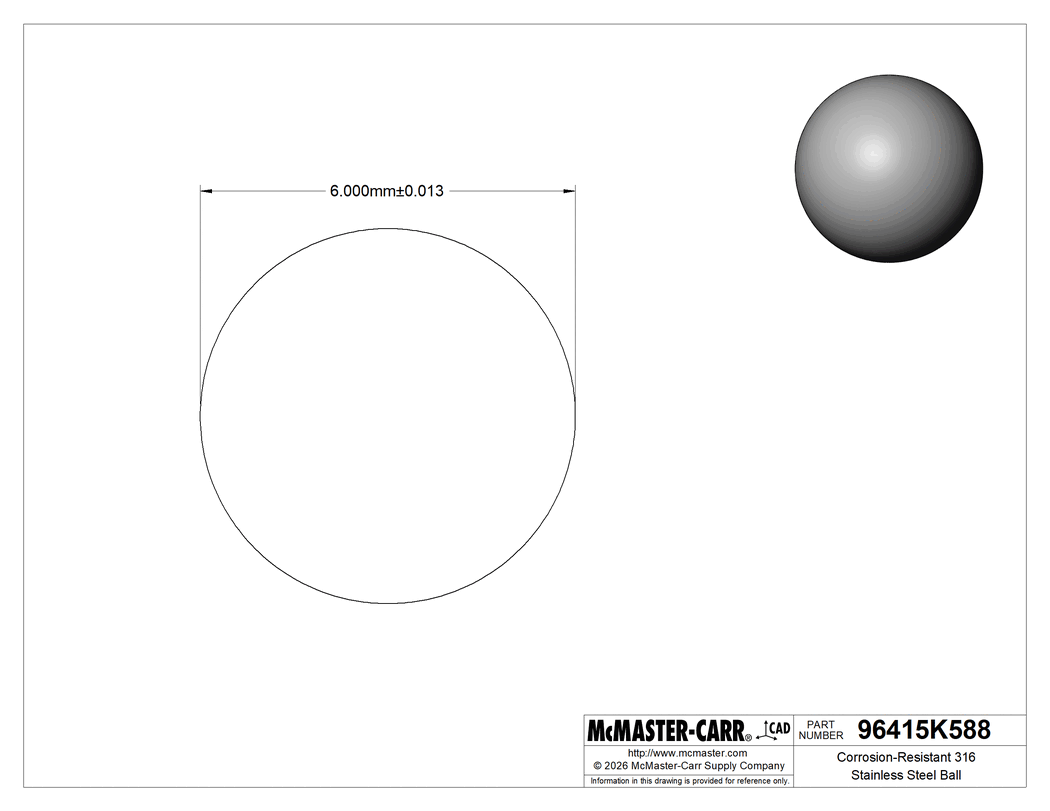

The information in this 3-D model is provided for reference only.
