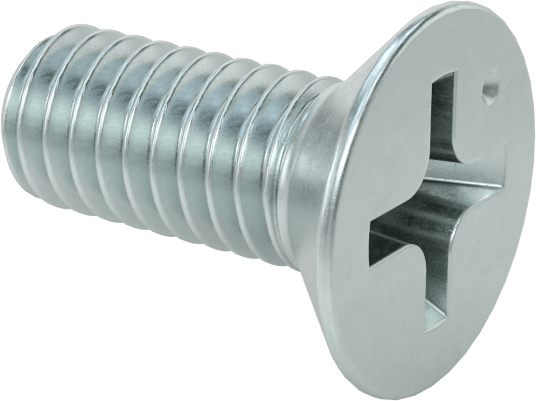

JIS Zinc-Plated Steel Flat Head Screws
M4 x 0.7 mm Thread Size, 10 mm Long
Thread Direction | Right Hand |
Drive Style | JIS |
Tip Type | Flat |
Thread Size | M4 |
Thread Pitch | 0.7 mm |
Length | 10 mm |
Countersink Angle | 90° |
Flat Head Profile | Standard |
Head | |
Diameter | 8 mm |
Height | 2.3 mm |
Threading | Fully Threaded |
Tensile Strength | 60,000 psi |
JIS Specification | JIS B 1111 |
Drive Size | No. 2 |
Fastener Head Type | Flat |
Hardness | Rockwell B71 |
Material | Zinc-Plated Steel |
System of Measurement | Metric |
Thread Fit | Metric Class 6h |
Thread Spacing | Coarse |
Thread Type | Metric |
Country of Origin | China |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
These screws are manufactured to meet Japanese Industrial Standards. Similar in appearance to Phillips, the JIS drive has a shallower opening with sharper angles and straighter internal walls. This lets them withstand more torque while preventing the driver from slipping and damaging the drive. Tighten them only with a JIS driver to avoid stripping the drive. Some JIS screws are marked with a dot near the drive for quick identification.
Length is measured from the top of the head.
Zinc-Plated Steel—A common choice for areas with occasional exposure to moisture.
Standard Profile—Standard-profile heads are the most common choice for flat head screws.

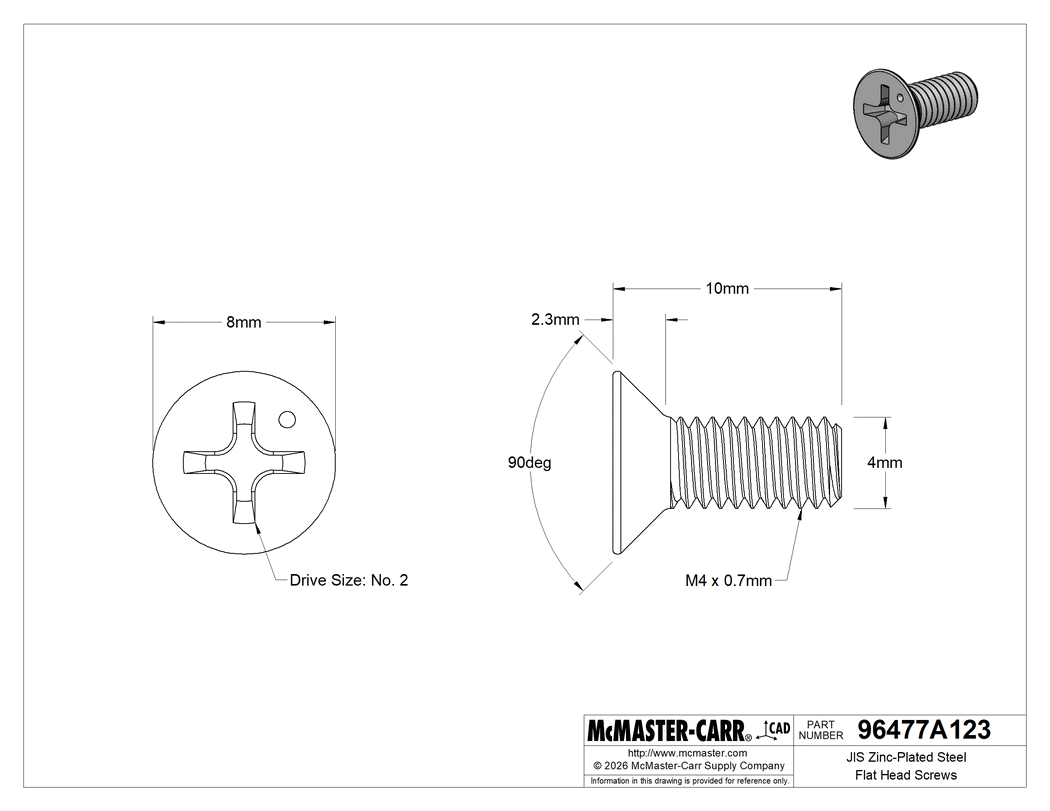

The information in this 3-D model is provided for reference only.
