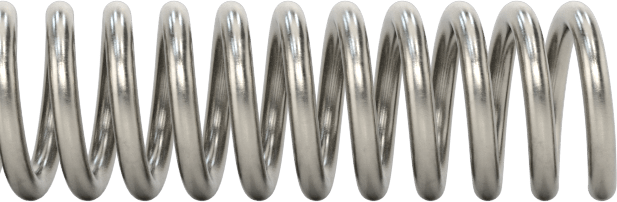

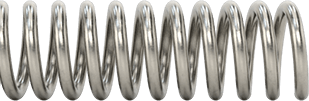

Corrosion-Resistant Compression Spring Stock
20" Long, 0.094" OD, 0.068" ID
Material | 302 Stainless Steel |
Length | 20" |
OD | 0.094" |
ID | 0.068" |
Wire Diameter | 0.013" |
Compressed Length @ Maximum Load | 11.2" |
Maximum Load | 0.79 lb. |
Spring Rate | 0.09 lbf/in |
End Type | Open |
Compression Spring Type | Straight |
Maximum Temperature | 550° F |
Performance | Corrosion Resistant, Cut-to-Length |
Spring Type | Compression |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 732020.5000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Always be ready for the perfect fit. These springs are extra long to cut a custom length whenever you need it. Their open ends make cutting easier but prevent them from standing on their own. You’ll need to install them in a hole or over a shaft, or grind the ends flat.
Corrosion-Resistant 302 Stainless Steel—Won’t corrode from exposure to moisture and mild chemicals, including ammonia often found in cleaning solutions. These springs are easier to compress than steel, but can’t handle as high a load.
Spring Rate—To determine the spring rate of a cut spring, first multiply the spring rate given by the spring's original length, then divide the result by the cut length (in inches).
