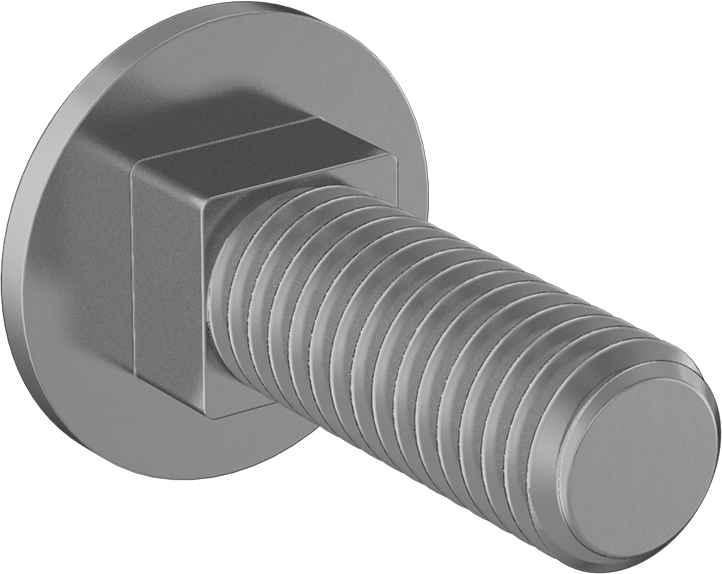

High-Strength Grade 8 Steel Square-Neck Carriage Bolt
1/2"-13 Thread Size, 1-1/2" Long
Fastener Strength Grade/Class | SAE Grade 8 |
Thread Size | 1/2"-13 |
Length | 1 1/2" |
Threading | Fully Threaded |
Thread Spacing | Coarse |
Head | |
Diameter | 1.094" |
Height | 0.27" |
Neck | |
Type | Square |
Width | 0.52" |
Length | 0.28" |
Tensile Strength | 150,000 psi |
Specifications Met | ASME B18.5, SAE J429 |
Fastener Head Type | Rounded |
Material | Zinc-Yellow-Chromate-Plated Steel |
Hardness | Rockwell C33 |
Rounded Head Profile | Wide |
Rounded Head Style | Carriage |
Screw Size Decimal Equivalent | 0.5" |
System of Measurement | Inch |
Thread Direction | Right Hand |
Thread Fit | Unified Standard Class 2A |
Thread Type | UNC |
Country of Origin | Canada |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 731815.2000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |

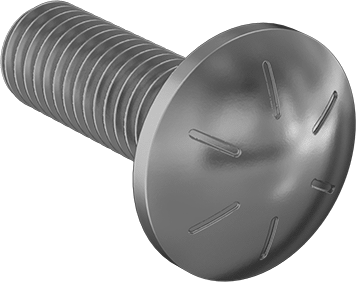

Made from Grade 8 steel, these bolts are at least 25% stronger than medium-strength steel bolts and can be used in high-stress applications, such as valves, pumps, motors, and automotive suspension systems. A square neck keeps these bolts from turning when tightening a nut. A smooth, rounded head provides a finished look. A zinc yellow-chromate plating provides corrosion resistance in wet environments. Grade 8 steel bolts are marked with six radial lines. Material meets SAE J429 specifications for quality. Dimensions meet ASME B18.5 specifications. Length is measured from under the head.

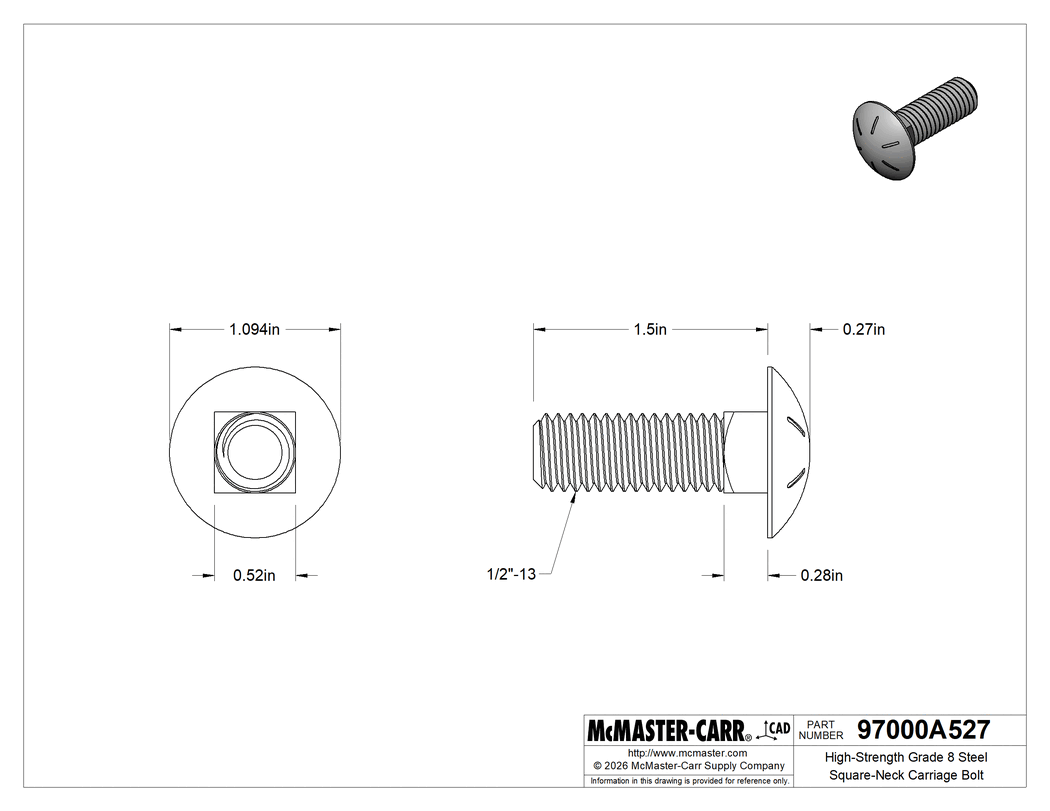

The information in this 3-D model is provided for reference only.
