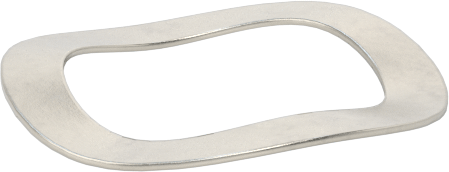

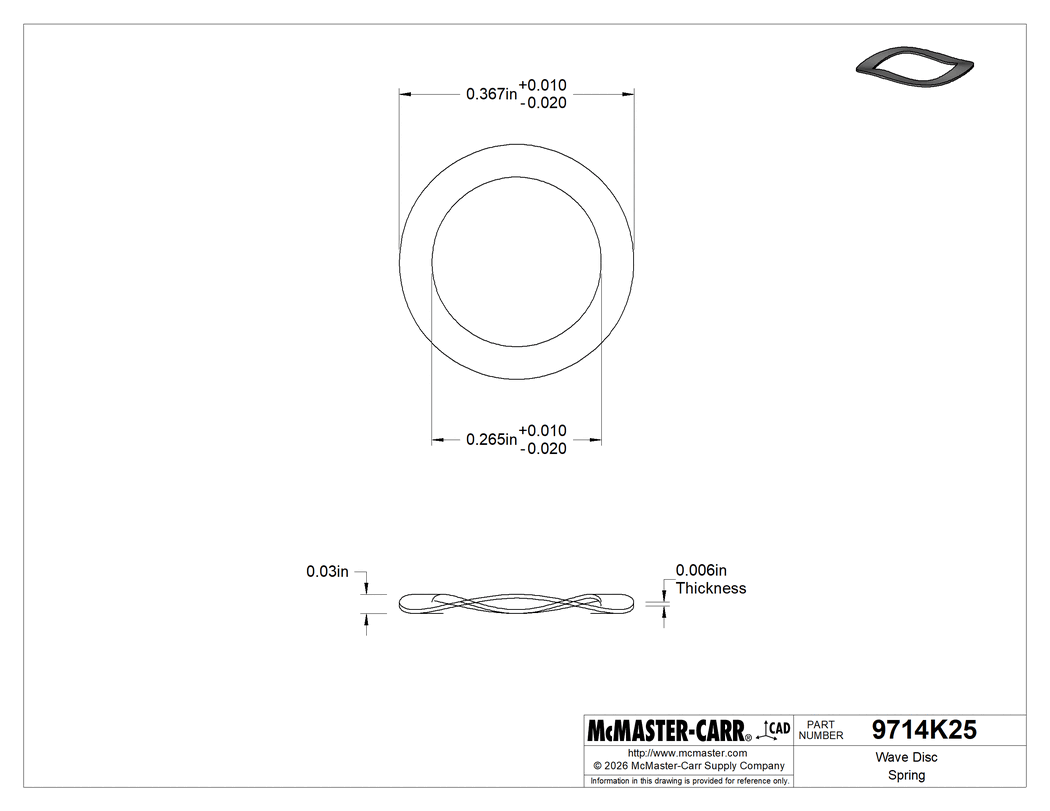

Wave Disc Spring
Corrosion-Resistant, 0.265" ID, 0.367" OD, 0.006" Thick
ID | 0.265" |
ID Tolerance | -0.02" to 0.01" |
OD | 0.367" |
OD Tolerance | -0.02" to 0.01" |
Thickness | 0.006" |
Height | 0.03" |
Compressed Height @ Working Load | 0.015" |
Deflection @ Working Load | 0.015" |
Working Load | 3 lb. |
Material | 302 Stainless Steel |
Disc Spring Type | Wave |
Performance | Corrosion Resistant, Stackable |
Spring Type | Disc |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 732090.5060 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Multiple contact points spread the load evenly, so these springs balance support better than curved disc springs. They also handle higher thrust loads than wave spring lock washers.
To increase your working load, nest multiple springs on top of each other. Multiply the working load by the number of springs to find your new total. If you need to increase both working load and deflection, consider Stacked Wave Disc Springs instead.
Corrosion-Resistant Stainless Steel—Won't corrode when exposed to moisture or mild chemicals, such as ammonia found in cleaning solutions. These springs compress more easily than steel springs, but they're not as strong.
