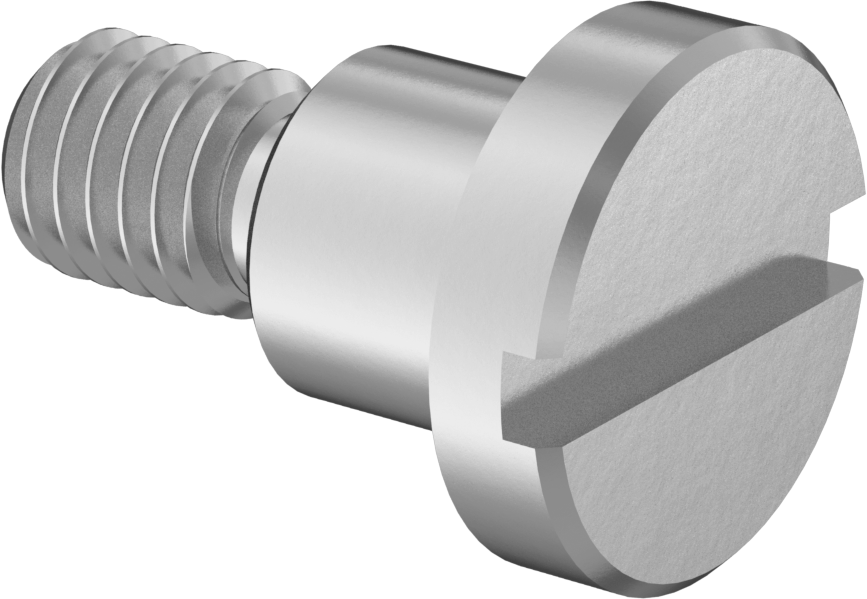

Slotted 18-8 Stainless Steel Precision Shoulder Screw
Low Profile, 7 mm Diameter, 6 mm Long, M5 x 0.80 mm Thread
Shoulder Fit | Precise |
Thread Direction | Right Hand |
Socket Head Profile | Low |
Fastener Head Type | Socket |
Drive Style | Slotted |
Material | 18-8 Stainless Steel |
Shoulder Diameter | 7 mm |
Shoulder Diameter Tolerance | -0.036 mm to 0 mm |
Shoulder Length | 6 mm |
Shoulder Length Tolerance | 0.07 mm to 0.15 mm |
Thread Size | M5 × 0.8 mm |
Thread Length | 7 mm |
Head | |
Diameter | 11 mm |
Height | 2.7 mm |
Tensile Strength | 70,000 psi |
Specifications Met | DIN 923 |
Hardness | Rockwell B55 |
Head Texture | Smooth |
Minimum Shear Strength | Not Rated |
Performance | Corrosion Resistant, Precision |
Relative Thread Length | Standard |
Relative Thread Size | Standard |
System of Measurement | Metric |
Thread Fit | Metric Class 6g |
Thread Spacing | Coarse |
Thread Type | Metric |
Country of Origin | United States |
DFARS Compliance | Specialty Metals Compliant (252.225-7009) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Fit these slotted screws into tight spaces in corrosive environments. The head is about one-half to two-thirds the height of standard-profile screw heads, so they're not suited for high-strength fastening. They are engineered to tight tolerances for assemblies that require smooth and accurate movement, with shoulder diameters twice as precise as those on standard-fit screws. Hand-tighten with a slotted screwdriver to avoid damaging the drive.
18-8 Stainless Steel—The choice for wet and outdoor environments, these screws won't rust. However, they won't hold up to the harsh chemicals that 316 stainless steel can.

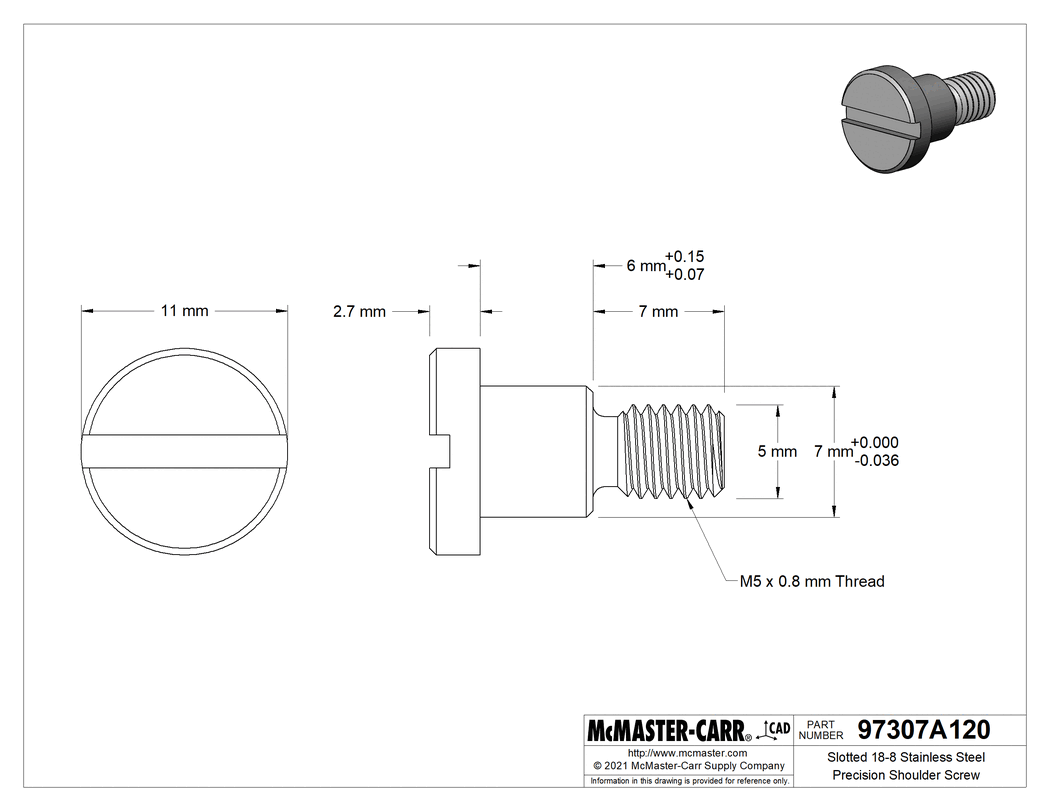

The information in this 3-D model is provided for reference only.
