    1008-1010 Carbon Steel Wide-Rim Shim

    Zinc-Plated, 0.134" Thick x 1-1/4" ID x 1-7/8" OD

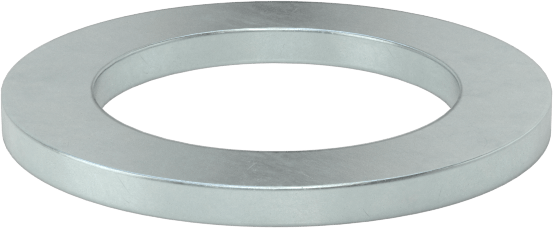

    Image of Product. Bottom orientation. 1008-1010 Carbon Steel Wide-Rim Shim, Zinc-Plated, 0.134" Thick x 1-1/4" ID x 1-7/8" OD.

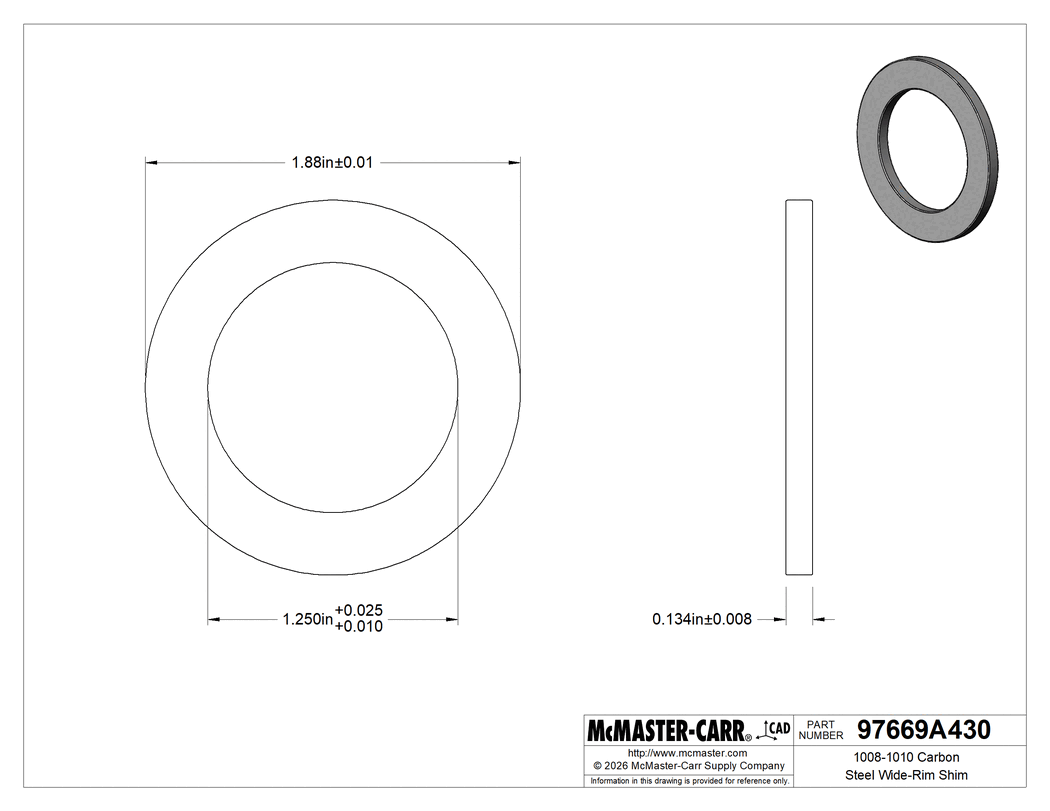

    Technical Drawing of 1008-1010 Carbon Steel Wide-Rim Shim, Zinc-Plated, 0.134" Thick x 1-1/4" ID x 1-7/8" OD.

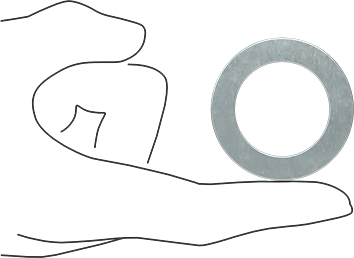

    Image of Product. Side1 orientation. Contains SizingReference. 1008-1010 Carbon Steel Wide-Rim Shim, Zinc-Plated, 0.134" Thick x 1-1/4" ID x 1-7/8" OD.
    2-D PDF
    00000 per pack of 10
    97669A430
    In stock
    97669A430
    00000 per pack of 10
    Pack of 10
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Relative Rim Width

    Wide

    Shape

    Round

    For Shaft Type

    Round

    ID

    1 1/4"

    ID Tolerance

    0.01" to 0.025"

    OD

    1 7/8"

    OD Tolerance

    -0.01" to 0.01"

    Thickness

    0.134"

    Thickness Tolerance

    -0.008" to 0.008"

    Minimum Hardness

    Rockwell B38

    Magnetic Properties

    Magnetic

    Material

    Zinc-Plated 1008-1010 Low-Carbon Steel

    Performance

    Corrosion Resistant, Precision Adjust

    System of Measurement

    Inch

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731822.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    You can stack multiple shims to achieve your exact thickness, but stacking more than four may cause them to shift. Remember, fewer shims are better, so a couple of thicker shims are more stable than a bunch of thin shims.

    Spread loads across a wider surface area than standard shims to minimize costly wear between components. With thickness tolerances as fine as a strand of hair, these shims precisely align, space, and level components on shafts, arbors, and machinery.

    Zinc-Plated Carbon Steel—A common choice for areas with occasional exposure to moisture.

    The information in this 3-D model is provided for reference only.
