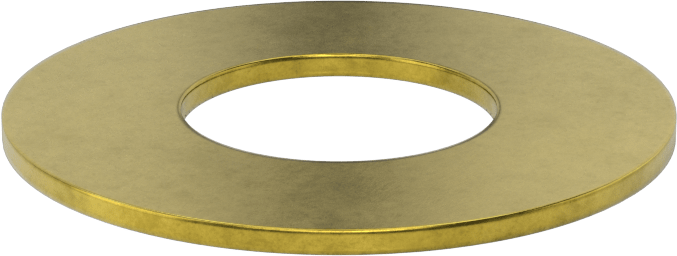

    Zinc Yellow-Chromate Plated Grade 8 Steel SAE Washer

    SAE, for 1-7/8" Screw Size, 2.000" ID, 4.250" OD

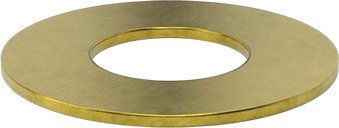

    Image of Product. Bottom orientation. Zinc Yellow-Chromate Plated Grade 8 Steel SAE Washer, SAE, for 1-7/8" Screw Size, 2.000" ID, 4.250" OD.

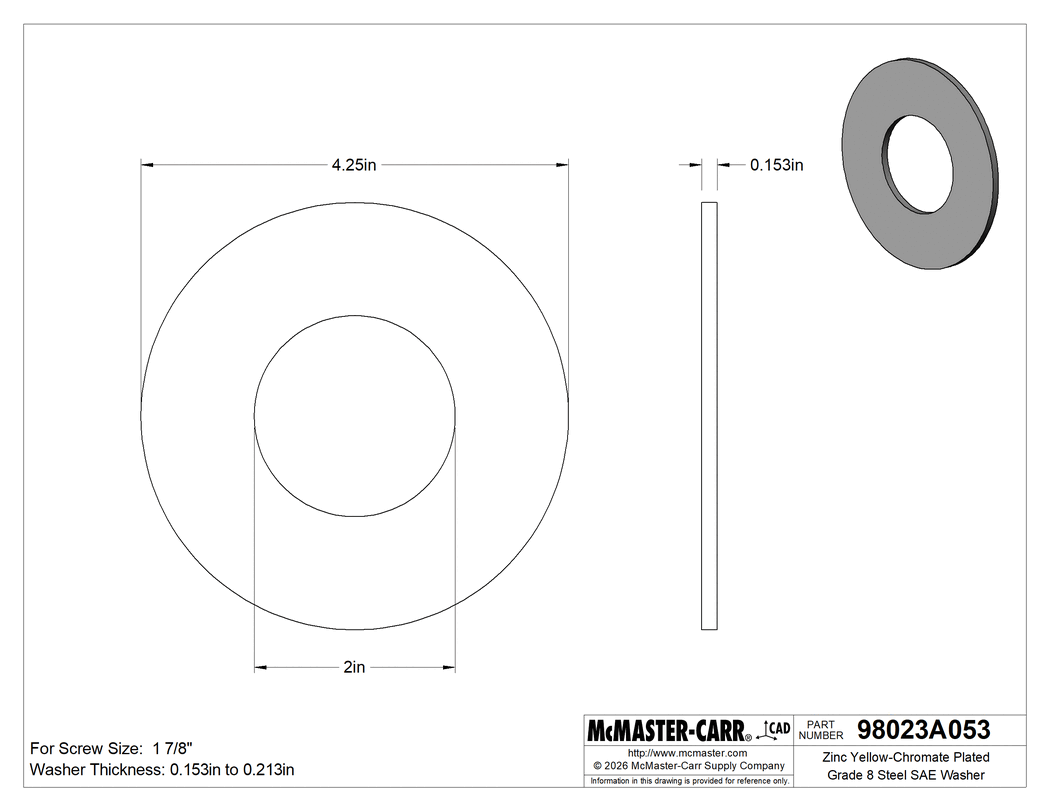

    Technical Drawing of Zinc Yellow-Chromate Plated Grade 8 Steel SAE Washer, SAE, for 1-7/8" Screw Size, 2.000" ID, 4.250" OD.
    Image of Product. Side1 orientation. Contains SizingReference. Zinc Yellow-Chromate Plated Grade 8 Steel SAE Washer, SAE, for 1-7/8" Screw Size, 2.000" ID, 4.250" OD.
    2-D PDF
    00000 per pack of 1
    98023A053
    In stock
    98023A053
    00000 per pack of 1
    Pack of 1
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Washer Designation

    SAE

    Material

    Zinc-Yellow-Chromate-Plated Steel

    For Screw Size

    1 7/8"

    ID

    2.000"

    OD

    4.250"

    Thickness

    0.153" to 0.213"

    For Fastener Strength Grade/Class

    SAE Grade 8

    Specifications Met

    ASME B18.21.1

    Fastener Strength Grade/Class

    SAE Grade 8

    Fastener Strength Rating

    High

    Hardness

    Rockwell C38

    Performance

    High Strength

    System of Measurement

    Inch

    Washer Type

    Flat

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals Compliant (252.225-7008), Specialty Metals Compliant (252.225-7009)

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    731822.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Originally designed for the automotive industry, these washers conform to SAE sizing standards. They generally have smaller diameters than USS washers to fit in cramped spots and are thinner to create more precise gaps. Washers distribute pressure under screws and nuts to protect your mounting surface.

    Zinc-Yellow-Chromate-Plated Steel—With the same corrosion resistance as zinc-plated steel, these withstand occasional exposure to moisture.

    High Strength Fastener—About 25% stronger than medium-strength steel washers, these are commonly used when fastening components in valves, pumps, and motors. Pair them with other high-strength steel nuts and bolts.

    For Fastener Strength Grade/Class—If you require screws or nuts with a specific fastener strength rating, make sure your washer matches the grade or class.
