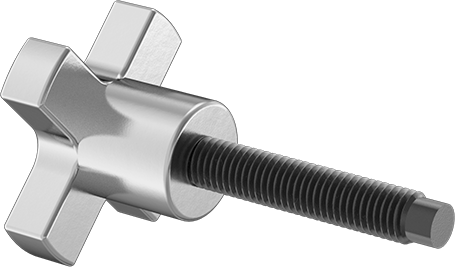

Four-Arm Extended-Tip Thumb Screw
M12 x 1.75 mm Thread Size, 63.5 mm Long
Fastener Head Type | Thumb |
Grip Style | Four Arm |
Tip | |
Type | Extended |
Diameter | 10 mm |
Length | 6.5 mm |
Material | Black-Oxide Steel |
Thread | |
Size | M12 |
Pitch | 1.75 mm |
Direction | Right Hand |
Spacing | Coarse |
Type | Metric |
Fit | Metric Class 6g |
Length | 63.5 mm |
Head | |
Height | 38 mm |
Width | 63.5 mm |
Material | Zinc-Plated Cast Iron |
Collar | |
Diameter | 28.5 mm |
Height | 25.5 mm |
Threading | Fully Threaded |
Tensile Strength | 70,000 psi |
Hardness | Rockwell B84 |
System of Measurement | Metric |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(a)-I |
Schedule B Number | 731815.9000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Four arms and an extended tip help you guide these screws into holes with greater control. The arms of the head have more surface area to grip than knurled-head thumb screws. The extended tip acts like a dowel—it fits into mating holes, aligns and holds parts together, and prevents cross-threading. Use these screws for workpieces that you regularly reposition or align. Also known as dog-point and pilot-point thumb screws.
Length is measured from under the collar.
Black-Oxide Steel—Typically chosen for their appearance, these screws have a dark, matte coating to create a finished look. They offer minimal corrosion resistance, so they're best for dry environments.
