    Compact High-Flow Muffler

    with 2 NPT Male Zinc-Plated Steel Fitting

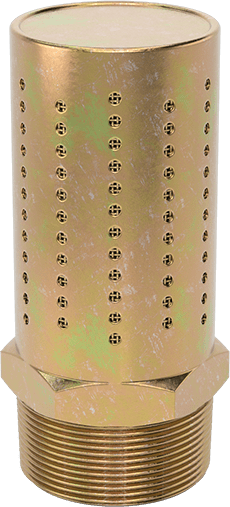

    Image of Product. Top orientation. Compact High-Flow Muffler, with 2 NPT Male Zinc-Plated Steel Fitting.

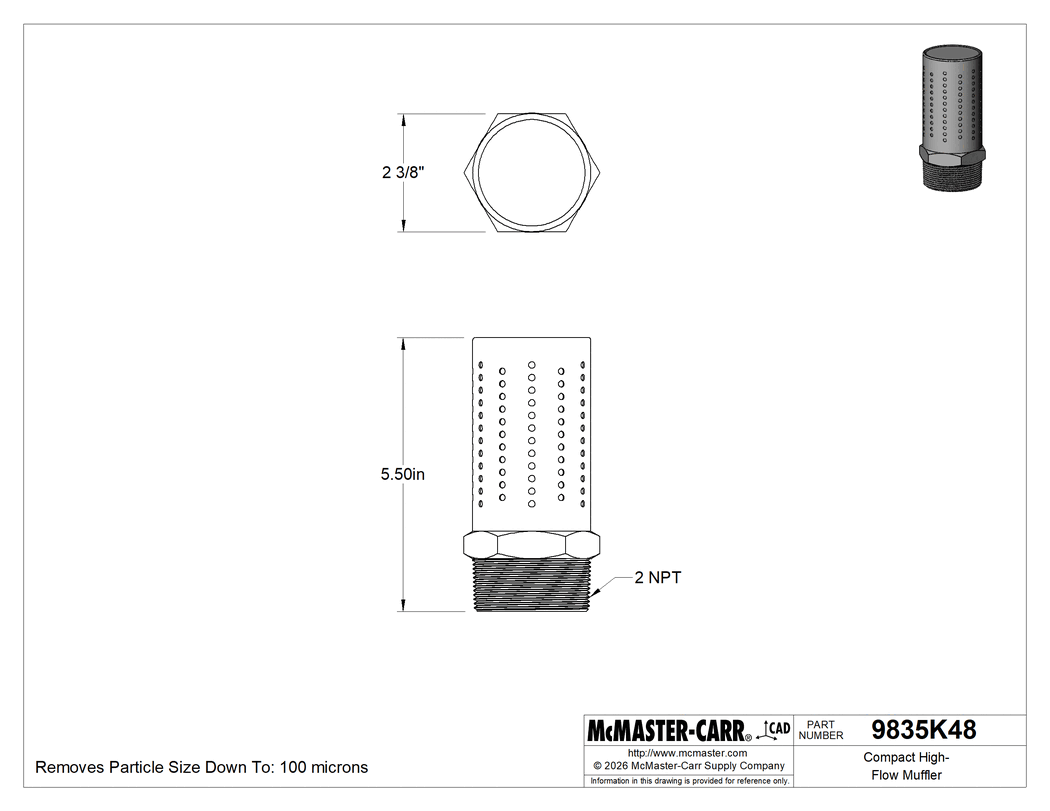

    Technical Drawing of Compact High-Flow Muffler, with 2 NPT Male Zinc-Plated Steel Fitting.
    Image of Product. Top orientation. Compact High-Flow Muffler, with 2 NPT Male Zinc-Plated Steel Fitting.
    Image of Product. Side1 orientation. Contains SizingReference. Compact High-Flow Muffler, with 2 NPT Male Zinc-Plated Steel Fitting.
    2-D PDF
    000000 each
    9835K48
    In stock
    9835K48
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Thread Type

    NPT

    Gender

    Male

    Material

    Body

    Zinc-Plated Steel

    Fitting

    Zinc-Plated Steel

    Filter

    Brass

    Pipe Size

    2

    Maximum Flow Rate @ Pressure

    2,452 scfm @ 100 psi

    Maximum Pressure

    150 psi

    Maximum Temperature

    400° F

    Height

    5 1/2"

    For Use With

    Air, Inert Gas

    Removes Particle Size Down To

    100 μm

    Noise Reduction Rating

    17 dBA to 22 dBA

    Connects To

    Pipe

    Drive Style

    External Hex

    Filter Construction

    Wire Mesh

    Fitting Connection

    Threaded

    For Reducing

    Noise, Particles

    Hex Size

    2 3/8"

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    841490.9100

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    A small hex size makes these high-flow mufflers a good fit for cramped spaces. Commonly used with high-flow, air-powered equipment, such as diaphragm pumps and valves, they reduce noise and filter exhaust fumes without restricting flow.

    The information in this 3-D model is provided for reference only.
