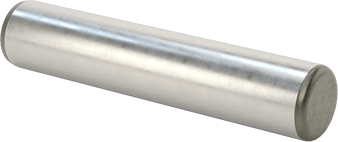

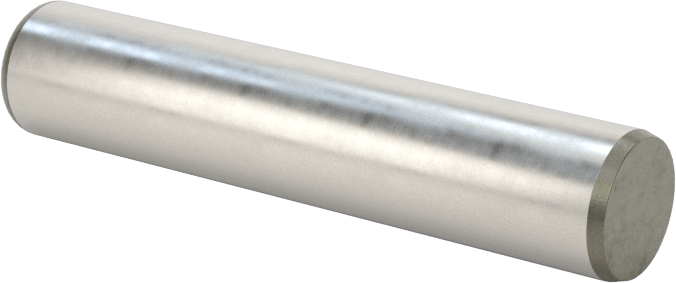

Dowel Pin
Alloy Steel, 1/4" Diameter, 1-1/4" Long
Tolerance Rating | Standard |
Fastener Head Type | Plain |
Material | Alloy Steel |
Diameter | 1/4" |
Diameter Tolerance | 0.0001" to 0.0003" |
Length | 1 1/4" |
Double Shear Breaking Strength | 10,000 lbf |
Minimum Hardness | Rockwell C47 |
Specifications Met | ASME B18.8.2 |
End Shape | Round × Chamfer |
End Type | Plain |
Performance | High Strength |
Pin Type | Dowel |
Shaft Type | Plain |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals Compliant (252.225-7008) |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/05/2025, 251 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731829.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Precisely align machine parts and prevent movement during assembly. These dowel pins are machined to tight tolerances and have a uniform diameter for a snug fit. They can also be used as a pivot, shaft, or hinge to join moving components. Since dowel pins can be hard to remove, they are best suited for permanent fixtures that don't require frequent adjustments or disassembly.
High-Strength Alloy Steel—Our strongest, most wear-resistant pins, these won't bend or break from vibration. Use them for high-stress applications, such as mounting and aligning hydraulic cylinders and injection molds. They perform best in dry environments since moisture will cause them to rust.

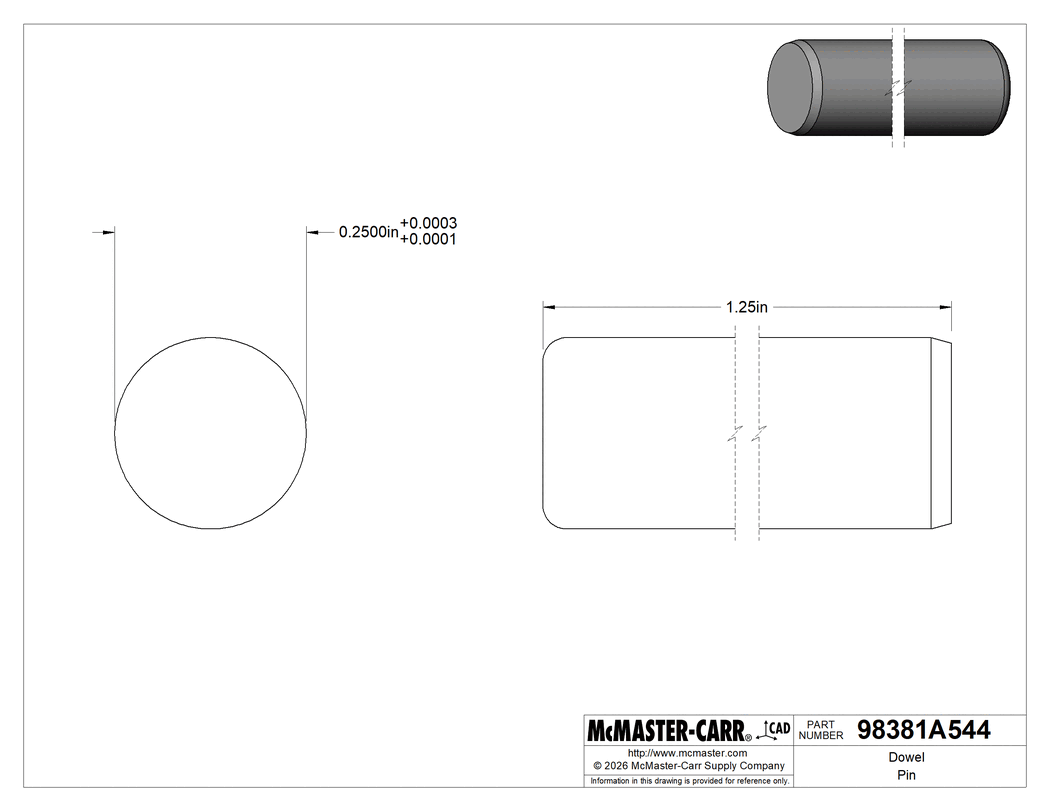

The information in this 3-D model is provided for reference only.
