    18-8 Stainless Steel Female Hex Thread Adapter

    1/4"-28 to M6 x 1 mm Thread Size

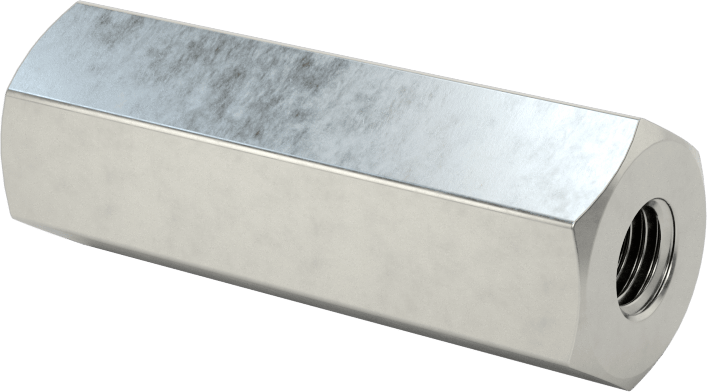

    Image of Product. Front orientation. 18-8 Stainless Steel Female Hex Thread Adapter, 1/4"-28 to M6 x 1 mm Thread Size.

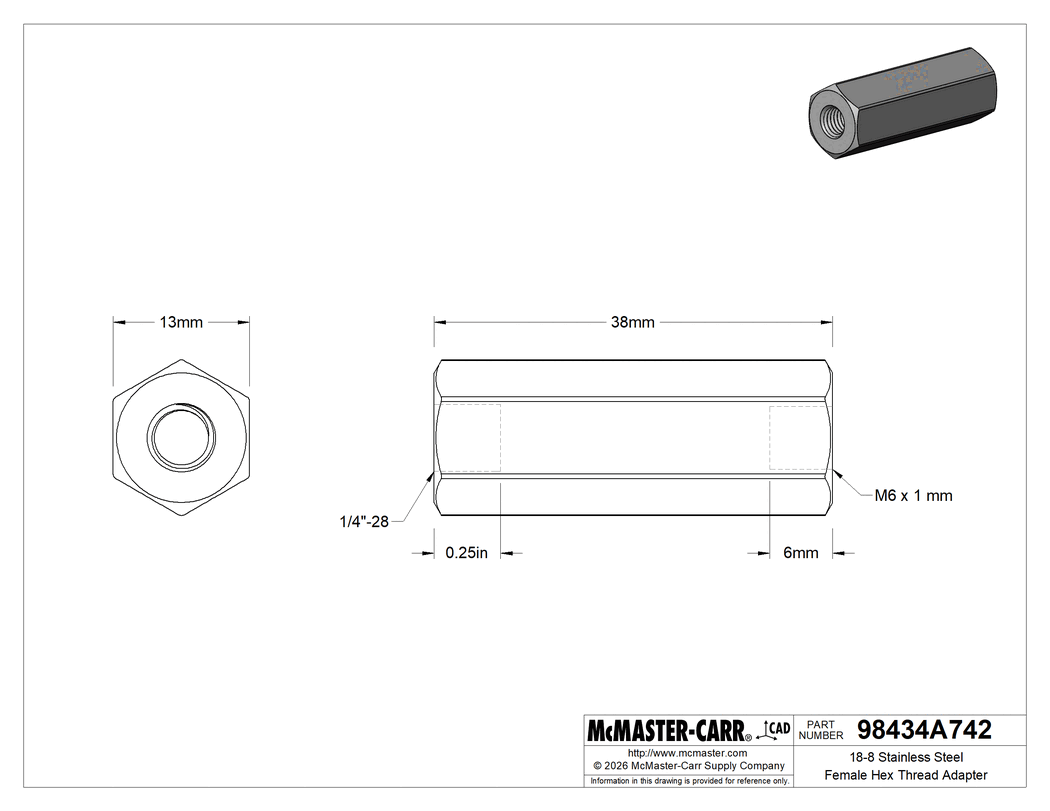

    Technical Drawing of 18-8 Stainless Steel Female Hex Thread Adapter, 1/4"-28 to M6 x 1 mm Thread Size.
    Image of Product. Back orientation. 18-8 Stainless Steel Female Hex Thread Adapter, 1/4"-28 to M6 x 1 mm Thread Size.

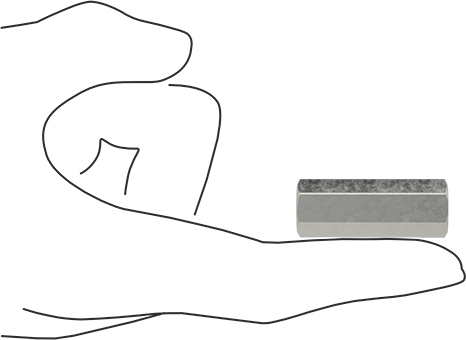

    Image of Product. Side1 orientation. Contains SizingReference. 18-8 Stainless Steel Female Hex Thread Adapter, 1/4"-28 to M6 x 1 mm Thread Size.
    2-D PDF
    000000 each
    98434A742
    In stock
    98434A742
    1-9 each000000
    10 or more000000
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Material

    18-8 Stainless Steel

    Thread Size (A)

    1/4"-28

    Thread Size (B)

    M6 x 1 mm

    Thread Length

    (A)

    1/4"

    (B)

    6 mm

    Thread Fit

    (A)

    Unified Standard Class 2B

    (B)

    Metric Class 6H

    Hex

    Size

    13 mm

    Length

    38 mm

    Specifications Met

    ASTM A582

    Tensile Strength

    85,000 psi

    Hardness

    Rockwell B80

    Drive Style

    External Hex

    For Adapting

    Thread Size

    Gender

    (A)

    Female

    (B)

    Female

    Shape

    Hex

    System of Measurement

    Inch to Metric

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals Compliant (252.225-7009)

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    731816.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Adapt threaded rods from inch to metric. These adapters connect two male-threaded fasteners, so you can change the gender of a mating part or increase or decrease its thread size. The hex-shaped body fits into the head of a standard wrench. Small adapters can also be used as standoffs, positioning and separating circuit boards and other components in assemblies.

    18-8 Stainless Steel—18-8 stainless steel adapters resist corrosion caused by water. They're good for wet and damp environments but will corrode when exposed to salt water and other chloride solutions.

    ASTM A582—Adapters that meet ASTM specifications are made from or plated with materials that adhere to specific standards for chemical and physical properties, such as hardness.

    The information in this 3-D model is provided for reference only.
