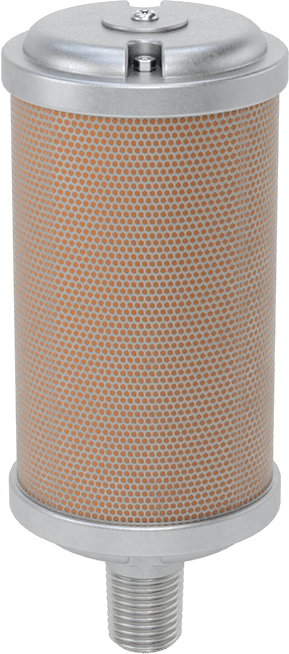

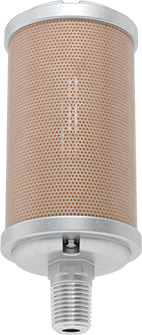

Oil-Mist-Eliminating Muffler
1/4 NPT Male

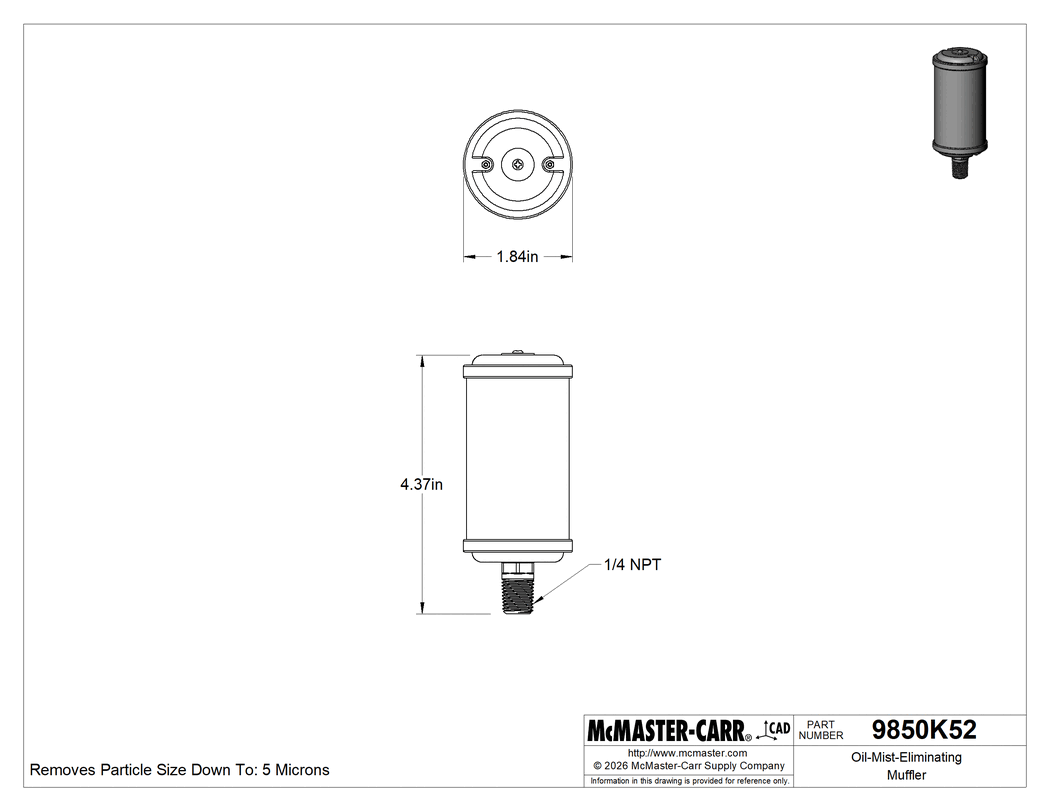

2-D PDF
000000 each
9850K52
In stock
9850K52
000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Connects To | Pipe |
Thread Type | NPT |
Gender | Male |
Material | |
Body | 409 Stainless Steel |
Fitting | Aluminum |
Filter | Polyethylene |
Pipe Size | 1/4 |
Maximum Flow Rate @ Pressure | 92 scfm @ 100 psi |
Maximum Pressure | 125 psi |
Maximum Temperature | 210° F |
Height | 4 3/8" |
Diameter | 1 7/8" |
For Use With | Air, Inert Gas |
Removes Particle Size Down To | 5 μm |
Noise Reduction Rating | 17 dBA to 25 dBA |
Features | Wool Felt Disc |
Fitting Connection | Threaded |
For Reducing | Noise, Oil Mist, Particles |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 841490.9100 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
In addition to a filter, these mufflers have a wool felt disc to trap oil mist. They are often used with vacuum pumps and suction devices to reduce noise and filter exhaust fumes.
The information in this 3-D model is provided for reference only.
