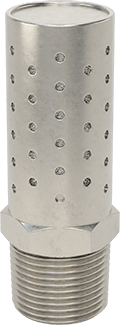

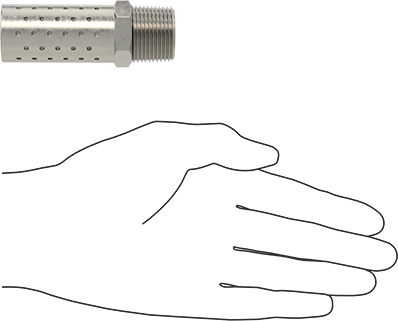

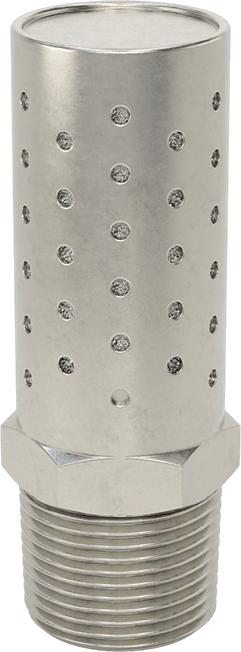

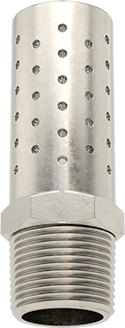

Compact High-Flow Muffler
304 Stainless Steel, 3/4 NPT Male

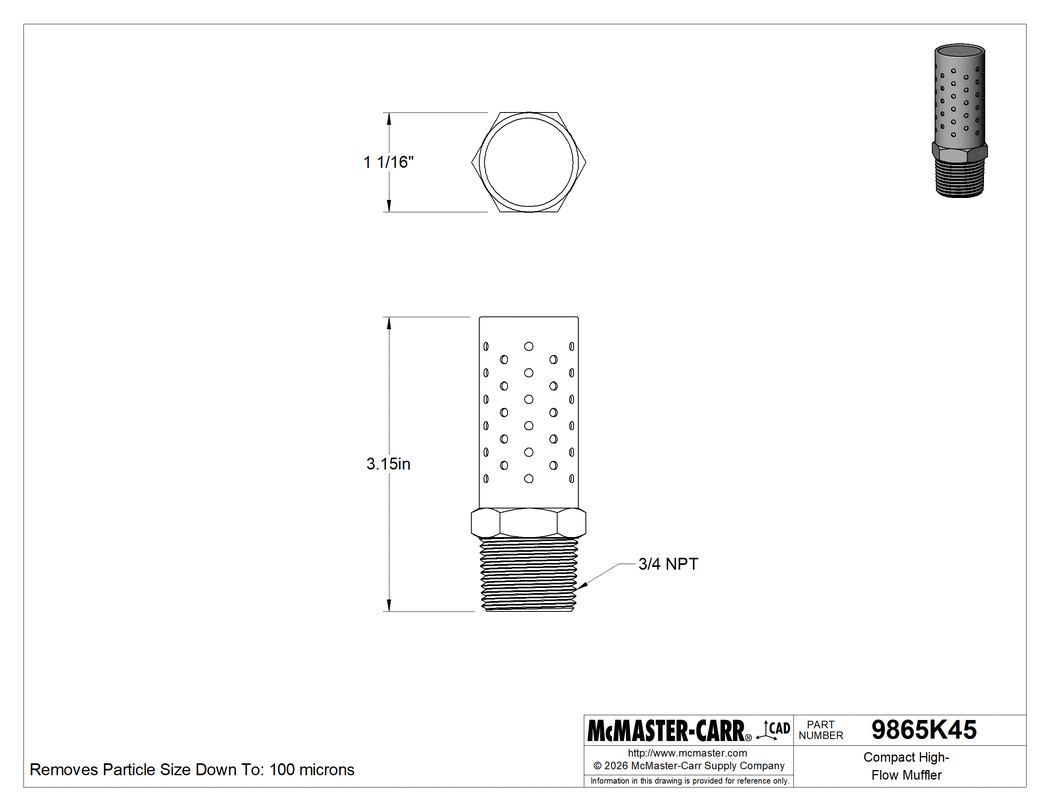

2-D PDF
000000 each
9865K45
In stock
9865K45
000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Thread Type | NPT |
Gender | Male |
Material | |
Body | 304 Stainless Steel |
Fitting | 304 Stainless Steel |
Filter | 304 Stainless Steel |
Pipe Size | 3/4 |
Maximum Flow Rate @ Pressure | 613 scfm @ 100 psi |
Maximum Pressure | 150 psi |
Maximum Temperature | 400° F |
Height | 3 3/16" |
For Use With | Air, Inert Gas |
Removes Particle Size Down To | 100 μm |
Noise Reduction Rating | 17 dBA to 22 dBA |
Connects To | Pipe |
Drive Style | External Hex |
Filter Construction | Wire Mesh |
Fitting Connection | Threaded |
For Reducing | Noise, Particles |
Hex Size | 1 1/16" |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 841490.9100 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
A small hex size makes these high-flow mufflers a good fit for cramped spaces. Commonly used with high-flow, air-powered equipment, such as diaphragm pumps and valves, they reduce noise and filter exhaust fumes without restricting flow.
The information in this 3-D model is provided for reference only.
