    Vibration Damping Unthreaded Spacer

    1" OD, 1" Long, for 1/2" Screw Size

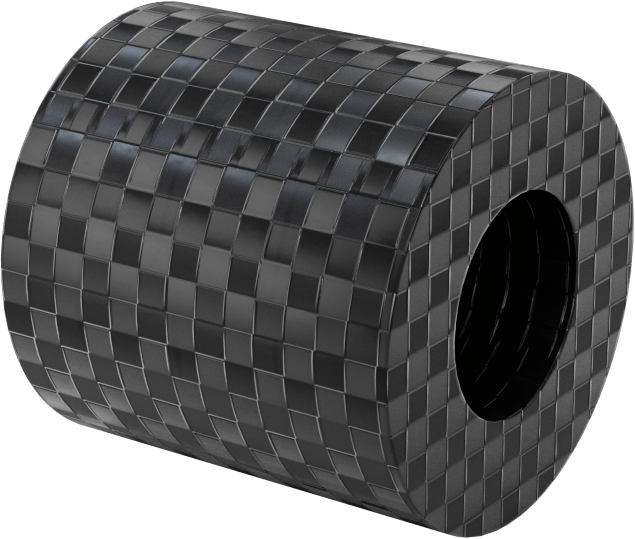

    Image of Product. Front orientation. Vibration Damping Unthreaded Spacer, 1" OD, 1" Long, for 1/2" Screw Size.

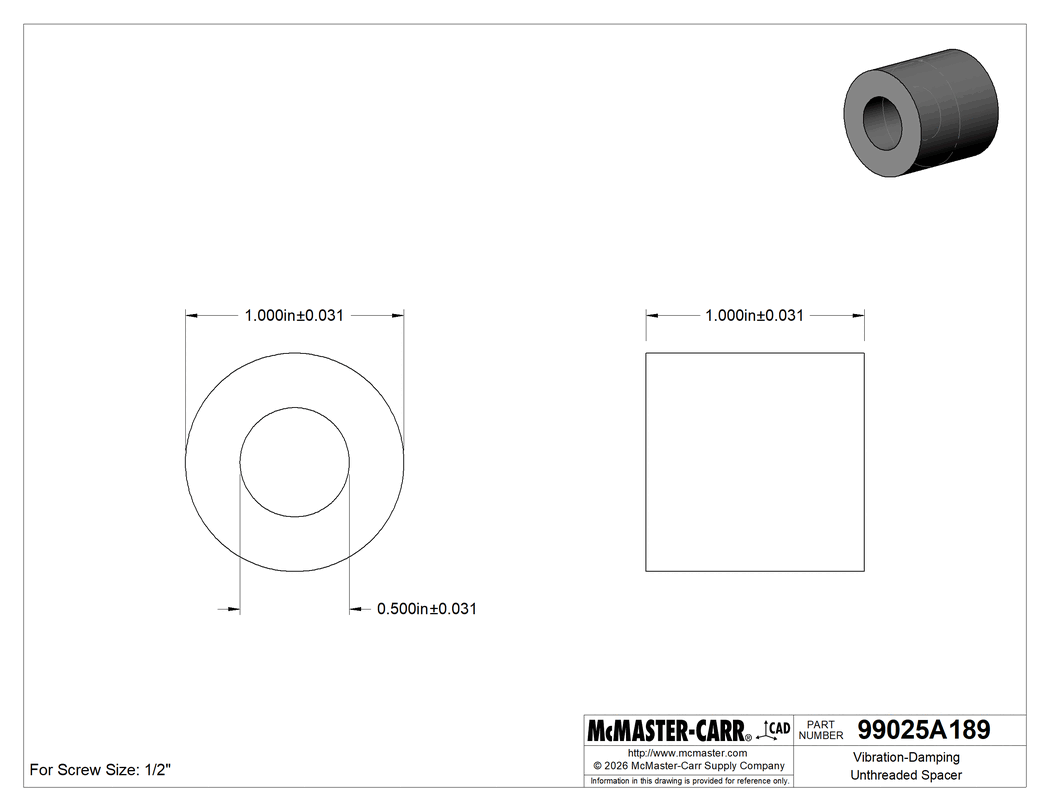

    Technical Drawing of Vibration Damping Unthreaded Spacer, 1" OD, 1" Long, for 1/2" Screw Size.

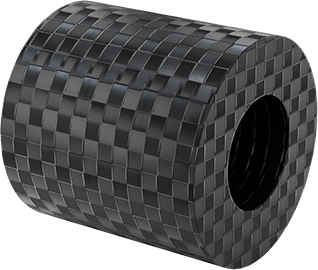

    Image of Product. Front orientation. Vibration Damping Unthreaded Spacer, 1" OD, 1" Long, for 1/2" Screw Size.

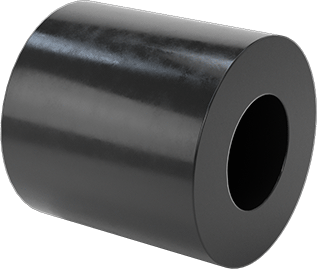

    Image of Product. Side1 orientation. Contains SizingReference. Vibration Damping Unthreaded Spacer, 1" OD, 1" Long, for 1/2" Screw Size.
    2-D PDF
    000000 each
    99025A189
    In stock
    99025A189
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Mount Type

    Unthreaded Hole

    Material

    Fabric-Reinforced Buna-N

    OD

    1"

    OD Tolerance

    -0.031" to 0.031"

    Length

    1"

    Length Tolerance

    -0.031" to 0.031"

    For Screw Size

    1/2"

    ID

    0.500"

    ID Tolerance

    -0.031" to 0.031"

    Temperature Range

    -65° F to 200° F

    Color

    Black

    Hardness

    Durometer 90A

    Performance

    Vibration Damping, Oil Resistant

    Shape

    Round

    System of Measurement

    Inch

    Tensile Strength

    Not Rated

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    401699.6000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Compress between components to absorb vibration, shock, and sound. Made from rubber, these spacers stay flexible under pressure and wide temperature swings. Avoid using them outdoors to prevent cracking.

    Oil-Resistant Fabric-Reinforced Buna-N—Our most oil-resistant spacers won't swell or soften when exposed to oil, grease, or fuel.

    The information in this 3-D model is provided for reference only.
