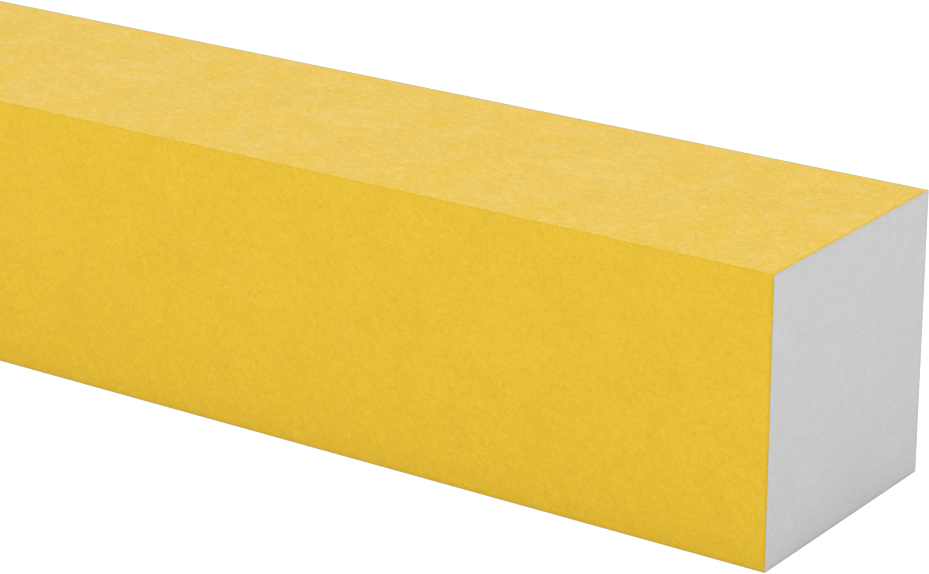

Structural FRP Fiberglass Bar
5 Feet Long, 1-1/4" Thick
Length | 5 ft. |
Length Tolerance | -1/2" to 1/2" |
Thickness | 1 1/4" |
Thickness Tolerance | -0.01" to 0.01" |
Width | 1 1/4" |
Width Tolerance | -1/64" to 1/64" |
Straightness Tolerance | 0.040"/1 ft. |
Color | Yellow |
Temperature Range | -60° F to 140° F |
Tensile Strength | 7,000 psi to 30,000 psi |
Impact Strength | 4 ft·lbf/in to 25 ft·lbf/in |
Hardness | Barcol 50 |
Hardness Rating | Hard |
For Use Outdoors | Yes |
Application | Multipurpose, Structural |
Backing Type | Plain |
Clarity | Opaque |
Compressive Strength Range | 15,000 psi to 30,000 psi |
Density | 0.058 lb/in³ to 0.070 lb/in³ |
Dielectric Strength | 35 V/mil to 200 V/mil |
Environment | Outdoor |
Flexibility | Rigid |
Flexural Strength | 10,000 psi to 30,000 psi |
Material | FRP Fiberglass |
Performance | Extra High Strength, High Strength, Ultra Impact Resistant |
Reinforcement Material | Fiberglass Fabric |
Resin Material | Polyester Plastic |
Shape | Sheet, Bar, Strip |
Texture | Smooth |
Tolerance Rating | Standard |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Water Absorption | 0.05% to 1.1% |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392099.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Additional Specifications |
An alternative to wood in structural applications, these FRP fiberglass sheets, bars, and strips are strong and lightweight. They're made of fiberglass-reinforced polyester.

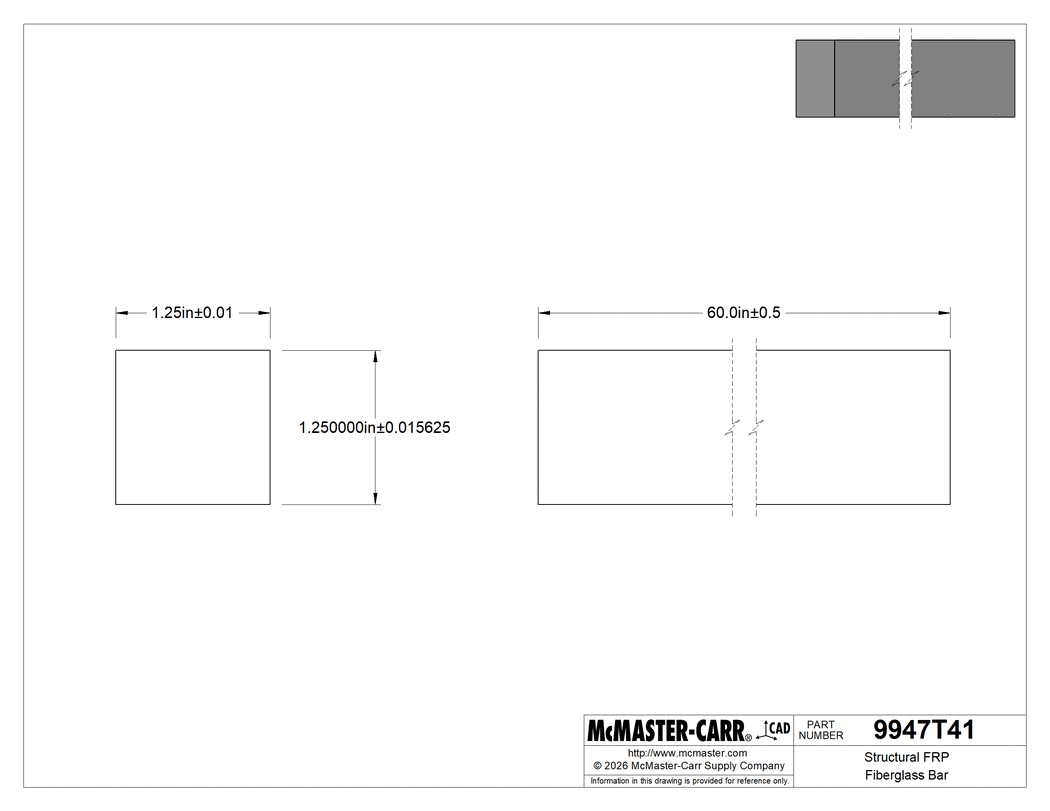

The information in this 3-D model is provided for reference only.
