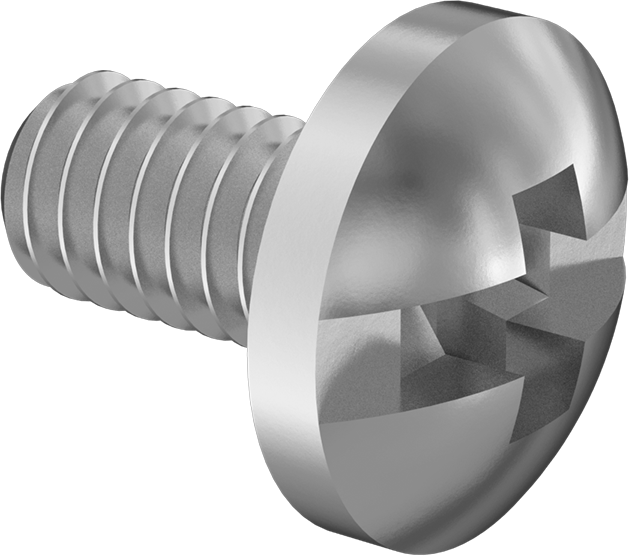

18-8 Stainless Steel Screws for Binding Barrels
8-32 Size

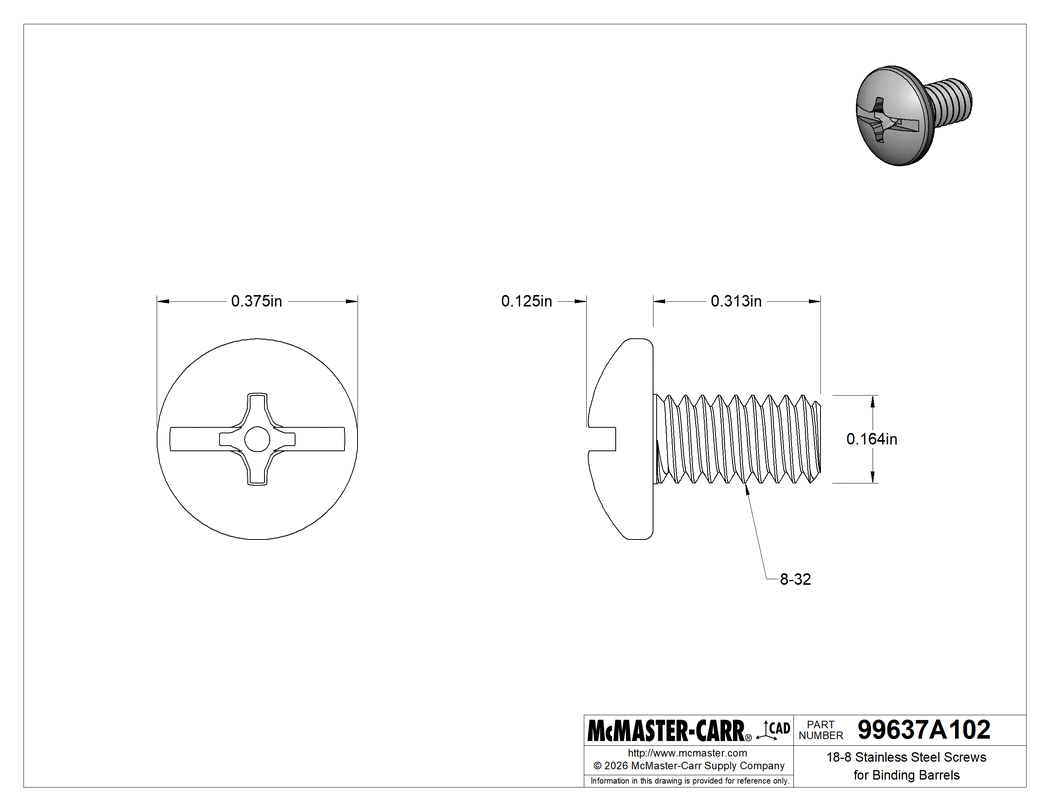

2-D PDF
00000 per pack of 5
99637A102
In stock
99637A102
00000 per pack of 5
Pack of 5
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Material | 18-8 Stainless Steel |
Thread Size | 8-32 |
Screw | |
Length | 5/16" |
Head Diameter | 3/8" |
Head Height | 1/8" |
Drive Style | Slotted/Phillips |
Binding Barrel Component | Screw |
Fastener Head Type | Rounded |
Hardness | Rockwell B80 |
Rounded Head Profile | Wide |
Rounded Head Style | Truss |
Screw Size Decimal Equivalent | 0.164" |
System of Measurement | Inch |
Tensile Strength | Not Rated |
Thread Direction | Right Hand |
Thread Spacing | Coarse |
Thread Type | UNC |
Threading | Fully Threaded |
Country of Origin | Taiwan |
DFARS Compliance | Not Specialty Metals Compliant |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 731819.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Pair these screws with a barrel you already have or couple with a different barrel to create a custom fastener. Made from 18-8 stainless steel, they’re chemical resistant and may be mildly magnetic. Screw length is measured from under the head.
The information in this 3-D model is provided for reference only.
