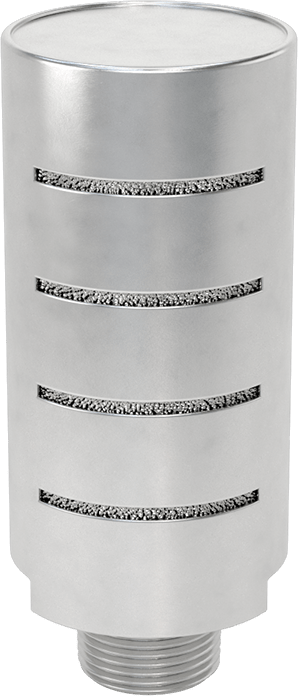

Clog-Resistant Muffler
with 3/4 NPT Male Aluminum Fitting

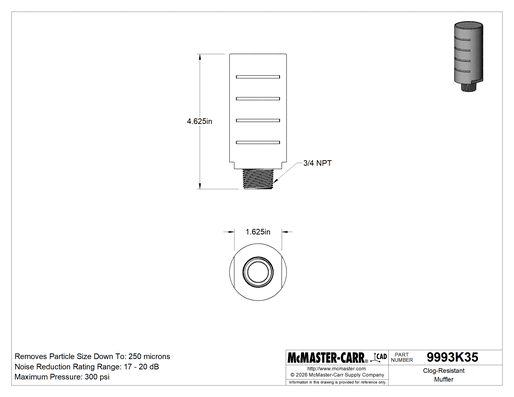

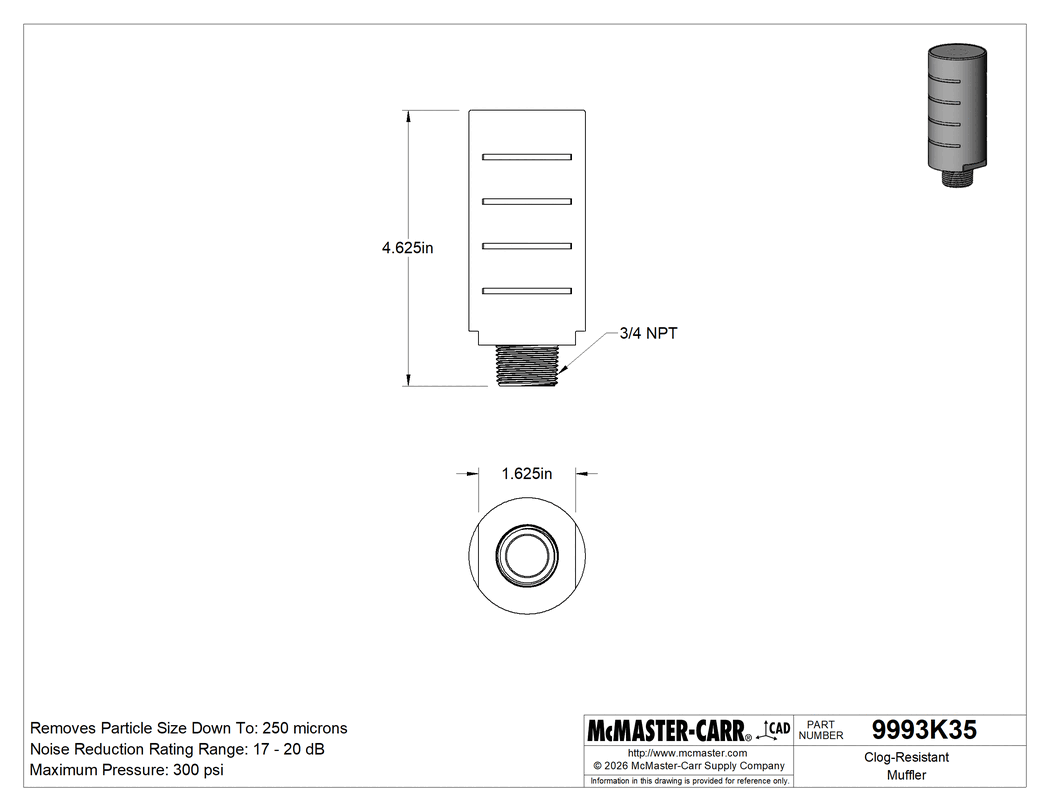

2-D PDF
000000 each
9993K35
In stock
9993K35
000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Connects To | Pipe |
Style | B |
Thread Type | NPT |
Gender | Male |
Material | |
Body | Aluminum |
Fitting | Aluminum |
Filter | 304 Stainless Steel |
Pipe Size | 3/4 |
Maximum Flow Rate @ Pressure | 175 scfm @ 100 psi |
Maximum Pressure | 300 psi |
Maximum Temperature | 160° F |
Height | 4 5/8" |
For Use With | Air |
Removes Particle Size Down To | 250 μm |
Noise Reduction Rating | 17 dB to 20 dB |
Filter Construction | Wire Mesh |
Fitting Connection | Threaded |
For Reducing | Noise, Particles |
Hex Size | 1 5/8" |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 842139.0190 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Replace your muffler less often—these have a filter design that stays clean longer than porous mufflers. They’re often used in air-powered circuits to reduce noise and filter exhaust fumes.
The information in this 3-D model is provided for reference only.
