Plastic Pipe Fitting for Oil

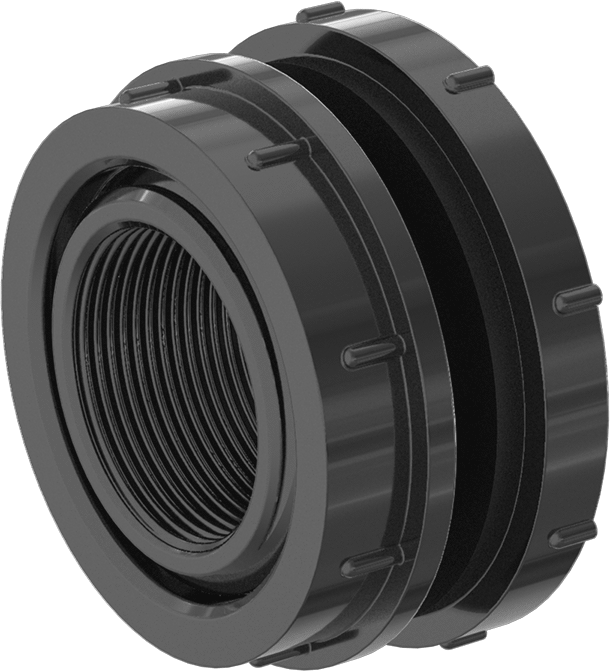

Through-Wall Straight Connector, 1-1/2 NPT
For Use With | Oil |
Shape | Straight |
Mount Type | Through Wall |
Type | Connector |
Connection Type | Pipe |
Connection Style | Threaded |
Mounting Location | Tank |
Tank Connection Type | Threaded |
For Tank Surface | Flat, Curved |
Thread Type | NPT |
Gender | Female |
Pipe Size | 1 1/2 |
For Hole Diameter | 2 5/8" |
For Maximum Wall Thickness | 9/16" |
Length | 1 3/4" |
Material | Polyethylene Plastic |
Color | Black |
Gasket Material | EPDM Rubber |
Maximum Pressure | 120 psi @ 72° F |
Temperature Range | -20° to 140° F |
RoHS | RoHS 3 (2015/863/EU) Compliant |
REACH | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
DFARS | Specialty Metals COTS-Exempt |
Country of Origin | United States |
USMCA Qualifying | Yes |
Schedule B | 391740.0000 |
ECCN | EAR99 |
Related Product |
Made of corrosion-resistant plastic, these fittings won’t deteriorate when used in oil applications. They also have high strength and impact resistance. Apply a non-hardening, plastic-compatible sealant to the male threads to prevent leaks. Tape or sealants with PTFE are not recommended for plastic-to-plastic threaded connections. When making a threaded connection be careful not to overtighten the threads. To prevent cracks and leaks, finger tighten the fitting, then wrench-tighten one to two turns.
Through-wall fittings are also known as bulkhead couplings and panel-mount couplings; they mount through a wall, tank, or panel to create an inlet or outlet for faucets, pipes, and spigots. They are for use on flat and curved surfaces.
Warning: Never use plastic pipe fittings and pipe with compressed air or gas.

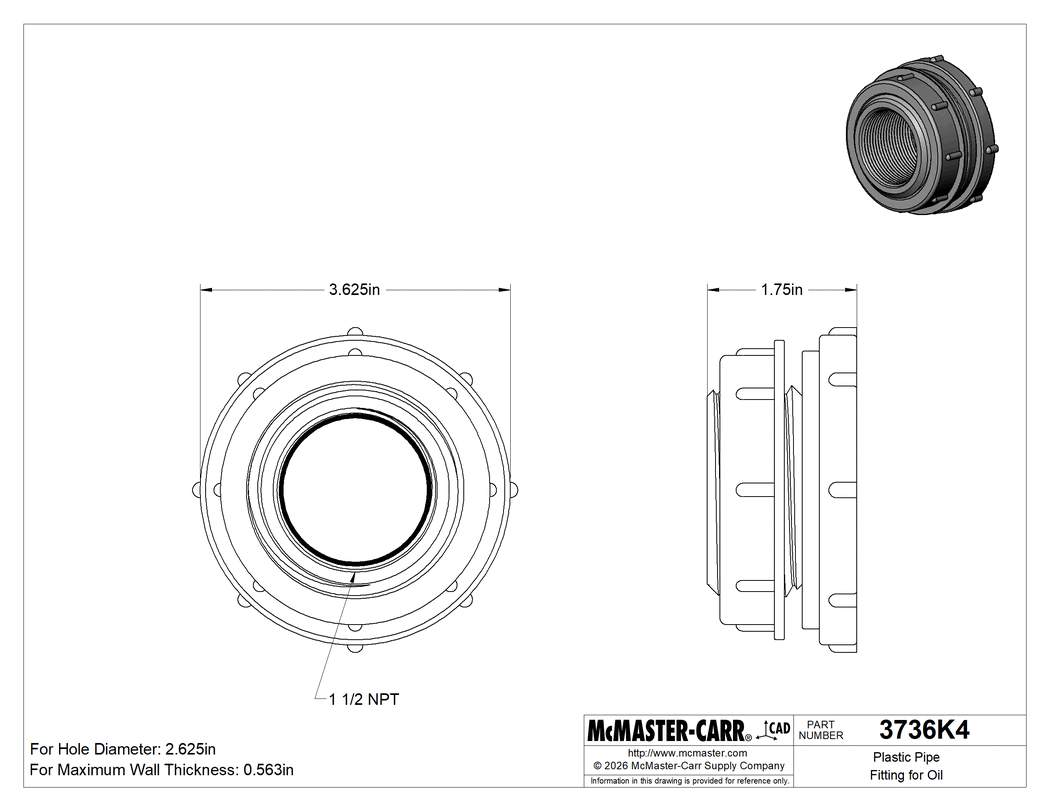

The information in this 3-D model is provided for reference only.
