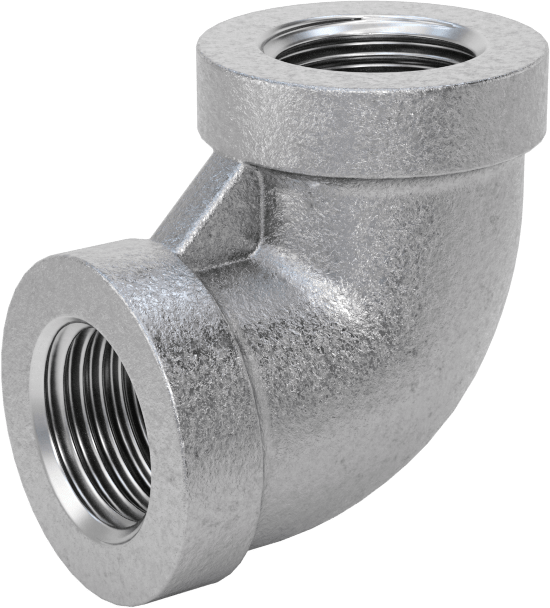

Low-Pressure Pipe Fitting
Galvanized Iron, 90 Degree Elbow Connector, 1/4 NPT Female

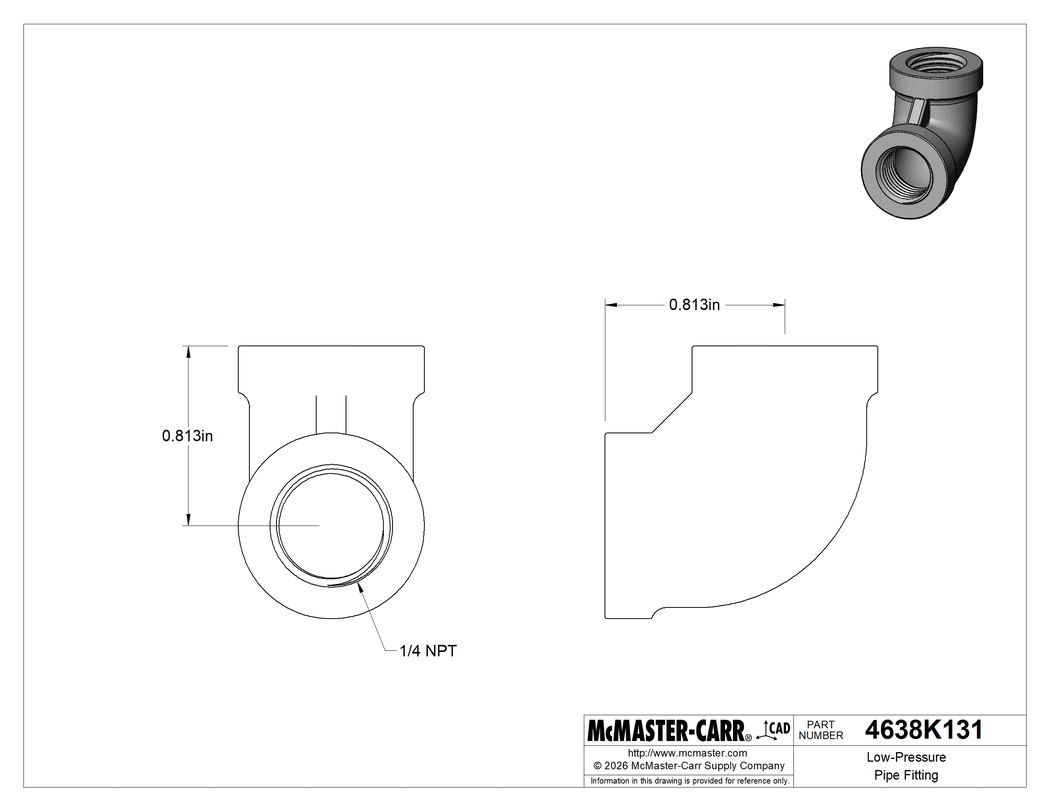

2-D PDF
$6.31 Each
In stock
4638K131
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
For Use With | Air, Natural Gas, Oil, Steam, Water |
Shape | 90° Elbow |
Type | Connector |
Pressure Class | 150 |
Connection Type | Pipe |
Connection Style | Threaded |
Connection | NPT Female |
Pipe Size | 1/4 |
Maximum Pressure | 150 psi @ 72° F |
Maximum Steam Pressure | 150 psi @ 350° F |
Material | Galvanized Iron |
For Pipe | |
Schedule | 40 |
Material | Galvanized Steel |
For Flange | |
Class | 150 |
Material | Galvanized Steel |
Specifications Met | ASME B1.20.1, ASME B16.3, ASTM A197, UL Listed |
Weight | 0.118 lbs. |
RoHS | RoHS 3 (2015/863/EU) Compliant |
REACH | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
DFARS | Specialty Metals COTS-Exempt |
Country of Origin | United States |
USMCA Qualifying | Yes |
Schedule B | 730719.9090 |
ECCN | EAR99 |
The galvanized finish on these fittings provides fair corrosion resistance. Fittings are for use in low-pressure applications.
The information in this 3-D model is provided for reference only.
