About Pipe and Fittings

Measure your pipe and fittings to identify their pipe size, thread size, schedule, and thread type. Then, find compatible components.

UV-Resistant Polypropylene Pipe Fittings for Chemicals

Made of polypropylene, these fittings won’t deteriorate when exposed to the damaging effects of ultraviolet light and are suitable to use outdoors. They have the chemical resistance to withstand a wide variety of acids, solvents, and other harsh substances.

To prevent leaks in threaded connections, apply a sealant to the male threads. Threaded connections can be taken apart as needed for maintenance and repair. For metal threads, use PTFE tape. For plastic threads, apply a non-hardening, plastic-compatible sealant. Tape or sealants with PTFE are not recommended for plastic-to-plastic connections. When making a threaded connection be careful not to overtighten the threads. To prevent cracks and leaks, finger tighten the fitting, then wrench-tighten one to two turns.

Straight Connectors

	Pipe Schedule	Body Shape	Material	Color	Max. Pressure @ Temp.		Each
NPT Female
Round Body


	1/4	80	Round	Polypropylene	Black	225 psi @ 72° F	46885K561	00000


	3/8	80	Round	Polypropylene	Black	300 psi @ 72° F	46885K181	0000
	1/2	80	Round	Polypropylene	Black	300 psi @ 72° F	46885K182	0000
	3/4	80	Round	Polypropylene	Black	300 psi @ 72° F	46885K183	0000
	1	80	Round	Polypropylene	Black	300 psi @ 72° F	46885K184	0000
	1 1/4	80	Round	Polypropylene	Black	300 psi @ 72° F	46885K185	0000
	1 1/2	80	Round	Polypropylene	Black	300 psi @ 72° F	46885K186	00000
	2	80	Round	Polypropylene	Black	300 psi @ 72° F	46885K187	00000
	3	80	Round	Polypropylene	Black	225 psi @ 72° F	46885K188	00000


	NPT Male
	Hex Body Round Body


			1/4	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K41	0000


			3/8	80	Hex	Polypropylene	Black	300 psi @ 72° F	46825K11	0000
			1/2	80	Hex	Polypropylene	Black	300 psi @ 72° F	46825K21	0000
			1/2	80	Round	Polypropylene	Black	225 psi @ 72° F	46885K562	0000
			3/4	80	Hex	Polypropylene	Black	300 psi @ 72° F	46825K31	0000
			3/4	80	Round	Polypropylene	Black	300 psi @ 72° F	46825K35	0000
			3/4	80	Round	Polypropylene	Black	300 psi @ 72° F	46825K37	0000
			1	80	Hex	Polypropylene	Black	300 psi @ 72° F	46825K41	0000
			1	80	Round	Polypropylene	Black	300 psi @ 72° F	46825K45	0000
			1	80	Round	Polypropylene	Black	300 psi @ 72° F	46825K47	0000
			1 1/4	80	Hex	Polypropylene	Black	300 psi @ 72° F	46825K51	0000


			1 1/4	80	Round	Polypropylene	Black	300 psi @ 72° F	46825K55	0000
			1 1/4	80	Round	Polypropylene	Black	300 psi @ 72° F	46825K57	0000
			1 1/2	80	Hex	Polypropylene	Black	300 psi @ 72° F	46825K61	0000
			1 1/2	80	Round	Polypropylene	Black	300 psi @ 72° F	46825K65	00000
			1 1/2	80	Round	Polypropylene	Black	300 psi @ 72° F	46825K67	00000
			2	80	Hex	Polypropylene	Black	300 psi @ 72° F	46825K71	0000
			2	80	Round	Polypropylene	Black	300 psi @ 72° F	46825K75	00000
			2	80	Round	Polypropylene	Black	300 psi @ 72° F	46825K77	00000
			3	80	Round	Polypropylene	Black	300 psi @ 72° F	46825K81	00000
			3	80	Round	Polypropylene	Black	300 psi @ 72° F	46825K85	00000


			3	80	Round	Polypropylene	Black	300 psi @ 72° F	46825K87	00000
			4	80	Round	Polypropylene	Black	300 psi @ 72° F	46885K42	00000

Through-Wall Straight Connectors for Tanks with Gasket

NPT Female

Through-wall fittings are also known as bulkhead couplings; they mount through your wall or tank to create an inlet or outlet. When installing, the gasket should be on the inside of the wall.

Fittings for tanks create an inlet or outlet connection on the surface of any tank, pressure vessel, or drum.

	For Hole Dia.	For Max. Wall Thk.	For Tank Surface	Body Shape	Material	Color	Max. Pressure @ Temp.	Gasket Material		Each
NPT Female



	1/2	1 3/8"	2 1/16"	Curved, Flat	Hex	Polypropylene	White	150 psi @ 72° F	EPDM	36895K141	000000


	3/4	1 5/8"	2 1/16"	Curved, Flat	Hex	Polypropylene	White	150 psi @ 72° F	EPDM	36895K142	00000
	1	1 7/8"	2 1/16"	Curved, Flat	Hex	Polypropylene	White	150 psi @ 72° F	EPDM	36895K143	00000
	1 1/4	2 5/8"	2"	Curved, Flat	Hex	Polypropylene	White	150 psi @ 72° F	EPDM	36895K144	00000
	1 1/2	2 5/8"	2"	Curved, Flat	Hex	Polypropylene	White	150 psi @ 72° F	EPDM	36895K145	00000
	2	3 1/4"	2"	Curved, Flat	Hex	Polypropylene	White	150 psi @ 72° F	EPDM	36895K146	00000
	3	4 1/2"	2 1/8"	Curved, Flat	Hex	Polypropylene	White	150 psi @ 72° F	EPDM	36895K147	000000
	4	5 3/4"	2 7/16"	Curved, Flat	Hex	Polypropylene	White	150 psi @ 72° F	EPDM	36895K148	000000

Intermittent-Swivel Straight Adapters

NPT Female × NPT

Male

Fittings with intermittent swivel rotate 360° for easy installation.

	Pipe Size
	(A)	(B)	Pipe Schedule	Body Shape	Material	Color	Max. Pressure @ Temp.		Each
NPT Female × NPT Male



		1	1	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K391	000000


		1 1/2	1 1/2	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K392	00000
		2	2	80	Hex	Polypropylene	Black	150 psi @ 72° F	46885K393	00000

Bushing Straight Reducing Adapters


NPT Male × NPT Female with Hex Body	NPT Male × NPT Female with Round Body

	Pipe Size
	(A)	(B)	Pipe Schedule	Body Shape	Material	Color	Max. Pressure @ Temp.		Each
NPT Male × NPT Female



		1/4	1/8	80	Hex	Polypropylene	Black	150 psi @ 72° F	46885K405	00000


		3/8	1/8	80	Hex	Polypropylene	Black	150 psi @ 72° F	46885K404	0000
		3/8	1/4	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K251	0000
		1/2	1/8	80	Hex	Polypropylene	Black	150 psi @ 72° F	46885K406	0000
		1/2	1/4	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K252	0000
		1/2	3/8	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K253	0000
		3/4	1/8	80	Hex	Polypropylene	Black	150 psi @ 72° F	46885K254	0000
		3/4	1/4	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K255	0000
		3/4	3/8	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K256	0000
		3/4	1/2	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K257	0000
		1	1/4	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K259	0000


		1	1/2	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K261	0000
		1	3/4	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K262	0000
		1 1/4	3/4	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K263	0000
		1 1/4	1	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K264	0000
		1 1/2	3/4	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K265	0000
		1 1/2	1	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K266	0000
		1 1/2	1 1/4	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K267	0000
		2	3/4	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K268	0000
		2	1	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K271	0000
		2	1 1/4	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K272	0000


		2	1 1/2	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K273	0000
		3	1 1/2	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K274	00000
		3	2	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K275	00000
		4	3	80	Round	Polypropylene	Black	300 psi @ 72° F	46885K276	00000

Straight Reducers

	Pipe Size
	(A)	(B)	Pipe Schedule	Body Shape	Material	Color	Max. Pressure @ Temp.		Each
NPT Female × NPT Female
Round Body


		1	3/4	80	Round	Polypropylene	Black	300 psi @ 72° F	46885K221	00000


		1 1/2	1	80	Round	Polypropylene	Black	300 psi @ 72° F	46885K222	0000
		1 1/2	1 1/4	80	Round	Polypropylene	Black	300 psi @ 72° F	46885K223	0000
		2	1/2	80	Round	Polypropylene	Black	300 psi @ 72° F	46885K228	00000
		2	1	80	Round	Polypropylene	Black	300 psi @ 72° F	46885K224	00000
		2	1 1/4	80	Round	Polypropylene	Black	300 psi @ 72° F	46885K225	00000
		2	1 1/2	80	Round	Polypropylene	Black	300 psi @ 72° F	46885K226	00000
		3	2	80	Round	Polypropylene	Black	300 psi @ 72° F	46885K227	00000


		NPT Male × NPT Male
		Hex Body Square Body


				1/4	3/8	80	Hex	Polypropylene	Black	150 psi @ 72° F	46885K402	0000


				1/2	1/4	80	Square	Polypropylene	Black	150 psi @ 72° F	46885K403	0000
				1/2	3/8	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K301	0000
				3/4	3/8	80	Hex	Polypropylene	Black	150 psi @ 72° F	46885K401	0000
				3/4	1/2	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K302	0000
				1	1/2	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K303	0000
				1	3/4	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K304	0000
				1 1/4	3/4	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K305	0000
				1 1/4	1	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K306	0000
				1 1/2	1	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K307	0000
				1 1/2	1 1/4	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K308	0000


				2	1 1/4	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K309	0000
				2	1 1/2	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K311	0000
				3	2	80	Hex	Polypropylene	Black	300 psi @ 72° F	46885K312	00000

90° Elbow Connectors

NPT Female

	Pipe Schedule	Material	Color	Max. Pressure @ Temp.		Each
NPT Female



	1/4	80	Polypropylene	Black	300 psi @ 72° F	46885K49	00000


	3/8	80	Polypropylene	Black	300 psi @ 72° F	46885K101	0000

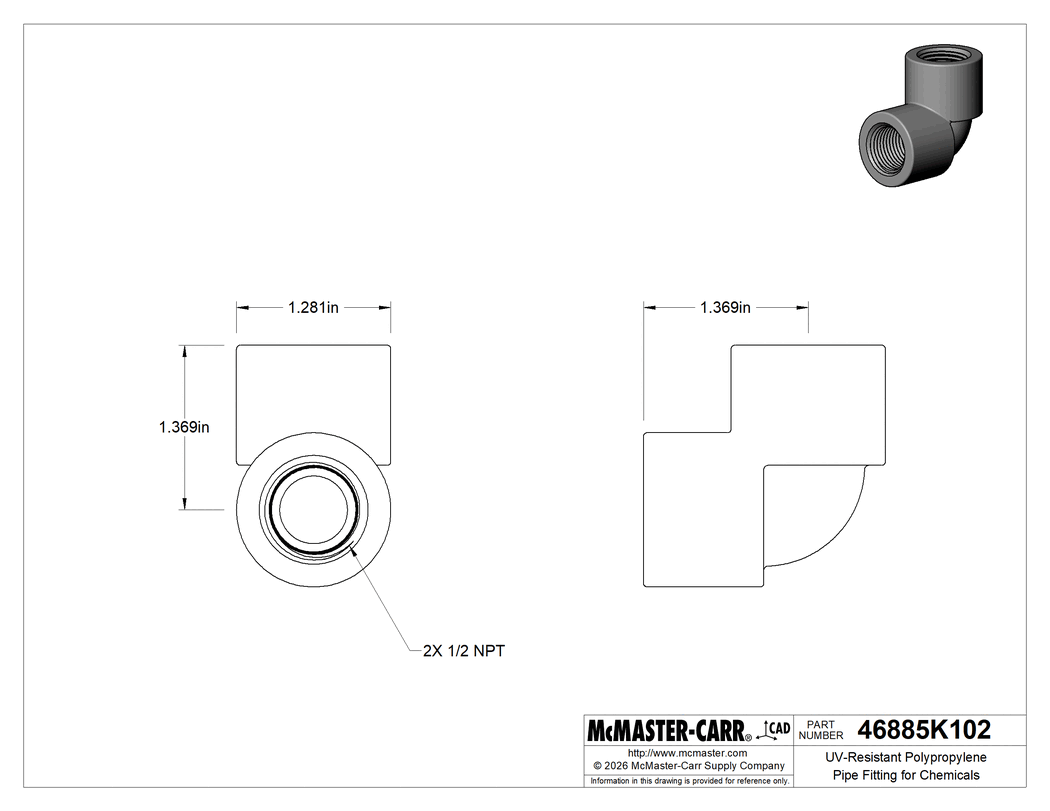

	1/2	80	Polypropylene	Black	300 psi @ 72° F	46885K102	0000

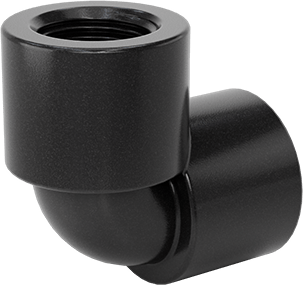

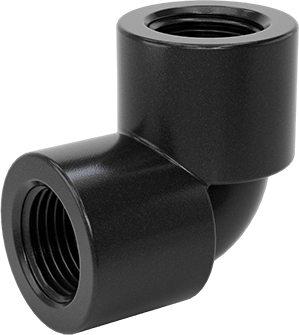

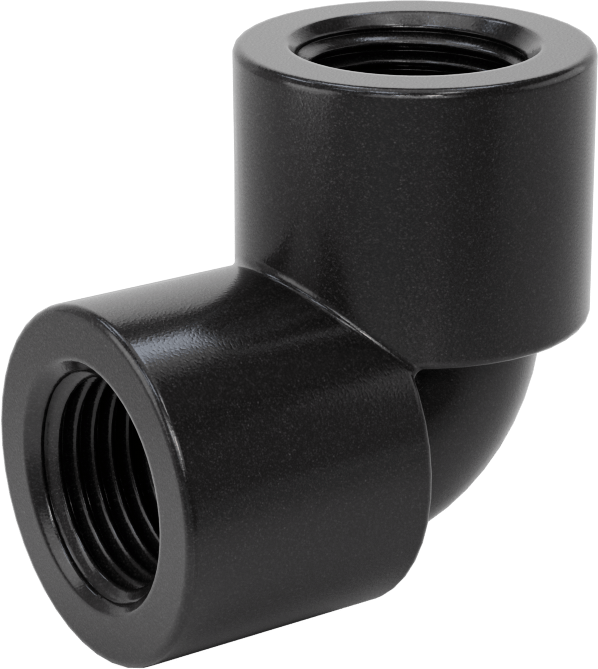

	UV-Resistant Polypropylene Pipe Fitting for Chemicals, 90 Degree Elbow Connector, 1/2 NPT Female Product Detail QuantityEachIn stock Select a compatible file type: Parasolid
	3/4	80	Polypropylene	Black	300 psi @ 72° F	46885K103	0000
	1	80	Polypropylene	Black	300 psi @ 72° F	46885K104	0000
	1 1/4	80	Polypropylene	Black	300 psi @ 72° F	46885K105	0000
	1 1/2	80	Polypropylene	Black	300 psi @ 72° F	46885K106	0000
	2	80	Polypropylene	Black	300 psi @ 72° F	46885K107	00000
	3	80	Polypropylene	Black	300 psi @ 72° F	46885K108	00000

90° Elbow Adapters

NPT Female ×

NPT Male

Female x male 90° elbow adapters are also known as street elbows.

	Pipe Size
	(A)	(B)	Pipe Schedule	Material	Color	Max. Pressure @ Temp.		Each
NPT Female × NPT Male



		1/4	1/4	80	Polypropylene	Black	300 psi @ 72° F	46885K51	00000


		3/8	3/8	80	Polypropylene	Black	300 psi @ 72° F	46885K121	0000
		1/2	1/2	80	Polypropylene	Black	300 psi @ 72° F	46885K122	0000
		3/4	3/4	80	Polypropylene	Black	300 psi @ 72° F	46885K123	0000
		1	1	80	Polypropylene	Black	300 psi @ 72° F	46885K124	0000
		1 1/4	1 1/4	80	Polypropylene	Black	300 psi @ 72° F	46885K125	0000
		1 1/2	1 1/2	80	Polypropylene	Black	300 psi @ 72° F	46885K126	0000
		2	2	80	Polypropylene	Black	300 psi @ 72° F	46885K127	00000
		3	3	80	Polypropylene	Black	300 psi @ 72° F	46885K128	00000

45° Elbow Adapters

NPT Female ×

NPT Male

	Pipe Size
	(A)	(B)	Pipe Schedule	Material	Color	Max. Pressure @ Temp.		Each
NPT Female × NPT Male



		3/4	3/4	80	Polypropylene	Black	300 psi @ 72° F	46885K133	00000


		1	1	80	Polypropylene	Black	300 psi @ 72° F	46885K134	0000
		1 1/4	1 1/4	80	Polypropylene	Black	300 psi @ 72° F	46885K135	00000
		1 1/2	1 1/2	80	Polypropylene	Black	300 psi @ 72° F	46885K136	00000
		2	2	80	Polypropylene	Black	225 psi @ 72° F	46885K137	00000
		3	3	80	Polypropylene	Black	300 psi @ 72° F	46885K138	00000

Tee Connectors

NPT Female

	Pipe Schedule	Material	Color	Max. Pressure @ Temp.		Each
NPT Female



	1/4	80	Polypropylene	Black	300 psi @ 72° F	46885K48	00000


	3/8	80	Polypropylene	Black	300 psi @ 72° F	46885K151	0000
	1/2	80	Polypropylene	Black	300 psi @ 72° F	46885K152	0000
	3/4	80	Polypropylene	Black	300 psi @ 72° F	46885K153	0000
	1	80	Polypropylene	Black	300 psi @ 72° F	46885K154	0000
	1 1/4	80	Polypropylene	Black	300 psi @ 72° F	46885K155	0000
	1 1/2	80	Polypropylene	Black	300 psi @ 72° F	46885K156	0000
	2	80	Polypropylene	Black	300 psi @ 72° F	46885K157	00000
	3	80	Polypropylene	Black	225 psi @ 72° F	46885K158	00000

Tee Connectors with Gauge Port

NPT Female

Fittings with a gauge port let you add a gauge to your system to easily monitor pressure, temperature, and other measurements.

	Pipe Schedule	Material	Color	Max. Pressure @ Temp.		Each
NPT Female



	1/2	80	Polypropylene	Black	150 psi @ 72° F	46885K408	00000


	3/4	80	Polypropylene	Black	150 psi @ 72° F	46885K409	00000
	1	80	Polypropylene	Black	150 psi @ 72° F	46885K407	00000

Cross Connectors

NPT Female

	Pipe Schedule	Material	Color	Max. Pressure @ Temp.		Each
NPT Female



	1/2	80	Polypropylene	Black	300 psi @ 72° F	46885K47	000000


	3/4	80	Polypropylene	Black	300 psi @ 72° F	46885K173	00000
	1	80	Polypropylene	Black	300 psi @ 72° F	46885K174	00000
	1 1/4	80	Polypropylene	Black	300 psi @ 72° F	46885K175	00000
	1 1/2	80	Polypropylene	Black	300 psi @ 72° F	46885K176	00000
	2	80	Polypropylene	Black	300 psi @ 72° F	46885K177	00000

Caps

NPT Female

	Pipe Schedule	Material	Color	Max. Pressure @ Temp.		Each
NPT Female



	1/2	80	Polypropylene	Black	300 psi @ 72° F	46885K202	00000


	3/4	80	Polypropylene	Black	300 psi @ 72° F	46885K203	0000
	1	80	Polypropylene	Black	300 psi @ 72° F	46885K204	0000
	1 1/4	80	Polypropylene	Black	300 psi @ 72° F	46885K205	0000
	1 1/2	80	Polypropylene	Black	300 psi @ 72° F	46885K206	0000
	2	80	Polypropylene	Black	300 psi @ 72° F	46885K207	0000
	3	80	Polypropylene	Black	300 psi @ 72° F	46885K208	00000

External-Hex-Drive Plugs

NPT Male

	Pipe Schedule	Material	Color	Max. Pressure @ Temp.		Each
NPT Male



	1/8	40	Polypropylene	Black	150 psi @ 72° F	4515K208	00000


	1/4	40	Polypropylene	Black	150 psi @ 72° F	4515K209	0000
	3/8	40	Polypropylene	Black	150 psi @ 72° F	4515K211	0000
	1/2	40	Polypropylene	Black	150 psi @ 72° F	4515K212	0000
	3/4	80	Polypropylene	Black	300 psi @ 72° F	46885K213	0000
	1	80	Polypropylene	Black	300 psi @ 72° F	46885K214	0000
	1 1/4	80	Polypropylene	Black	300 psi @ 72° F	46885K215	0000
	1 1/2	80	Polypropylene	Black	300 psi @ 72° F	46885K216	0000
	2	80	Polypropylene	Black	300 psi @ 72° F	46885K217	0000
	3	80	Polypropylene	Black	300 psi @ 72° F	46885K218	00000

Thread Sealant

Applicator-Top Can

Sealants cannot be sold to Colorado, Connecticut, District of Columbia, Delaware, Illinois, Indiana, Massachusetts, Maryland, Maine, Michigan, New Hampshire, New Jersey, Northern Virginia, New York, Ohio, Pennsylvania, Rhode Island, or Utah due to local VOC (Volatile Organic Compounds) regulations.
