Precision Extreme-Pressure 316 Stainless Steel Fitting
Bushing Reducing Adapter, 3/4 Male x 1/4 Female NPT
For Use With | Hydraulic Fluid, Liquid Nitrogen, Natural Gas, Steam, Water |
Shape | Straight |
Type | Reducing Adapter, Bushing |
Body Shape | Hex |
Material | 316 Stainless Steel |
Fabrication | Machined |
Thread Fabrication | Rolled |
Connection Type | Pipe |
Connection Style | Threaded |
Connection | NPT Male × NPT Female |

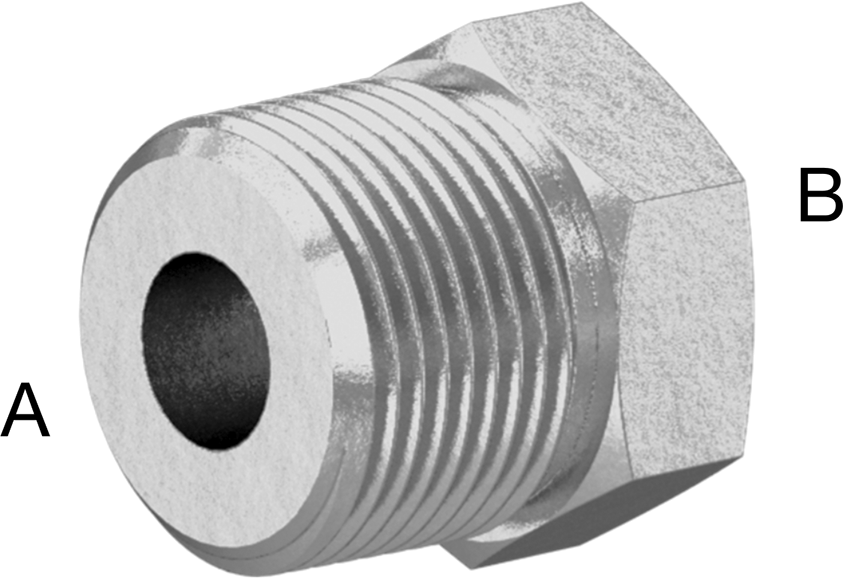

Pipe Size | |
(A) | 3/4 |
(B) | 1/4 |
Dash Size | |
(A) | 12 |
(B) | 04 |
Length | 1 11/64" |
Hex Width | 1 1/8" |
Maximum Pressure | 6,400 psi @ 72° F |
Maximum Steam Pressure | 6,400 psi @ 300° F |
Specifications Met | ASME B1.20.1, ASME B31.1, ASME B31.3 |
RoHS | RoHS 3 (2015/863/EU) Compliant |
REACH | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
DFARS | Specialty Metals COTS-Exempt |
Country of Origin | United States |
USMCA Qualifying | Yes |
Schedule B | 730729.0000 |
ECCN | 2B999 |
Made to tighter tolerances than other stainless steel pipe fittings, these are also known as instrumentation fittings. The male threads are rolled for extra strength in extreme-pressure applications. Fittings are commonly used to connect equipment in gas and hydraulic fluid lines. They are 316 stainless steel for excellent corrosion resistance.

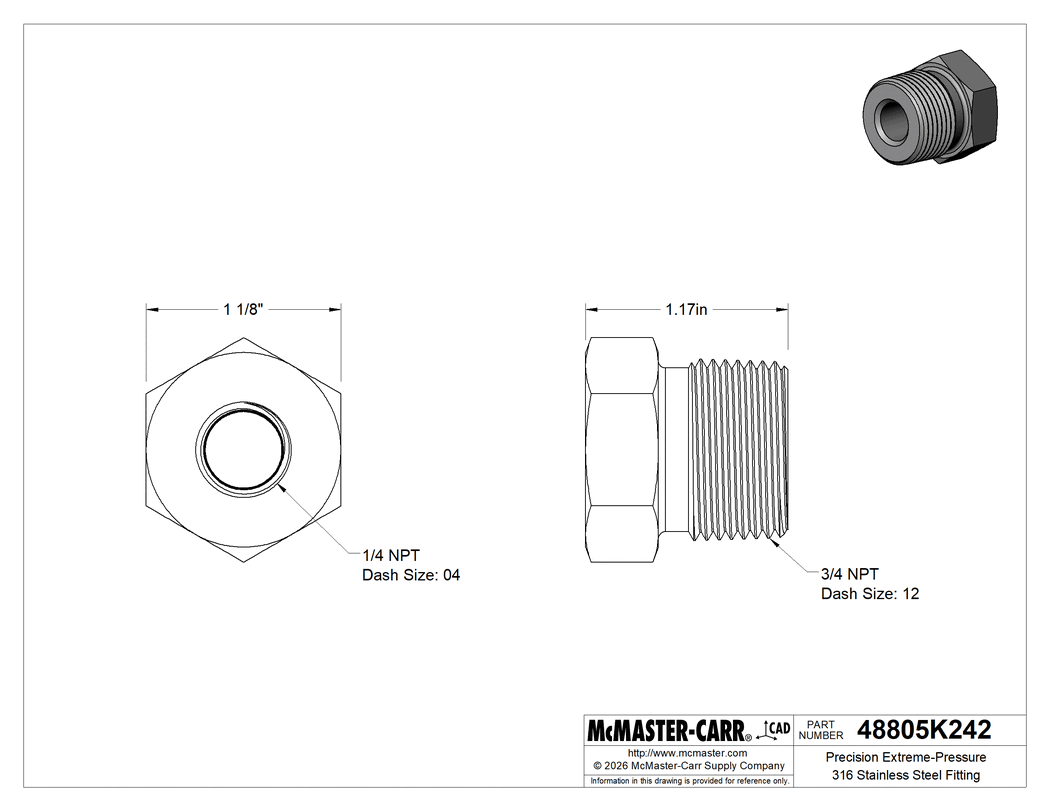

The information in this 3-D model is provided for reference only.
