Precision Extreme-Pressure Stainless Steel Threaded Pipe Fittings

Made to tighter tolerances than other stainless steel pipe fittings, these are also known as instrumentation fittings. The male threads are rolled for extra strength in extreme-pressure applications. Fittings are commonly used to connect equipment in gas and hydraulic fluid lines.

Straight Connectors

316 Stainless Steel—Fittings are the most corrosion resistant. They stand up to wet environments, just like 304 stainless steel fittings, but unlike 304 stainless steel, they will not corrode from salt water, chlorine solutions, and chemicals.

				316 Stainless Steel
	Pipe Size	Dash Size	Body Shape	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female
Female


		1/16	—	Hex	7,500 psi @ 72° F	7,500 psi @ 300° F	48805K151	000000


		1/8	02	Hex	6,400 psi @ 72° F	6,400 psi @ 300° F	48805K72	00000
		1/4	04	Hex	6,600 psi @ 72° F	6,600 psi @ 300° F	48805K69	00000
		3/8	06	Hex	5,300 psi @ 72° F	5,300 psi @ 300° F	48805K73	00000
		1/2	08	Hex	5,200 psi @ 72° F	5,200 psi @ 300° F	48805K79	00000
		3/4	12	Hex	4,600 psi @ 72° F	4,600 psi @ 300° F	48805K719	00000
		1	16	Hex	4,400 psi @ 72° F	4,400 psi @ 300° F	48805K722	00000


		NPT Male
		Male


				1/16	—	—	10,000 psi @ 72° F	10,000 psi @ 300° F	48805K161	00000


				1/16	—	Hex	10,000 psi @ 72° F	10,000 psi @ 300° F	48805K163	00000
				1/16	—	Hex	10,000 psi @ 72° F	10,000 psi @ 300° F	48805K164	00000
				1/16	—	Hex	10,000 psi @ 72° F	10,000 psi @ 300° F	48805K166	00000
				1/16	—	Hex	10,000 psi @ 72° F	10,000 psi @ 300° F	48805K271	00000
				1/8	02	—	9,100 psi @ 72° F	9,100 psi @ 300° F	48805K12	00000
				1/8	02	Hex	9,100 psi @ 72° F	9,100 psi @ 300° F	48805K135	00000
				1/8	02	Hex	9,100 psi @ 72° F	9,100 psi @ 300° F	48805K137	00000
				1/8	02	Hex	9,100 psi @ 72° F	9,100 psi @ 300° F	48805K141	00000
				1/8	02	Hex	9,100 psi @ 72° F	9,100 psi @ 300° F	48805K157	00000
				1/8	02	Hex	9,100 psi @ 72° F	9,100 psi @ 300° F	48805K88	00000


				1/4	04	—	7,500 psi @ 72° F	7,500 psi @ 300° F	48805K11	00000
				1/4	04	Hex	7,500 psi @ 72° F	7,500 psi @ 300° F	48805K23	00000
				1/4	04	Hex	7,500 psi @ 72° F	7,500 psi @ 300° F	48805K25	00000
				1/4	04	Hex	7,500 psi @ 72° F	7,500 psi @ 300° F	48805K27	00000
				1/4	04	Hex	7,500 psi @ 72° F	7,500 psi @ 300° F	48805K29	00000
				1/4	04	Hex	7,500 psi @ 72° F	7,500 psi @ 300° F	48805K81	00000
				3/8	06	—	7,200 psi @ 72° F	7,200 psi @ 300° F	48805K146	00000
				3/8	06	Hex	7,200 psi @ 72° F	7,200 psi @ 300° F	48805K136	00000
				3/8	06	Hex	7,200 psi @ 72° F	7,200 psi @ 300° F	48805K138	00000
				3/8	06	Hex	7,200 psi @ 72° F	7,200 psi @ 300° F	48805K142	00000


				3/8	06	Hex	7,200 psi @ 72° F	7,200 psi @ 300° F	48805K143	00000
				3/8	06	Hex	7,200 psi @ 72° F	7,200 psi @ 300° F	48805K851	00000
				1/2	08	—	6,600 psi @ 72° F	6,600 psi @ 300° F	48805K152	00000
				1/2	08	Hex	6,600 psi @ 72° F	6,600 psi @ 300° F	48805K139	00000
				1/2	08	Hex	6,600 psi @ 72° F	6,600 psi @ 300° F	48805K144	00000
				1/2	08	Hex	6,600 psi @ 72° F	6,600 psi @ 300° F	48805K311	00000
				1/2	08	Hex	6,600 psi @ 72° F	6,600 psi @ 300° F	48805K331	00000
				1/2	08	Hex	6,600 psi @ 72° F	6,600 psi @ 300° F	48805K911	00000
				3/4	12	—	7,300 psi @ 72° F	7,300 psi @ 300° F	4092K111	00000
				3/4	12	Hex	7,300 psi @ 72° F	7,300 psi @ 300° F	48805K873	00000


				3/4	12	Hex	7,300 psi @ 72° F	7,300 psi @ 300° F	48805K876	00000
				3/4	12	Hex	7,300 psi @ 72° F	7,300 psi @ 300° F	48805K879	00000
				3/4	12	Hex	7,300 psi @ 72° F	7,300 psi @ 300° F	48805K882	00000
				1	16	—	4,600 psi @ 72° F	4,600 psi @ 300° F	48805K201	00000
				1	16	Hex	5,300 psi @ 72° F	5,300 psi @ 300° F	48805K885	00000
				1	16	Hex	5,300 psi @ 72° F	5,300 psi @ 300° F	48805K894	00000
				1	16	Hex	5,300 psi @ 72° F	5,300 psi @ 300° F	48805K897	00000

Union Straight Connectors

Female

Union fittings separate into three pieces so you can access your line without unthreading pipe connections.

				316 Stainless Steel
	Pipe Size	Dash Size	Body Shape	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female



		1/4	04	Hex	6,600 psi @ 72° F	6,600 psi @ 300° F	48805K939	000000


		3/8	06	Hex	5,300 psi @ 72° F	5,300 psi @ 300° F	48805K941	00000
		1/2	08	Hex	4,900 psi @ 72° F	4,900 psi @ 300° F	48805K942	00000

Straight Adapters

	Pipe Size		Dash Size			316 Stainless Steel
	(A)	(B)	(A)	(B)	Body Shape	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female × NPT Male
Female x Male


		1/8	1/8	02	02	Hex	6,400 psi @ 72° F	6,400 psi @ 300° F	48805K128	000000


		1/4	1/4	04	04	Hex	6,600 psi @ 72° F	6,600 psi @ 300° F	48805K36	00000
		3/8	3/8	06	06	Hex	5,300 psi @ 72° F	5,300 psi @ 300° F	48805K42	00000
		1/2	1/2	08	08	Hex	5,200 psi @ 72° F	5,200 psi @ 300° F	48805K48	00000
		3/4	3/4	12	12	Hex	4,600 psi @ 72° F	4,600 psi @ 300° F	48805K855	00000
		1	1	16	16	Hex	4,400 psi @ 72° F	4,400 psi @ 300° F	48805K867	00000


		NPT Female × BSPT Male
		Female x Male


				1/8	1/8	02	02	Hex	6,100 psi @ 72° F	6,100 psi @ 300° F	4092K11	00000


				1/4	1/4	04	04	Hex	6,200 psi @ 72° F	6,200 psi @ 300° F	4092K12	00000
				3/8	3/8	06	06	Hex	5,000 psi @ 72° F	5,000 psi @ 300° F	4092K13	00000
				1/2	1/2	08	08	Hex	4,600 psi @ 72° F	4,600 psi @ 300° F	4092K14	00000
				3/4	3/4	12	12	Hex	4,300 psi @ 72° F	4,300 psi @ 300° F	4092K15	00000
				1	1	16	16	Hex	4,100 psi @ 72° F	4,100 psi @ 300° F	4092K16	000000


				NPT Male × BSPT Male
				Male x Male


						1/8	1/8	02	02	Hex	9,100 psi @ 72° F	9,100 psi @ 300° F	4092K81	00000


						1/4	1/4	04	04	Hex	7,500 psi @ 72° F	7,500 psi @ 300° F	4092K32	00000
						3/8	3/8	06	06	Hex	7,200 psi @ 72° F	7,200 psi @ 300° F	4092K83	00000
						1/2	1/2	08	08	Hex	6,600 psi @ 72° F	6,600 psi @ 300° F	4092K84	00000
						3/4	3/4	12	12	Hex	6,400 psi @ 72° F	6,400 psi @ 300° F	4092K85	00000
						1	1	16	16	Hex	4,600 psi @ 72° F	4,600 psi @ 300° F	4092K86	00000


						BSPT Female × NPT Male
						Female x Male


								1/8	1/8	02	02	Hex	6,100 psi @ 72° F	6,100 psi @ 300° F	4092K26	00000


								1/4	1/4	04	04	Hex	6,200 psi @ 72° F	6,200 psi @ 300° F	4092K21	00000
								3/8	3/8	06	06	Hex	5,000 psi @ 72° F	5,000 psi @ 300° F	4092K22	00000
								1/2	1/2	08	08	Hex	4,600 psi @ 72° F	4,600 psi @ 300° F	4092K23	00000
								3/4	3/4	12	12	Hex	4,300 psi @ 72° F	4,300 psi @ 300° F	4092K24	00000
								1	1	16	16	Hex	4,100 psi @ 72° F	4,100 psi @ 300° F	4092K25	000000


								BSPP Female × NPT Male
								Female x Male


										1/8	1/8	02	02	Hex	6,100 psi @ 72° F	6,100 psi @ 300° F	4092K56	00000


										1/4	1/4	04	04	Hex	6,200 psi @ 72° F	6,200 psi @ 300° F	4092K51	00000
										3/8	3/8	06	06	Hex	5,000 psi @ 72° F	5,000 psi @ 300° F	4092K52	00000
1/2										1/2	08	08	Hex	4,600 psi @ 72° F	4,600 psi @ 300° F	4092K53	00000
3/4	3/4									12	12	Hex	4,300 psi @ 72° F	4,300 psi @ 300° F	4092K54	00000
1	1									16	16	Hex	4,100 psi @ 72° F	4,100 psi @ 300° F	4092K55	000000

Straight Adapters with Gasket


Female x Male	Male x Male

UN/UNF (SAE Straight) Thread—Also known as O-ring boss threads.

Fluoroelastomer—These gaskets resist a wide range of chemicals, including benzene, butyl alcohol, and ethylene glycol.

	Pipe Size			Dash Size				316 Stainless Steel
	(A)	(B)	Thread Size (A)	(A)	(B)	Body Shape	Gasket Material	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female × BSPP Male



		1/8	1/8	—	—	—	Hex	Fluoroelastomer	5,300 psi @ 72° F	—	4092K711	000000


		1/4	1/4	—	—	—	Hex	Fluoroelastomer	5,500 psi @ 72° F	—	4092K712	00000
		3/8	3/8	—	—	—	Hex	Fluoroelastomer	4,400 psi @ 72° F	—	4092K713	00000
		1/2	1/2	—	—	—	Hex	Fluoroelastomer	4,000 psi @ 72° F	—	4092K714	00000
		3/4	3/4	—	—	—	Hex	Fluoroelastomer	3,700 psi @ 72° F	—	4092K715	000000
		1	1	—	—	—	Hex	Fluoroelastomer	2,800 psi @ 72° F	—	4092K716	000000


		NPT Male × BSPP Male



				1/8	1/8	—	—	—	Hex	Fluoroelastomer	5,300 psi @ 72° F	—	4092K911	00000


				1/4	1/4	—	—	—	Hex	Fluoroelastomer	5,500 psi @ 72° F	—	4092K912	00000
				3/8	3/8	—	—	—	Hex	Fluoroelastomer	4,400 psi @ 72° F	—	4092K913	00000
				1/2	1/2	—	—	—	Hex	Fluoroelastomer	4,000 psi @ 72° F	—	4092K914	00000
				3/4	3/4	—	—	—	Hex	Fluoroelastomer	3,700 psi @ 72° F	—	4092K915	00000
				1	1	—	—	—	Hex	Fluoroelastomer	2,800 psi @ 72° F	—	4092K916	000000


				UN/UNF (SAE Straight) Male × NPT Male



						—	1/2	3/4"-16	08	08	Hex	Fluoroelastomer	4,500 psi @ 72° F	4,500 psi @ 300° F	48805K943	00000


						—	3/4	1 1/16"-12	12	12	Hex	Fluoroelastomer	3,600 psi @ 72° F	3,600 psi @ 300° F	48805K944	00000
						—	1	1 5/16"-12	18	18	Hex	Fluoroelastomer	2,900 psi @ 72° F	2,900 psi @ 300° F	48805K945	00000

Straight Reducing Adapters

Female x Male

	Pipe Size		Dash Size			316 Stainless Steel
	(A)	(B)	(A)	(B)	Body Shape	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female × NPT Male



		1/8	1/16	02	—	Hex	6,400 psi @ 72° F	6,400 psi @ 300° F	48805K126	000000


		1/4	1/8	04	02	Hex	6,600 psi @ 72° F	6,600 psi @ 300° F	48805K252	00000
		3/8	1/8	06	02	Hex	5,300 psi @ 72° F	5,300 psi @ 300° F	48805K253	00000
		3/8	1/4	06	04	Hex	5,300 psi @ 72° F	5,300 psi @ 300° F	48805K38	00000
		1/2	1/8	08	02	Hex	5,200 psi @ 72° F	5,200 psi @ 300° F	48805K254	00000
		1/2	1/4	08	04	Hex	5,200 psi @ 72° F	5,200 psi @ 300° F	48805K44	00000
		1/2	3/8	08	06	Hex	5,200 psi @ 72° F	5,200 psi @ 300° F	48805K46	00000
		3/4	1/4	12	04	Hex	4,600 psi @ 72° F	4,600 psi @ 300° F	48805K846	00000
		3/4	3/8	12	06	Hex	4,600 psi @ 72° F	4,600 psi @ 300° F	48805K849	00000
		3/4	1/2	12	08	Hex	4,600 psi @ 72° F	4,600 psi @ 300° F	48805K852	00000
		1	1/4	16	04	Hex	4,400 psi @ 72° F	4,400 psi @ 300° F	48805K858	00000


		1	1/2	16	08	Hex	4,400 psi @ 72° F	4,400 psi @ 300° F	48805K861	00000
		1	3/4	16	12	Hex	4,400 psi @ 72° F	4,400 psi @ 300° F	48805K864	00000

Bushing Straight Reducing Adapters

Male x Female

	Pipe Size		Dash Size			316 Stainless Steel
	(A)	(B)	(A)	(B)	Body Shape	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Male × NPT Female



		1/8	1/16	02	—	Hex	6,400 psi @ 72° F	6,400 psi @ 300° F	48805K522	00000


		1/4	1/16	04	—	Hex	7,500 psi @ 72° F	7,500 psi @ 300° F	48805K241	00000
		1/4	1/8	04	02	Hex	6,000 psi @ 72° F	6,000 psi @ 300° F	48805K523	00000

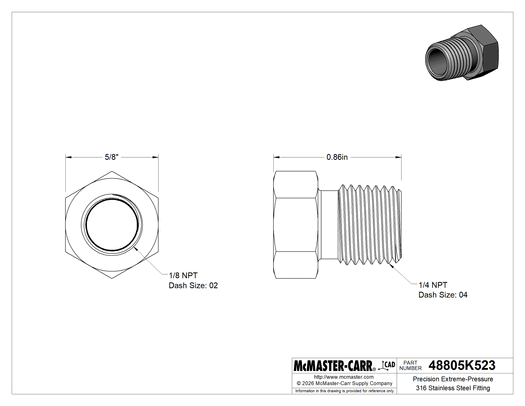

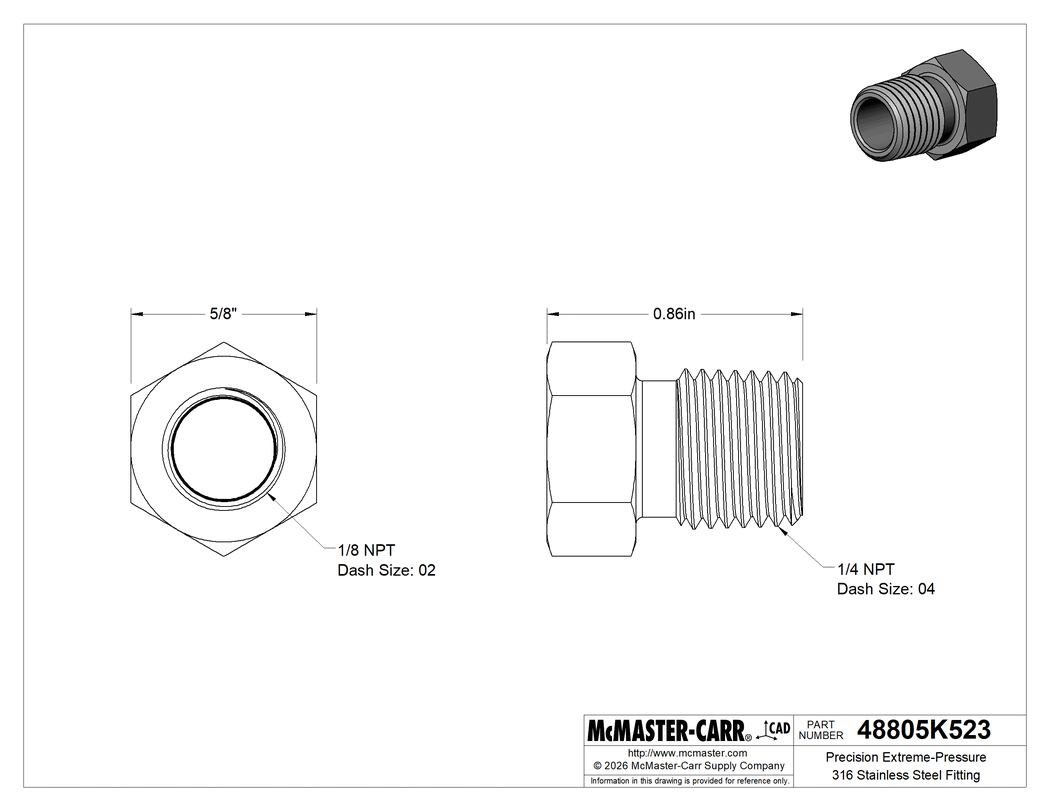

		Precision Extreme-Pressure 316 Stainless Steel Fitting, Bushing Reducing Adapter, 1/4 Male x 1/8 Female NPT Product Detail QuantityEachIn stock Select a compatible file type: Parasolid
		3/8	1/8	06	02	Hex	6,400 psi @ 72° F	6,400 psi @ 300° F	48805K524	00000
		3/8	1/4	06	04	Hex	5,300 psi @ 72° F	5,300 psi @ 300° F	48805K525	00000
		1/2	1/8	08	02	Hex	6,600 psi @ 72° F	6,600 psi @ 300° F	48805K526	00000
		1/2	1/4	08	04	Hex	6,400 psi @ 72° F	6,400 psi @ 300° F	48805K527	00000
		1/2	3/8	08	06	Hex	4,600 psi @ 72° F	4,600 psi @ 300° F	48805K528	00000
		3/4	1/4	12	04	Hex	6,400 psi @ 72° F	6,400 psi @ 300° F	48805K242	00000
		3/4	3/8	12	06	Hex	5,300 psi @ 72° F	5,300 psi @ 300° F	48805K749	00000
		3/4	1/2	12	08	Hex	4,900 psi @ 72° F	4,900 psi @ 300° F	48805K243	00000


		1	1/4	16	04	Hex	5,300 psi @ 72° F	5,300 psi @ 300° F	48805K752	00000
		1	3/8	16	06	Hex	5,300 psi @ 72° F	5,300 psi @ 300° F	48805K755	00000
		1	1/2	16	08	Hex	4,900 psi @ 72° F	4,900 psi @ 300° F	48805K758	00000
		1	3/4	16	12	Hex	4,600 psi @ 72° F	4,600 psi @ 300° F	48805K761	00000
		1 1/4	1	20	16	Hex	4,400 psi @ 72° F	4,400 psi @ 300° F	48805K764	00000
		1 1/2	1/2	24	08	Hex	4,900 psi @ 72° F	4,900 psi @ 300° F	48805K931	000000
		1 1/2	1	24	16	Hex	4,400 psi @ 72° F	4,400 psi @ 300° F	48805K767	00000
		2	1/2	32	08	Hex	4,900 psi @ 72° F	4,900 psi @ 300° F	48805K932	000000
		2	3/4	32	12	Hex	4,600 psi @ 72° F	4,600 psi @ 300° F	48805K933	000000
		2	1	32	16	Hex	3,900 psi @ 72° F	3,900 psi @ 300° F	48805K776	000000


		2	1 1/2	32	24	Hex	3,900 psi @ 72° F	3,900 psi @ 300° F	48805K779	000000

Straight Reducers

	Pipe Size		Dash Size			316 Stainless Steel
	(A)	(B)	(A)	(B)	Body Shape	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female × NPT Female
Female x Female


		1/8	1/16	02	—	Hex	6,400 psi @ 72° F	6,400 psi @ 300° F	48805K261	000000


		1/4	1/8	04	02	Hex	6,600 psi @ 72° F	6,600 psi @ 300° F	48805K263	00000
		3/8	1/8	06	02	Hex	5,300 psi @ 72° F	5,300 psi @ 300° F	48805K264	00000
		3/8	1/4	06	04	Hex	5,300 psi @ 72° F	5,300 psi @ 300° F	48805K71	00000
		1/2	1/8	08	02	Hex	5,200 psi @ 72° F	5,200 psi @ 300° F	48805K265	00000
		1/2	1/4	08	04	Hex	5,200 psi @ 72° F	5,200 psi @ 300° F	48805K75	00000
		1/2	3/8	08	06	Hex	5,200 psi @ 72° F	5,200 psi @ 300° F	48805K77	00000
		3/4	1/4	12	04	Hex	4,600 psi @ 72° F	4,600 psi @ 300° F	48805K816	00000
		3/4	1/2	12	08	Hex	4,600 psi @ 72° F	4,600 psi @ 300° F	48805K819	00000
		1	1/2	16	08	Hex	4,400 psi @ 72° F	4,400 psi @ 300° F	48805K822	00000
		1	3/4	16	12	Hex	4,400 psi @ 72° F	4,400 psi @ 300° F	48805K825	00000


		NPT Male × NPT Male
		Male x Male


				1/8	1/16	02	—	Hex	9,100 psi @ 72° F	9,100 psi @ 300° F	48805K272	00000


				1/4	1/8	04	02	Hex	7,500 psi @ 72° F	7,500 psi @ 300° F	48805K86	00000
				3/8	1/8	06	02	Hex	7,200 psi @ 72° F	7,200 psi @ 300° F	48805K82	00000
				3/8	1/4	06	04	Hex	7,200 psi @ 72° F	7,200 psi @ 300° F	48805K831	00000
				1/2	1/8	08	02	Hex	6,600 psi @ 72° F	6,600 psi @ 300° F	48805K84	00000
				1/2	1/4	08	04	Hex	6,600 psi @ 72° F	6,600 psi @ 300° F	48805K871	00000
				1/2	3/8	08	06	Hex	6,600 psi @ 72° F	6,600 psi @ 300° F	48805K891	00000
				3/4	1/4	12	04	Hex	7,300 psi @ 72° F	7,300 psi @ 300° F	48805K828	00000
				3/4	1/2	12	08	Hex	7,300 psi @ 72° F	7,300 psi @ 300° F	48805K834	00000
				1	1/2	16	08	Hex	5,300 psi @ 72° F	5,300 psi @ 300° F	48805K837	00000
				1	3/4	16	12	Hex	5,300 psi @ 72° F	5,300 psi @ 300° F	48805K843	00000

90° Elbow Connectors

Female

Male

			316 Stainless Steel
	Pipe Size	Dash Size	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female



		1/16	—	7,000 psi @ 72° F	7,000 psi @ 300° F	48805K121	000000


		1/8	02	5,500 psi @ 72° F	5,500 psi @ 300° F	48805K92	00000
		1/4	04	5,600 psi @ 72° F	5,600 psi @ 300° F	48805K351	00000
		3/8	06	5,000 psi @ 72° F	5,000 psi @ 300° F	48805K37	00000
		1/2	08	4,500 psi @ 72° F	4,500 psi @ 300° F	48805K391	00000
		3/4	12	4,600 psi @ 72° F	4,600 psi @ 300° F	48805K713	00000
		1	16	4,400 psi @ 72° F	4,400 psi @ 300° F	48805K716	000000


		NPT Male



				1/8	02	9,100 psi @ 72° F	9,100 psi @ 300° F	48805K96	00000


				1/4	04	7,500 psi @ 72° F	7,500 psi @ 300° F	48805K41	00000
				3/8	06	7,200 psi @ 72° F	7,200 psi @ 300° F	48805K431	00000
				1/2	08	5,800 psi @ 72° F	5,800 psi @ 300° F	48805K451	00000
				3/4	12	6,400 psi @ 72° F	6,400 psi @ 300° F	48805K202	000000
				1	16	4,600 psi @ 72° F	4,600 psi @ 300° F	48805K203	000000

90° Elbow Adapters

Female x Male

Female x male 90° elbow adapters are also known as street elbows.

	Pipe Size		Dash Size		316 Stainless Steel
	(A)	(B)	(A)	(B)	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female × NPT Male



		1/16	1/16	—	—	7,000 psi @ 72° F	7,000 psi @ 300° F	48805K122	000000


		1/8	1/8	02	02	5,500 psi @ 72° F	5,500 psi @ 300° F	48805K18	00000
		1/4	1/4	04	04	5,600 psi @ 72° F	5,600 psi @ 300° F	48805K172	00000
		3/8	3/8	06	06	5,000 psi @ 72° F	5,000 psi @ 300° F	48805K19	00000
		1/2	1/2	08	08	4,500 psi @ 72° F	4,500 psi @ 300° F	48805K211	00000
		3/4	3/4	12	12	4,600 psi @ 72° F	4,600 psi @ 300° F	48805K797	00000
		1	1	16	16	4,400 psi @ 72° F	4,400 psi @ 300° F	48805K813	000000

90° Elbow Reducing Adapters

Female x Male

Female x male 90° elbow adapters are also known as street elbows.

	Pipe Size		Dash Size		316 Stainless Steel
	(A)	(B)	(A)	(B)	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female × NPT Male



		1/8	1/16	02	—	6,500 psi @ 72° F	6,500 psi @ 300° F	48805K782	000000


		1/8	1/4	02	04	5,500 psi @ 72° F	5,500 psi @ 300° F	48805K113	00000
		1/8	3/8	02	06	5,500 psi @ 72° F	5,500 psi @ 300° F	48805K115	00000
		1/8	1/2	02	08	5,500 psi @ 72° F	5,500 psi @ 300° F	48805K117	000000
		1/4	1/8	04	02	6,600 psi @ 72° F	6,600 psi @ 300° F	48805K934	00000
		1/4	3/8	04	06	5,600 psi @ 72° F	5,600 psi @ 300° F	48805K116	000000
		1/4	1/2	04	08	5,600 psi @ 72° F	5,600 psi @ 300° F	48805K118	000000
		3/8	1/4	06	04	5,300 psi @ 72° F	5,300 psi @ 300° F	48805K935	00000
		3/8	1/2	06	08	5,000 psi @ 72° F	5,000 psi @ 300° F	48805K119	000000
		1/2	1/4	08	04	4,900 psi @ 72° F	4,900 psi @ 300° F	48805K936	00000
		1/2	3/8	08	06	4,900 psi @ 72° F	4,900 psi @ 300° F	48805K937	00000


		1/2	3/4	08	12	4,500 psi @ 72° F	4,500 psi @ 300° F	48805K204	000000
		3/4	1	12	16	3,500 psi @ 72° F	3,500 psi @ 300° F	48805K205	000000

45° Elbow Adapters

Female x

Male

	Pipe Size		Dash Size		316 Stainless Steel
	(A)	(B)	(A)	(B)	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female × NPT Male



		1/8	1/8	02	02	5,500 psi @ 72° F	5,500 psi @ 300° F	48805K182	000000


		1/4	1/4	04	04	5,600 psi @ 72° F	5,600 psi @ 300° F	48805K183	00000
		3/8	3/8	06	06	5,000 psi @ 72° F	5,000 psi @ 300° F	48805K184	00000
		1/2	1/2	08	08	4,500 psi @ 72° F	4,500 psi @ 300° F	48805K185	000000

Tee Connectors

Female

Male

			316 Stainless Steel
	Pipe Size	Dash Size	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female



		1/16	—	7,000 psi @ 72° F	7,000 psi @ 300° F	48805K171	000000


		1/8	02	5,500 psi @ 72° F	5,500 psi @ 300° F	48805K97	00000
		1/4	04	5,600 psi @ 72° F	5,600 psi @ 300° F	48805K471	00000
		3/8	06	5,000 psi @ 72° F	5,000 psi @ 300° F	48805K49	00000
		1/2	08	4,500 psi @ 72° F	4,500 psi @ 300° F	48805K511	000000
		3/4	12	4,600 psi @ 72° F	4,600 psi @ 300° F	48805K737	000000
		1	16	5,300 psi @ 72° F	5,300 psi @ 300° F	48805K74	000000


		NPT Male



				1/8	02	9,700 psi @ 72° F	9,700 psi @ 300° F	48805K124	00000


				1/4	04	8,000 psi @ 72° F	8,000 psi @ 300° F	48805K125	00000
				3/8	06	7,600 psi @ 72° F	7,600 psi @ 300° F	48805K127	00000
				1/2	08	6,200 psi @ 72° F	6,200 psi @ 300° F	48805K129	00000
				3/4	12	6,400 psi @ 72° F	6,400 psi @ 300° F	48805K206	000000
				1	16	4,600 psi @ 72° F	4,600 psi @ 300° F	48805K207	000000

Right Angle Tee Adapters

Female x Female x

Male

Right-angle tees are also known as run tees.

	Pipe Size			Dash Size			316 Stainless Steel
	(A)	(B)	(C)	(A)	(B)	(C)	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female × NPT Female × NPT Male



		1/16	1/16	1/16	—	—	—	7,000 psi @ 72° F	7,000 psi @ 300° F	48805K145	000000


		1/8	1/8	1/8	02	02	02	5,500 psi @ 72° F	5,500 psi @ 300° F	48805K98	00000
		1/4	1/4	1/4	04	04	04	5,600 psi @ 72° F	5,600 psi @ 300° F	48805K571	00000
		3/8	3/8	3/8	06	06	06	5,000 psi @ 72° F	5,000 psi @ 300° F	48805K59	00000
		1/2	1/2	1/2	08	08	08	4,500 psi @ 72° F	4,500 psi @ 300° F	48805K611	000000
		3/4	3/4	3/4	12	12	12	3,500 psi @ 72° F	3,500 psi @ 300° F	48805K212	000000
		1	1	1	16	16	16	3,900 psi @ 72° F	3,900 psi @ 300° F	48805K213	000000

Inline Tee Adapters

Female x Male x

Female

Inline tees are also known as branch tees.

	Pipe Size			Dash Size			316 Stainless Steel
	(A)	(B)	(C)	(A)	(B)	(C)	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female × NPT Male × NPT Female



		1/8	1/8	1/8	02	02	02	5,500 psi @ 72° F	5,500 psi @ 300° F	48805K192	000000


		1/4	1/4	1/4	04	04	04	5,600 psi @ 72° F	5,600 psi @ 300° F	48805K193	00000
		3/8	3/8	3/8	06	06	06	5,000 psi @ 72° F	5,000 psi @ 300° F	48805K194	00000
		1/2	1/2	1/2	08	08	08	4,500 psi @ 72° F	4,500 psi @ 300° F	48805K195	000000
		3/4	3/4	3/4	12	12	12	3,500 psi @ 72° F	3,500 psi @ 300° F	48805K208	000000
		1	1	1	16	16	16	3,900 psi @ 72° F	3,900 psi @ 300° F	48805K209	000000

Cross Connectors

Female

			316 Stainless Steel
	Pipe Size	Dash Size	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female



		1/8	02	5,500 psi @ 72° F	5,500 psi @ 300° F	48805K62	000000


		1/4	04	5,600 psi @ 72° F	5,600 psi @ 300° F	48805K631	00000
		3/8	06	5,000 psi @ 72° F	5,000 psi @ 300° F	48805K65	000000
		1/2	08	4,500 psi @ 72° F	4,500 psi @ 300° F	48805K671	000000
		3/4	12	4,600 psi @ 72° F	4,600 psi @ 300° F	48805K743	000000

Caps

Female

				316 Stainless Steel
	Pipe Size	Dash Size	Body Shape	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Female



		1/16	—	Hex	7,500 psi @ 72° F	7,500 psi @ 300° F	48805K148	000000


		1/8	02	Hex	6,400 psi @ 72° F	6,400 psi @ 300° F	48805K93	00000
		1/4	04	Hex	6,600 psi @ 72° F	6,600 psi @ 300° F	48805K22	00000
		3/8	06	Hex	5,300 psi @ 72° F	5,300 psi @ 300° F	48805K24	00000
		1/2	08	Hex	5,200 psi @ 72° F	5,200 psi @ 300° F	48805K26	00000
		3/4	12	Hex	4,600 psi @ 72° F	4,600 psi @ 300° F	48805K725	00000
		1	16	Hex	4,400 psi @ 72° F	4,400 psi @ 300° F	48805K728	00000

Hex-Drive Plugs

Male

			316 Stainless Steel
	Pipe Size	Dash Size	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Male



		1/16	—	10,000 psi @ 72° F	10,000 psi @ 300° F	48805K221	000000


		1/8	02	9,100 psi @ 72° F	9,100 psi @ 300° F	48805K222	00000
		1/4	04	7,500 psi @ 72° F	7,500 psi @ 300° F	48805K223	00000
		3/8	06	7,200 psi @ 72° F	7,200 psi @ 300° F	48805K224	00000
		1/2	08	7,700 psi @ 72° F	7,700 psi @ 300° F	48805K938	00000

External-Hex-Drive Plugs

					316 Stainless Steel
	Pipe Size	Dash Size	Construction	Body Shape	Max. Pressure @ Temp.	Max. Steam Pressure @ Temp.		Each
NPT Male
Male


		1/16	—	Hollow	Hex	10,000 psi @ 72° F	10,000 psi @ 300° F	48805K149	00000


		1/8	02	Solid	Hex	9,700 psi @ 72° F	9,700 psi @ 300° F	48805K94	0000
		1/4	04	Solid	Hex	8,000 psi @ 72° F	8,000 psi @ 300° F	48805K28	00000
		3/8	06	Solid	Hex	7,600 psi @ 72° F	7,600 psi @ 300° F	48805K32	00000
		1/2	08	Solid	Hex	7,000 psi @ 72° F	7,000 psi @ 300° F	48805K341	00000
		3/4	12	Solid	Hex	7,300 psi @ 72° F	7,300 psi @ 300° F	48805K731	00000
		1	16	Solid	Hex	5,300 psi @ 72° F	5,300 psi @ 300° F	48805K734	00000


		BSPT Male
		Male


				1/8	02	Solid	Hex	6,100 psi @ 72° F	6,100 psi @ 300° F	48805K921	00000


				1/4	04	Solid	Hex	6,200 psi @ 72° F	6,200 psi @ 300° F	48805K922	00000
				3/8	06	Solid	Hex	5,000 psi @ 72° F	5,000 psi @ 300° F	48805K923	00000
				1/2	08	Solid	Hex	3,600 psi @ 72° F	3,600 psi @ 300° F	48805K924	00000
				3/4	12	Solid	Hex	4,300 psi @ 72° F	4,300 psi @ 300° F	48805K925	00000
				1	16	Solid	Hex	4,100 psi @ 72° F	4,100 psi @ 300° F	48805K926	00000
