    About Pipe and Fittings
    industrial info icon

    Measure your pipe and fittings to identify their pipe size, thread size, schedule, and thread type. Then, find compatible components.

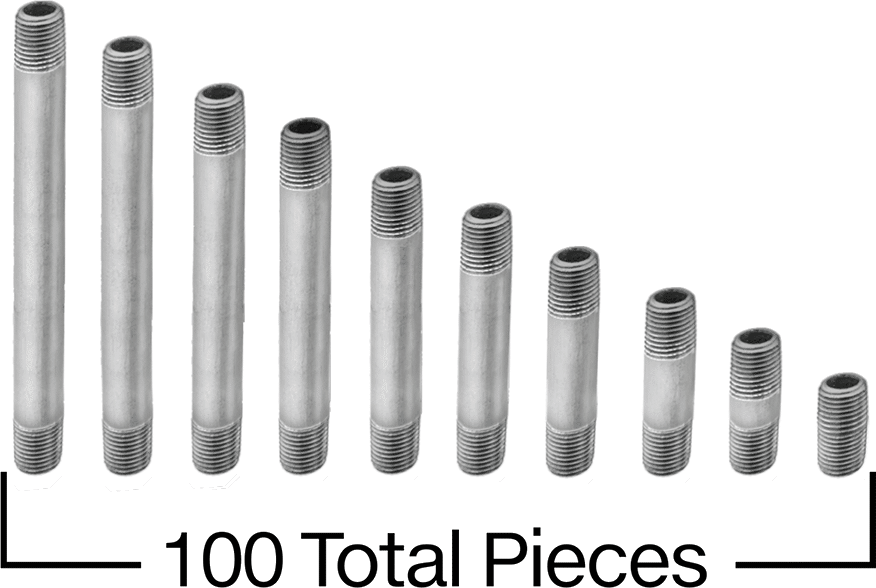

    Standard-Wall Stainless Steel Threaded Pipe Nipples and Pipe Assortments

    Image of Product. Front orientation. Pipe and Fittings. Standard-Wall Stainless Steel Threaded Pipe Nipples and Pipe Assortments.
    Keep a variety of lengths of pipe and pipe nipples on hand for areas where corrosion is a concern. These assortments have threaded pipe, which you can take apart as needed for maintenance and repair. They are designed for low-pressure applications. This pipe is welded, so it has a weld bead on the inside. Fully threaded pipe is also known as a close nipple; it is threaded on each end to the center.
    304/304L Stainless Steel—Pipe holds up in humid, damp, and washdown environments but will corrode if exposed to salt water or chemicals.
    316/316L Stainless Steel—Pipe is the most corrosion resistant. It stands up to wet environments, just like 304 stainless steel pipe, but unlike 304 stainless steel, it will not corrode from salt water, chlorine solutions, and chemicals.
    304/304L
    Stainless Steel
    316/316L
    Stainless Steel
    Pipe
    Size
    No. of
    Pieces
    Pipe
    Schedule
    Includes
    Each
    Each
    NPT Male
    1/4
    		10040
    		20 fully threaded 7/8" Lg. nipples
    80 threaded-on-both-ends nipples in the following lengths:
    1 1/2” (10 ea.), 2” (15 ea.), 2 1/2” (10 ea.), 3” (10 ea.), 3 1/2” (5 ea.), 4” (10 ea.), 4 1/2” (5 ea.), 5” (5 ea.),
    5 1/2" (5 ea.), 6" (5 ea.)    		4967N11100000004967N1230000000
    3/8
    		10040
    		20 fully threaded 1" Lg. nipples
    80 threaded-on-both-ends nipples in the following lengths:
    1 1/2” (10 ea.), 2” (15 ea.), 2 1/2” (10 ea.), 3” (10 ea.), 3 1/2” (5 ea.), 4” (10 ea.), 4 1/2” (5 ea.), 5” (5 ea.),
    5 1/2" (5 ea.), 6" (5 ea.)    		4967N1120000004967N124000000
    1/2
    		6640
    		6 fully threaded 1 1/8" Lg. nipples
    60 threaded-on-both-ends nipples in the following lengths:
    1 1/2” (6 ea.), 2” (6 ea.), 2 1/2” (6 ea.), 3” (6 ea.), 3 1/2” (6 ea.), 4” (6 ea.), 4 1/2” (6 ea.), 5” (6 ea.), 5 1/2" (6 ea.),
    6" (6 ea.)    		4967N1130000004967N125000000
    1/2
    		10040
    		20 fully threaded 1 1/8" Lg. nipples
    80 threaded-on-both-ends nipples in the following lengths:
    1 1/2” (10 ea.), 2” (15 ea.), 2 1/2” (10 ea.), 3” (10 ea.), 3 1/2” (5 ea.), 4” (10 ea.), 4 1/2” (5 ea.), 5” (5 ea.),
    5 1/2" (5 ea.), 6" (5 ea.)    		4967N1140000004967N126000000
    3/4
    		6640
    		6 fully threaded 1 3/8" Lg. nipples
    60 threaded-on-both-ends nipples in the following lengths:
    1 1/2” (6 ea.), 2” (6 ea.), 2 1/2” (6 ea.), 3” (6 ea.), 3 1/2” (6 ea.), 4” (6 ea.), 4 1/2” (6 ea.), 5” (6 ea.), 5 1/2" (6 ea.),
    6" (6 ea.)    		4967N1150000004967N127000000
    3/4
    		10040
    		20 fully threaded 1 3/8" Lg. nipples
    80 threaded-on-both-ends nipples in the following lengths:
    1 1/2” (10 ea.), 2” (15 ea.), 2 1/2” (10 ea.), 3” (10 ea.), 3 1/2” (5 ea.), 4” (10 ea.), 4 1/2” (5 ea.), 5” (5 ea.),
    5 1/2" (5 ea.), 6" (5 ea.)    		4967N1160000004967N128000000
    Standard-Wall Stainless Steel Threaded Pipe Nipple and Pipe Assortment, Type 304/304L, 3/4 NPT Male, 100 Pieces
    EachIn stock
    1
    		3040
    		3 fully threaded 1 1/2" Lg. nipples
    27 threaded-on-both-ends nipples in the following lengths:
    2” (3 ea.), 2 1/2” (3 ea.), 3” (3 ea.), 3 1/2” (3 ea.), 4” (3 ea.), 4 1/2” (3 ea.), 5” (3 ea.), 5 1/2” (3 ea.), 6" (3 ea.)    		4967N1170000004967N129000000
    1
    		7540
    		15 fully threaded 1 1/2" Lg. nipples
    60 threaded-on-both-ends nipples in the following lengths:
    2” (15 ea.), 2 1/2” (10 ea.), 3” (12 ea.), 3 1/2” (5 ea.), 4” (5 ea.), 4 1/2” (4 ea.), 5” (3 ea.), 5 1/2” (3 ea.), 6" (3 ea.)    		4967N1180000004967N131000000
    1 1/4
    		2540
    		6 fully threaded 1 5/8" Lg. nipples
    19 threaded-on-both-ends nipples in the following lengths:
    2” (4 ea.), 2 1/2” (3 ea.), 3” (2 ea.), 3 1/2” (2 ea.), 4” (2 ea.), 4 1/2” (1 ea.), 5” (2 ea.), 5 1/2” (1 ea.), 6" (2 ea.)    		4967N1190000004967N132000000
    1 1/2
    		2540
    		5 fully threaded 1 3/4" Lg. nipples
    20 threaded-on-both-ends nipples in the following lengths:
    2” (5 ea.), 2 1/2” (3 ea.), 3” (2 ea.), 3 1/2” (2 ea.), 4” (2 ea.), 4 1/2” (1 ea.), 5” (2 ea.), 5 1/2” (1 ea.), 6" (2 ea.)    		4967N1210000004967N133000000
    2
    		2540
    		6 fully threaded 2" Lg. nipples
    19 threaded-on-both-ends nipples in the following lengths:
    2 1/2” (3 ea.), 3” (3 ea.), 3 1/2” (2 ea.), 4” (3 ea.), 4 1/2” (1 ea.), 5” (3 ea.), 5 1/2” (1 ea.), 6” (3 ea.)    		4967N1220000004967N134000000

    back to top
