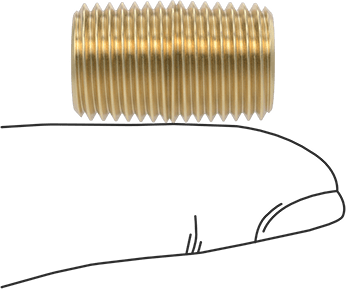

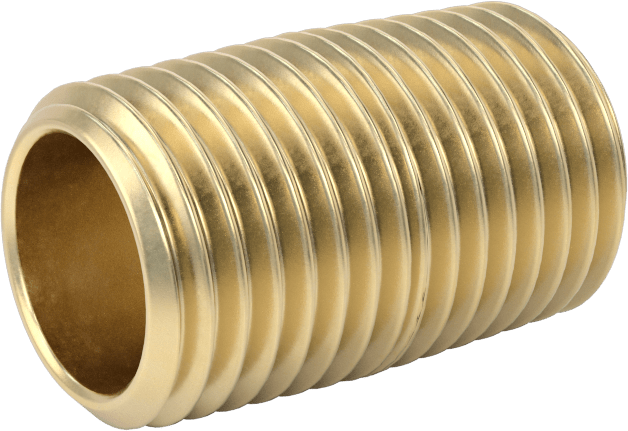

High-Pressure Brass Pipe Fitting
Fully Threaded Nipple, 1/4 Pipe Size

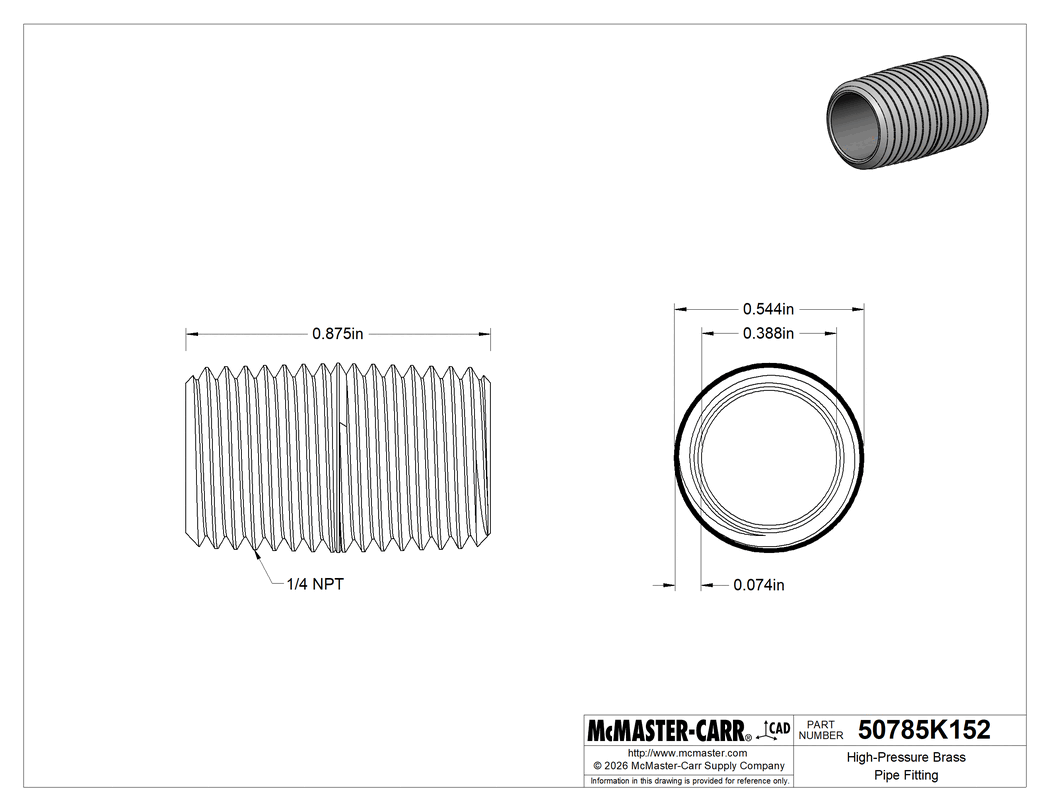

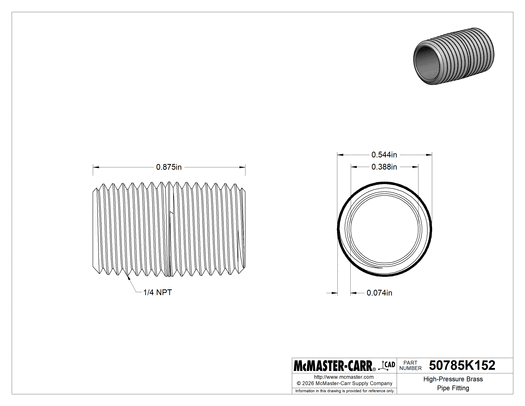

2-D PDF
$1.42 Each
In stock
50785K152
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
For Use With | Air, Natural Gas, Oil, Water |
Shape | Straight |
Type | Pipe |
Threading | Fully Threaded |
Fabrication | Machined |
Connection Type | Pipe |
Connection Style | Threaded |
Gender | Male |
Pipe Size | 1/4 |
Length | 7/8" |
OD | 17/32" |
ID | 0.388" |
Wall Thickness | 0.074" |
Thread Type | NPT |
Maximum Pressure | 1,000 psi @ 72° F |
Material | Brass |
RoHS | RoHS 3 (2015/863/EU) Compliant |
REACH | REACH (EC 1907/2006) (11/05/2025, 251 SVHC) Compliant |
DFARS | Specialty Metals COTS-Exempt |
Country of Origin | Peoples Republic of China |
Schedule B | 741220.0000 |
ECCN | EAR99 |
Use this extra-strong pipe in a high-pressure line. It is brass for good corrosion resistance.
Fully threaded pipe is also known as a close nipple; it is threaded on each end to the center.
The information in this 3-D model is provided for reference only.
