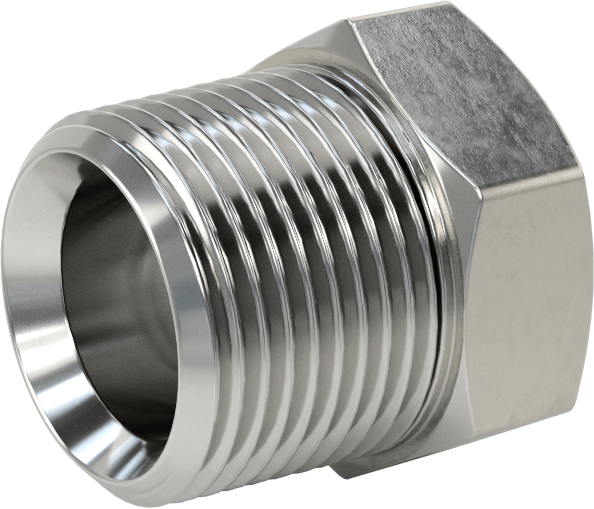

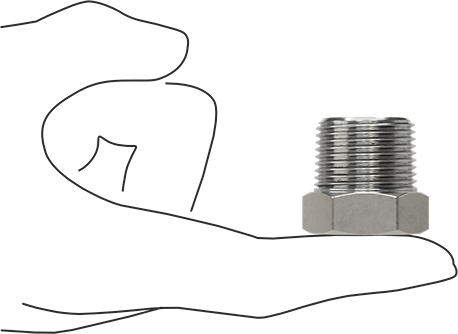

Extreme-Pressure 316 Stainless Steel Pipe Fitting
Bushing Adapter, 3/4 NPTF Male x 1/2 NPTF Female

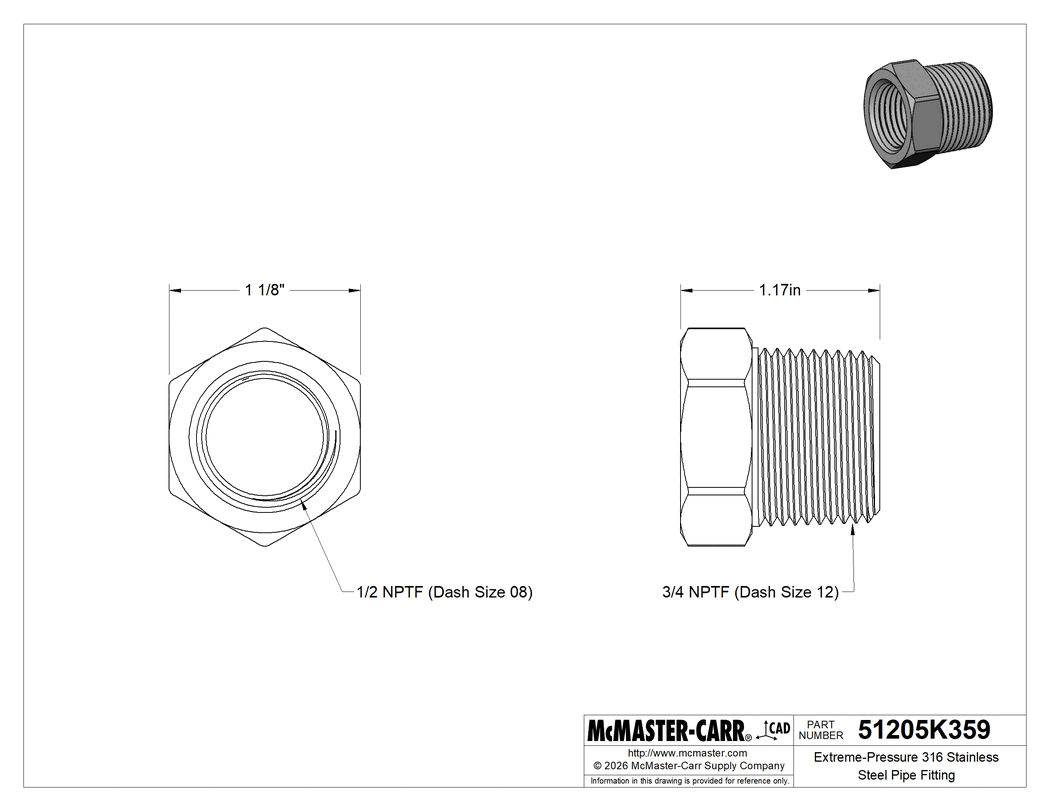

2-D PDF
$39.85 Each
In stock
51205K359
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
For Use With | Hydraulic Fluid, Oil, Steam, Water |
Shape | Straight |
Type | Reducing Adapter, Bushing |
Body Shape | Hex |
Material | 316 Stainless Steel |
Fabrication | Machined |
Connection Type | Pipe |
Connection Style | Threaded |
Connection | NPTF Male × NPTF Female |
Pipe Size | |
(A) | 3/4 |
(B) | 1/2 |
Dash Size | |
(A) | 12 |
(B) | 08 |
Length | 1 11/64" |
Hex Width | 1 1/8" |
Maximum Pressure | 6,000 psi @ 72° F |
Maximum Steam Pressure | 6,000 psi @ 300° F |
Specifications Met | ASTM A479 |
RoHS | RoHS 3 (2015/863/EU) Compliant |
REACH | Not Compliant |
DFARS | Specialty Metals COTS-Exempt |
Country of Origin | United States |
USMCA Qualifying | No |
Schedule B | 730729.0000 |
ECCN | 2B999 |
With the strength to handle extreme pressures, these fittings can be used to connect equipment in hydraulic fluid lines.
316 stainless steel fittings have excellent corrosion resistance.
NPTF (Dryseal) threads are compatible with NPT threads.
The information in this 3-D model is provided for reference only.
