    Miniature Nickel-Plated Brass Pipe Fitting

    Low-Pressure, Adapter with Swivel, 10-32 UNF Female x Male

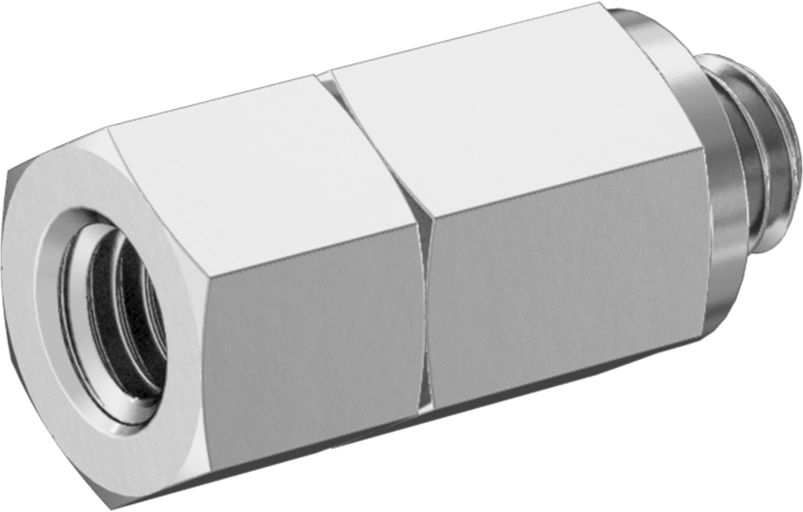

    Image of Product. Front. Front orientation. Miniature Nickel-Plated Brass Pipe Fitting, Low-Pressure, Adapter with Swivel, 10-32 UNF Female x Male.
    Front

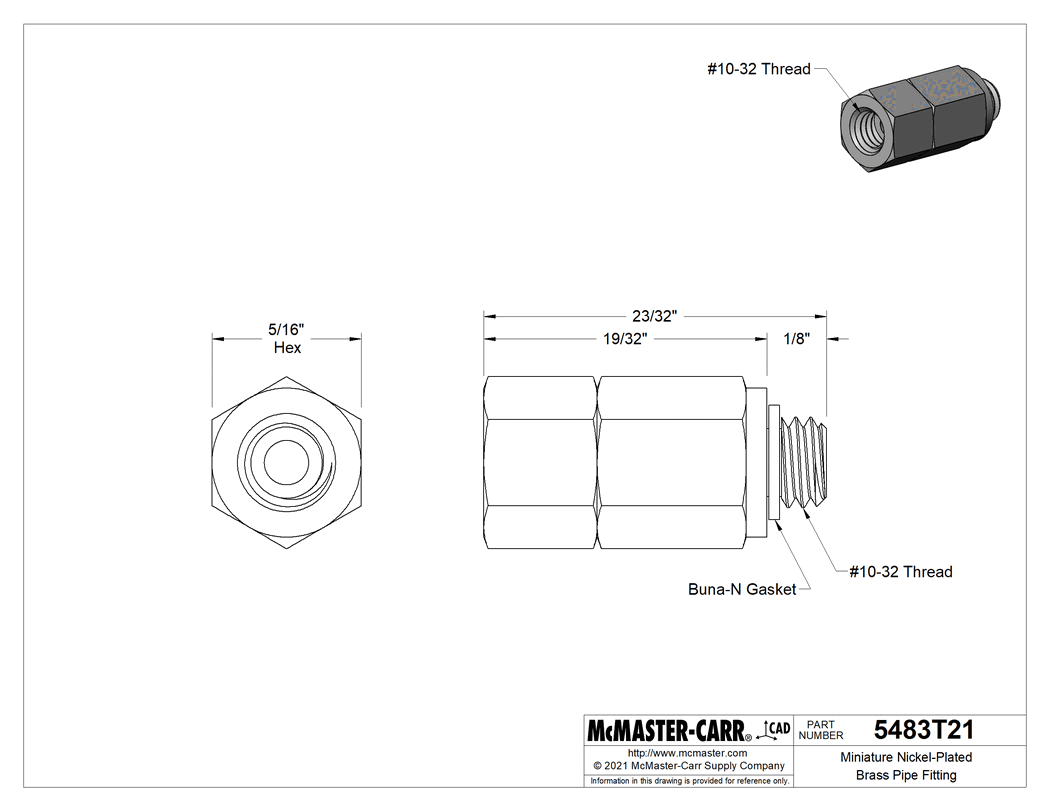

    Technical drawing of Miniature Nickel-Plated Brass Pipe Fitting, Low-Pressure, Adapter with Swivel, 10-32 UNF Female x Male.

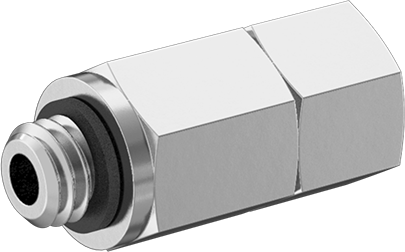

    Image of Product. Back. Back orientation. Miniature Nickel-Plated Brass Pipe Fitting, Low-Pressure, Adapter with Swivel, 10-32 UNF Female x Male.
    Back

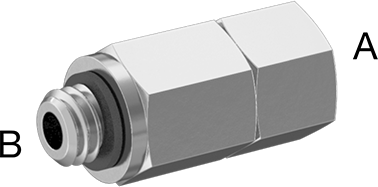

    Image of Product. Back. Back orientation. Contains Annotated. Miniature Nickel-Plated Brass Pipe Fitting, Low-Pressure, Adapter with Swivel, 10-32 UNF Female x Male.
    Back
    Image of Specification. UN/UNF (SAE Straight) Male Threads with Gasket. Front orientation. ZoomedIn view. Contains Border. Miniature Nickel-Plated Brass Pipe Fitting, Low-Pressure, Adapter with Swivel, 10-32 UNF Female x Male.
    UN/UNF (SAE Straight) Male Threads with Gasket
    2-D PDF
    $35.30 per pack of 5
    In stock
    5483T21
    Packs of 5
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    For Use With

    Air, Water

    Shape

    Straight

    Type

    Adapter

    Body Shape

    Hex

    Swivel Type

    Intermittent

    Connection Type

    Pipe

    Connection Style

    Threaded

    Connection

    UN/UNF (SAE Straight) Female × UN/UNF (SAE Straight) Male

    Thread Size (A)

    10-32

    Thread Size (B)

    10-32

    Length

    23/32"

    Hex Width

    5/16"

    Maximum Pressure

    150 psi @ 72° F

    Material

    Nickel-Plated 360 Brass

    Gasket Material

    Buna-N Rubber

    RoHS

    RoHS 3 (2015/863/EU) compliant with exemption 6(c) - Lead in copper alloy

    REACH

    REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant

    DFARS

    Specialty Metals COTS-Exempt

    Country of Origin

    United States

    USMCA Qualifying

    Yes

    Schedule B

    741220.0000

    ECCN

    EAR99

    Related Product

    Replacement Gaskets

    Less than an inch in length, these miniature fittings work well in low-pressure pipe lines that are tight on space. They are brass, which has good corrosion resistance.

    Nickel-plated brass fittings offer better corrosion resistance than unplated brass.

    Fittings with intermittent swivel rotate 360° as needed to allow movement in a rigid metal piping system.

    UN/UNF (SAE Straight) threads are also known as O-ring boss threads; the male threads have a gasket or O-ring to protect against leaks.

    The information in this 3-D model is provided for reference only.
