53 Products

Air-Powered Squeeze Tools for Solid Rivets

Powered by compressed air, these tools install rivets with nearly double the force of manual rivet tools. Since they squeeze rivets from both sides, they’re also easier to use than air hammers—no need to line up a setter and bucking bar.

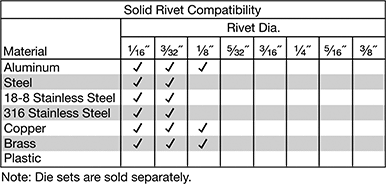

Alligator Jaw—1 1/2" Throat Depth


93970A210	93970A101

93970A310	93970A102

Alligator-style tools have two pivoting jaws that meet in the center. They can install rivets at any angle, but they can be harder to position than tools with C-style jaws.

					Air Inlet
Max. Force, lbf	Max. Jaw Opening	Lg.	Wt., lb.	Operating Air Pressure, psi	Pipe Size	Gender	Air Hose Included	Material		Each
3,000	1 1/2"	9 1/4"	4	85 to 90	1/4	Female	No	Steel	93970A210	000000000
3,000	1 5/8"	10"	5	85 to 90	1/4	Female	No	Steel	93970A101	000000
6,000	1 1/2"	12"	5.5	85 to 90	1/4	Female	No	Steel	93970A310	00000000
9,000	1 1/2"	16"	7	85 to 90	1/4	Female	No	Steel	93970A102	00000000

Die Sets


Flat Head	Domed Head	For Round Domed Head	For Universal Domed Head

You’ll need a die set to form rivets during installation. Choose a die set that matches the rivet’s head style and size.

			For 3/16" Long Rivets		For 3/8" Long Rivets		For 1/2" Long Rivets		For 5/8" Long Rivets
	For Rivet Dia.	Material		Each		Each		Each		Each
Round Domed Head—AN430



		3/32"	Steel	93970A508	000000	93970A532	000000	93970A556	000000	93970A580	000000


		1/8"	Steel	93970A608	00000	93970A632	00000	93970A656	00000	93970A680	00000
		5/32"	Steel	93970A708	00000	93970A732	00000	93970A756	00000	93970A780	00000
		3/16"	Steel	93970A808	00000	93970A832	00000	93970A856	00000	93970A880	00000


		Universal Domed Head—AN470



				3/32"	Steel	93970A516	00000	93970A540	00000	93970A564	00000	93970A588	00000


				1/8"	Steel	93970A616	00000	93970A640	00000	93970A664	00000	93970A688	00000
				5/32"	Steel	93970A716	00000	93970A740	00000	93970A764	00000	93970A788	00000
				3/16"	Steel	93970A816	00000	93970A840	00000	93970A864	00000	93970A882	00000


				Flat Head—AN442



						3/32", 1/8", 5/32", 3/16"	Steel	93970A924	00000	93970A948	00000	93970A972	00000	93970A996	00000

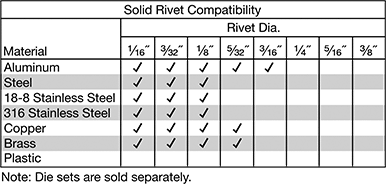

Alligator Jaw—2 1/4" Throat Depth

93970A330

93970A103

Alligator-style tools have two pivoting jaws that meet in the center. They can install rivets at any angle, but they can be harder to position than tools with C-style jaws.

					Air Inlet
Max. Force, lbf	Max. Jaw Opening	Lg.	Wt., lb.	Operating Air Pressure, psi	Pipe Size	Gender	Air Hose Included	Material		Each
4,600	1 7/8"	12 3/4"	5.5	85 to 90	1/4	Female	No	Steel	93970A330	000000000
7,000	1 3/4"	16 3/4"	7.5	85 to 90	1/4	Female	No	Steel	93970A103	00000000

Die Sets


Flat Head	Domed Head	For Round Domed Head	For Universal Domed Head

You’ll need a die set to form rivets during installation. Choose a die set that matches the rivet’s head style and size.

			For 3/16" Long Rivets		For 3/8" Long Rivets		For 1/2" Long Rivets		For 5/8" Long Rivets
	For Rivet Dia.	Material		Each		Each		Each		Each
Round Domed Head—AN430



		3/32"	Steel	93970A508	000000	93970A532	000000	93970A556	000000	93970A580	000000


		1/8"	Steel	93970A608	00000	93970A632	00000	93970A656	00000	93970A680	00000
		5/32"	Steel	93970A708	00000	93970A732	00000	93970A756	00000	93970A780	00000
		3/16"	Steel	93970A808	00000	93970A832	00000	93970A856	00000	93970A880	00000


		Universal Domed Head—AN470



				3/32"	Steel	93970A516	00000	93970A540	00000	93970A564	00000	93970A588	00000


				1/8"	Steel	93970A616	00000	93970A640	00000	93970A664	00000	93970A688	00000
				5/32"	Steel	93970A716	00000	93970A740	00000	93970A764	00000	93970A788	00000
				3/16"	Steel	93970A816	00000	93970A840	00000	93970A864	00000	93970A882	00000


				Flat Head—AN442



						3/32", 1/8", 5/32", 3/16"	Steel	93970A924	00000	93970A948	00000	93970A972	00000	93970A996	00000

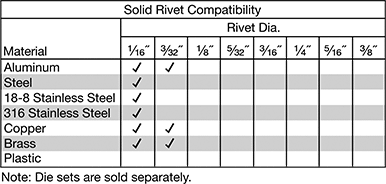

Alligator Jaw—3" Throat Depth

93970A270

93970A104

Alligator-style tools have two pivoting jaws that meet in the center. They can install rivets at any angle, but they can be harder to position than tools with C-style jaws.

					Air Inlet
Max. Force, lbf	Max. Jaw Opening	Lg.	Wt., lb.	Operating Air Pressure, psi	Pipe Size	Gender	Air Hose Included	Material		Each
1,800	1 1/2"	10 3/4"	5	85 to 90	1/4	Female	No	Steel	93970A270	000000000
4,000	1 7/8"	13 1/2"	6	85 to 90	1/4	Female	No	Steel	93970A104	00000000

Die Sets


Flat Head	Domed Head	For Round Domed Head	For Universal Domed Head

You’ll need a die set to form rivets during installation. Choose a die set that matches the rivet’s head style and size.

			For 3/16" Long Rivets		For 3/8" Long Rivets		For 1/2" Long Rivets		For 5/8" Long Rivets
	For Rivet Dia.	Material		Each		Each		Each		Each
Round Domed Head—AN430



		3/32"	Steel	93970A508	000000	93970A532	000000	93970A556	000000	93970A580	000000


		1/8"	Steel	93970A608	00000	93970A632	00000	93970A656	00000	93970A680	00000
		5/32"	Steel	93970A708	00000	93970A732	00000	93970A756	00000	93970A780	00000


		Universal Domed Head—AN470



				3/32"	Steel	93970A516	00000	93970A540	00000	93970A564	00000	93970A588	00000


				1/8"	Steel	93970A616	00000	93970A640	00000	93970A664	00000	93970A688	00000
				5/32"	Steel	93970A716	00000	93970A740	00000	93970A764	00000	93970A788	00000


				Flat Head—AN442



						3/32", 1/8", 5/32", 3/16"	Steel	93970A924	00000	93970A948	00000	93970A972	00000	93970A996	00000

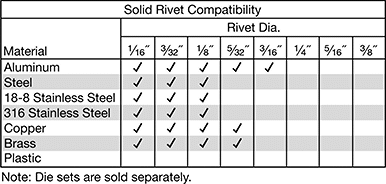

C Jaw—1 1/2" Throat Depth


	93970A105

C-style tools have only one moving jaw. They apply force more consistently than alligator-style tools, but they can only install rivets straight.

					Air Inlet
Max. Force, lbf	Max. Jaw Opening	Lg.	Wt., lb.	Operating Air Pressure, psi	Pipe Size	Gender	Air Hose Included	Material		Each
6,000	1 1/4"	14"	5.5	85 to 90	1/4	Female	No	Steel	93970A105	000000000

Die Sets

Image of Product. Front orientation. Rivet Tool Accessories and Replacement Parts. Air-Powered Squeeze Tools for Solid Rivets, C Jaw.

You’ll need a die set to form rivets during installation. Choose a die set that matches the rivet’s head style and size.

			For 3/16" Long Rivets		For 3/8" Long Rivets		For 1/2" Long Rivets
	For Rivet Dia.	Material		Each		Each		Each
Flat Head—AN442



		3/32", 1/8", 5/32", 3/16"	Steel	93970A109	000000	93970A107	000000	93970A108	000000

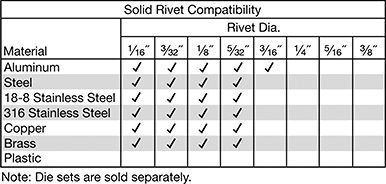

C Jaw—2 1/2" Throat Depth


	93970A106

C-style tools have only one moving jaw. They apply force more consistently than alligator-style tools, but they can only install rivets straight.

					Air Inlet
Max. Force, lbf	Max. Jaw Opening	Lg.	Wt., lb.	Operating Air Pressure, psi	Pipe Size	Gender	Air Hose Included	Material		Each
6,000	1 1/4"	14 3/4"	6.5	85 to 90	1/4	Female	No	Steel	93970A106	000000000

Die Sets

You’ll need a die set to form rivets during installation. Choose a die set that matches the rivet’s head style and size.

			For 3/16" Long Rivets		For 3/8" Long Rivets		For 1/2" Long Rivets
	For Rivet Dia.	Material		Each		Each		Each
Flat Head—AN442



		3/32", 1/8", 5/32", 3/16"	Steel	93970A109	000000	93970A107	000000	93970A108	000000

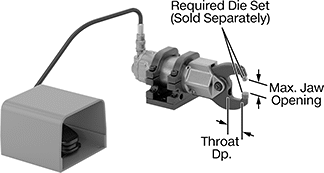

Bench-Mount Air-Powered Squeeze Tools for Solid Rivets

With a bench or cart to keep them steady, these tools install solid rivets along edges more consistently than portable squeeze tools. They close with the press of a foot pedal, so you can use both hands to feed a workpiece through the jaws. These tools are also known as alligator squeezers.

A die set (sold separately) is required and must be attached to the tool jaws to properly form rivets during installation. Choose a die set that matches the rivet's head style.

1 1/2" Throat Depth

Flat Head

Domed Head

Rivet Tools														Replacement Foot Pedals		Replacement Mounting Brackets
						Air Inlet
Max. Jaw Opening	Max. Force, lbf	Lg.	Wt., lb.	Operating Air Pressure, psi	Speed Control	Pipe Size	Gender	Air Hose Included	Material	Mounting Fasteners Included	Includes		Each		Each		Each
1 1/2"	6,000	12"	5.5	85 to 90	Throttle	1/4	Female	Yes	Steel	Yes	Foot Pedal Mounting Bracket	8634N11	000000000	8634N14	0000000	8634N13	0000000

Die Sets


Flat Head	Domed Head	For Round Domed Head	For Universal Domed Head

			For 3/16" Long Rivets		For 3/8" Long Rivets		For 1/2" Long Rivets		For 5/8" Long Rivets
	For Rivet Dia.	Material		Each		Each		Each		Each
Round Domed Head—AN430



		3/32"	Steel	93970A508	000000	93970A532	000000	93970A556	000000	93970A580	000000


		1/8"	Steel	93970A608	00000	93970A632	00000	93970A656	00000	93970A680	00000
		5/32"	Steel	93970A708	00000	93970A732	00000	93970A756	00000	93970A780	00000
		3/16"	Steel	93970A808	00000	93970A832	00000	93970A856	00000	93970A880	00000


		Universal Domed Head—AN470



				3/32"	Steel	93970A516	00000	93970A540	00000	93970A564	00000	93970A588	00000


				1/8"	Steel	93970A616	00000	93970A640	00000	93970A664	00000	93970A688	00000
				5/32"	Steel	93970A716	00000	93970A740	00000	93970A764	00000	93970A788	00000
				3/16"	Steel	93970A816	00000	93970A840	00000	93970A864	00000	93970A882	00000


				Flat Head—AN442



						3/32", 1/8", 5/32", 3/16"	Steel	93970A924	00000	93970A948	00000	93970A972	00000	93970A996	00000

2 1/4" Throat Depth

Flat Head

Domed Head

Rivet Tools														Replacement Foot Pedals		Replacement Mounting Brackets
						Air Inlet
Max. Jaw Opening	Max. Force, lbf	Lg.	Wt., lb.	Operating Air Pressure, psi	Speed Control	Pipe Size	Gender	Air Hose Included	Material	Mounting Fasteners Included	Includes		Each		Each		Each
1 7/8"	4,600	12 3/4"	5.5	85 to 90	Throttle	1/4	Female	No	Steel	Yes	Foot Pedal Mounting Bracket	8634N12	000000000	8634N14	0000000	8634N13	0000000

Die Sets


Flat Head	Domed Head	For Round Domed Head	For Universal Domed Head

			For 3/16" Long Rivets		For 3/8" Long Rivets		For 1/2" Long Rivets		For 5/8" Long Rivets
	For Rivet Dia.	Material		Each		Each		Each		Each
Round Domed Head—AN430



		3/32"	Steel	93970A508	000000	93970A532	000000	93970A556	000000	93970A580	000000


		1/8"	Steel	93970A608	00000	93970A632	00000	93970A656	00000	93970A680	00000
		5/32"	Steel	93970A708	00000	93970A732	00000	93970A756	00000	93970A780	00000
		3/16"	Steel	93970A808	00000	93970A832	00000	93970A856	00000	93970A880	00000


		Universal Domed Head—AN470



				3/32"	Steel	93970A516	00000	93970A540	00000	93970A564	00000	93970A588	00000


				1/8"	Steel	93970A616	00000	93970A640	00000	93970A664	00000	93970A688	00000
				5/32"	Steel	93970A716	00000	93970A740	00000	93970A764	00000	93970A788	00000
				3/16"	Steel	93970A816	00000	93970A840	00000	93970A864	00000	93970A882	00000


				Flat Head—AN442



						3/32", 1/8", 5/32", 3/16"	Steel	93970A924	00000	93970A948	00000	93970A972	00000	93970A996	00000
