Arc-Flash-Protection Sleeves

Protect your arms from the heat and flames of electrical arc flashes. These sleeves are tested to ASTM F2675 for arc-flash protection. Their arc rating measures their ability to protect against burns; the higher the arc rating, the greater the flame resistance. Check the minimum arc rating and PPE category provided for your workplace.
These sleeves also meet ANSI/ISEA 105 standards for cut protection. Rated A5, they are safe to use with cutting blades, knives, and sharp wire.

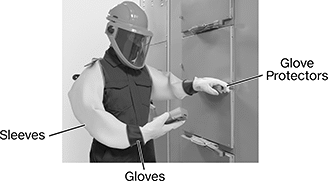

Electrical-Protection Sleeves


Pair these sleeves with electrical-protection gloves for full arm coverage when working near equipment running at 17,000V AC or higher. Rated to ASTM D1051 standards for handling live electrical equipment, these sleeves come tested and marked with the test date. You have one year from the test date to put sleeves into service before they must be retested. Once in use, sleeves should be tested every six months. All have a colored inner layer that shows through as the coating wears down, helping you spot cracks, pinholes, and other signs of damage.
ASTM defines voltage classes for rubber insulating sleeves. Make sure the sleeves and gloves you use are rated for the voltage class of your equipment.
Available Sizes | |
|---|---|
| Size | Upper Arm Circumference |
| S | 24 1/2" |
| M | 24 1/2" |
| L | 25 3/4" |
| XL | 25 3/4" |
| 2XL | 25 3/4" |
Sleeves | Replacement Straps | Replacement Buttons | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ASTM Voltage Rating | Max. Use Voltage | Lg. | Cuff Style | Color | Includes | Features | Specifications Met | Choose a Size | Pair | Each | Each | |||
Dielectric Rubber | ||||||||||||||
| Class 2 | 17,000V AC | 27" | Open | Yellow | Two Straps, Four Buttons | Wear Indicator | ASTM D1051 | 0000000 | 0000000 | 0000000 | 000000 | 0000000 | 00000 | |
| Class 3 | 26,500V AC | 27" | Open | Yellow | Two Straps, Four Buttons | Wear Indicator | ASTM D1051 | 0000000 | 000000 | 0000000 | 00000 | 0000000 | 0000 | |
| Class 4 | 36,000V AC | 27" | Open | Yellow | Two Straps, Four Buttons | Wear Indicator | ASTM D1051 | 0000000 | 00000000 | 0000000 | 00000 | 0000000 | 0000 | |
