Ball-Grip Positioning Arms
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t77-68-151p1-h02d-digital@halfx_636893562907285117.png?ver=imagenotfound)
Ball-and-socket connections allow 360° positioning. Choose a complete arm or select a base, connectors, and a plate, grip, holder, or tray to build a complete arm.
For technical drawings and 3-D models, click on a part number.
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t61c1-a06b-digital-master1553776374-p9@halfx_636598985516820000.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t77c1-a06b-digital-master1553776403-p9@halfx_636598985517500000.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t25c2-a06b-digital-master1553776370-p9@halfx_636598985516210000.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t26c2-a06b-digital-master1553776371-p9@halfx_636598985516570000.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t132p1-a06b-digital@halfx_636893557413067852.png?ver=imagenotfound)
Rotating and rotating/tilting complete arms have handles to lock joints into position. For the rotating/tilting complete arm, mount the base to a bench or wall and secure the object you want to position to the attaching end.
Any-which-way complete arm bends and stays in position. It does not have a ball; a screw-on base (sold separately) must be secured to the attaching end to attach to a connector.
To see the product in motion, click on a part number.
Base | Attaching End | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mount. Location | Max. Projection | Ht. | Ball Dia. | Max. Load Capacity, lbs. | Material | Ball Material | Mount. Fasteners Included | Dia. | Lg. | Wd. | No. of Mount. Holes | Mount Hole Dia. | Plate Dia. | Mount. Hole Dia. | Each | |
Rotating/Tilting | ||||||||||||||||
Bench, Wall | 7 1/4" | __ | __ | 3 | Powder-Coated Aluminum | __ | No | 2 7/16" | __ | __ | 7 | 3/16" | 2 7/16" | 3/16" | 0000000 | 000000 |
Rotating with Ball | ||||||||||||||||
Wall | 9 1/4" | 9" | 1 1/2" | 3 | Powder-Coated Aluminum | Rubber | No | __ | 4 3/4" | 3 7/8" | 6 | 11/32" | __ | __ | 0000000 | 000000 |
Extended-Reach Rotating with Ball | ||||||||||||||||
Wall | 15 1/4" | 11 1/4" | 1 1/2" | 3 | Powder-Coated Aluminum | Rubber | No | __ | 4 3/4" | 3 7/8" | 6 | 11/32" | __ | __ | 0000000 | 000000 |
Rotating/Tilting with Ball | ||||||||||||||||
Bench, Wall | 14 1/2" | 14 1/2" | 1 1/2" | 3 | Powder-Coated Aluminum | Rubber | No | __ | 3 7/16" | 3 7/16" | 4 | 11/32" | __ | __ | 0000000 | 000000 |
Any-Which-Way | ||||||||||||||||
Bench, Wall | __ | 7 3/8" | __ | 1 | Plastic | __ | No | 2 1/2" | __ | __ | 4 | 13/64" | 2 1/2" | 13/64" | 00000000 | 00000 |
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t63p1-upa06-@halfx_637648072220367983.png?ver=imagenotfound)
Screw-on base has a universal AMPS mounting hole pattern.
Mount. | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Mount. Location | Ht. | Ball Dia. | Max. Load Capacity, lbs. | Material | Ball Material | Base Dia. | Fasteners Included | No. of Holes | Hole Dia. | Each | |
Bench, Wall | 2 1/8" | 1 1/2" | 3 | Powder-Coated Aluminum | Rubber | 2 1/2" | No | 7 | 0.22" | 0000000 | 000000 |
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t38p1-a06b-digital@halfx_636893559635161779.png?ver=imagenotfound)
with 1 1/4"
Max. Opening
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t567p1-h02d-digital@halfx_636893563781449366.png?ver=imagenotfound)
with 1 1/2"
Max. Opening
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t131p1-a06b-digital@halfx_636893562710638587.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t28p1-a06b-digital@halfx_636893556062798928.png?ver=imagenotfound)
Clamp-on pipe-mount base with 1 1/2" max. opening has a handle to quickly grip and release pipes.
Max. Opening | Base | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Dia. | Ht. | Wd. | Ht. | Ball Dia. | Max. Load Capacity, lbs. | Material | Ball Material | Lg. | Wd. | Each | |
Pipe Mount | |||||||||||
1 1/4" | __ | __ | 3" | 1 1/2" | 3 | Powder-Coated Aluminum | Rubber | 2 3/8" | 7/8" | 0000000 | 000000 |
1 1/2" | __ | __ | 4 1/4" | 1 1/2" | 3 | Plastic | Rubber | __ | 1 7/16" | 00000000 | 00000 |
2 1/2" | __ | __ | 3 1/2" | 1 1/2" | 3 | Powder-Coated Aluminum | Rubber | 4" | 2 1/8" | 00000000 | 00000 |
Rectangular Bar Mount | |||||||||||
__ | 1 27/32" | 2 1/2" | 2 1/2" | 1 1/2" | 3 | Powder-Coated Aluminum | Rubber | 3 1/8" | 1 1/4" | 0000000 | 00000 |
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t564-@halfx_636924002799251934.png?ver=imagenotfound)
Mount. Holes | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Mount. Location | Ht. | Ball Dia. | Max. Load Capacity, lbs. | Material | Ball Material | Base Dia. | No. of | Pipe Size | Thread Type | Each | |
Pipe | 3 1/4" | 1 1/2" | 3 | Aluminum | Rubber | 1 1/4" | 1 | 1/2 | NPT | 00000000 | 000000 |
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t561-@halfx_636924003747031933.png?ver=imagenotfound)
For T-Slot Rail Ht. | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Mount. Location | Single | Double, Quad | Ht. | Ball Dia. | Max. Load Capacity, lbs. | Material | Ball Material | Base Dia. | Mount. Fasteners Included | Each | |
T-Slot Rail | 1", 30mm, 1 1/2", 40mm, 45mm | 2", 60mm, 3", 80mm, 90mm | 2 1/4" | 1 1/2" | 3 | Steel | Rubber | 1 1/2" | Yes | 00000000 | 000000 |
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t56-@halfx_636924005696344313.png?ver=imagenotfound)
Mount. Location | Ht. | Ball Dia. | Max. Load Capacity, lbs. | Material | Ball Material | Base Dia. | Each | |
Bench, Wall | 2 1/4" | 1 1/2" | 0.5 | Aluminum | Rubber | 2 1/2" | 0000000 | 000000 |
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t565-@halfx_636924006792751583.png?ver=imagenotfound)
Mount. Location | Ht. | Ball Dia. | Max. Load Capacity, lbs. | Material | Ball Material | Base Dia. | Each | |
Bench, Wall | 1 7/8" | 1 1/2" | 3 | Aluminum | Rubber | 3 3/8" | 00000000 | 000000 |
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t57-@halfx_636924008356000036.png?ver=imagenotfound)
Adhesive base includes an adhesive pad.
Base | |||||||||
---|---|---|---|---|---|---|---|---|---|
Mount. Location | Ht. | Ball Dia. | Max. Load Capacity, lbs. | Material | Ball Material | Lg. | Wd. | Each | |
Bench, Wall | 3" | 1 1/2" | 3 | Plastic | Rubber | 5 1/2" | 7 1/4" | 0000000 | 000000 |
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t566p1-h02d-digital@halfx_636893563241669543.png?ver=imagenotfound)
Swivel connector swivels to position both halves of the connector independently. With separate handles, you can lock one joint while positioning the other joint.
Lg. | For Ball Dia. | Max. Load Capacity, lbs. | Material | Each | |
6" | 1 1/2" | 3 | Plastic | 00000000 | 000000 |
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t137p1-a06b-digital@halfx_636893557661280523.png?ver=imagenotfound)
Reducing connector joins components with a 1 1/2" dia. ball to those with a 1" dia. ball. It has handles to lock joints into position.
Lg. | For Ball Dia. | Max. Load Capacity, lbs. | Material | Each | |
5 1/4" | 1"; 1 1/2" | 1 | Plastic | 00000000 | 000000 |
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t151p1-a06b-digital@halfx_636893555541255826.png?ver=imagenotfound)
Mount. | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Lg. | Wd. | Ball Dia. | Max. Load Capacity, lbs. | Material | Ball Material | Fasteners Included | No. of Holes | Hole Dia. | Each | |
6 1/4" | 2" | 1 1/2" | 3 | Powder-Coated Aluminum | Rubber | No | 20 | 7/32" | 00000000 | 000000 |
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t138p1-a06b-digital@halfx_636893557725420406.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t811p1-h03-digital@halfx_637080417272222922.png?ver=imagenotfound)
Hand-held device grips adjust for a secure hold. The hand-held device grips with 1" dia. ball require a reducing connector to mount to components with a 1 1/2" dia. ball.
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t569-@halfx_636924010369749389.png?ver=imagenotfound)
Tablet and laptop holder has a spring-loaded adjustment to fit most tablets and compact laptops. In addition to a universal AMPS mounting hole pattern, it has a VESA (Video Electronics Standards Association) standard mounting hole pattern. It does not have a ball; affix a screw-on base (sold separately) to attach to a connector.
Mount. | |||||||
---|---|---|---|---|---|---|---|
Lg. | Wd. | Max. Load Capacity, lbs. | Material | Fasteners Included | Hole Pattern Compatibility | Each | |
6" | 8 9/16"-11 1/8" | 3 | Plastic | Yes | AMPS, VESA 75 | 00000000 | 000000 |
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t12p1-a06b-digital@halfx_636893556781800081.png?ver=imagenotfound)
Flat-panel monitor mounting plate has a VESA (Video Electronics Standards Association) standard mounting hole pattern.
Mount. | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Lg. | Wd. | Ball Dia. | Max. Load Capacity, lbs. | Material | Ball Material | Fasteners Included | No. of Holes | Hole Pattern Compatibility | Each | |
4 3/4" | 4 3/4" | 1 1/2" | 3 | Powder-Coated Aluminum | Rubber | No | 14 | VESA 100, VESA 75 | 0000000 | 000000 |
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t141-@halfx_636910055049796963.png?ver=imagenotfound)
Magnetic tray keeps fasteners and other small steel items in place. It does not have a ball; affix a screw-on base (sold separately) to attach to a connector.
Mount. | |||||||||
---|---|---|---|---|---|---|---|---|---|
Lg. | Wd. | For Ball Dia. | Max. Load Capacity, lbs. | Material | Fasteners Included | No. of Holes | Hole Dia. | Each | |
10" | 13" | 1 1/2" | 1 | Plastic | No | 4 | 11/64" | 00000000 | 000000 |
![](/prerenderstable/mvPRE/contents/gfx/imagecache/503/5031t568p1-h02d-digital@halfx_636893555765990199.png?ver=imagenotfound)
Scanner gun holder has rubber fins to grip your scanner gun. The bottom is open to scan items without removing the scanner from the holder. It has a universal AMPS mounting hole pattern, but does not have a ball; affix a screw-on base (sold separately) to attach to a connector.
Opening | Mount. | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
Ht. | Wd. | Ht. | Wd. | Max. Load Capacity, lbs. | Material | Fasteners Included | Hole Pattern Compatibility | Features | Each | |
5 1/8" | 5" | 3 1/2" | 2 1/8" | 3 | Plastic | Yes | AMPS | Open Bottom, Rubber Fins | 00000000 | 000000 |
Hitch Balls
![](/prerenderstable/mvPRE/contents/gfx/imagecache/878/8785t41c1-e01f-digital-master1563215630-p9@halfx_636987944616636059.png?ver=imagenotfound)
Mount these onto a hitch insert, and connect them to a trailer with a hitch-ball coupler. Maximum trailer weight is the total weight being towed.
For technical drawings and 3-D models, click on a part number.
For Max. Trailer Wt., lbs. | Hitch Ball Dia. | Thread Size | Stud Lg. | Each | |
Chrome-Plated Steel | |||||
---|---|---|---|---|---|
2,000 | 1 7/8" | 3/4"-16 | 1 5/8" | 0000000 | 000000 |
3,500 | 2" | 3/4"-16 | 1 5/8" | 0000000 | 00000 |
3,500 | 2" | 3/4"-16 | 2 5/16" | 0000000 | 00000 |
5,000 | 2" | 1"-14 | 2 1/8" | 000000 | 00000 |
6,000 | 2 5/16" | 1"-14 | 2" | 0000000 | 00000 |
10,000 | 2 5/16" | 1 1/4"-12 | 2 1/8" | 000000 | 00000 |
Stainless Steel | |||||
2,000 | 1 7/8" | 3/4"-16 | 1 3/4" | 0000000 | 00000 |
8,200 | 2" | 1"-14 | 1 3/4" | 0000000 | 00000 |
8,200 | 2 5/16" | 1"-14 | 1 3/4" | 0000000 | 00000 |
Hitch Inserts
![](/prerenderstable/mvPRE/contents/gfx/imagecache/250/2507tc3-master1548686546-p9@halfx_636598984706130000.png?ver=imagenotfound)

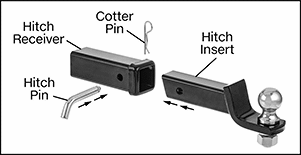

Use these inserts in hitch-ball connections for towing. They fit into a receiver that's attached to a vehicle. Maximum trailer weight is the total weight being towed. Vertical capacity (also known as tongue weight) represents the weight of the load on the hitch ball.
Combination ball/eyes give you the versatility of mating with a drawbar ring or hitch-ball coupler. The higher capacity is for the drawbar ring; the lower capacity is for the hitch ball.
Multi-size hitch balls provide three sizes in one. The larger hitch ball sizes have higher capacities.
Height adjusting multi-size hitch balls provide three sizes in one and can raise or drop the ball to the height that works for your trailer. The larger hitch ball sizes have higher capacities.
Eyes and combination ball/eyes with multi-size hitch balls allow for more range of movement than ball hitches, making them good for use on uneven surfaces. Since they can also tow higher capacities than ball hitches, they’re often used to haul large items.
Use hooks and multi-size hitch balls with hook to attach towing chains, straps, or cable to haul heavy objects, such as vehicles.
![](/prerenderstable/mvPRE/contents/gfx/imagecache/250/2507t41p1-e01f-digitall@halfx_637129488375137378.png?ver=imagenotfound)
Hitch Ball | ||||||||
---|---|---|---|---|---|---|---|---|
For Maximum Trailer Weight, lbs. | Vertical Capacity, lbs. | Overall Depth | For Hitch Receiver Size | Number of Hitch Balls Included | Diameter | Material | Each | |
7,000/12,000 | 2,400 | 15 11/32" | 2" Square | 1 | 2" | Chrome-Plated Steel | 0000000 | 0000000 |
![](/prerenderstable/mvPRE/contents/gfx/imagecache/776/7765t44p1-e01f-digitall@halfx_637129488962267679.png?ver=imagenotfound)
Hitch Ball | ||||||||
---|---|---|---|---|---|---|---|---|
For Maximum Trailer Weight, lbs. | Vertical Capacity | Overall Depth | For Hitch Receiver Size | Number of Hitch Balls Included | Diameter | Material | Each | |
6,000/7,500/10,000 | Not Rated | 12" | 2" Square | 3 | 1 7/8", 2", 2 5/16" | Chrome-Plated Steel | 0000000 | 000000 |
![](/prerenderstable/mvPRE/contents/gfx/imagecache/776/7765t45-1620408046-p9@halfx_637559868721129052.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/776/7765t45-2-1620408045-p9@halfx_637559868718827794.png?ver=imagenotfound)
Hitch Ball | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
For Maximum Trailer Weight, lbs. | Vertical Capacity | Maximum Drop Height | Maximum Rise Height | Height Adjustment Increments | Overall Depth | For Hitch Receiver Size | Number of Hitch Balls Included | Diameter | Material | Each | |
6,000/7,500/10,000 | Not Rated | 6" | 6" | 1 1/4" | 20 7/32" | 2" Square | 3 | 1 7/8", 2", 2 5/16" | Chrome-Plated Steel | 0000000 | 0000000 |
![](/prerenderstable/mvPRE/contents/gfx/imagecache/776/7765t51-@halfx_637606520152650122.png?ver=imagenotfound)
Hitch Ball | ||||||||
---|---|---|---|---|---|---|---|---|
For Maximum Trailer Weight, lbs. | Vertical Capacity, lbs. | Overall Depth | For Hitch Receiver Size | Number of Hitch Balls Included | Diameter | Material | Each | |
6,000/10,000/14,000 | 600, 1,000, 1,400 | 13 1/2" | 2 1/2" Square | 3 | 1 7/8", 2", 2 5/16" | Chrome-Plated Steel | 0000000 | 0000000 |
![](/prerenderstable/mvPRE/contents/gfx/imagecache/776/7765t52-@halfx_637606520169504750.png?ver=imagenotfound)
Hitch Ball | |||||||||
---|---|---|---|---|---|---|---|---|---|
For Maximum Trailer Weight, lbs. | Vertical Capacity, lbs. | Hook Opening Width | Overall Depth | For Hitch Receiver Size | Number of Hitch Balls Included | Diameter | Material | Each | |
6,000/7,500/10,000 | 600, 750, 1,000 | 1 5/8" | 13" | 2" Square | 3 | 1 7/8", 2", 2 5/16" | Powder-Coated Steel | 0000000 | 000000 |
Calibration Kit for Metal-Detectable Plastics
![](/prerenderstable/mvPRE/contents/gfx/imagecache/356/3562n11p2-@halfx_637249670106728310.png?ver=imagenotfound)
Made with metal additives, these balls test the sensitivity of food-processing metal detectors. They’re often used to calibrate metal detectors to find metal-detectable plastic tools that have fallen into a batch. To calibrate your metal detector, run different balls through the line—the smaller the ball, the more sensitive the detector must be to recognize it. Since they’re spheres, their orientation won’t affect a metal detector’s ability to register them. These balls help you comply with Hazard and Critical Control Point (HACCP) programs for food safety. They’re FDA compliant for direct contact with food. Balls are autoclavable, so you can sanitize them with steam.
Material | Color | Max. Temperature, °F | Autoclavable | Includes | Specifications Met | Each | |
Polypropylene Plastic | Blue | 180° | Yes | Sizes 4 mm to 14 mm (1 mm increments) | FDA Compliant 21 CFR 177.1520 | 0000000 | 00000 |
Tip Sets for Outside Micrometers
![](/prerenderstable/mvPRE/contents/gfx/imagecache/231/2313a21p1-a01b-digital@halfx_637008752992539041.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/231/2313a11c1-a01b-digital-master1591044532-p9@halfx_637266233615511845.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/231/2313a13c1-a01b-digital-master1591044531-p9@halfx_637266233814016393.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/231/2313a17c1-a01b-digital-master1591044532-p9@halfx_637266233847331060.png?ver=imagenotfound)
![](/prerenderstable/mvPRE/contents/gfx/imagecache/231/2313a14c1-a01b-digital-master1591044531-p9@halfx_637266233808586309.png?ver=imagenotfound)
Turn your micrometer into a specialty micrometer capable of measuring slots, grooves, angles, cylindrical walls, and other surfaces. The ball-shaped tip comes with two balls. If one ball gets damaged or worn, replace it with the other one.
Use ball-shaped tips to measure the wall thickness of pipe, tubing, and other curved surfaces.
Use blade-, cone-, knife-, and spline-shaped tips to measure grooves, slots, and other hard-to-reach dimensions.
Use disc-shaped tips to fit into recesses to measure the thickness of gear teeth.
For technical drawings and 3-D models, click on a part number.
Base Lg. | Material | Container Type | Number of Tips | Includes | Each | |
9/32" | Rubber | Case | 7 | One 0.200" diameter ball-style tip with two balls One 0.030" thick blade-style tip One 30° cone-style tip One 0.500" diameter disc-style tip One 30° knife-style tip One 0.050" diameter spline-style tip One 0.100" diameter spline-style tip | 0000000 | 000000 |
Tips for Outside Micrometers
![](/prerenderstable/mvPRE/contents/gfx/imagecache/231/2313a11c1-a01b-digital-master1565295419-p9@halfx_637008753329036891.png?ver=imagenotfound)
Turn your micrometer into a specialty micrometer capable of measuring slots, grooves, angles, cylindrical walls, and other surfaces.
Use ball-shaped tips to measure the wall thickness of pipe, tubing, and other curved surfaces. Each tip comes with two balls. If one ball gets damaged or worn, replace it with the other one.
For technical drawings and 3-D models, click on a part number.
