Press-Fit Drill Bushings with Head
The head prevents these bushings from being pushed through the jig when drilling pressure is extreme. The head sits above the jig plate or can be mounted flush by installing in a counterbored hole. Drill bushings can also be used as spacers, shims, and machinery bushings.

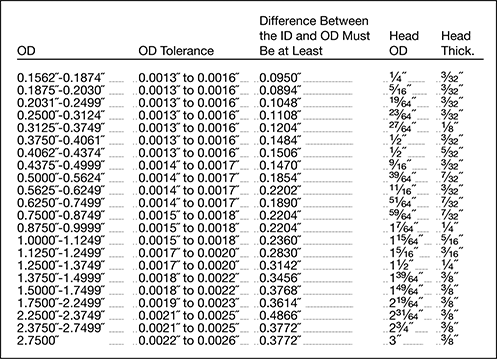

Don't see the size you need? Additional sizes are available.
For technical drawings and 3-D models, click on a part number.
Head | Tolerance | Each | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OD | Lg. | For Drill Bit Size | OD | Thick. | ID | OD | Lg. | Drill Bushing Type | Material | Hardness | 1-5 | 6-11 | 12-Up | |
0.0135" ID | ||||||||||||||
| 5/32" | 1/4" | No. 80 | 1/4" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 000000 | 000000 | 000000 |
| 5/32" | 5/16" | No. 80 | 1/4" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 5/32" | 3/8" | No. 80 | 1/4" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 5/32" | 1/2" | No. 80 | 1/4" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.086" ID | ||||||||||||||
| 13/64" | 1/4" | No. 44 | 19/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.089" ID | ||||||||||||||
| 13/64" | 1/4" | No. 43 | 19/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.0938" ID | ||||||||||||||
| 13/64" | 1/4" | 3/32" | 19/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 13/64" | 3/8" | 3/32" | 19/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 13/64" | 1/2" | 3/32" | 19/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.098" ID | ||||||||||||||
| 1/4" | 1/4" | No. 40 | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/4" | 1/2" | No. 40 | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.1015" ID | ||||||||||||||
| 1/4" | 1/4" | No. 38 | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/4" | 1/2" | No. 38 | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.1094" ID | ||||||||||||||
| 1/4" | 1/4" | 7/64" | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/4" | 1/2" | 7/64" | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.125" ID | ||||||||||||||
| 1/4" | 1/4" | 1/8" | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/4" | 3/8" | 1/8" | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/4" | 1/2" | 1/8" | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/4" | 3/4" | 1/8" | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/4" | 1" | 1/8" | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 5/16" | 3/8" | 1/8" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 5/16" | 1/2" | 1/8" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 5/16" | 3/4" | 1/8" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.1285" ID | ||||||||||||||
| 1/4" | 1/4" | No. 30 | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/4" | 3/8" | No. 30 | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.136" ID | ||||||||||||||
| 1/4" | 1/4" | No. 29 | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/4" | 3/8" | No. 29 | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/4" | 1/2" | No. 29 | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 5/16" | 1" | No. 29 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.1406" ID | ||||||||||||||
| 1/4" | 1/4" | 9/64" | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/4" | 3/8" | 9/64" | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/4" | 1/2" | 9/64" | 23/64" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.1495" ID | ||||||||||||||
| 5/16" | 1/4" | No. 25 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 5/16" | 1/2" | No. 25 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.1563" ID | ||||||||||||||
| 5/16" | 3/8" | 5/32" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 5/16" | 1/2" | 5/32" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 5/16" | 3/4" | 5/32" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.159" ID | ||||||||||||||
| 5/16" | 3/8" | No. 21 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.166" ID | ||||||||||||||
| 5/16" | 1/4" | No. 19 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 5/16" | 1/2" | No. 19 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.1719" ID | ||||||||||||||
| 5/16" | 3/8" | 11/64" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.18" ID | ||||||||||||||
| 5/16" | 1/4" | No. 15 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.1875" ID | ||||||||||||||
| 5/16" | 1/4" | 3/16" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 5/16" | 5/16" | 3/16" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 5/16" | 3/8" | 3/16" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 5/16" | 1/2" | 3/16" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 5/16" | 3/4" | 3/16" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 5/16" | 1" | 3/16" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 5/16" | 1 3/8" | 3/16" | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 13/32" | 1/4" | 3/16" | 1/2" | 5/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 13/32" | 3/8" | 3/16" | 1/2" | 5/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 13/32" | 1/2" | 3/16" | 1/2" | 5/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 0000 |
| 13/32" | 3/4" | 3/16" | 1/2" | 5/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 13/32" | 1" | 3/16" | 1/2" | 5/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 13/32" | 1 3/8" | 3/16" | 1/2" | 5/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/2" | 1/4" | 3/16" | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/2" | 5/16" | 3/16" | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 0000 | 0000 |
| 1/2" | 3/8" | 3/16" | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/2" | 1/2" | 3/16" | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/2" | 3/4" | 3/16" | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/2" | 1" | 3/16" | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 1/2" | 1 3/8" | 3/16" | 39/64" | 7/32" | 0.0001" to 0.0004" | 0.0014" to 0.0017" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
Head | Tolerance | Each | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OD | Lg. | For Drill Bit Size | OD | Thick. | ID | OD | Lg. | Drill Bushing Type | Material | Hardness | 1-5 | 6-11 | 12-Up | |
0.1935" ID | ||||||||||||||
| 5/16" | 3/8" | No. 10 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 000000 | 000000 | 000000 |
| 5/16" | 1/2" | No. 10 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 3/8" | 3/8" | No. 10 | 1/2" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 3/8" | 1/2" | No. 10 | 1/2" | 3/32" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
0.199" ID | ||||||||||||||
| 5/16" | 1/4" | No. 8 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
| 5/16" | 1/2" | No. 8 | 27/64" | 1/8" | 0.0001" to 0.0004" | 0.0013" to 0.0016" | -0.015" to 0.015" | H | Steel | Rockwell C61 | 00000000 | 00000 | 00000 | 00000 |
