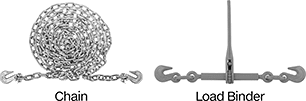

Chain with Fittings on Both Ends
Bind, bundle, tow, and haul—this steel chain has hooks on each end for versatility.
Grade 70 chain, also known as transport chain, has a high strength-to-weight ratio.
D.O.T.—Department of Transportation.
Warning: Never use for lifting applications. See Chain—For Lifting.
Inside | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Straight-Link Chain Trade Size | Metric Trade Size | Thick. | Wd. | Lg. | Cap., lbs. | Wt. per ft., lbs. | Hook Opening Wd. | Fitting Type | Specifications Met | Each | |
14-ft. Lg. | |||||||||||
Steel — Chain Grade 43 | |||||||||||
5/16 | 8 | 0.33" | 0.48" | 1.29" | 3,900 | 1.1 | 7/16" | Grab Hook | D.O.T. 393.102 | 0000000 | 000000 |
3/8 | 10 | 0.39" | 0.55" | 1.37" | 5,400 | 1.6 | 1/2" | Grab Hook | D.O.T. 393.102 | 0000000 | 00000 |
Zinc-Plated Steel — Chain Grade 70 | |||||||||||
5/16 | 8 | 0.33" | 0.48" | 1.12" | 4,700 | 1.2 | 7/16" | Grab Hook | D.O.T. 393.102 | 0000000 | 00000 |
3/8 | 10 | 0.39" | 0.55" | 1.37" | 6,600 | 1.8 | 1/2" | Grab Hook | D.O.T. 393.102 | 0000000 | 00000 |
20-ft. Lg. | |||||||||||
Steel — Chain Grade 43 | |||||||||||
5/16 | 8 | 0.33" | 0.48" | 1.29" | 3,900 | 1.1 | 7/16" | Grab Hook | D.O.T. 393.102 | 0000000 | 00000 |
3/8 | 10 | 0.39" | 0.55" | 1.37" | 5,400 | 1.5 | 1/2" | Grab Hook | D.O.T. 393.102 | 000000 | 000000 |
1/2 | 13 | 0.51" | 0.75" | 1.78" | 9,200 | 2.3 | 5/8" | Grab Hook | D.O.T. 393.102 | 000000 | 000000 |
Zinc-Plated Steel — Chain Grade 70 | |||||||||||
5/16 | 8 | 0.33" | 0.48" | 1.12" | 4,700 | 1.2 | 7/16" | Grab Hook | D.O.T. 393.102 | 0000000 | 000000 |
3/8 | 10 | 0.39" | 0.55" | 1.37" | 6,600 | 1.6 | 1/2" | Grab Hook | D.O.T. 393.102 | 0000000 | 000000 |
1/2 | 13 | 0.51" | 0.75" | 1.78" | 11,300 | 2.7 | 5/8" | Grab Hook | D.O.T. 393.102 | 0000000 | 000000 |
Extra-High-Strength Grade 70 Chain—Not for Lifting
This chain is approximately 20% stronger than Grade 40/43 chain and 60% stronger than Grade 30 chain. Use it for binding loads, tie downs, and towing applications. It is stamped with the grade and manufacturer. When using fittings with chain, you must match the trade size and meet or exceed the chain’s grade.
For technical drawings and 3-D models, click on a part number.
Inside | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Straight-Link Chain Trade Size | Metric Trade Size | Thick. | Wd. | Lg. | Cap., lbs. | Wt. per ft., lbs. | Approximate No. of Links per ft. | For Fitting Thick. | Max. Temp., ° F | For Use Outdoors | Lengths, ft. | Per Ft. | |
Zinc Yellow-Chromate-Plated Steel | |||||||||||||
1/4 | 7 | 0.27" | 0.46" | 1.24" | 3,100 | 0.6 | 9 | 7/16" | 400° | No | 0000000 | 00000 | |
5/16 | 8 | 0.32" | 0.49" | 1.15" | 4,700 | 1 | 10 | 7/16" | 400° | No | 0000000 | 0000 | |
3/8 | 10 | 0.38" | 0.60" | 1.30" | 6,600 | 1.4 | 9 | 9/16" | 400° | No | 0000000 | 0000 | |
1/2 | 13 | 0.50" | 0.81" | 1.56" | 11,300 | 2.4 | 7 | 3/4" | 400° | No | 0000000 | 00000 |
High-Strength Grade 43 Chain—Not for Lifting
This chain is approximately 50% stronger than Grade 30 chain. Use it for binding loads, tie downs, and towing applications. It is stamped with the grade and manufacturer. When using fittings with chain, you must match the trade size and meet or exceed the chain’s grade.
Zinc-plated steel chain has good corrosion resistance. Galvanized steel chain has excellent corrosion resistance.
For technical drawings and 3-D models, click on a part number.
Inside | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Straight-Link Chain Trade Size | Metric Trade Size | Thick. | Wd. | Lg. | Cap., lbs. | Wt. per ft., lbs. | Approximate No. of Links per ft. | For Fitting Thick. | Max. Temp., ° F | For Use Outdoors | Lengths, ft. | Per Ft. | |
Unfinished Steel | |||||||||||||
1/4 | 7 | 0.27" | 0.50" | 1.02" | 2,600 | 0.7 | 11 | 7/16" | 400° | No | 0000000 | 00000 | |
5/16 | 8 | 0.32" | 0.49" | 1.15" | 3,900 | 1 | 10 | 7/16" | 400° | No | 0000000 | 0000 | |
3/8 | 10 | 0.39" | 0.60" | 1.30" | 5,400 | 1.4 | 9 | 9/16" | 400° | No | 0000000 | 0000 | |
1/2 | 13 | 0.52" | 0.81" | 1.56" | 9,200 | 2.7 | 7 | 3/4" | 400° | No | 0000000 | 00000 | |
5/8 | 16 | 0.63" | 0.85" | 2.02" | 13,000 | 3.8 | 6 | 13/16" | 400° | No | 0000000 | 00000 | |
3/4 | 20 | 0.78" | 1.02" | 2.61" | 20,200 | 5.4 | 4 | 1" | 400° | No | 0000000 | 00000 | |
Zinc-Plated Steel | |||||||||||||
1/4 | 7 | 0.27" | 0.50" | 1.02" | 2,600 | 0.7 | 11 | 7/16" | 400° | No | 0000000 | 0000 | |
5/16 | 8 | 0.32" | 0.49" | 1.15" | 3,900 | 1 | 10 | 7/16" | 400° | No | 0000000 | 0000 | |
3/8 | 10 | 0.39" | 0.60" | 1.30" | 5,400 | 1.4 | 9 | 9/16" | 400° | No | 0000000 | 0000 | |
1/2 | 13 | 0.52" | 0.81" | 1.56" | 9,200 | 2.7 | 7 | 3/4" | 400° | No | 0000000 | 00000 | |
Galvanized Steel | |||||||||||||
1/4 | 7 | 0.27" | 0.50" | 1.02" | 2,600 | 0.7 | 11 | 7/16" | 400° | Yes | 0000000 | 0000 | |
5/16 | 8 | 0.32" | 0.49" | 1.15" | 3,900 | 1 | 10 | 7/16" | 400° | Yes | 0000000 | 0000 | |
3/8 | 10 | 0.39" | 0.60" | 1.30" | 5,400 | 1.4 | 9 | 9/16" | 400° | Yes | 0000000 | 0000 | |
1/2 | 13 | 0.52" | 0.81" | 1.56" | 9,200 | 2.7 | 7 | 3/4" | 400° | Yes | 0000000 | 00000 | |
5/8 | 16 | 0.63" | 1.00" | 1.87" | 13,000 | 4 | 6 | 15/16" | 400° | Yes | 0000000 | 00000 |
Grade 30 Chain—Not for Lifting
Use this strong chain for binding loads, tie downs, and towing applications. It is stamped with the grade and manufacturer. When using fittings with chain, you must match the trade size and meet or exceed the chain’s grade.
Zinc-plated steel chain has good corrosion resistance. Galvanized steel chain has excellent corrosion resistance.
For technical drawings and 3-D models, click on a part number.
Inside | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Straight-Link Chain Trade Size | Metric Trade Size | Thick. | Wd. | Lg. | Cap., lbs. | Wt. per ft., lbs. | Approximate No. of Links per ft. | For Fitting Thick. | Max. Temp., ° F | For Use Outdoors | Lengths, ft. | Per Ft. | |
Unfinished Steel | |||||||||||||
1/8 | 4 | 0.16" | 0.27" | 0.90" | 400 | 0.3 | 13 | 1/4" | 400º | No | 0000000 | 00000 | |
3/16 | 5.5 | 0.21" | 0.39" | 0.95" | 800 | 0.4 | 12 | 3/8" | 400º | No | 0000000 | 0000 | |
1/4 | 7 | 0.26" | 0.46" | 1.24" | 1,300 | 0.6 | 9 | 7/16" | 400º | No | 0000000 | 0000 | |
5/16 | 8 | 0.31" | 0.49" | 1.30" | 1,900 | 0.8 | 9 | 7/16" | 400º | No | 0000000 | 0000 | |
3/8 | 10 | 0.37" | 0.60" | 1.45" | 2,600 | 1.2 | 8 | 9/16" | 400º | No | 0000000 | 0000 | |
1/2 | 13 | 0.52" | 0.81" | 1.56" | 4,500 | 2.7 | 7 | 3/4" | 400º | No | 0000000 | 0000 | |
5/8 | 16 | 0.63" | 1.00" | 1.87" | 6,900 | 4 | 6 | 15/16" | 400º | No | 0000000 | 00000 | |
3/4 | 20 | 0.78" | 1.02" | 2.61" | 10,600 | 5.3 | 5 | 1" | 400º | No | 0000000 | 00000 | |
Zinc-Plated Steel | |||||||||||||
1/8 | 4 | 0.16" | 0.27" | 0.90" | 400 | 0.3 | 13 | 1/4" | 400º | No | 0000000 | 0000 | |
3/16 | 5.5 | 0.21" | 0.39" | 0.95" | 800 | 0.4 | 12 | 3/8" | 400º | No | 0000000 | 0000 | |
1/4 | 7 | 0.26" | 0.46" | 1.24" | 1,300 | 0.6 | 9 | 7/16" | 400º | No | 0000000 | 0000 | |
5/16 | 8 | 0.31" | 0.49" | 1.30" | 1,900 | 0.8 | 9 | 7/16" | 400º | No | 0000000 | 0000 | |
3/8 | 10 | 0.37" | 0.60" | 1.45" | 2,600 | 1.2 | 8 | 9/16" | 400º | No | 0000000 | 0000 | |
1/2 | 13 | 0.52" | 0.81" | 1.56" | 4,500 | 2.7 | 7 | 3/4" | 400º | No | 0000000 | 00000 | |
Galvanized Steel | |||||||||||||
1/8 | 4 | 0.16" | 0.27" | 0.90" | 400 | 0.3 | 13 | 1/4" | 400º | Yes | 0000000 | 0000 | |
3/16 | 5.5 | 0.21" | 0.39" | 0.95" | 800 | 0.4 | 12 | 3/8" | 400º | Yes | 0000000 | 0000 | |
1/4 | 7 | 0.26" | 0.46" | 1.24" | 1,300 | 0.6 | 9 | 7/16" | 400º | Yes | 0000000 | 0000 | |
5/16 | 8 | 0.31" | 0.49" | 1.30" | 1,900 | 0.8 | 9 | 7/16" | 400º | Yes | 0000000 | 0000 | |
3/8 | 10 | 0.37" | 0.60" | 1.45" | 2,600 | 1.2 | 8 | 9/16" | 400º | Yes | 0000000 | 0000 | |
1/2 | 13 | 0.52" | 0.81" | 1.56" | 4,500 | 2.7 | 7 | 3/4" | 400º | Yes | 0000000 | 00000 | |
5/8 | 16 | 0.63" | 1.00" | 1.87" | 6,900 | 4 | 6 | 15/16" | 400º | Yes | 0000000 | 00000 | |
Green Powder-Coated Steel | |||||||||||||
1/8 | __ | 0.13" | 0.24" | 0.92" | 400 | 0.2 | 13 | 3/16" | 200º | No | 0000000 | 0000 | |
3/16 | 5.5 | 0.20" | 0.40" | 0.98" | 800 | 0.4 | 13 | 3/8" | 200º | No | 0000000 | 0000 | |
1/4 | 7 | 0.26" | 0.48" | 1.24" | 1,300 | 0.6 | 11 | 7/16" | 200º | No | 0000000 | 0000 | |
5/16 | 8 | 0.33" | 0.48" | 1.28" | 1,900 | 1 | 10 | 7/16" | 200º | No | 0000000 | 00000 | |
3/8 | 10 | 0.39" | 0.55" | 1.37" | 2,600 | 1.4 | 9 | 1/2" | 200º | No | 0000000 | 00000 |
Tangle-Resistant Grade 30 Chain—Not for Lifting
This is the strongest tangle-resistant chain we offer. Shorter links make it easier to coil and less likely to knot. It is heat treated and stamped with the grade and manufacturer. When using fittings with chain, you must match the trade size and meet or exceed the chain’s grade.
Galvanized steel chain has excellent corrosion resistance.
For technical drawings and 3-D models, click on a part number.
Inside | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Straight-Link Chain Trade Size | Metric Trade Size | Thick. | Wd. | Lg. | Cap., lbs. | Wt. per ft., lbs. | Approximate No. of Links per ft. | For Fitting Thick. | Max. Temp., ° F | For Use Outdoors | Lengths, ft. | Per Ft. | |
Unfinished Steel | |||||||||||||
1/4 | 7 | 0.28" | 0.50" | 1.02" | 1,300 | 0.6 | 12 | 7/16" | 400° | No | 0000000 | 00000 | |
5/16 | 8 | 0.34" | 0.49" | 0.99" | 1,900 | 1.2 | 11 | 7/16" | 400° | No | 0000000 | 0000 | |
3/8 | 10 | 0.39" | 0.62" | 1.09" | 2,600 | 1.6 | 10 | 9/16" | 400° | No | 0000000 | 0000 | |
1/2 | 13 | 0.50" | 0.75" | 1.33" | 4,500 | 2.7 | 9 | 11/16" | 400° | No | 0000000 | 00000 | |
Galvanized Steel | |||||||||||||
1/4 | 7 | 0.27" | 0.43" | 0.87" | 1,300 | 0.8 | 13 | 3/8" | 400° | Yes | 0000000 | 0000 | |
5/16 | 8 | 0.34" | 0.49" | 0.99" | 1,900 | 1.2 | 11 | 7/16" | 400° | Yes | 0000000 | 0000 | |
3/8 | 10 | 0.39" | 0.62" | 1.09" | 2,600 | 1.6 | 10 | 9/16" | 400° | Yes | 0000000 | 00000 | |
1/2 | 13 | 0.51" | 0.75" | 1.33" | 4,500 | 2.8 | 9 | 11/16" | 400° | Yes | 0000000 | 00000 |
