Floor Locks
Mounting Plate Style 1

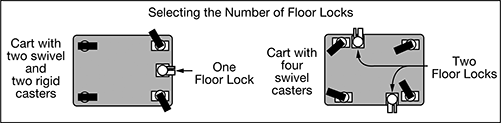

Stabilize carts, trucks, workbenches, and other mobile equipment during loading and unloading. Floor locks bolt or weld to the underside of your equipment and have a spring-loaded base with a nonskid floor pad to keep equipment stationary.
Note: Floor locks are not load rated. They are designed to brake your equipment in place, not lift it off the floor.
Pivoting base compensates for uneven floors.
Retraction Pedal on Both Sides with Pivoting Base
Mounting Plate Style 1
Ht. | Mounting Plate | Mounting Hole Ctr.-to-Ctr. | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| For Caster Mount Ht. | Extended | Retracted | Clearance | Style | Lg. | Wd. | Lg. (A) | Lg. (B) | Wd. (A) | Wd. (B) | Mounting Fasteners Included | For Screw Size  | Color | Each | |
Painted Iron | |||||||||||||||
| 5 5/8"-5 7/8" | 5 5/8" | 4 9/16" | 1 5/16" | 1 | 4 13/16" | 4 1/4" | 3 5/8" | 3" | 3" | 2 5/8" | No | 3/8" | Gray | 00000000 | 0000000 |
| 7 1/4"-7 1/2" | 7 1/2" | 6" | 1 3/4" | 1 | 6 1/2" | 4 3/4" | 5 1/4" | 4 15/16" | 3 3/8" | 2 7/16" | No | 1/2" | Gray | 00000000 | 000000 |
| 10 1/4"-10 5/8" | 10 1/4" | 9 1/8" | 1 3/8" | 1 | 6 1/2" | 4 3/4" | 5 1/4" | 4 15/16" | 3 3/8" | 2 7/16" | No | 1/2" | Gray | 00000000 | 000000 |
Right-Angle Speed Reducers
With Right-Hand Output
With Left-Hand Output
Reduce shaft speed and increase torque while transmitting motion at a 90° angle. Speed reducers require lubrication (not included). Connect to a motor using a shaft coupling (not included).
Base mounting plates (sold separately) allow you to mount speed reducers to machinery or other surfaces where fastening into the bottom of the speed reducer is not possible.
Radial loads are loads that are perpendicular to the shaft. They’re commonly caused by components attached to shaft, such as pulleys and sprockets.
Max. Output | Max. Input | Input Shaft | Output Shaft | Overall | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Torque | Speed, rpm | Speed, rpm | hp | Dia. | Lg. | Dia. | Lg. | Ctr.-to-Ctr. Shaft Distance | Lg. | Wd. | Ht. | Radial Load Cap., lbs. | Choose an Output Shaft Location | Each | |
5:1 Speed Ratio | |||||||||||||||
| 113 in.-lbs. @ 1,750 rpm | 900 | 4,500 | 0.69 | 3/8" | 0.81" | 1/2" | 1.19" | 1" | 4 1/2" | 4 9/16" | 3 5/8" | 150 | 0000000 | 0000000 | |
| 235 in.-lbs. @ 1,750 rpm | 900 | 4,500 | 1.39 | 1/2" | 1.31" | 5/8" | 2" | 1.33" | 6 1/16" | 6 1/16" | 4 11/16" | 200 | 0000000 | 000000 | |
| 432 in.-lbs. @ 1,750 rpm | 720 | 3,600 | 2.55 | 5/8" | 1.56" | 7/8" | 1.78" | 1.75" | 7 5/8" | 6 7/8" | 5 3/4" | 500 | 0000000 | 000000 | |
10:1 Speed Ratio | |||||||||||||||
| 138 in.-lbs. @ 1,750 rpm | 450 | 4,500 | 0.44 | 3/8" | 0.81" | 1/2" | 1.19" | 1" | 4 1/2" | 4 9/16" | 3 5/8" | 150 | 0000000 | 000000 | |
| 281 in.-lbs. @ 1,750 rpm | 450 | 4,500 | 0.86 | 1/2" | 1.31" | 5/8" | 2" | 1.33" | 6 1/16" | 6 1/16" | 4 11/16" | 200 | 0000000 | 000000 | |
| 536 in.-lbs. @ 1,750 rpm | 360 | 3,600 | 1.61 | 5/8" | 1.56" | 7/8" | 1.78" | 1.75" | 7 5/8" | 6 7/8" | 5 3/4" | 500 | 0000000 | 000000 | |
20:1 Speed Ratio | |||||||||||||||
| 149 in.-lbs. @ 1,750 rpm | 225 | 4,500 | 0.27 | 3/8" | 0.81" | 1/2" | 1.19" | 1" | 4 1/2" | 4 9/16" | 3 5/8" | 150 | 0000000 | 000000 | |
| 308 in.-lbs. @ 1,750 rpm | 225 | 4,500 | 0.52 | 1/2" | 1.31" | 5/8" | 2" | 1.33" | 6 1/16" | 6 1/16" | 4 11/16" | 200 | 0000000 | 000000 | |
| 590 in.-lbs. @ 1,750 rpm | 180 | 3,600 | 0.97 | 5/8" | 1.56" | 7/8" | 1.78" | 1.75" | 7 5/8" | 6 7/8" | 5 3/4" | 500 | 0000000 | 000000 | |
| 892 in.-lbs. @ 1,750 rpm | 180 | 3,600 | 1.4 | 5/8" | 1.56" | 1" | 2.09" | 2.06" | 8 1/8" | 7 5/16" | 6 3/8" | 700 | 0000000 | 00000000 | |
30:1 Speed Ratio | |||||||||||||||
| 311 in.-lbs. @ 1,750 rpm | 150 | 4,500 | 0.39 | 1/2" | 1.31" | 5/8" | 2" | 1.33" | 6 1/16" | 6 1/16" | 4 11/16" | 200 | 0000000 | 000000 | |
| 573 in.-lbs. @ 1,750 rpm | 120 | 3,600 | 0.65 | 5/8" | 1.56" | 7/8" | 1.78" | 1.75" | 7 5/8" | 6 7/8" | 5 3/4" | 500 | 0000000 | 000000 | |
| 871 in.-lbs. @ 1,750 rpm | 120 | 3,600 | 0.99 | 5/8" | 1.56" | 1" | 2.09" | 2.06" | 8 1/8" | 7 5/16" | 6 3/8" | 700 | 0000000 | 00000000 | |
40:1 Speed Ratio | |||||||||||||||
| 307 in.-lbs. @ 1,750 rpm | 112 | 4,500 | 0.31 | 1/2" | 1.31" | 5/8" | 2" | 1.33" | 6 1/16" | 6 1/16" | 4 11/16" | 200 | 0000000 | 000000 | |
| 609 in.-lbs. @ 1,750 rpm | 90 | 3,600 | 0.57 | 5/8" | 1.56" | 7/8" | 1.78" | 1.75" | 7 5/8" | 6 7/8" | 5 3/4" | 500 | 0000000 | 000000 | |
| 876 in.-lbs. @ 1,750 rpm | 90 | 3,600 | 0.81 | 5/8" | 1.56" | 1" | 2.09" | 2.06" | 8 1/8" | 7 5/16" | 6 3/8" | 700 | 0000000 | 00000000 | |
| 1,206 in.-lbs. @ 1,750 rpm | 90 | 3,600 | 1.08 | 3/4" | 2" | 1 1/8" | 2.38" | 2.38" | 9" | 7 13/16" | 7" | 900 | 0000000 | 00000000 | |
50:1 Speed Ratio | |||||||||||||||
| 297 in.-lbs. @ 1,750 rpm | 90 | 4,500 | 0.25 | 1/2" | 1.31" | 5/8" | 2" | 1.33" | 6 1/16" | 6 1/16" | 4 11/16" | 200 | 00000000 | 000000 | |
| 1,484 in.-lbs. @ 1,750 rpm | 72 | 3,600 | 1.08 | 3/4" | 2" | 1 1/8" | 2.62" | 2.62" | 10" | 8 1/2" | 8" | 1,000 | 00000000 | 00000000 | |
60:1 Speed Ratio | |||||||||||||||
| 271 in.-lbs. @ 1,750 rpm | 75 | 4,500 | 0.22 | 1/2" | 1.31" | 5/8" | 2" | 1.33" | 6 1/16" | 6 1/16" | 4 11/16" | 200 | 0000000 | 000000 | |
| 527 in.-lbs. @ 1,750 rpm | 60 | 3,600 | 0.35 | 5/8" | 1.56" | 7/8" | 1.78" | 1.75" | 7 5/8" | 6 7/8" | 5 3/4" | 500 | 0000000 | 000000 | |
| 826 in.-lbs. @ 1,750 rpm | 60 | 3,600 | 0.55 | 5/8" | 1.56" | 1" | 2.09" | 2.06" | 8 1/8" | 7 5/16" | 6 3/8" | 700 | 0000000 | 00000000 | |
| 1,128 in.-lbs. @ 1,750 rpm | 60 | 3,600 | 0.73 | 3/4" | 2" | 1 1/8" | 2.38" | 2.38" | 9" | 7 13/16" | 7" | 900 | 0000000 | 00000000 | |
| 1,385 in.-lbs. @ 1,750 rpm | 60 | 3,600 | 0.89 | 3/4" | 2" | 1 1/8" | 2.63" | 2.62" | 10" | 8 1/2" | 8" | 1,000 | 0000000 | 00000000 | |
80:1 Speed Ratio | |||||||||||||||
| 222 in.-lbs. @ 1,750 rpm | 56 | 4,500 | 0.15 | 1/2" | 1.31" | 5/8" | 2" | 1.33" | 6 1/16" | 6 1/16" | 4 11/16" | 200 | 0000000 | 000000 | |
| 387 in.-lbs. @ 1,750 rpm | 45 | 3,600 | 0.23 | 5/8" | 1.56" | 7/8" | 1.78" | 1.75" | 7 5/8" | 6 7/8" | 5 3/4" | 500 | 0000000 | 000000 | |
| 634 in.-lbs. @ 1,750 rpm | 45 | 3,600 | 0.38 | 5/8" | 1.56" | 1" | 2.09" | 2.06" | 8 1/8" | 7 5/16" | 6 3/8" | 700 | 0000000 | 00000000 | |
| 1,069 in.-lbs. @ 1,750 rpm | 45 | 3,600 | 0.76 | 3/4" | 2" | 1 1/8" | 2.63" | 2.62" | 10" | 8 1/2" | 8" | 1,000 | 0000000 | 00000000 | |
| Base Mounting Plate for 1" Ctr.-to-Ctr. Shaft Distance | 0000000 | Each | 000000 |
| 1 qt. Lubricant | 000000 | Each | 00000 |
| Base Mounting Plate for 1.33" Ctr.-to-Ctr. Shaft Distance | 0000000 | Each | 00000 |
| Base Mounting Plate for 1.75" Ctr.-to-Ctr. Shaft Distance | 0000000 | Each | 00000 |
| Base Mounting Plate for 2.06" Ctr.-to-Ctr. Shaft Distance | 0000000 | Each | 00000 |
| Base Mounting Plate for 2.38" Ctr.-to-Ctr. Shaft Distance | 0000000 | Each | 00000 |
| Base Mounting Plate for 2.62" Ctr.-to-Ctr. Shaft Distance | 0000000 | Each | 00000 |
Base Mounting Plates for Right-Angle Speed Reducers
Mount right-angle speed reducers to machinery or other surfaces where fastening into the bottom of the speed reducer is not possible. Inner holes align with the speed reducer; use the outer holes to mount to a surface.
Overall | For Speed Reducer Mounting Hole | Mounting Hole | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg. | Wd. | Thick. | Thread Size | Ctr.-to-Ctr. Lg. | Ctr.-to-Ctr. Wd. | Dia. | Ctr.-to-Ctr. Lg. | Ctr.-to-Ctr. Wd. | Includes | Each | |
| 4.63" | 3.69" | 0.44" | 1/4"-20 | 2.63" | 1.69" | 0.34" | 3 3/4" | 2.88" | Four steel bolts for mounting plate to speed reducer | 0000000 | 000000 |
| 5.38" | 4.19" | 0.53" | 5/16"-18 | 3.25" | 2" | 0.34" | 4.38" | 3.31" | Four steel bolts for mounting plate to speed reducer | 0000000 | 00000 |
| 7" | 5.69" | 0.69" | 5/16"-18 | 4.19" | 2.75" | 0.41" | 5 3/4" | 4 1/2" | Four steel bolts for mounting plate to speed reducer | 0000000 | 00000 |
| 7.75" | 5.94" | 0.72" | 3/8"-16 | 5" | 2.88" | 0.47" | 6.38" | 4.69" | Four steel bolts for mounting plate to speed reducer | 0000000 | 00000 |
| 8.5" | 6.19" | 3/4" | 3/8"-16 | 5" | 2.88" | 0.47" | 7.06" | 4.88" | Four steel bolts for mounting plate to speed reducer | 0000000 | 00000 |
| 9.63" | 6.66" | 3/4" | 3/8"-16 | 6.38" | 3.38" | 0.53" | 8" | 5 1/4" | Four steel bolts for mounting plate to speed reducer | 0000000 | 00000 |
Right-Angle Speed Reducers for Face-Mount AC Motors
With Right-Hand Output
With Left-Hand Output
Mount these speed reducers to a NEMA 56C motor to transmit motion at a 90° angle while reducing speed and increasing torque. All require lubrication (not included).
Base mounting plates (sold separately) allow you to mount speed reducers to machinery or other surfaces where fastening into the bottom of the speed reducer is not possible.
Radial loads are loads that are perpendicular to the shaft. They’re commonly caused by components attached to shaft, such as pulleys and sprockets.
Max. Output | Max. Input | Output Shaft | O'all | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Torque | Speed, rpm | Speed, rpm | hp | For Input Shaft Dia. | Dia. | Lg. | Ctr.-to-Ctr. Shaft Distance | Lg. | Wd. | Ht. | Radial Load Cap., lbs. | Choose an Output Shaft Location | Each | |
For NEMA 56C Motor | ||||||||||||||
5:1 Speed Ratio | ||||||||||||||
| 113 in.-lbs. @ 1,750 rpm | 900 | 4,500 | 0.5 | 5/8" | 1/2" | 1.19" | 1" | 5 5/8" | 5 3/4" | 5 3/4" | 150 | 0000000 | 0000000 | |
| 235 in.-lbs. @ 1,750 rpm | 900 | 4,500 | 1 | 5/8" | 5/8" | 2" | 1.33" | 6 1/8" | 7" | 6" | 200 | 0000000 | 000000 | |
| 432 in.-lbs. @ 1,750 rpm | 720 | 3,600 | 2 | 5/8" | 7/8" | 1.78" | 1.75" | 7 1/2" | 7 1/4" | 6 3/4" | 500 | 0000000 | 000000 | |
10:1 Speed Ratio | ||||||||||||||
| 138 in.-lbs. @ 1,750 rpm | 450 | 4,500 | 0.33 | 5/8" | 1/2" | 1.19" | 1" | 5 5/8" | 5 3/4" | 5 3/4" | 150 | 0000000 | 000000 | |
| 281 in.-lbs. @ 1,750 rpm | 450 | 4,500 | 0.75 | 5/8" | 5/8" | 2" | 1.33" | 6 1/8" | 7" | 6" | 200 | 0000000 | 000000 | |
| 536 in.-lbs. @ 1,750 rpm | 360 | 3,600 | 1.5 | 5/8" | 7/8" | 1.78" | 1.75" | 7 1/2" | 7 1/4" | 6 3/4" | 500 | 0000000 | 000000 | |
20:1 Speed Ratio | ||||||||||||||
| 149 in.-lbs. @ 1,750 rpm | 225 | 4,500 | 0.25 | 5/8" | 1/2" | 1.19" | 1" | 5 5/8" | 5 3/4" | 5 3/4" | 150 | 0000000 | 000000 | |
| 308 in.-lbs. @ 1,750 rpm | 225 | 4,500 | 0.5 | 5/8" | 5/8" | 2" | 1.33" | 6 1/8" | 7" | 6" | 200 | 0000000 | 000000 | |
| 590 in.-lbs. @ 1,750 rpm | 180 | 3,600 | 1 | 5/8" | 7/8" | 1.78" | 1.75" | 7 1/2" | 7 1/4" | 6 3/4" | 500 | 0000000 | 000000 | |
| 892 in.-lbs. @ 1,750 rpm | 180 | 3,600 | 1 | 5/8" | 1" | 2.09" | 2.06" | 8 1/8" | 7 9/16" | 7 1/4" | 700 | 0000000 | 000000 | |
30:1 Speed Ratio | ||||||||||||||
| 311 in.-lbs. @ 1,750 rpm | 150 | 4,500 | 0.33 | 5/8" | 5/8" | 2" | 1.33" | 6 1/8" | 7" | 6" | 200 | 0000000 | 000000 | |
| 573 in.-lbs. @ 1,750 rpm | 120 | 3,600 | 0.5 | 5/8" | 7/8" | 1.78" | 1.75" | 7 1/2" | 7 1/4" | 6 3/4" | 500 | 0000000 | 000000 | |
| 871 in.-lbs. @ 1,750 rpm | 120 | 3,600 | 1 | 5/8" | 1" | 2.09" | 2.06" | 8 1/8" | 7 9/16" | 7 1/4" | 700 | 0000000 | 000000 | |
40:1 Speed Ratio | ||||||||||||||
| 307 in.-lbs. @ 1,750 rpm | 112 | 4,500 | 0.25 | 5/8" | 5/8" | 2" | 1.33" | 6 1/8" | 7" | 6" | 200 | 0000000 | 000000 | |
| 609 in.-lbs. @ 1,750 rpm | 90 | 3,600 | 0.5 | 5/8" | 7/8" | 1.78" | 1.75" | 7 1/2" | 7 1/4" | 6 3/4" | 500 | 0000000 | 000000 | |
| 876 in.-lbs. @ 1,750 rpm | 90 | 3,600 | 0.75 | 5/8" | 1" | 2.09" | 2.06" | 8 1/8" | 7 9/16" | 7 1/4" | 700 | 0000000 | 000000 | |
| 1,206 in.-lbs. @ 1,750 rpm | 90 | 3,600 | 1 | 5/8" | 1 1/8" | 2.38" | 2.38" | 8 3/4" | 8" | 7 1/4" | 900 | 0000000 | 00000000 | |
60:1 Speed Ratio | ||||||||||||||
| 271 in.-lbs. @ 1,750 rpm | 75 | 4,500 | 0.17 | 5/8" | 5/8" | 2" | 1.33" | 6 1/8" | 7" | 6" | 200 | 0000000 | 000000 | |
| 527 in.-lbs. @ 1,750 rpm | 60 | 3,600 | 0.33 | 5/8" | 7/8" | 1.78" | 1.75" | 7 1/2" | 7 1/4" | 6 3/4" | 500 | 0000000 | 000000 | |
| 826 in.-lbs. @ 1,750 rpm | 60 | 3,600 | 0.5 | 5/8" | 1" | 2.09" | 2.06" | 8 1/8" | 7 9/16" | 7 1/4" | 700 | 0000000 | 000000 | |
| 1,128 in.-lbs. @ 1,750 rpm | 60 | 3,600 | 0.75 | 5/8" | 1 1/8" | 2.38" | 2.38" | 8 3/4" | 8" | 7 1/4" | 900 | 0000000 | 00000000 | |
| 1,385 in.-lbs. @ 1,750 rpm | 60 | 3,600 | 0.75 | 5/8" | 1 1/8" | 2.63" | 2.62" | 9 1/2" | 9" | 8 1/2" | 1,000 | 0000000 | 00000000 | |
80:1 Speed Ratio | ||||||||||||||
| 222 in.-lbs. @ 1,750 rpm | 56 | 4,500 | 0.16 | 5/8" | 5/8" | 2" | 1.33" | 6 1/8" | 7" | 6" | 200 | 0000000 | 000000 | |
| 387 in.-lbs. @ 1,750 rpm | 45 | 3,600 | 0.25 | 5/8" | 7/8" | 1.78" | 1.75" | 7 1/2" | 7 1/4" | 6 3/4" | 500 | 0000000 | 000000 | |
| 634 in.-lbs. @ 1,750 rpm | 45 | 3,600 | 0.33 | 5/8" | 1" | 2.09" | 2.06" | 8 1/8" | 7 9/16" | 7 1/4" | 700 | 0000000 | 000000 | |
| 1,069 in-lbs. @ 1,750 rpm | 45 | 3,600 | 0.75 | 5/8" | 1 1/8" | 2.63" | 2.62" | 9 1/2" | 9" | 8 1/2" | 1,000 | 0000000 | 00000000 | |
| Base Mounting Plate for 1.75" Ctr.-to-Ctr. Shaft Distance | 0000000 | 000000 |
| 1 qt. Lubricant | 000000 | 00000 |
| Base Mounting Plate for 2.06" Ctr.-to-Ctr. Shaft Distance | 0000000 | 00000 |
| Base Mounting Plate for 1.33" Ctr.-to-Ctr. Shaft Distance | 0000000 | 00000 |
| Base Mounting Plate for 2.38" Ctr.-to-Ctr. Shaft Distance | 0000000 | 00000 |
| Base Mounting Plate for 2.62" Ctr.-to-Ctr. Shaft Distance | 0000000 | 00000 |
| Base Mounting Plate for 1" Ctr.-to-Ctr. Shaft Distance | 0000000 | 00000 |
