Adjustable-Temperature Butane Soldering Irons
A temperature control button lets you adjust the tip temperature of these irons to suit your application. They come with two tips; additional tips are sold separately. The cylinder tip generates hot air. The run time listed is the maximum run time. Actual run time may be less depending on temperature settings.
Chisel Tip | Cylinder Tip | Tip | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Equivalent Electrical Wattage | Run Time, hrs. | Application | Temp. Range, °F | Point Wd. | Application | Max. Temp., °F | Point ID | Shank Dia. | Connection Type | Duty Cycle | Butane Included | Butane Cap., fl. oz. | Specifications Met | Includes | Each | |
| 75W | 2 | Soldering | 480°-930° | 5/64" | Hot Air | 1200° | 1/8" | 1/2" | Plug | Continuous | No | 7/8 | UL Listed | Two Tips, Protective Cap | 77125A65 | 0000000 |
| 200W | 2 | Soldering | 480°-980° | 3/64" | Hot Air | 1000° | 1/4" | 11/16" | Plug | Continuous | No | 2 1/5 | UL Listed | Two Tips, 1 1/4" Dia. Heat-Shrink Attachment, Ejector, Protective Cap | 77125A101 | 000000 |
| Butane Gas (5.1 oz.) | 7694A5 | Each | 00000 |

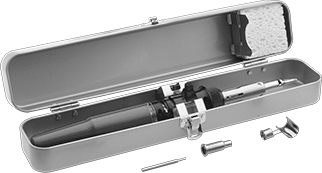

Adjustable-Temperature Butane Soldering Iron Kits
A temperature control button lets you adjust the tip temperature of this iron to suit your application.
Tip | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Equivalent Electrical Wattage | Run Time | Approx. Heat-Up Time | Shape | Application | Min. Temp., °F | Max. Temp., °F | Point Wd. | Point ID | Duty Cycle | Butane Included | Specifications Met | Includes | Each | |
Two Tips | ||||||||||||||
| 80W | 2 hrs. | 40 sec. | Chisel Cylinder | Soldering Hot Air | 480° __ | 930° 1200° | 1/8" __ | __ 3/16" | Continuous | No | UL Listed | Two Tips 1/2" Dia. Heat-Shrink Attachment Ejector Protective Cap Sponge Metal Case | 77125A66 | 0000000 |
Three Tips | ||||||||||||||
| 200W | 75 min. | 30 sec. | Conical Conical Cylinder | Soldering Soldering Hot Air | 635° 635° __ | 900° 900° 930° | 3/64" 3/64" __ | __ __ 1/8" | Continuous | No | __ | Three Tips Lead-Free Solder 1/2" Dia. Heat-Shrink Attachment Hot Knife Attachment Two Tip Wrenches Protective Cap Sponge Plastic Case | 7931A25 | 00000 |
Four Tips | ||||||||||||||
| 80W | 2 hrs. | 40 sec. | Chisel Chisel Conical Cylinder | Soldering Soldering Soldering Hot Air | 480° 480° 480° __ | 930° 930° 930° 1200° | 1/8" 5/16" 1/64" __ | __ __ __ 13/64" | Continuous | No | UL Listed | Four Tips 60/40 Tin/Lead Solder 1/2" Dia. Heat-Shrink Attachment Hot Knife Attachment Wire Cutter Needle-Nose Pliers Ejector Protective Cap Sponge Plastic Case | 7223N11 | 000000 |
| Butane Gas (5.1 oz.) | 7694A5 | Each | 00000 |
Economy Butane Soldering Irons
This iron provides the benefits of a cordless iron without having to wait for the battery to recharge between uses. It comes with one tip; additional tips are sold separately.
Tip | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Equivalent Electrical Wattage | Run Time, minutes | Approximate Heat-Up Time | Soldering Temperature Setting | Shape | Max. Temp., °F | Point Wd. | Connection Type | Duty Cycle | Butane Included | Butane Capacity, oz. | Includes | Each | |
| 75W | 60 | 40 sec. | Fixed | Chisel | 850° | 3/32" | Plug | Intermittent | No | 1/2 | Tip, Protective Cap | 7694A21 | 000000 |
| Butane Gas (5.1 oz.) | 7694A5 | Each | 00000 |
Economy Butane Soldering Iron Kits
The iron provides the benefits of a cordless iron without having to wait for the battery to recharge between uses.
Bevel Tip | Bevel | Chisel | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Equivalent Electrical Wattage | Run Time, minutes | Approx. Heat-Up Time | Application | Max. Temp., °F | Point Wd. | Application | Max. Temp., °F | Point Wd. | Application | Max. Temp., °F | Point Wd. | Duty Cycle | Includes | Each | |
| 75W | 60 | 40 Sec. | Soldering | 850° | 1/32" | Soldering | 850° | 3/32" | Soldering | 850° | 3/32" | Intermittent | Three Tips Stand Protective Cap Plastic Case | 7694A23 | 0000000 |
Adjustable-Angle Butane Soldering Iron Kits
Solder in spaces that are difficult to reach without waiting for a battery to charge. These irons use butane (sold separately), so they do not require charging like other cordless irons. With the push of a button, they convert from a straight grip to a pistol grip with either a 45° or 90° head angle.
Tip | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Equivalent Electrical Wattage | Run Time, min. | Approx. Heat-Up Time | Tip Application | Shape | Min. Temp., °F | Max. Temp., °F | Point Wd. | Tip Shank Dia. | Duty Cycle | Butane Included | Includes | Each | |
| 100W | 65 | Instant | Soldering | Chisel Bevel Needle Knife | 610° 520° 395° 410° | 685° 650° 575° 680° | 1/4" 11/64" 3/32" 9/64" | 3/16" | Continuous | No | Four Tips Lead-Free Solder 3/4" Dia. Heat-Shrink Attachment Hot Knife Attachment Magnetic Stand Protective Cap Sponge Metal Case | 7204N11 | 0000000 |
| Butane Gas (5.1 oz.) | 7694A5 | Each | 00000 |
