58 Products

Extra-High-Capacity Colossus Casters with Polyurethane Wheels

Move your heaviest loads with the largest casters we offer. Their forged steel construction holds up in demanding applications. Wheels have a hard metal core for strength with a polyurethane tread that combines the abrasion resistance of plastic with the shock-absorbing qualities of rubber. Use them on smooth or rough floors and in areas with debris.

Impact-resistant tapered roller bearings in the wheel and the swivel withstand both downward and side force.

Mounting Plate Style 1


Rigid	Swivel

																					Rigid		Swivel
	Wheel					Wheel Bearing				Mounting Plate		Mounting Holes			Frame								Swivel Bearing
	Dia.	Wd.	Mount Ht.	Wt. Cap. per Caster, lb.	Tread Style	Type	Roller Type	Seal Type	Material	Lg.	Wd.	Ctr.-to-Ctr. Lg.	Ctr.-to-Ctr. Wd.	For Screw Size	Fabrication	Material	Color	Caster Swivel Construction	Max. Temp., ° F	Wheel Core Material		Each	Seal Type	Type	Roller Type		Each
Single Nonmarking Red Tread-on-Core Polyurethane Rubber Wheel—Medium (Durometer 95A)



		10"	4"	12 1/2"	5,000	Flat	Roller	Tapered	Open	Steel	7 1/2"	6"	6"	4 1/2"	1/2"	Forged	Powder-Coated Steel	Gold	—	150	Iron	8756T54	0000000	—	—	—	———	0


		10"	4"	12 1/2"	5,000	Flat	Roller	Tapered	Open	Steel	7 1/2"	6"	6"	4 1/2"	1/2"	Forged	Powder-Coated Steel	Gold	Kingpin	150	Iron	———	0	Open	Roller	Tapered	8756T53	0000000
		12"	4"	15 1/2"	5,500	Flat	Roller	Tapered	Open	Steel	7 1/2"	6"	6"	4 1/2"	1/2"	Forged	Powder-Coated Steel	Gold	—	150	Iron	8756T56	000000	—	—	—	———	0
		12"	4"	15 1/2"	5,500	Flat	Roller	Tapered	Open	Steel	7 1/2"	6"	6"	4 1/2"	1/2"	Forged	Powder-Coated Steel	Gold	Kingpin	150	Iron	———	0	Open	Roller	Tapered	8756T55	000000

Mounting Plate Style 2


Dual-Wheel Rigid	Dual-Wheel Swivel	Rigid	Swivel

2 Wheels—Dual-wheel casters provide better load distribution and easier turning than single-wheel casters.

																					Rigid		Swivel
	Wheel					Wheel Bearing				Mounting Plate		Mounting Holes			Frame								Swivel Bearing
	Dia.	Wd.	Mount Ht.	Wt. Cap. per Caster, lb.	Tread Style	Type	Roller Type	Seal Type	Material	Lg.	Wd.	Ctr.-to-Ctr. Lg.	Ctr.-to-Ctr. Wd.	For Screw Size	Fabrication	Material	Color	Caster Swivel Construction	Max. Temp., ° F	Wheel Core Material		Each	Seal Type	Type	Roller Type		Each
Single Nonmarking Blue Tread-on-Core Wheel—Medium (Durometer 95A)



		10"	4"	13"	5,000	Flat	Roller	Tapered	Open	Steel	8 1/2"	8 1/2"	7"	7"	5/8"	Forged	Painted Steel	Gray	—	200	Steel	2442T65	0000000	—	—	—	———	0


		10"	4"	13"	5,000	Flat	Roller	Tapered	Open	Steel	8 1/2"	8 1/2"	7"	7"	5/8"	Forged	Painted Steel	Gray	Kingpin	200	Steel	———	0	Open	Roller	Tapered	2442T64	0000000
		12"	4"	15 1/2"	6,000	Flat	Roller	Tapered	Open	Steel	8 1/2"	8 1/2"	7"	7"	5/8"	Forged	Painted Steel	Gray	—	200	Steel	2442T38	000000	—	—	—	———	0
		12"	4"	15 1/2"	6,000	Flat	Roller	Tapered	Open	Steel	8 1/2"	8 1/2"	7"	7"	5/8"	Forged	Painted Steel	Gray	Kingpin	200	Steel	———	0	Open	Roller	Tapered	2442T37	000000


		Single Nonmarking Green Tread-on-Core Wheel—Medium (Durometer 95A)



				10"	6"	13"	6,000	Flat	Roller	Tapered	Open	Steel	8 1/2"	8 1/2"	7"	7"	5/8"	Forged	Zinc-Plated Steel	—	—	180	Steel	2442T87	000000	—	—	—	———	0


				10"	6"	13"	6,000	Flat	Roller	Tapered	Open	Steel	8 1/2"	8 1/2"	7"	7"	5/8"	Forged	Zinc-Plated Steel	—	Kingpin	180	Steel	———	0	Open	Roller	Tapered	2442T86	000000


				Dual Nonmarking Green Tread-on-Core Wheels—Medium (Durometer 95A)



						10"	3"	13"	6,000	Flat	Roller	Tapered	Open	Steel	8 1/2"	8 1/2"	7"	7"	5/8"	Forged	Zinc-Plated Steel	—	—	180	Iron	2784T64	000000	—	—	—	———	0


						10"	3"	13"	6,000	Flat	Roller	Tapered	Open	Steel	8 1/2"	8 1/2"	7"	7"	5/8"	Forged	Zinc-Plated Steel	—	Kingpin	180	Iron	———	0	Open	Roller	Tapered	2784T24	00000000
						10"	5"	13"	10,000	Flat	Roller	Tapered	Open	Steel	8 1/2"	8 1/2"	7"	7"	5/8"	Forged	Zinc-Plated Steel	—	—	180	Iron	2784T65	00000000	—	—	—	———	0
						10"	5"	13"	10,000	Flat	Roller	Tapered	Open	Steel	8 1/2"	8 1/2"	7"	7"	5/8"	Forged	Zinc-Plated Steel	—	Kingpin	180	Iron	———	0	Open	Roller	Tapered	2784T25	00000000
						12"	4"	15 1/2"	9,600	Flat	Roller	Tapered	Open	Steel	8 1/2"	8 1/2"	7"	7"	5/8"	Forged	Zinc-Plated Steel	—	—	180	Iron	2784T66	000000	—	—	—	———	0
						12"	4"	15 1/2"	9,600	Flat	Roller	Tapered	Open	Steel	8 1/2"	8 1/2"	7"	7"	5/8"	Forged	Zinc-Plated Steel	—	Kingpin	180	Iron	———	0	Open	Roller	Tapered	2784T26	00000000
						12"	5"	15 1/2"	12,000	Flat	Roller	Tapered	Open	Steel	8 1/2"	8 1/2"	7"	7"	5/8"	Forged	Zinc-Plated Steel	—	—	180	Iron	2784T69	00000000	—	—	—	———	0
						12"	5"	15 1/2"	12,000	Flat	Roller	Tapered	Open	Steel	8 1/2"	8 1/2"	7"	7"	5/8"	Forged	Zinc-Plated Steel	—	Kingpin	180	Iron	———	0	Open	Roller	Tapered	2784T29	00000000

Pneumatic Casters with Rubber Wheels

The air-filled wheels on these casters absorb shock to protect your load even on rough surfaces.

Mounting Plate Style 6


Dual-Wheel Rigid	Dual-Wheel Swivel

Forged-steel frames are more durable than formed-steel and stamped-steel frames.

2 Wheels—Dual-wheel casters provide better load distribution and easier turning than single-wheel casters.

Roller Bearings—Roller wheel bearings provide smooth rolling and can be used for towing.

Dual-Raceway Bearing—Swivel casters with dual-raceway bearings have the smoothest swiveling.

							Rigid		Swivel
	Wheel				Wheel Bearing				Swivel Bearing
	Dia.	Wd.	Mount Ht.	Wt. Cap. per Caster, lb.	Type	Seal Type		Each	Construction	Type	Seal Type		Each
Dual Black Pneumatic Wheels—Soft



		8"	2 13/16"	11"	590	Roller	Open	53795T22	0000000	Dual Raceway	Ball	Open	53795T21	0000000

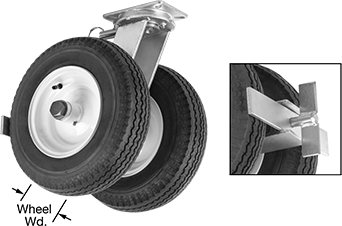

Extra-High-Capacity Plate Casters with Rubber Wheels


Rigid	Swivel

Swivel with Brake and Swivel Lock

Air-filled rubber tires cushion your load when rolling over rough or uneven surfaces. Their dual-wheel design provides better load distribution and easier turning than single-wheel casters.

Wheels have roller bearings for smooth rolling.

Swivel—Swivel casters have dual-raceway bearings for the smoothest swiveling.

Wheel Brake—Casters with wheel brake apply pressure to the wheel to stop movement with a press of the foot pedal.

Swivel Lock—Casters with swivel lock prevent the caster from swiveling with a twist of the ring.

	Wheel						Rigid		Swivel		Swivel with Brake and Swivel Lock
	Dia.	Wd.	Mount Ht.	Wt. Cap. per Caster, lb.	Tire Size	For Screw Size		Each		Each		Each
Black Pneumatic Wheels—Soft



		16"	4 5/8"	19"	2,000	4.80/4.00-8	1/2"	———	0	23585T31	0000000	23585T312	000000000


		16"	4 5/8"	19 1/8"	2,000	4.80/4.00-8	1/2"	23585T41	0000000	———	0	———	0
		18 3/8"	5 11/16"	21 1/4"	2,300	5.70-8	1/2"	23585T21	000000	23585T11	000000	23585T112	000000

High-Capacity Pneumatic Casters with Rubber Wheels

A forged-steel frame and air-filled rubber tire absorbs shock to prevent damage to your load over smooth or rough surfaces.

Mounting Plate Style 3


Rigid

Roller Bearings—Roller wheel bearings provide smooth rolling.

Tapered Wheel Roller Bearing—Tapered roller wheel bearings withstand impact from both downward and side forces.

	Wheel						Wheel Bearing				Mounting Plate		Mounting Holes			Frame					Rigid
	Dia.	Wd.	Tire Size	Mount Ht.	Wt. Cap. per Caster, lb.	Tread Style	Type	Roller Type	Seal Type	Material	Lg.	Wd.	Ctr.-to-Ctr. Lg.	Ctr.-to-Ctr. Wd.	For Screw Size	Fabrication	Material	Color	Max. Temp., ° F	Wheel Core Material		Each
Single Black Pneumatic Wheel—Soft



		16"	4 13/16"	4.80-8	18 3/4"	1,200	Flat	Roller	Tapered	Open	Steel	7 1/2"	5 1/2"	6 1/8"	4 1/8"	1/2"	Forged	Painted Steel	Red	120	Steel	28035T21	0000000


		18"	5 11/16"	5.70-8	21 1/4"	1,600	Flat	Roller	Tapered	Open	Steel	7 1/2"	5 1/2"	6 1/8"	4 1/8"	1/2"	Forged	Painted Steel	Red	120	Steel	28035T22	000000

Mounting Plate Style 4


Swivel

Swivel casters with ball/tapered roller bearings are impact resistant and withstand both downward and side force.

Roller Bearings—Roller wheel bearings provide smooth rolling.

Tapered Wheel Roller Bearing—Tapered roller wheel bearings withstand impact from both downward and side forces.

																						Swivel
	Wheel						Wheel Bearing				Mounting Plate		Mounting Holes			Frame						Swivel Bearing
	Dia.	Wd.	Tire Size	Mount Ht.	Wt. Cap. per Caster, lb.	Tread Style	Type	Roller Type	Seal Type	Material	Lg.	Wd.	Ctr.-to-Ctr. Lg.	Ctr.-to-Ctr. Wd.	For Screw Size	Fabrication	Material	Color	Caster Swivel Construction	Max. Temp., ° F	Wheel Core Material	Seal Type	Roller Type		Each
Single Black Pneumatic Wheel—Soft



		16"	4 13/16"	4.80-8	18 3/4"	1,200	Flat	Roller	Tapered	Open	Steel	7 3/8"	6 1/16"	6 1/8"	4 1/8"	1/2"	Forged	Painted Steel	Red	Kingpin	120	Steel	Open	Tapered	28035T11	0000000


		18"	5 11/16"	5.70-8	21 1/4"	1,600	Flat	Roller	Tapered	Open	Steel	7 3/8"	6 1/16"	6 1/8"	4 1/8"	1/2"	Forged	Painted Steel	Red	Kingpin	120	Steel	Open	Tapered	28035T12	000000

High-Capacity Shock-Absorbing Casters with Polyurethane Wheels


Tread-on-Core Wheel

The springs in these casters take on bumpy surfaces and obstructions while preventing shock to the load. Their polyurethane wheels combine the abrasion resistance of plastic with the impact resistance of rubber.

Ball bearings in the wheel provide easy rolling. Their kingpinless swivel raceways distributes impact better than standard kingpin casters, enabling smoother swiveling and extending service life. They have ball bearings for smooth swiveling.

Tread-on-Core Wheel—Tread-on-core wheels have an aluminum core that is harder than the tread, balancing strength with cushioning. They have a soft tread that is shock absorbing and provides good traction on rough surfaces. Their rounded treads are easier to turn than flat wheels.

Sealed Bearing—Sealed bearings are completely sealed for the best protection against dust and debris.

																			Swivel
	Wheel							Wheel Bearing			Mounting Plate			Frame					Swivel Bearing
	Dia.	Wd.	Mount Ht.	Max. Load Mount Ht.	Min. Wt. Cap. per Caster, lb.	Wt. Cap. per Caster, lb.	Tread Style	Type	Seal Type	Material	Lg.	Wd.	For Screw Size	Fabrication	Material	Caster Swivel Construction	Max. Temp., ° F	Wheel Core Material	Seal Type	Type		Each
Single Nonmarking Red Tread-on-Core Wheel—Soft (Durometer 85A)



		5"	2"	7 1/2"	7 1/8"	100	1,000	Round	Ball	Sealed	Steel	4 1/2"	4"	3/8"	Formed	Zinc-Yellow-Chromate-Plated Steel	Kingpinless	180	Aluminum	Sealed	Ball	2811N11	0000000


		6"	2"	8"	7 5/8"	100	1,250	Round	Ball	Sealed	Steel	4 1/2"	4"	3/8"	Formed	Zinc-Yellow-Chromate-Plated Steel	Kingpinless	180	Aluminum	Sealed	Ball	2811N12	000000
		8"	2"	10 1/8"	9 3/4"	100	1,500	Round	Ball	Sealed	Steel	4 1/2"	4"	3/8"	Formed	Zinc-Yellow-Chromate-Plated Steel	Kingpinless	180	Aluminum	Sealed	Ball	2811N13	000000

Swivel Locks

		Each
Swivel Lock for Swivel Casters	2793N1	000000

Extra-High-Capacity Stronghart Casters with Polyurethane Wheels


Rigid	Rigid with Brake	Swivel

Swivel with Brake	Swivel with Brake and Swivel Lock	Mounting Plate

Forged steel construction holds up in demanding applications. Wheels have a hard metal core for strength with a polyurethane tread that combines the abrasion resistance of plastic with the shock-absorbing qualities of rubber. Use them on smooth or rough floors and in areas with debris.

Swivel—Swivel casters have dual-raceway bearings for the smoothest swiveling.

Wheel Brake—Casters with wheel brake apply pressure to the wheel to stop movement with a press of the foot pedal.

Swivel Lock—Casters with swivel lock prevent the caster from swiveling with a twist of the ring.

Roller Bearings—Roller wheel bearings provide smooth rolling.

Tapered Wheel Roller Bearing—Tapered roller wheel bearings withstand both downward and side force.

	Wheel						Wheel Bearing		Rigid		Rigid with Brake		Swivel		Swivel with Brake		Swivel with Brake and Swivel Lock
	Dia.	Wd.	No. of	Mount Ht.	Wt. Cap. per Caster, lb.	For Screw Size	Type	Roller Type		Each		Each		Each		Each		Each
Nonmarking Green Tread-on-Core Wheels—Medium (Durometer 95A)



		6"	4"	1	8"	2,900	1/2"	Roller	Tapered	2487T414	0000000	2487T418	0000000	2487T211	0000000	2487T215	0000000	2487T221	0000000


		8"	4"	1	10 1/2"	3,500	1/2"	Roller	Tapered	2487T412	000000	2487T416	000000	2487T213	000000	2487T217	000000	2487T223	000000

Extra-High-Capacity Brute Casters with Polyurethane Wheels

All casters have abrasion-resistant polyurethane wheels. Use them on smooth or rough floors and in areas with debris.

Mounting Plate Style 1


Rigid	Swivel

Tread-on-Core Wheel—Tread-on-core wheels have an iron core that is harder than the tread, balancing strength with cushioning.

Medium—Medium wheels are shock absorbing.

Swivel—Swivel casters have a kingpinless raceway with ball bearings for good impact resistance, smooth swiveling, and extended service life.

Roller Bearings—Roller wheel bearings provide smooth rolling.

Tapered Wheel Roller Bearing—Tapered roller wheel bearings withstand both downward and side force.

																			Rigid		Swivel
	Wheel					Wheel Bearing				Mounting Plate			Frame								Swivel Bearing
	Dia.	Wd.	Mount Ht.	Wt. Cap. per Caster, lb.	Tread Style	Type	Roller Type	Seal Type	Material	Lg.	Wd.	For Screw Size	Fabrication	Material	Color	Caster Swivel Construction	Max. Temp., ° F	Wheel Core Material		Each	Seal Type	Type		Each
Single Nonmarking Blue Tread-on-Core Wheel—Medium (Durometer 95A)



		6"	3"	8 1/8"	2,000	Flat	Roller	Tapered	Open	Steel	7"	6"	1/2"	Stamped	Painted Steel	Blue	—	180	Iron	5010T21	0000000	—	—	———	0


		6"	3"	8 1/8"	2,000	Flat	Roller	Tapered	Open	Steel	7"	6"	1/2"	Stamped	Painted Steel	Blue	Kingpinless	180	Iron	———	0	Open	Ball	5010T11	0000000
		8"	3"	10 5/8"	2,500	Flat	Roller	Tapered	Open	Steel	7"	6"	1/2"	Stamped	Painted Steel	Blue	—	180	Iron	5010T74	000000	—	—	———	0
		8"	3"	10 5/8"	2,500	Flat	Roller	Tapered	Open	Steel	7"	6"	1/2"	Stamped	Painted Steel	Blue	Kingpinless	180	Iron	———	0	Open	Ball	5010T44	000000
		10"	3"	12 5/8"	3,000	Flat	Roller	Tapered	Open	Steel	7"	6"	1/2"	Stamped	Painted Steel	Blue	—	180	Iron	5010T22	000000	—	—	———	0
		10"	3"	12 5/8"	3,000	Flat	Roller	Tapered	Open	Steel	7"	6"	1/2"	Stamped	Painted Steel	Blue	Kingpinless	180	Iron	———	0	Open	Ball	5010T12	000000
		12"	3"	15 5/8"	3,400	Flat	Roller	Tapered	Open	Steel	7"	6"	1/2"	Stamped	Painted Steel	Blue	Kingpinless	180	Iron	———	0	Open	Ball	5010T23	000000

Caster Brakes

Add wheel brakes to prevent the caster from rolling.

		Each
Wheel Brake for Swivel Casters	23515T131	0000000
Brake Kit for Swivel Casters with 10" Dia. Wheels	23515T133	000000
Brake Kit for Swivel Casters with 8" Dia. Wheels	23515T132	000000

Extra-High-Capacity Hercules Casters with Polyurethane Wheels

Not only do these casters offer some of the highest capacities, they also withstand the stress of sudden impact. They have abrasion-resistant polyurethane wheels. Use them on smooth or rough floors and in areas with debris.

Mounting Plate Style 2


Swivel

Tread-on-Core Wheel—Tread-on-core wheels have an iron core that is harder than the tread, balancing strength with cushioning.

Medium—Medium wheels are shock absorbing.

Swivel—Swivel casters have completely sealed ball bearings for smooth swiveling and the best protection against dust and debris. The kingpinless swivel raceway distributes impact better than standard kingpin casters, enabling smooth swiveling and extending service life.

Tapered Wheel Roller Bearing—Tapered roller wheel bearings withstand both downward and side force.

																			Swivel
	Wheel					Wheel Bearing				Mounting Plate			Frame						Swivel Bearing
	Dia.	Wd.	Mount Ht.	Wt. Cap. per Caster, lb.	Tread Style	Type	Roller Type	Seal Type	Material	Lg.	Wd.	For Screw Size	Fabrication	Material	Color	Caster Swivel Construction	Max. Temp., ° F	Wheel Core Material	Seal Type	Type		Each
Single Nonmarking Blue Tread-on-Core Wheel—Medium (Durometer 90A)



		8"	4"	10 1/2"	3,500	Flat	Roller	Tapered	Open	Steel	7 1/2"	6 1/4"	1/2"	Stamped	Painted Steel	Blue	Kingpinless	180	Iron	Sealed	Ball	2465T81	0000000


		10"	4"	12 1/2"	4,200	Flat	Roller	Tapered	Open	Steel	7 1/2"	6 1/4"	1/2"	Stamped	Painted Steel	Blue	Kingpinless	180	Iron	Sealed	Ball	2465T83	000000

Mounting Plate Style 3


Rigid

Tread-on-Core Wheel—Tread-on-core wheels have an iron core that is harder than the tread, balancing strength with cushioning.

Medium—Medium wheels are shock absorbing.

Tapered Wheel Roller Bearing—Tapered roller wheel bearings withstand both downward and side force.

	Wheel					Wheel Bearing				Mounting Plate			Frame					Rigid
	Dia.	Wd.	Mount Ht.	Wt. Cap. per Caster, lb.	Tread Style	Type	Roller Type	Seal Type	Material	Lg.	Wd.	For Screw Size	Fabrication	Material	Color	Max. Temp., ° F	Wheel Core Material		Each
Single Nonmarking Blue Tread-on-Core Wheel—Medium (Durometer 90A)



		8"	4"	10 1/2"	3,500	Flat	Roller	Tapered	Open	Steel	7 1/2"	6"	1/2"	Stamped	Painted Steel	Blue	180	Iron	2465T82	0000000


		10"	4"	12 1/2"	4,200	Flat	Roller	Tapered	Open	Steel	7 1/2"	6"	1/2"	Stamped	Painted Steel	Blue	180	Iron	2465T84	000000
