    Ring Links with Chain-Shortening Hooks—For Lifting

    Image of ProductInUse. Front orientation. Ring Links. Ring Links with Chain-Shortening Hooks—For Lifting.

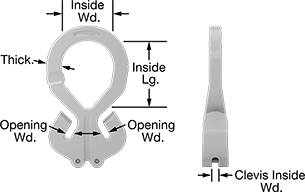

    Image of Product. Front orientation. Contains Annotated. Ring Links. Ring Links with Chain-Shortening Hooks—For Lifting, 1 Hook.
    Image of Product. Front orientation. Contains Annotated, MultipleImages. Ring Links. Ring Links with Chain-Shortening Hooks—For Lifting, 2 Hooks.

    1 Hook

    2 Hooks

    A pear-shaped link and hook for chain shortening allow you to create an adjustable-length chain sling. These links meet strict ASTM safety standards for lifting.
    Note: Capacities for links with one hook are for vertical lifting only. Capacities for links with two hooks are based on two-leg sling assemblies.
    No. of
    Hooks
    For Straight-Link
    Chain Trade Size
    Thk.
    Inside
    Lg.
    Inside
    Wd.
    Hook Opening
    Wd.
    Clevis
    Inside Wd.
    Wt. Cap.,
    lb.
    Fabrication
    Specs. Met
    Each
    For Grade 100 Chain

    Yellow Powder-Coated Alloy Steel
    17/32"19/32"3 15/32"2 3/8"5/16"5/16"3,300ForgedASTM A952, EN 16770000000000000
    15/16"23/32"3 5/8"2 3/8"3/8"3/8"5,700ForgedASTM A952, EN 1677000000000000
    13/8"7/8"4 7/16"2 15/16"15/32"15/32"8,800ForgedASTM A952, EN 16770000000000000
    11/2"1 1/32"5 7/16"3 17/32"9/16"9/16"15,000ForgedASTM A952, EN 16770000000000000
    15/8"1 7/32"6 3/16"4 1/8"11/16"11/16"22,600ForgedASTM A952, EN 16770000000000000
    27/32"21/32"3 1/2"2 13/32"5/16"5/16"4,700ForgedASTM A952, EN 16770000000000000
    25/16"27/32"3 29/32"3"3/8"3/8"9,900ForgedASTM A952, EN 16770000000000000
    23/8"15/16"4 29/32"3 1/2"15/32"15/32"15,200ForgedASTM A952, EN 16770000000000000
    21/2"1 3/16"5 29/32"4 3/32"9/16"9/16"26,000ForgedASTM A952, EN 16770000000000000
    25/8"1 13/32"6 29/32"4 11/16"11/16"11/16"39,100ForgedASTM A952, EN 16770000000000000
