    Cable Trays and Fittings

    For ease of installation and accessibility, lay cable and hose in trays instead of pulling it through conduit or raceway. These tray systems allow excellent ventilation and prevent sagging while routing. They support up to 280 lbs. per foot (based on a tray support, such as hanging clamps or a hanging bar, every 8 feet).
    All trays include straight connectors for joining sections.
    Trays
    Image of Product. Front orientation. Cable Trays and Fittings. Cable Trays and Fittings, Trays.
    Wd.
    Dp.
    Usable
    Dp.
    Material
    Max. Wt.
    Cap., lb.
    Includes
    72"
    Long
    144"
    Long
    6"4"3"Aluminum280Two Straight Connectors30065T1100000000000000
    12"4"3"Aluminum280Two Straight Connectors30065T12000000000000
    18"4"3"Aluminum280Two Straight Connectors30065T13000000000000
    24"4"3"Aluminum280Two Straight Connectors30065T14000000000000
    Tee Trays
    Image of Product. Front orientation. Contains Annotated. Cable Trays and Fittings. Cable Trays and Fittings, Tee Trays.
    Wd.
    Dp.
    Lg.
    Bend
    Lg.
    Usable
    Dp.
    Material
    Max. Wt.
    Cap., lb.
    Includes
    Each
    6"4"60"30"3"Aluminum280Four Straight Connectors30065T3210000000
    12"4"66"33"3"Aluminum280Four Straight Connectors30065T421000000
    18"4"72"36"3"Aluminum280Four Straight Connectors30065T422000000
    24"4"78"39"3"Aluminum280Four Straight Connectors30065T453000000
    Horizontal 90° Elbow Trays
    Image of Product. Front orientation. Contains Annotated. Cable Trays and Fittings. Cable Trays and Fittings, Horizontal 90° Elbow Trays.
    Wd.
    Dp.
    Bend
    Lg.
    Usable
    Dp.
    Material
    Max. Wt.
    Cap., lb.
    Includes
    Each
    6"4"30"3"Aluminum280Two Straight Connectors30065T3170000000
    12"4"33"3"Aluminum280Two Straight Connectors30065T417000000
    18"4"36"3"Aluminum280Two Straight Connectors30065T418000000
    24"4"39"3"Aluminum280Two Straight Connectors30065T419000000
    Vertical 90° Elbow Trays
    Image of Product. Front orientation. Contains Annotated. Cable Trays and Fittings. Cable Trays and Fittings, Vertical 90° Elbow Trays, Inside Bend.
    Image of Product. Front orientation. Contains Annotated. Cable Trays and Fittings. Cable Trays and Fittings, Vertical 90° Elbow Trays, Outside Bend.

    Inside Bend

    Outside Bend

    Inside Bend
    Outside Bend
    Wd.
    Dp.
    Bend
    Lg.
    Usable
    Dp.
    Material
    Max. Wt.
    Cap., lb.
    Includes
    Each
    Each
    6"4"31"3"Aluminum280Two Straight Connectors30065T334000000030065T7340000000
    12"4"31"3"Aluminum280Two Straight Connectors30065T43400000030065T834000000
    18"4"31"3"Aluminum280Two Straight Connectors30065T53400000030065T836000000
    24"4"31"3"Aluminum280Two Straight Connectors30065T63400000030065T838000000
    Straight Connectors
    Image of ProductInUse. Front orientation. Cable Trays and Fittings. Cable Trays and Fittings, Straight Connectors.
    For Tray Wd.
    Material
    Includes
    Pair
    6", 12", 18", 24"AluminumConnecting Hardware30065T513000000
    Adjustable-Angle Elbow Connectors
    Image of ProductInUse. Front orientation. Cable Trays and Fittings. Cable Trays and Fittings, Adjustable-Angle Elbow Connectors, Vertical Adjustment.
    Image of Product. Front orientation. Cable Trays and Fittings. Cable Trays and Fittings, Adjustable-Angle Elbow Connectors, Horizontal Adjustment.

    Vertical Adjustment

    Horizontal Adjustment

    Horizontal
    Adjustment
    Vertical
    Adjustment
    For Tray Wd.
    Material
    Includes
    Pair
    Pair
    6", 12", 18", 24"AluminumConnecting Hardware30065T511000000030065T5120000000
    Drop Outs
    Image of ProductInUse. Front orientation. Cable Trays and Fittings. Cable Trays and Fittings, Drop Outs.
    Drop outs relieve stress on cable and hose as it exits the tray.
    For Tray
    Wd.
    Material
    Each
    6"Aluminum30065T331000000
    12"Aluminum30065T44100000
    18"Aluminum30065T55100000
    24"Aluminum30065T44300000
    Hanging Bars
    Image of ProductInUse. Front orientation. Cable Trays and Fittings. Cable Trays and Fittings, Hanging Bars.
    Hanging bars have a slotted strut channel that you suspend from 1/2"-13 threaded rod; the tray rests on the channel. Threaded rod is not included.
    For Tray
    Wd.
    Material
    Mounting Hardware
    Included
    Each
    6"SteelYes30065T222000000
    12"SteelYes30065T22300000
    18"SteelYes30065T22400000
    24"SteelYes30065T22500000
    Hanging Clamps
    Image of ProductInUse. Front orientation. Cable Trays and Fittings. Cable Trays and Fittings, Hanging Clamps.
    Hanging clamps attach to the sides of a tray section to suspend it from 1/2"-13 threaded rod using two hex nuts on each clamp. Threaded rod and hex nuts are not included.
    For Tray Wd.
    Material
    Mounting Hardware
    Included
    Pair
    6", 12", 18", 24"SteelNo30065T5180000000

    Zinc-Plated Steel Formable Cable Trays and Fittings

    The zinc plating on these tray systems offers good corrosion resistance. Cut, bend, and connect the wire mesh trays to route cable and hose in configurations such as curves, slopes, and tees. They are a lightweight option for organizing bundles of cable and hose while keeping them accessible.
    Trays
    Image of Product. Front orientation. Cable Trays and Fittings. Zinc-Plated Steel Formable Cable Trays and Fittings, Trays.
    Use bolt cutters to cut trays to the size you need. The maximum weight capacity is based on mounting brackets spaced every 6 feet.
    Dp.
    Lg.
    Max. Wt. Cap.,
    lb.
    Material
    Includes
    Pkg.
    Qty.
    Pkg.
    Straight

    2" Wide
    2"55"10Zinc-Plated SteelThree Clamp Connectors21823T2110000000

    4" Wide
    2"55"10Zinc-Plated SteelThree Clamp Connectors21823T212000000
    4"118"36Zinc-Plated Steel—11823T162000000

    6" Wide
    2"118"27Zinc-Plated Steel—11823T156000000
    4"118"46Zinc-Plated Steel—11823T163000000
    6"118"Not RatedZinc-Plated Steel—11823T171000000

    8" Wide
    2"55"20Zinc-Plated SteelThree Clamp Connectors21823T213000000
    4"118"47Zinc-Plated Steel—11823T164000000
    6"118"43Zinc-Plated Steel—11823T172000000

    12" Wide
    2"55"29Zinc-Plated SteelThree Clamp Connectors21823T214000000
    4"118"47Zinc-Plated Steel—11823T165000000
    6"118"48Zinc-Plated Steel—11823T173000000

    16" Wide
    2"118"27Zinc-Plated Steel—11823T157000000
    4"118"47Zinc-Plated Steel—11823T166000000
    6"118"50Zinc-Plated Steel—11823T174000000

    18" Wide
    2"118"27Zinc-Plated Steel—11823T158000000
    4"118"47Zinc-Plated Steel—11823T167000000
    6"118"50Zinc-Plated Steel—11823T175000000

    20" Wide
    2"118"27Zinc-Plated Steel—11823T159000000
    4"118"47Zinc-Plated Steel—11823T168000000

    24" Wide
    2"118"27Zinc-Plated Steel—11823T161000000
    4"118"50Zinc-Plated Steel—11823T169000000
    6"118"60Zinc-Plated Steel—11823T177000000

    Clamp Connectors
    Image of ProductInUse. Front orientation. Contains Inset. Cable Trays and Fittings. Zinc-Plated Steel Formable Cable Trays and Fittings, Clamp Connectors.
    Clamp connectors join two trays in a straight line or two trays after you have bent them.
    Each
    Package
    For Tray Wd.
    Material
    Includes
    Each
    Pkg.
    Qty.
    Pkg.
    2", 4", 6", 8", 12", 16", 18", 20", 24"Zinc-Plated SteelConnecting Hardware1823T51100000501823T5120000000

    Drop Outs
    Image of ProductInUse. Front orientation. Contains Annotated. Cable Trays and Fittings. Zinc-Plated Steel Formable Cable Trays and Fittings, Drop Outs, Plastic.
    Image of ProductInUse. Front orientation. Contains Annotated. Cable Trays and Fittings. Zinc-Plated Steel Formable Cable Trays and Fittings, Drop Outs, Zinc-Plated Steel.

    Plastic

    Zinc-Plated Steel

    Drop outs relieve stress on the cable and hose as it exits the tray.
    Plastic—Plastic drop outs can be attached to trays without bending or removing any wires.
    For Tray Wd.
    Material
    Color
    Each
    4", 6", 8", 12", 16", 18", 20", 24"PlasticBlack1823T19900000
    4", 6", 8", 12", 16", 18", 20", 24"Zinc-Plated Steel—1823T5400000

    Wall Mounting Brackets

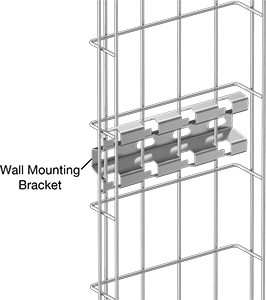

    Image of Product. Front orientation. Contains Annotated. Cable Trays and Fittings. Zinc-Plated Steel Formable Cable Trays and Fittings, Wall Mounting Brackets, Straight, For Vertical Trays.
    Image of Product. Front orientation. Contains Annotated. Cable Trays and Fittings. Zinc-Plated Steel Formable Cable Trays and Fittings, Wall Mounting Brackets, Straight, For Horizontal Trays.

    Straight

    For Vertical Trays

    Straight

    For Horizontal Trays

    Image of Product. Front orientation. Contains Annotated. Cable Trays and Fittings. Zinc-Plated Steel Formable Cable Trays and Fittings, Wall Mounting Brackets, L-Shape, For Horizontal Trays.

    L-Shape

    For Horizontal Trays

    For Tray
    Wd.
    Material
    Mounting
    Hole Dia.
    Mounting Hardware
    Included
    Each
    Straight

    For Horizontal Trays
    4"Zinc-Plated Steel7/16"No1823T7100000
    8"Zinc-Plated Steel7/16"No1823T7300000
    12"Zinc-Plated Steel7/16"No1823T7500000

    For Vertical Trays
    8"Zinc-Plated Steel13/32"No1823T930000
    12"Zinc-Plated Steel13/32"No1823T9500000

    L-Shape

    For Horizontal Trays
    6"Zinc-Plated Steel3/8"No1823T17800000
    16"Zinc-Plated Steel3/8"No1823T17900000
    20"Zinc-Plated Steel3/8"No1823T18100000
    24"Zinc-Plated Steel3/8"No1823T18200000

    Ceiling Mounting Brackets
    Image of ProductInUse. Front orientation. Contains Annotated. Cable Trays and Fittings. Zinc-Plated Steel Formable Cable Trays and Fittings, Ceiling Mounting Brackets.
    For Tray
    Wd.
    Material
    Mounting
    Hole Dia.
    Mounting Hardware
    Included
    Each
    C

    For Horizontal Trays
    4"Zinc-Plated Steel13/32"No1823T81000000
    8"Zinc-Plated Steel13/32"No1823T8300000
    12"Zinc-Plated Steel5/16"No1823T8500000

    Hanging Clips
    Image of ProductInUse. Front orientation. Contains Annotated. Cable Trays and Fittings. Zinc-Plated Steel Formable Cable Trays and Fittings, Hanging Clips.
    Hanging clips attach to the sides of a tray to suspend it from 1/4", 3/8", or 1/2" threaded rod. Threaded rod, two nuts, and two washers are required for each clip and are not included.
    For Tray Wd.
    Material
    Mounting Hardware
    Included
    Pkg.
    Qty.
    Pkg.
    2", 4", 6", 8", 12", 16", 18", 20", 24"Zinc-Plated SteelNo21823T63100000


    Corrosion-Resistant Stainless Steel Formable Cable Trays and Fittings

    These are the most corrosion-resistant tray systems we offer for routing cable and hose in configurations such as curves, slopes, and tees. Cut, bend, and connect the wire mesh trays. They are a lightweight option for organizing bundles of cable and hose while keeping them accessible.
    Trays
    Image of Product. Front orientation. Cable Trays and Fittings. Corrosion-Resistant Stainless Steel Formable Cable Trays and Fittings, Trays.
    Use bolt cutters to cut trays to the size you need. The maximum weight capacity is based on mounting brackets spaced every 6 feet.
    Dp.
    Lg.
    Max. Wt. Cap.,
    lb.
    Material
    Includes
    Pkg.
    Qty.
    Pkg.
    Straight

    2" Wide
    2"55"10Stainless SteelThree Clamp Connectors21823T2210000000

    4" Wide
    2"55"10Stainless SteelThree Clamp Connectors21823T222000000
    4"118"36Stainless Steel—11823T106000000

    6" Wide
    2"118"27Stainless Steel—11823T101000000
    4"118"46Stainless Steel—11823T107000000
    6"118"Not RatedStainless Steel—11823T115000000

    8" Wide
    2"55"20Stainless SteelThree Clamp Connectors21823T223000000
    4"118"47Stainless Steel—11823T108000000
    6"118"43Stainless Steel—11823T116000000

    12" Wide
    2"55"29Stainless SteelThree Clamp Connectors21823T22400000000
    4"118"47Stainless Steel—11823T109000000
    6"118"48Stainless Steel—11823T117000000

    16" Wide
    2"118"27Stainless Steel—11823T102000000
    4"118"47Stainless Steel—11823T111000000
    6"118"50Stainless Steel—11823T118000000

    Straight Connectors
    Image of ProductInUse. Front orientation. Contains Annotated. Cable Trays and Fittings. Corrosion-Resistant Stainless Steel Formable Cable Trays and Fittings, Straight Connectors.
    Straight connectors join two trays in a straight line.
    For Tray Wd.
    Material
    Each
    Straight
    2", 4", 6", 8", 12", 16"Stainless Steel1823T59000000

    Clamp Connectors
    Image of ProductInUse. Front orientation. Contains Inset. Cable Trays and Fittings. Corrosion-Resistant Stainless Steel Formable Cable Trays and Fittings, Clamp Connectors.
    Clamp connectors can be used to join two trays after you have bent them. You can also use these connectors to join trays in a straight line.
    For Tray Wd.
    Material
    Includes
    Pkg.
    Qty.
    Pkg.
    2", 4", 6", 8", 12", 16"Stainless SteelConnecting Hardware21823T6200000

    Drop Outs
    Image of ProductInUse. Front orientation. Contains Annotated. Cable Trays and Fittings. Corrosion-Resistant Stainless Steel Formable Cable Trays and Fittings, Drop Outs.
    Drop outs relieve stress on the cable and hose as it exits the tray.
    Plastic—Plastic drop outs can be attached to trays without bending or removing any wires.
    For Tray Wd.
    Material
    Color
    Each
    4", 6", 8", 12", 16"PlasticBlack1823T18900000
    4", 6", 8", 12", 16"Stainless Steel—1823T5600000

    Wall Mounting Brackets
    Image of ProductInUse. Front orientation. Contains Annotated. Cable Trays and Fittings. Corrosion-Resistant Stainless Steel Formable Cable Trays and Fittings, Wall Mounting Brackets, Straight, For Horizontal Trays.
    Image of ProductInUse. Front orientation. Contains Annotated. Cable Trays and Fittings. Corrosion-Resistant Stainless Steel Formable Cable Trays and Fittings, Wall Mounting Brackets, L-Shape, For Horizontal Trays, 11/32" Diameter Mounting Hole.

    Straight

    For Horizontal Trays

    L-Shape, For

    Horizontal Trays,

    11/32" Diameter

    Mounting Hole

    Image of ProductInUse. Front orientation. Contains Annotated. Cable Trays and Fittings. Corrosion-Resistant Stainless Steel Formable Cable Trays and Fittings, Wall Mounting Brackets, L-Shape, For Horizontal Trays, 7/16" Diameter Mounting Hole.
    Image of Product. Front orientation. Contains Annotated. Cable Trays and Fittings. Corrosion-Resistant Stainless Steel Formable Cable Trays and Fittings, Wall Mounting Brackets, Straight, For Vertical Trays.

    L-Shape

    For Horizontal Trays

    7/16" Diameter Mounting Hole

    Straight

    For Vertical Trays

    For Tray
    Wd.
    Material
    Mounting
    Hole Dia.
    Mounting Hardware
    Included
    Each
    Straight

    For Horizontal Trays
    8"Stainless Steel13/32"No1823T74000000
    12"Stainless Steel13/32"No1823T7600000

    For Vertical Trays
    8"Stainless Steel13/32"No1823T9400000
    12"Stainless Steel13/32"No1823T9600000

    L-Shape

    For Horizontal Trays
    4"Stainless Steel11/32"No1823T7200000
    6"Stainless Steel7/16"No1823T12300000
    16"Stainless Steel7/16"No1823T12400000

    Ceiling Mounting Brackets
    Image of ProductInUse. Front orientation. Contains Annotated. Cable Trays and Fittings. Corrosion-Resistant Stainless Steel Formable Cable Trays and Fittings, Ceiling Mounting Brackets.
    For Tray
    Wd.
    Material
    Mounting
    Hole Dia.
    Mounting Hardware
    Included
    Each
    C

    For Horizontal Trays
    4"Stainless Steel13/32"No1823T82000000
    8"Stainless Steel13/32"No1823T8400000

    Hanging Clips
    Image of ProductInUse. Front orientation. Contains Annotated. Cable Trays and Fittings. Corrosion-Resistant Stainless Steel Formable Cable Trays and Fittings, Hanging Clips.
    Hanging clips attach to the sides of a tray to suspend it from 1/4", 3/8", or 1/2" threaded rod. Threaded rod, two nuts, and two washers are required for each clip and are not included.
    For Tray Wd.
    Material
    Mounting Hardware
    Included
    Pkg.
    Qty.
    Pkg.
    2", 4", 6", 8", 12", 16"Stainless SteelNo21823T641000000


    Steel Formable Cable Trays and Fittings

    Cut, bend, and connect these wire mesh tray systems to route cable and hose in configurations such as curves, slopes, and tees. They are a lightweight option for organizing bundles of cable and hose while keeping them accessible.
    All components are black to blend into dark backgrounds.
    Trays
    Image of Product. Front orientation. Cable Trays and Fittings. Steel Formable Cable Trays and Fittings, Trays.
    Use bolt cutters to cut trays to the size you need. The maximum weight capacity is based on mounting brackets spaced every 6 feet.
    Dp.
    Lg.
    Max. Wt. Cap.,
    lb.
    Material
    Color
    Includes
    Pkg.
    Qty.
    Pkg.
    Straight

    2" Wide
    2"55"10Painted SteelBlackThree Clamp Connectors21823T2310000000

    4" Wide
    2"55"10Painted SteelBlackThree Clamp Connectors21823T232000000
    4"118"36Painted SteelBlack—11823T133000000

    6" Wide
    2"118"27Painted SteelBlack—11823T127000000
    4"118"46Painted SteelBlack—11823T134000000
    6"118"Not RatedPainted SteelBlack—11823T142000000

    8" Wide
    2"55"20Painted SteelBlackThree Clamp Connectors21823T233000000
    4"118"47Painted SteelBlack—11823T135000000
    6"118"43Painted SteelBlack—11823T143000000

    12" Wide
    2"55"29Painted SteelBlackThree Clamp Connectors21823T234000000
    4"118"47Painted SteelBlack—11823T136000000
    6"118"48Painted SteelBlack—11823T144000000

    16" Wide
    2"118"27Painted SteelBlack—11823T128000000
    4"118"47Painted SteelBlack—11823T137000000
    6"118"50Painted SteelBlack—11823T145000000

    18" Wide
    2"118"27Painted SteelBlack—11823T129000000
    4"118"47Painted SteelBlack—11823T138000000
    6"118"50Painted SteelBlack—11823T146000000

    24" Wide
    2"118"27Painted SteelBlack—11823T132000000
    4"118"50Painted SteelBlack—11823T141000000
    6"118"60Painted SteelBlack—11823T148000000

    Clamp Connectors
    Image of ProductInUse. Front orientation. Contains Inset. Cable Trays and Fittings. Steel Formable Cable Trays and Fittings, Clamp Connectors.
    Clamp connectors join two trays in a straight line or two trays after you have bent them.
    Each
    Package
    For Tray Wd.
    Material
    Color
    Includes
    Each
    Pkg.
    Qty.
    Pkg.
    2", 4", 6", 8", 12", 16", 18", 20", 24"Painted SteelBlackConnecting Hardware1823T41100000501823T4120000000

    Drop Outs
    Image of ProductInUse. Front orientation. Contains Annotated. Cable Trays and Fittings. Steel Formable Cable Trays and Fittings, Drop Outs, Plastic.
    Image of ProductInUse. Front orientation. Contains Annotated. Cable Trays and Fittings. Steel Formable Cable Trays and Fittings, Drop Outs, Painted Steel.

    Plastic

    Painted Steel

    Drop outs relieve stress on the cable and hose as it exits the tray.
    Plastic—Plastic drop outs can be attached to trays without bending or removing any wires.
    For Tray Wd.
    Material
    Color
    Each
    4", 6", 8", 12", 16", 18", 20", 24"PlasticBlack1823T14900000
    4", 6", 8", 12", 16", 18", 20", 24"Painted SteelBlack1823T5500000

    Wall Mounting Brackets
    Image of ProductInUse. Front orientation. Contains Annotated. Cable Trays and Fittings. Steel Formable Cable Trays and Fittings, Wall Mounting Brackets, Straight, For Vertical Trays.
    Image of ProductInUse. Front orientation. Contains Annotated. Cable Trays and Fittings. Steel Formable Cable Trays and Fittings, Wall Mounting Brackets, Straight, For Horizontal Trays.

    Straight

    For Vertical Trays

    Straight

    For Horizontal Trays

    Image of ProductInUse. Front orientation. Contains Annotated. Cable Trays and Fittings. Steel Formable Cable Trays and Fittings, Wall Mounting Brackets, L-Shape, For Horizontal Trays.

    L-Shape

    For Horizontal Trays

    For Tray
    Wd.
    Material
    Color
    Mounting
    Hole Dia.
    Mounting Hardware
    Included
    Each
    Straight

    For Horizontal Trays
    4"Painted SteelBlack7/16"No1823T5200000
    8"Painted SteelBlack7/16"No1823T5700000
    12"Painted SteelBlack7/16"No1823T6500000

    For Vertical Trays
    8"Painted SteelBlack13/32"No1823T910000
    12"Painted SteelBlack13/32"No1823T9200000

    L-Shape

    For Horizontal Trays
    6"Painted SteelBlack3/8"No1823T15200000
    16"Painted SteelBlack3/8"No1823T15300000
    18"Painted SteelBlack3/8"No1823T15400000
    24"Painted SteelBlack3/8"No1823T15500000

    Ceiling Mounting Brackets
    Image of ProductInUse. Front orientation. Contains Annotated. Cable Trays and Fittings. Steel Formable Cable Trays and Fittings, Ceiling Mounting Brackets.
    For Tray
    Wd.
    Material
    Color
    Mounting
    Hole Dia.
    Mounting Hardware
    Included
    Each
    C

    For Horizontal Trays
    4"Painted SteelBlack13/32"No1823T87000000
    8"Painted SteelBlack13/32"No1823T8800000
    12"Painted SteelBlack5/16"No1823T8900000

    Hanging Clips
    Image of ProductInUse. Front orientation. Contains Inset. Cable Trays and Fittings. Steel Formable Cable Trays and Fittings, Hanging Clips.
    Hanging clips attach to the sides of a tray to suspend it from 1/4"-20 or 3/8"-16 threaded rod. Threaded rod, two nuts, and two washers are required for each clip and are not included.
    For Tray Wd.
    Material
    Color
    Mounting Hardware
    Included
    Pkg.
    Qty.
    Pkg.
    2", 4", 6", 8"Painted SteelBlackYes21823T15100000

    back to top
