Telescoping Hand-Winch Cranes

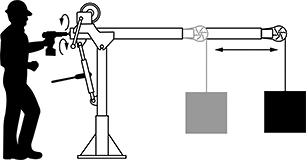

Adjust the arm in, out, up, and down even under load. These cranes are designed for precise positioning adjustments—no need to fully lower the arm and detach your load. For even more positioning flexibility in all directions, these cranes also rotate a full 360°. An automatic brake holds your load securely in place when you release the handle. To quicken your set up, use a power drill to wind the winch or lengthen the arm for you. Also known as davit cranes.
Pair your crane with a powered winch to turn your manual winch into an electric one.
Install additional bases throughout your facility to use your crane in different spots.
Headache balls keep the cable taut when there’s no load, making the crane more stable.
Note: Capacity is highest for the first layer of rope and decreases as each additional layer of rope is wound on the winch. There are at least five wraps of rope on the winch.
Warning: Never use to lift people or items over people.
| Min. Cap., lbs. | Max. Cap., lbs. | Fully Wound Cap., lbs. | Arm Lg. | Lift Lg., ft. | O'all Ht. | Wire Rope Material | Hook Movement | Power Source | Fasteners Included | Features | Each | |
Floor Mount (Surface) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Zinc-Plated Steel | ||||||||||||
| 500 | 500 | 500 | 24"-66" | 80 | 4'2" to 7'6" | Galvanized Steel | 360° Swivel | Manual, Power Drill | Yes | Ratchet Screw Jack | 0000000 | 000000000 |
| 550 | 1,200 | 550 | 23"-66" | 55 | 4'5" to 7'10" | Galvanized Steel | 360° Swivel | Manual, Power Drill | Yes | Ratchet Screw Jack | 0000000 | 00000000 |
Wall Mount (Surface) | ||||||||||||
Zinc-Plated Steel | ||||||||||||
| 500 | 500 | 500 | 24"-66" | 80 | 4'2" to 7'6" | Galvanized Steel | 360° Swivel | Manual, Power Drill | Yes | Ratchet Screw Jack | 0000000 | 00000000 |
| 550 | 1,200 | 550 | 23"-66" | 55 | 4'5" to 7'10" | Galvanized Steel | 360° Swivel | Manual, Power Drill | Yes | Ratchet Screw Jack | 0000000 | 00000000 |
| Material | Each | |
| Powder-Coated Steel | 0000000 | 0000000 |
Lightweight Hand-Winch Cranes
At half the weight of standard hand-winch cranes with similar capacity, these cranes are easier to move from one base to another. Also known as davit cranes, they have a handle you crank to raise and lower the load. An automatic brake holds your load securely in place when you release the handle. For positioning in all directions, these cranes rotate a full 360°, and the arm adjusts to four different lengths. To quicken your set up, use a power drill to wind the winch or lengthen the arm for you. They're aluminum, so they also resist corrosion.
Pair your crane with a powered winch to turn your manual winch into an electric one.
Install additional bases throughout your facility to use your crane in different spots.
Headache balls keep the cable taut when there’s no load, making the crane more stable.
Note: Capacity is highest for the first layer of rope and decreases as each additional layer of rope is wound on the winch. There are at least five wraps of rope on the winch.
Warning: Never use to lift people or items over people.
| Min. Cap., lbs. | Max. Cap., lbs. | Fully Wound Cap., lbs. | Arm Lg. | Lift Lg., ft. | O'all Ht. | Wire Rope Material | Hook Movement | Power Source | Fasteners Included | Each | |
Floor Mount (Surface) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
Aluminum  | |||||||||||
| 275 | 500 | 275 | 23"-42" | 80 | 4'9" to 6'11" | Galvanized Steel | 360° Swivel | Manual, Power Drill | Yes | 00000000 | 000000000 |
| 550 | 1,000 | 550 | 23"-42" | 55 | 4'9" to 7' | Galvanized Steel | 360° Swivel | Manual, Power Drill | Yes | 00000000 | 00000000 |
Wall Mount (Surface) | |||||||||||
Aluminum | |||||||||||
| 275 | 500 | 275 | 23"-42" | 80 | 4'9" to 6'11" | Galvanized Steel | 360° Swivel | Manual, Power Drill | Yes | 00000000 | 00000000 |
| 550 | 1,000 | 550 | 23"-42" | 55 | 4'9" to 7' | Galvanized Steel | 360° Swivel | Manual, Power Drill | Yes | 00000000 | 00000000 |
| Material | Each | |
| Powder-Coated Steel | 0000000 | 0000000 |
Electric Winch Cranes
No hand-cranking needed—simply push a button on the handheld control to lift or lower a heavy load. These cranes are also known as davit cranes. The automatic brake holds your load securely in place when you’re not moving it up or down. For precise positioning in all directions, these cranes rotate a full 360°. The arm can be adjusted to four different heights depending on your needs.
Electric-powered cranes work well for long-running jobs because there’s no battery to worry about. They plug into an electrical outlet.
Battery-powered cranes work in locations without electrical outlets. Use the wire leads to connect them to a 12V DC battery (not included).
Install additional bases throughout your facility to make it easy to use your crane in different spots. Make sure the maximum capacity of your crane matches the capacity of the base you choose.
Headache balls keep the cable taut when there’s no load, making the crane more stable for safety.
Note: Capacity is highest for the first layer of rope and decreases as each additional layer of rope is wound on the winch. There are at least five wraps of rope on the winch.
Warning: Never use to lift people or items over people.
| Min. Cap., lbs. | Max. Cap., lbs. | Fully Wound Cap., lbs. | Arm Lg. | Lift Lg., ft. | Lifting Speed, fpm | O'all Ht. | Hook Movement | Fasteners Included | Each | |
Floor Mount (Surface) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Zinc-Plated Steel with Galvanized Steel Wire Rope | ||||||||||
| 500 | 500 | 500 | 28"-42" | 90 | 16 | 4'2" to 6'5" | 360° Swivel | Yes | 0000000 | 000000000 |
| 550 | 1,000 | 550 | 28"-42" | 45 | 16 | 3'10" to 6'4" | 360° Swivel | Yes | 0000000 | 00000000 |
Wall Mount (Surface) | ||||||||||
Zinc-Plated Steel with Galvanized Steel Wire Rope | ||||||||||
| 500 | 500 | 500 | 28"-42" | 90 | 16 | 4'2" to 6'5" | 360° Swivel | Yes | 0000000 | 00000000 |
| 550 | 1,000 | 550 | 28"-42" | 45 | 16 | 3'10" to 6'4" | 360° Swivel | Yes | 0000000 | 00000000 |
| Min. Cap., lbs. | Max. Cap., lbs. | Fully Wound Cap., lbs. | Arm Lg. | Lift Lg., ft. | Lifting Speed, fpm | O'all Ht. | Current, A | Hook Movement | Batteries Included | Fasteners Included | Each | |
Floor Mount (Surface) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Zinc-Plated Steel with Galvanized Steel Wire Rope | ||||||||||||
| 500 | 500 | 500 | 28"-42" | 90 | 8 | 4'2" to 6'5" | 70 | 360° Swivel | No | Yes | 0000000 | 000000000 |
| 550 | 1,000 | 550 | 28"-42" | 45 | 8 | 3'10" to 6'4" | 70 | 360° Swivel | No | Yes | 0000000 | 00000000 |
Wall Mount (Surface) | ||||||||||||
Zinc-Plated Steel with Galvanized Steel Wire Rope | ||||||||||||
| 500 | 500 | 500 | 28"-42" | 90 | 8 | 4'2" to 6'5" | 70 | 360° Swivel | No | Yes | 0000000 | 00000000 |
| 550 | 1,000 | 550 | 28"-42" | 45 | 8 | 3'10" to 6'4" | 70 | 360° Swivel | No | Yes | 0000000 | 00000000 |
| Material | Each | |
| Powder-Coated Steel | 0000000 | 0000000 |
