Low-Height Crossover Bridges

Take the safest, shortest route over pipes and other obstacles near the ground. For stability, bolt these bridges to your floor. The serrated steps and platform prevent slipping and allow liquids and debris to pass through.
Powder-coated steel bridges are both rust resistant and durable enough to withstand heavy use. They’re yellow, so they are easy to see and reduce tripping risks.
Aluminum bridges are more corrosion resistant than steel bridges. They’re a good choice for damp areas, including outdoors.
Note: All bridges meet OSHA and Cal/OSHA dimensional and construction standards. Check local, state, and federal codes, including OSHA, for safe set up and operating practices.

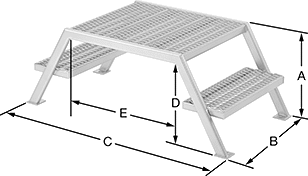

Overall | Ground Clearance | Platform | Step | Mounting Holes | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. (A) | Wd. (B) | Dp. (C) | Ht. (D) | Dp. (E) | Ht. | Wd. | Dp. | Wd. | Dp. | Cap., lbs. | No. of Steps | Mounting Hardware Included | No. of | Dia. | Assembled or Unassembled | Specifications Met | Each | |
Yellow Powder-Coated Steel | ||||||||||||||||||
Serrated Steps | ||||||||||||||||||
| 1'7" | 26 1/2" | 4'3" | 16" | 24 9/16" | 1'7" | 25 7/8" | 29" | 23 1/2" | 9 1/2" | 500 | 2 | No | 4 | 9/16" | Assembled | Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910.23 | 0000000 | 0000000 |
Aluminum | ||||||||||||||||||
Serrated Steps | ||||||||||||||||||
| 1'7" | 26 1/2" | 4'3" | 16" | 24 9/16" | 1'7" | 25 7/8" | 29" | 23 1/2" | 9 1/2" | 300 | 2 | No | 4 | 9/16" | Assembled | Cal/OSHA Compliant Title 8 Section 3622, OSHA Compliant 29 CFR 1910.23 | 0000000 | 000000 |
