    94 Products

    DIN Rail Mounting Adapters

    Image of ProductInUse. Single-Clip Adapters for DIN 3 Rails. Front orientation. DIN Rail Mounting Adapters. Single-Clip Adapters, For DIN 3 Rails.
    Image of ProductInUse. Single-Clip Adapters for DIN 1 Rails. Front orientation. DIN Rail Mounting Adapters. Single-Clip Adapters, For DIN 1 Rails.

    Single-Clip Adapters for DIN 3 Rails

    Single-Clip Adapters for DIN 1 Rails

    Image of ProductInUse. Double-Clip Adapters for DIN 3 Rails. Front orientation. DIN Rail Mounting Adapters. Double-Clip Adapters, For DIN 3 Rails.
    Image of ProductInUse. Panel-Clip Adapters for DIN 3 Rails. Front orientation. DIN Rail Mounting Adapters. Panel-Clip Adapters, For DIN 3 Rails.

    Double-Clip Adapters for DIN 3 Rails

    Panel-Clip Adapters for DIN 3 Rails

    Image of ProductInUse. Spring-Clip Adapters for DIN 3 Rails. Front orientation. DIN Rail Mounting Adapters. Spring-Clip Adapters, For DIN 3 Rails.

    Spring-Clip Adapters for DIN 3 Rails

    Mount items not designed for DIN rail by attaching them to these adapters. Adapters clip onto the rail.
    For large items that need more stability, use multiple adapters or choose an adapter with more than one mounting hole.
    12 Mounting Holes and 30 Mounting Holes—Adapters with 12 and with 30 mounting holes have a panel for positioning multiple items together in whatever arrangement you need.
    Mounting
    Holes
    For DIN Rail
    Trade Size
    Ht.,
    mm
    Wd.,
    mm
    Dp.,
    mm
    Material
    Mounting Fasteners
    Included
    Dia.,
    mm
    Thread
    Size
    No.
    of
    Wt. Cap.,
    lb.
    Each
    Single-Clip Adapters
    3371413SteelNo4M4
    		1—8961K2800000
    3371413SteelNo5M5
    		1—8961K290000
    1241613SteelNo4M4
    		1—8961K270000

    Double-Clip Adapters
    3373113SteelNo4M4
    		2—8961K330000
    3373113SteelNo5M5
    		2—8961K340000

    Panel-Clip Adapters
    3484812Nylon
    		No1.9—12—8961K320000
    3767612Nylon
    		No1.9—30—8961K350000

    Spring-Clip Adapters
    351428Aluminum
    		Yes——11258961K10600000
    351758Aluminum
    		Yes——21258961K10700000
    3511008Aluminum
    		Yes——21258961K10800000


    DIN Rail Mounting Adapters for Development Boards

    Image of ProductInUse. Front orientation. DIN Rail Mounting Adapters. DIN Rail Mounting Adapters for Development Boards.
    Protect development boards from dust, water, and debris by mounting them to DIN rails inside control cabinets. These adapters have an open-air design to keep boards cool and prevent them from overheating. They attach perpendicularly to DIN rails, taking up less space in your setup. Use the included cable ties to secure your cords to the mount and keep connections free from strain.
    DIN Rail Mounting Adapters
    Image of Product. Front orientation. DIN Rail Mounting Adapters. DIN Rail Mounting Adapters for Development Boards.
    For DIN
    Rail
    For Mfr. Series
    Ht.
    Wd.
    Dp.
    Ht,
    mm
    Trade
    Size
    Material
    Mounting Fasteners
    Included
    Includes
    Each
    Arduino Uno, Mega4 7/8"3 1/2"7/16"353Nylon 6/6
    		YesCable Ties7411N1300000
    Beaglebone Black, Green5 5/8"3 1/2"7/16"353Nylon 6/6
    		YesCable Ties7411N1400000
    Raspberry Pi 2, 3, 4; Asus Tinker Board; O-Droid C23 5/8"3 5/8"7/16"353Nylon 6/6
    		YesCable Ties7411N1100000
    Raspberry Pi Zero3 1/8"2 7/8"1/4"353Nylon 6/6
    		YesCable Ties7411N120000
    DIN Rail Mounting Adapters with Adjustable Standoffs
    Image of Product. Front orientation. DIN Rail Mounting Adapters. DIN Rail Mounting Adapters for Development Boards, DIN Rail Mounting Adapters with Adjustable Standoffs.
    Adapters with adjustable standoffs have slots to accommodate a range of development board sizes. This means you won’t need a new mount if you switch to a different board. However, they take more time and hardware to set up than adapters without adjustable standoffs.
    For
    Board
    For DIN
    Rail
    Lg.
    Wd.
    Ht.
    Wd.
    Dp.
    Ht,
    mm
    Trade
    Size
    Material
    Mounting Fasteners
    Included
    Includes
    Each
    0.74" to 3.89"0.59" to 2.51"3 7/8"3 7/8"3/8"353Nylon 6/6
    		YesCable Ties7411N121000000

    DIN Rails

    Image of Product. Front orientation. DIN Rails. DIN 3.
    Image of Product. Front orientation. DIN Rails. DIN 1.
    Image of Product. Front orientation. DIN Rails. DIN 2.

    DIN 3

    DIN 1

    DIN 2

    Image of Product. DIN 3 Rails with Bracket. Front orientation. DIN Rails. DIN Rails with Bracket, DIN 3.
    Image of Product. DIN 3 Rails with Angled Bracket. Front orientation. DIN Rails. DIN Rails with Angled Bracket, DIN 3.
    Image of Product. DIN 3 Rails with Centerline. Front orientation. DIN Rails. DIN Rails with Centerline, DIN 3.

    DIN 3 Rails with Bracket

    DIN 3 Rails with Angled

    Bracket

    DIN 3 Rails with

    Centerline

    Image of Attribute. Front orientation. Contains Annotated. DIN 3.
    Image of Attribute. Front orientation. Contains Annotated. DIN 1.
    Image of Attribute. Front orientation. Contains Annotated. DIN 2.
    Image of Attribute. DIN 3 Rails with Bracket. Front orientation. Contains Annotated. DIN Rails with Bracket, DIN 3.
    Image of Attribute. DIN 3 Rails with Angled Bracket. Front orientation. Contains Annotated. DIN Rails with Angled Bracket, DIN 3.

    DIN 3

    DIN 1

    DIN 2

    DIN 3 Rails

    with Bracket

    DIN 3 Rails with

    Angled Bracket

    Mount terminal blocks, power supplies, relays, and other control and distribution devices on walls and other flat surfaces and in enclosures.
    DIN Rails with Bracket—DIN rails with a bracket create extra space behind them to accommodate bulky items.
    DIN Rails with Angled Bracket—DIN rails with an angled bracket are tilted, letting you fit more of them into a vertical space. For easy access, position high-mounted devices so they’re tilted downwards and low-mounted devices so they’re tilted upwards.
    DIN Rails with Centerline—On DIN rails without mounting holes, drill holes where you need them. Rails with a centerline guide where you should drill.
    DIN 3—DIN 3 is the most commonly used rail.
    Mounting
    Holes, mm
    DIN Rail
    Trade Size
    Ht.,
    mm
    Lg.
    Dp.,
    mm
    Overall
    Dp., mm
    Material
    Mounting Fasteners
    Included
    Dia.
    Ctr.-to-Ctr.
    Specs. Met
    Each
    DIN Rails
    3352"7.5—Zinc-Plated SteelNo6.325EN 50022, EN 607158961K8400000
    3353 15/16"7.5—Zinc-Plated SteelNo6.325EN 50022, EN 607158961K850000
    3354 7/8"7.5—Zinc-Plated SteelNo6.325EN 50022, EN 607158961K1010000
    3355 7/8"7.5—Zinc-Plated SteelNo6.325EN 50022, EN 607158961K860000
    3356 7/8"7.5—Zinc-Plated SteelNo6.325EN 50022, EN 607158961K1020000
    3357 7/8"7.5—Zinc-Plated SteelNo6.325EN 50022, EN 607158961K870000
    3358 7/8"7.5—Zinc-Plated SteelNo6.325EN 50022, EN 607158961K1030000
    3359 13/16"7.5—Zinc-Plated SteelNo6.325EN 50022, EN 607158961K880000
    33510 13/16"7.5—Zinc-Plated SteelNo6.325EN 50022, EN 607158961K1040000
    33511 13/16"7.5—Zinc-Plated SteelNo6.325EN 50022, EN 607158961K890000
    33512 3/4"7.5—Zinc-Plated SteelNo6.325EN 50022, EN 607158961K1050000
    33513 3/4"7.5—Zinc-Plated SteelNo6.325EN 50022, EN 607158961K910000
    33515 3/4"7.5—Zinc-Plated SteelNo6.325EN 50022, EN 607158961K920000
    33517 11/16"7.5—Zinc-Plated SteelNo6.325EN 50022, EN 607158961K930000
    33519 11/16"7.5—Zinc-Plated SteelNo6.325EN 50022, EN 607158961K940000
    33521 11/16"7.5—Zinc-Plated SteelNo6.325EN 50022, EN 607158961K950000
    33523 5/8"7.5—Zinc-Plated SteelNo6.325EN 50022, EN 607158961K960000
    3351 m7.5—304 Stainless Steel———EN 50022, EN 607158961K4200000
    3351 m7.5—Zinc-Plated SteelNo6.325EN 50022, EN 607158961K150000
    3351 m10—AluminumNo4.735.5EN 50022, EN 607158961K1700000
    3351 m15—Zinc-Plated SteelNo6.325EN 50022, EN 607158961K1800000
    3352 m7.5—304 Stainless Steel———EN 50022, EN 607158961K4300000
    3352 m7.5—Zinc-Plated SteelNo6.325EN 50022, EN 607158961K1600000
    3352 m15—Zinc-Plated SteelNo6.325EN 50022, EN 607158961K1900000
    1321 m15—Zinc-Plated SteelNo6.325EN 50022, EN 607158961K1100000
    1322 m15—Zinc-Plated SteelNo6.325EN 50022, EN 607158961K1200000
    2151 m5.5—Zinc-Plated SteelNo4.220EN 50022, EN 607158961K130000
    2152 m5.5—Zinc-Plated SteelNo4.220EN 50022, EN 607158961K1400000

    DIN Rails with Bracket
    3351 m7.558AluminumNo5.575EN 50022, EN 607158961K3100000
    3352 m7.558AluminumNo5.575EN 50022, EN 607158961K4900000
    3352 m7.5120AluminumNo5.575EN 50022, EN 607158961K48000000

    DIN Rails with Angled Bracket
    3351 m7.566AluminumNo5.676—8961K6800000
    3352 m7.566AluminumNo5.676—8961K69000000

    DIN Rails with Centerline
    3351 m7.5—Zinc-Plated Steel———EN 50022, EN 607158961K450000
    3351 m15—Zinc-Plated Steel———EN 50022, EN 607158961K4700000
    3352 m7.5—Zinc-Plated Steel———EN 50022, EN 607158961K4400000
    3352 m15—Zinc-Plated Steel———EN 50022, EN 607158961K4600000


    DIN Rail Mounting Brackets

    Image of Product. Front orientation. DIN Rail Mounting Brackets. Angled.
    Image of Product. Front orientation. DIN Rail Mounting Brackets. Straight.
    Image of Attribute. Side1 orientation. Contains Annotated. Angled.
    Image of Attribute. Side1 orientation. Contains Annotated. Straight.

    Angled

    Straight

    Angled

    Straight

    Use these brackets for extra mounting space behind DIN rail to accommodate wiring and bulky items. Brackets with multiple DIN rail mounting holes hold several DIN rails on one set of brackets, so you don’t need to drill as many holes in your enclosure.
    Mounting
    Holes
    For DIN Rail
    Trade Size
    Ht.,
    mm
    Wd.,
    mm
    Dp.,
    mm
    Top Dp.,
    mm
    Material
    Mounting Fasteners
    Included
    Dia.,
    mm
    No.
    of
    DIN Rail Mounting
    Fasteners Included
    DIN Rail Mounting Hole
    Size (No. of)
    Pkg.
    Qty.
    Pkg.
    Angled
    3, 2, 180255025Zinc-Plated SteelNo72YesM6 × 1 mm (1)18961K2200000
    3, 2, 197184832Zinc-Plated SteelNo4.32No4.3 mm (1)18961K5100000

    Straight
    3, 2, 1802025—Zinc-Plated SteelNo72YesM6 × 1 mm (1)18961K230000
    3, 2, 1802050—Zinc-Plated SteelNo72YesM6 × 1 mm (1)18961K240000
    3, 2, 1802070—Zinc-Plated SteelNo72YesM6 × 1 mm (1)18961K250000
    3, 2, 1802090—Zinc-Plated SteelNo72YesM6 × 1 mm (1)18961K260000
    3, 2, 1121189—Zinc-Plated SteelYes52No4.4 mm (2) M5 × 0.8 mm (3)28961K6100000
    3, 2, 1171189—Zinc-Plated SteelYes52No4.4 mm (4) M5 × 0.8 mm (5)28961K6200000
    3, 2, 1201189—Zinc-Plated SteelYes52No4.4 mm (5) M5 × 0.8 mm (6)28961K6300000
    3, 2, 1221189—Zinc-Plated SteelYes52No4.4 mm (6) M5 × 0.8 mm (7)28961K6400000
    3, 2, 1271189—Zinc-Plated SteelYes52No4.4 mm (8) M5 × 0.8 mm (9)28961K6500000
    3, 2, 1321189—Zinc-Plated SteelYes52No4.4 mm (10) M5 × 0.8 mm (11)28961K6600000


    Cable Holders for DIN Rails

    Image of ProductInUse. Style B Installed (DIN Rail and Cable Not Included). Front orientation. Cable Holders. Cable Holders for DIN Rails, Style B.

    Style B Installed (DIN Rail

    and Cable Not Included)

    Image of Product. Front orientation. Cable Holders. Cable Holders for DIN Rails, Style A.
    Image of Product. Front orientation. Cable Holders. Cable Holders for DIN Rails, Style B.

    Style A

    Style B

    Image of Product. Front orientation. Cable Holders. Cable Holders for DIN Rails, Style C.

    Style C

    Image of Attribute. Front orientation. Contains Annotated. Cable Holders. Cable Holders for DIN Rails, Style A.
    Image of Attribute. Front orientation. Contains Annotated. Cable Holders. Cable Holders for DIN Rails, Style B.
    Image of Attribute. Front orientation. Contains Annotated. Cable Holders. Cable Holders for DIN Rails, Style C.

    Style A

    Style B

    Style C

    Slide these cable holders on DIN rails—often used in equipment cabinet racks—to route and organize cables. Since these cable holders don’t require adhesive or screws, you can move them anywhere along the rail.
    Styles A and C—Styles A and C cable holders have a C-shape design, allowing you to move, add, and remove cables more easily than those with an interlocking design. Use them for applications that require frequent cable adjustments.
    Style B—Style B cable holders have an interlocking design to hold cables more securely than those with a C-shape design. They’re best for applications that don’t require frequent cable adjustments.
    Bottom Cable Entry and Top Cable Entry—For added versatility, clips with a bottom and top cable entry location can be used to route cables on either side of your DIN rail.
    Inside,
    mm
    Style
    For DIN Rail
    Trade Size
    Ht.,
    mm
    Wd.,
    mm
    Dp.,
    mm
    Ht.
    Wd.
    Cable Entry
    Location
    Material
    Color
    Mount
    Type
    Flammability
    Rating
    Pkg.
    Qty.
    Pkg.
    C-Shape Clips
    A3151510511SideNylonOff-WhiteSlide OnUL 94 V-2
    		257443N11200000
    A1151510511SideNylonOff-WhiteSlide OnUL 94 V-2
    		257443N1110000
    C311111056Bottom, TopNylonOff-WhiteSlide OnUL 94 V-2
    		257443N1160000
    C111111056Bottom, TopNylonOff-WhiteSlide OnUL 94 V-2
    		257443N1150000

    Interlocking Clips
    B3151610511SideNylonOff-WhiteSlide OnUL 94 V-2
    		257443N1140000
    B1151610511SideNylonOff-WhiteSlide OnUL 94 V-2
    		257443N1130000


    Adhesive-Back DIN Rails

    Image of Product. Front orientation. DIN Rails. Adhesive-Back DIN Rails, 1 lb. Capacity.
    Image of Product. Front orientation. DIN Rails. Adhesive-Back DIN Rails, 16 1/2 lb. Capacity.
    Image of Attribute. Front orientation. Contains Annotated. DIN Rails. Adhesive-Back DIN Rails.

    1 lb. Capacity

    16 1/2 lb. Capacity

    Stick this DIN rail in any enclosure to mount components without making screw holes that might leak. The adhesive backing and short length let you install these in tight spaces where a screwdriver wouldn’t fit. Adhesive reaches full capacity after 24 hours.
    UL 94 V-0—DIN rails meet UL 94 V-0, so if they catch fire, they’ll self-extinguish within 10 seconds and won’t spread the fire by dripping.
    Wt. Cap.,
    lb.
    DIN Rail
    Trade Size
    Ht.,
    mm
    Lg.,
    mm
    Overall
    Lg., mm
    Dp.,
    mm
    Material
    Color
    Flammability
    Rating
    Pkg.
    Qty.
    Pkg.
    1335274314PlasticBlackUL 94 V-0
    		53609N11000000
    16 1/2335667115PlasticBlackUL 94 V-0
    		13609N120000

    DIN-Rail-Mount Hook and Loop Straps

    Clip to DIN rail to route and organize wire, cable, and hose. These straps are often paired with DIN 3 rail, the most common size. All meet UL 94 V-0, meaning they quickly self-extinguish, so they're a good choice for hot and poorly ventilated places such as server rooms.
    Clip On
    Image of ProductInUse. Front orientation. Hook and Loop Straps. DIN-Rail-Mount Hook and Loop Straps, Clip On, Straps with Buckle.
    Image of Attribute. DIN 3 Rail. Side1 orientation. Contains Annotated. For DIN 3 Rails.

    Straps with Buckle

    DIN

    3

    Rail

    Straps with Buckle—For an extra-tight hold, cinch these straps down with the built-in buckle.
    For DIN
    Rail
    Lg.
    For Max.
    Bundle Dia.
    Wd.
    Ht.,
    mm
    Trade
    Size
    Material
    Color
    Buckle
    Material
    Each
    Straps with Buckle
    6"3/4"3/8"353Nylon FabricBlackPlastic3640N1100000
    7"1 3/8"3/4"353Nylon FabricBlackPlastic3640N1200000
    8"2 3/8"3/4"353Nylon FabricBlackPlastic3640N1300000


    Magnetic-Back DIN Rails

    Image of Product. Front orientation. DIN Rails. Magnetic-Back DIN Rails.
    Image of Attribute. Front orientation. Contains Annotated. DIN Rails. Magnetic-Back DIN Rails.
    Mount and reposition components without drilling leaky holes in your steel enclosure—a strong magnet holds these DIN rails in place. Since they install without screws, they fit in spaces that are too small for a screwdriver.
    UL 94 V-0—DIN rails meet UL 94 V-0, so if they catch fire, they’ll self-extinguish within 10 seconds and won’t spread the fire by dripping.
    Wt. Cap.,
    lb.
    DIN Rail
    Trade Size
    Ht.,
    mm
    Lg.,
    mm
    Overall
    Lg., mm
    Dp.,
    mm
    Material
    Color
    Flammability
    Rating
    Each
    6 1/2335667115PlasticBlackUL 94 V-0
    		3661N11000000

    DIN Rail Cutters

    Image of Product. Front orientation. DIN Rail Cutters.
    Image of Attribute. Front orientation. Contains Annotated.
    Image of Attribute. DIN 3 Rails with Bracket. Front orientation. Contains Annotated. For Cutting DIN Rails with Brackets.

    DIN 3 Rails

    with Bracket

    Image of Attribute. Front orientation. Contains Annotated. For DIN 1 Rails.
    Image of Specification. 12 × 6.4 mm Hole. Front orientation. 12 × 6.4 mm Hole Punch.

    For DIN

    1 Rails

    12 ×

    6.4

    mm

    Hole

    Pull the lever on these cutters to make smooth cuts in steel and aluminum DIN rails without leaving a bur. To cut the same length over and over, slide the stop along the ruler and clamp in place. Cutters mount to your workbench.
    12 × 6.4 mm Hole Punch—Cutters with hole punch stamp an oblong hole. Turn the die to cut a hole parallel or perpendicular to the rail.
    Mounting
    Holes
    For Cutting Trade Size (Ht. × Dp. × Overall Dp.)
    Ht.
    Wd.
    Lg.
    Handle
    Lg.
    Ruler Lg.
    Mounting Fasteners
    Included
    No.
    of
    Dia.
    Features
    Each
    DIN 3 Rails (35 × 7.5 mm)
    DIN 3 Rails (35 × 15 mm)    		47"6"54"40"39"/100 cmNo40.39"—6134N11000000000
    DIN 3 Rails (35 × 7.5 mm)
    DIN 3 Rails (35 × 15 mm)
    DIN 3 Rails with Bracket (35 mm × 7.5 mm × 58 mm)    		47"6"54"40"39"/100 cmNo40.39"—6134N1200000000
    DIN 3 Rails (35 × 7.5 mm)
    DIN 3 Rails (35 × 15 mm)
    DIN 2 Rails (15 × 5.5 mm)
    DIN 1 Rails (32 × 15 mm)    		47"6"54"40"39"/100 cmNo40.39"12 × 6.4 mm Hole Punch6134N1300000000

    Rugged Computers

    Sealed against dust and debris, these computers are ideal for factory floors and other dirty environments. They remain reliable in extreme conditions, from the freezing cold of freezers to the intense heat of foundries. Also known as edge computers or IoT gateways, they run Windows IoT Enterprise—an operating system built for industrial use. It supports standard Windows applications while offering stronger security and longer support than consumer versions.
    Pair them with a monitor, keyboard, and mouse (not included) to create a workstation. With a wide range of ports, they’re compatible with most industrial equipment. They can also connect to sensors and programmable logic controllers (PLCs) to transmit data over your network for process control. Their fanless enclosure doubles as a heat sink and gets hot during use, so avoid placing objects against it.
    All come with a power adapter and cord that plugs into a standard outlet.
    Standard Computers
    Image of ProductInUse. Intel Pentium J6426 Shown Mounted on DIN Rail. Front orientation. Computers. Rugged Computers, Intel Pentium J6426.
    Image of ProductInUse. Intel Atom X6425E Shown Mounted on DIN Rail. Front orientation. Computers. Rugged Computers, Intel Atom X6425E.

    Intel Pentium J6426 Shown Mounted on

    DIN Rail

    Intel Atom X6425E Shown

    Mounted on DIN Rail

    Image of Product. Front orientation. Computers. Rugged Computers, Intel Pentium J6426.
    Image of Product. Front orientation. Computers. Rugged Computers, Intel Atom X6425E.

    Intel Pentium J6426

    Intel Atom X6425E

    Computers with an Intel Pentium or Atom processor work well for everyday tasks such as web browsing, email, and data entry.
    MIL-STD-810—Computers that meet MIL-STD-810 are sturdy enough to pass the highest military performance tests for temperature, shock, and vibration resistance.
    Connection Type
    Memory
    Size, GB
    Digital Storage
    Size, GB
    Operating System
    Temp. Range,
    ° F
    Lg.
    Wd.
    Ht.
    Includes
    Certification
    Mil. Spec.
    Each
    Intel Pentium J6426
    Standard DisplayPort 1.4 (3 each)
    USB-A 3.2 Gen 2 (3 each)
    USB-A 2.0 (3 each)
    Ethernet RJ45 (2 each)
    DB9 COM (1 each)
    3.5 mm Audio Input/Output (1 each)
    Wi-Fi 802.11b/a/g/n/ac
    Bluetooth 5.1    		8256Windows 10 IoT Enterprise LTSC 202132 to 1207 3/4"4 3/4"1 1/2"DIN-Rail Mounting Bracket, Surface Mounting Bracket, Power AdapterCE Marked
    		—8142N13000000000

    Intel Atom X6425E
    Standard DisplayPort 1.4 (3 each)
    USB-A 3.2 Gen 2 (3 each)
    USB-A 2.0 (5 each)
    Ethernet RJ45 (2 each)
    DB9 COM (4 each)
    3.5 mm Audio Input (1 each)
    3.5 mm Audio Output (1 each)
    Digital Inputs (4 each)
    Digital Outputs (4 each)
    Wi-Fi 802.11b/a/g/n/ac
    Bluetooth 4.2    		16256Windows 10 IoT Enterprise LTSC 2021-40 to 1555 7/8"4 1/8"3 1/4"DIN-Rail Mounting Bracket, Surface Mounting Bracket, Power AdapterCE Marked, Mil. Spec.MIL-STD-8108142N1100000000

    VESA Mounting Brackets
    Image of ProductInUse. For Computers with Pentium J6426 and Intel Core i5-1250PE. Front orientation. Contains MultipleImages. Computer Mounting Brackets. Rugged Computers, .
    Image of ProductInUse. For Computers with Atom X6425E. Front orientation. Contains MultipleImages. Computer Mounting Brackets. Rugged Computers, .

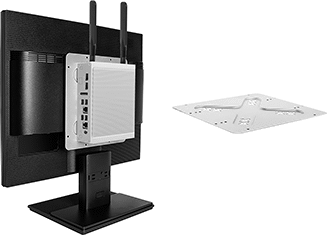

    For Computers with Pentium J6426 and Intel Core

    i5-1250PE

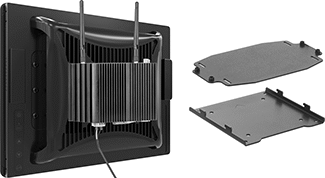

    For Computers with Atom X6425E

    For Processor
    Mounting
    Manufacturer
    Model No.
    Pattern Compatibility
    Fasteners
    Included
    Lg.
    Wd.
    Material
    Each
    IntelPentium J6426VESA 75 × 75, VESA 100 × 100Yes7 11/16"7 1/4"Steel8142N14000000
    IntelAtom X6425EVESA 75 × 75, VESA 100 × 100No5 11/16"3 9/16"Iron8142N1200000
    High Performance Computers
    Image of ProductInUse. Intel Core i5-1250PE Shown Mounted on DIN Rail. Front orientation. Computers. Rugged Computers, Intel Core i5-1250PE.
    Image of Product. Back orientation. Computers. Rugged Computers, Intel Core i5-1250PE.

    Intel Core i5-1250PE Shown Mounted on

    DIN Rail

    Intel Core i5-1250PE

    High-performance computers handle complex tasks like data analysis. Computers with an i7 processor are faster than those with a Core i5 processor for improved performance when multitasking. They have a storage expansion slot, so you can add an additional hard drive (sold separately) to increase storage capacity.
    Connection Type
    Memory
    Size, GB
    Digital Storage
    Size, GB
    Operating System
    Temp. Range,
    ° F
    Lg.
    Wd.
    Ht.
    Includes
    Certification
    Each
    Intel Core i5-1250PE
    Standard DisplayPort 1.4 (2 each)
    USB-A 3.2 Gen 2 (4 each)
    Ethernet RJ45 (2 each)
    DB9 COM (1 each)
    Thunderbolt 4 (2 each)
    Wi-Fi 802.11b/a/g/n/ac
    Bluetooth 5.1    		16512Windows 10 IoT Enterprise LTSC 202132 to 1206 1/4"4 7/8"2"DIN-Rail Mounting Bracket, Surface Mounting Bracket, Power AdapterUL Listed, CE Marked
    		8079N11000000000

    VESA Mounting Brackets
    Image of ProductInUse. For Computers with Pentium J6426 and Intel Core i5-1250PE. Front orientation. Contains MultipleImages. Computer Mounting Brackets. Rugged Computers, .

    For Computers with Pentium J6426 and Intel Core

    i5-1250PE

    For Processor
    Mounting
    Manufacturer
    Model No.
    Pattern Compatibility
    Fasteners
    Included
    Lg.
    Wd.
    Material
    Each
    IntelCore i5-1250PEVESA 75 × 75, VESA 100 × 100Yes7 11/16"7 1/4"Steel8079N12000000

    Electrical Enclosure Mounting Channels

    Image of Product. Front orientation. Electrical Enclosure Mounting Channels.
    Image of Attribute. Front orientation. Contains Annotated. Electrical Enclosure Mounting Channels.
    Customize component placement without drilling leaky holes—these channels screw into the mounting bosses in your enclosure. Use strut channel nuts (sold separately) to add a DIN rail at any point along the channel, then clip on terminal blocks and other parts. To adjust spacing, loosen the strut channel nuts and slide the rail along the channel.
    Channel
    Slot
    Lg.
    Material
    Ht.
    Wd.
    Inside Channel
    Wd.
    Wd.
    Ctr.-to-Ctr.
    End-to-Channel
    End
    Pkg.
    Qty.
    Pkg.
    9 5/8"Zinc-Plated Steel13/32"13/16"7/16"3/8"8 13/16"19/32"25612N110000000
    13 5/8"Zinc-Plated Steel13/32"13/16"7/16"3/8"12 13/16"19/32"25612N12000000
    17 5/8"Zinc-Plated Steel13/32"13/16"7/16"3/8"16 13/16"19/32"25612N13000000
    21 5/8"Zinc-Plated Steel13/32"13/16"7/16"3/8"20 13/16"19/32"25612N14000000
    57 5/8"Zinc-Plated Steel13/32"13/16"7/16"3/8"56 13/16"19/32"25612N15000000
    Nuts
    Image of Product. Front orientation. Strut Channel Framing and Fittings.
    For Strut
    Channel
    Thread
    Size
    Ht.
    Wd.
    Material
    Pkg.
    Qty.
    Pkg.
    8-32
    		13/32"13/16"Steel103259T1000000
    10-24
    		13/32"13/16"Steel103259T200000
    10-32
    		13/32"13/16"Steel103259T300000
    1/4"-20
    		13/32"13/16"Steel103259T400000
    back to top
