Roller Track for Doors
Combine track, mounting brackets, hangers, and end stops to create a system for hanging doors.
Galvanized steel components have better corrosion resistance in wet environments than powder-coated steel components, so they are the better choice for use outdoors.
Door stops (not included) mount on the floor to keep sliding doors and panels from damaging walls and door frames.
For technical drawings and 3-D models, click on a part number.
Choose track based on the capacity of the door it will support.
Ceiling-mount brackets wrap around the outside of track and mount to the ceiling to act as supports and joints. Bolt them to joists or hang them from threaded rod. Brackets are required every 2 ft. of track.
Support brackets mount the track in the desired location.
Joint brackets join two pieces of track together to create longer runs. Tabs on the top of the brackets slot into pockets in the adjoining track. Joint brackets also act as support brackets.
Suspended brackets provide clearance between your track and ceiling. The two mounting holes also provide more track stability than standard ceiling mount brackets.
Brackets with a debris cap keep dirt and debris out of the track and roller. They will not prevent the hanger from rolling off the track.
Without Debris Cap | With Debris Cap | |||||||
|---|---|---|---|---|---|---|---|---|
| For Track Capacity, lbs. | For Inside Track Wd. | Ht. | Mounting Fasteners Included | Mounting Hole Dia. | Each | Each | ||
Support Brackets | ||||||||
Galvanized Steel | ||||||||
| 400 | 1 3/4" | 3 3/16" | No | 7/16" | 0000000 | 000000 | 0000000 | 000000 |
| 600 | 2 1/4" | 4 9/16" | No | 9/16" | 0000000 | 00000 | 0000000 | 00000 |
Suspended Support Brackets | ||||||||
Galvanized Steel | ||||||||
| 400 | 1 3/4" | 4 1/4" | No | 7/16" | 0000000 | 00000 | 0000000 | 00000 |
Joint Brackets | ||||||||
Galvanized Steel | ||||||||
| 400 | 1 3/4" | 3 3/16" | No | 7/16" | 0000000 | 00000 | 000000 | 00 |
| 600 | 2 1/4" | 4 9/16" | No | 9/16" | 0000000 | 00000 | 000000 | 00 |
Suspended Joint Brackets | ||||||||
Galvanized Steel | ||||||||
| 400 | 1 3/4" | 4 1/4" | No | 7/16" | 0000000 | 00000 | 000000 | 00 |
Wall-mount brackets wrap around the outside of track and mount to the wall to act as supports and joints. They can be mounted on any vertical surface, such as above doorways. Brackets are required every 2 ft. of track.
Support brackets are used to mount the track in the desired location. Those with a center stop provide support and a door stop at the center for bi-parting door installations.
Joint brackets join two pieces of track together to create longer runs. Tabs on the top of the brackets slot into pockets in the adjoining track. Joint brackets also act as support brackets.
Double-track brackets hold two parallel tracks for bypassing doors. Bypassing door systems are often used if there isn’t space on one side of the door to fit a full-size door.
Brackets with a debris cap keep dirt and debris out of the track and roller. They will not prevent the hanger from rolling off the track.
Without Debris Cap | With Debris Cap | |||||||
|---|---|---|---|---|---|---|---|---|
| For Track Capacity, lbs. | For Inside Track Wd. | Ht. | Mounting Fasteners Included | Mounting Hole Dia. | Each | Each | ||
Support Brackets | ||||||||
Galvanized Steel | ||||||||
| 400 | 1 3/4" | 4 11/16" | No | 7/16" | 0000000 | 000000 | 0000000 | 000000 |
| 600 | 2 1/4" | 7 1/16" | No | 9/16" | 0000000 | 00000 | 0000000 | 00000 |
Support Brackets with Center Stop | ||||||||
Galvanized Steel | ||||||||
| 400 | 1 3/4" | 7 15/16" | No | 7/16" | 00000000 | 000000 | 000000 | 00 |
Double-Track Support Brackets | ||||||||
Galvanized Steel | ||||||||
| 400 | 1 3/4" | 8" | No | 7/16" | 00000000 | 00000 | 00000000 | 00000 |
Joint Brackets | ||||||||
Galvanized Steel | ||||||||
| 400 | 1 3/4" | 4 11/16" | No | 7/16" | 0000000 | 00000 | 000000 | 00 |
| 600 | 2 1/4" | 7 1/16" | No | 9/16" | 0000000 | 00000 | 000000 | 00 |
Double-Track Joint Brackets | ||||||||
Galvanized Steel | ||||||||
| 400 | 1 3/4" | 8" | No | 7/16" | 00000000 | 00000 | 000000 | 00 |
Debris caps can also be attached to prevent dust and debris from getting inside the track (these should not be used as end stops).
Dust-Resistant Roller Track for Doors
Round track reduces edges where dust and debris can accumulate. Combine track, hangers, and accessories to create a system for hanging doors. For durability and corrosion resistance, the track is made of galvanized steel.
Door stops (sold separately) mount to the floor to keep sliding doors and panels from damaging walls and door frames.
For technical drawings and 3-D models, click on a part number.
Mounting Hole | |||||||
|---|---|---|---|---|---|---|---|
| Track Capacity, lbs. | ID | Material | Mounting Fasteners Included | Ctr.-to-Ctr. | Dia. | Each | |
6 ft. | |||||||
Track | |||||||
| 600 | 2 1/4" | Galvanized Steel | No | 24" | 9/16" | 00000000 | 000000 |
Track with Wall-Mount Bracket | |||||||
| 600 | 2 1/4" | Galvanized Steel | No | 24" | 5/16" | 00000000 | 00000 |
8 ft. | |||||||
Track | |||||||
| 600 | 2 1/4" | Galvanized Steel | No | 24" | 9/16" | 00000000 | 00000 |
Track with Wall-Mount Bracket | |||||||
| 600 | 2 1/4" | Galvanized Steel | No | 24" | 5/16" | 0000000 | 00000 |
10 ft. | |||||||
Track | |||||||
| 600 | 2 1/4" | Galvanized Steel | No | 24" | 9/16" | 00000000 | 00000 |
Track with Wall-Mount Bracket | |||||||
| 600 | 2 1/4" | Galvanized Steel | No | 24" | 5/16" | 0000000 | 00000 |
12 ft. | |||||||
Track with Wall-Mount Bracket | |||||||
| 600 | 2 1/4" | Galvanized Steel | No | 24" | 5/16" | 00000000 | 00000 |
Wraparound
Support Bracket
Wraparound
Support Bracket
Use support brackets to install track that doesn't come with a wall-mount bracket. One bracket is required for every two ft. of track. Flat support brackets have a rivet that slides into the slot on the track to lock them in place. Wraparound support brackets have a collar that surrounds the track for extra support. They install anywhere along the length of the track. Adjust the distance between the track and the wall to fit the width of your door. Double-track wraparound support brackets hold two parallel track pieces. You can use them to create a bypassing door system when there isn’t enough space to accommodate a full-sized door.
Use wall-mount adapter brackets to convert a wraparound joint bracket into a wall-mount support bracket.
You'll need one pair of hangers per door. Hangers with a bolt fasten through the top of your door. They adjust vertically within the bolt's thread length.
Rollers | Thread | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity per Pair, lbs. | Ht. | Max. Vertical Adjustment | No. of | Dia. | Material | Bearing Type | Size | Lg. | Mounting Fasteners Included | Pair | |
Standard Hangers with Bolt | |||||||||||
| 600 | 7 3/8" | 2" | 2 | 2" | Plastic | Ball | 1/2"-13 | 4 1/2" | Yes | 00000000 | 000000 |
| 600 | 9 1/2" | 5" | 2 | 2" | Plastic | Ball | 1/2"-13 | 5" | Yes | 0000000 | 00000 |
| 600 | 12 1/2" | 8" | 2 | 2" | Plastic | Ball | 1/2"-13 | 8" | Yes | 0000000 | 00000 |
You'll need one pair of hangers per door. Hangers with a mounting plate attach to the top of your door and extend down the side. They adjust vertically between the bottom of the track and the top of the door.
Rollers | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity per Pair, lbs. | For Door Thick. | Ht. | Mounting Plate Ht. | Max. Vertical Adjustment | No. of | Dia. | Material | Bearing Type | Mounting Fasteners Included | Pair | |
| 600 | 1 1/2"-2 3/8" | 10" | 4 7/16" | 1 1/2" | 2 | 2" | Plastic | Ball | Yes | 0000000 | 000000 |
Debris caps keep dirt and debris out of the track and roller. They won’t prevent hangers from rolling off the track.
| Mounting Fasteners Included | Pair | |
| Yes | 0000000 | 00000 |
Low-Profile Roller Track for Doors
Narrow track allows you to hang doors in tight spaces. Combine track and hangers to create a system.
Track comes with mounting brackets attached.
For technical drawings and 3-D models, click on a part number.
Inside | Bracket | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg., ft. | Track Capacity, lbs. | Wd. | Ht. | Projection | Material | Spacing Ctr.-to-Ctr. | Ht. | Material | Mounting Fasteners Included | Mounting Hole Dia. | Each | |
| 6 | 150 | 7/16" | 2 1/4" | 1 3/16" | Galvanized Steel | 22 7/8" | 4" | Zinc-Plated Steel | No | 3/8" | 00000000 | 0000000 |
| 8 | 150 | 7/16" | 2 1/4" | 1 3/16" | Galvanized Steel | 30 7/8" | 4" | Zinc-Plated Steel | No | 3/8" | 00000000 | 000000 |
| 10 | 150 | 7/16" | 2 1/4" | 1 3/16" | Galvanized Steel | 38 7/8" | 4" | Zinc-Plated Steel | No | 3/8" | 00000000 | 000000 |
Curved Roller Track for Doors, Curtains, and Strip Doors
Curved and straight track pieces allow you to create a wide variety of layouts for doors, curtains, and strip doors. Combine track, mounting brackets, and hangers that fit the same inside track width to create a system. Some components that fit together are rated for different capacities; the capacity of your system is determined by the component with the lowest capacity.
All brackets mount to ceiling joists or hang from threaded rod. One support bracket is required for every 4 ft. of 100-lb. capacity track and every 5 ft. of 600-lb. capacity track. Joint brackets hold adjoining sections of track together.
End stop prevents hangers from rolling off the track.
Pull trolley bolts onto the leading edge of a curtain or strip door and has a pull cord.
For technical drawings and 3-D models, click on a part number.
Inside | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Lg. | Track Radius, ft. | Wd. | Ht. | Thick. | Material | Mounting Fasteners Included | Mounting Hole Dia. | Each | |
100-lb. Track Capacity | |||||||||
90° Curve | |||||||||
| 3' 2" | 2 | 1 3/8" | 1 1/8" | 0.06" | Galvanized Steel | No | 3/8" | 0000000 | 0000000 |
Straight | |||||||||
| 8' | __ | 1 3/8" | 1 1/8" | 0.06" | Galvanized Steel | No | 3/8" | 0000000 | 00000 |
| 10' | __ | 1 3/8" | 1 1/8" | 0.06" | Galvanized Steel | No | 3/8" | 0000000 | 00000 |
| Material | Mounting Fasteners Included | Each | |
For 100-lb. Track Capacity | |||
|---|---|---|---|
| Galvanized Steel | Yes | 0000000 | 00000 |
| For Inside Track Wd. | Ht. | Material | Roller Dia. | Pull Cord Lg., ft. | Mounting Fasteners Included | Each | |
For 100-lb. Track Capacity | |||||||
|---|---|---|---|---|---|---|---|
| 1 3/8" | 2 5/8" | Galvanized Steel | 1 1/16" | 4 | Yes | 0000000 | 000000 |
Overhead Door Track

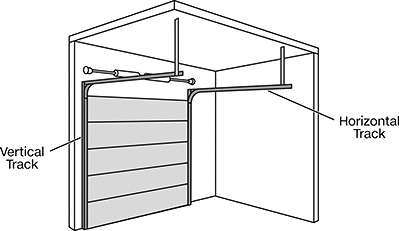

Guide overhead doors along a fixed path for smooth and steady travel. Often used to support garage doors, this track is made of galvanized steel to resist corrosion in wet and rainy areas. Connect track to create new track runs or use it to replace damaged track sections. No need to drill your own mounting holes—this track arrives punched and ready for you to install. It is sold in pairs that include a left-side and right-side track.
0.062" thick. track is good for small and lightweight doors, such as aluminum or fiberglass doors, typically up to 8 ft. × 9 ft.
0.075” thick. track is stronger than 0.062” thick. track, so it can support larger and heavier doors. Use this track for doors with a width that exceeds 10 ft.
For technical drawings and 3-D models, click on a part number.
0.062" Thick. | 0.075" Thick. | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| For Door Ht., ft. | Lg. | Ht. | Track Radius | Inside Track Wd. | Material | Mounting Fasteners Included | Mounting Hole Dia. | Pair | Pair | ||
Vertical Track | |||||||||||
| 8 | 7'4" | 1" | __ | 2" | Galvanized Steel | No | 1/4" | 0000000 | 000000 | 0000000 | 000000 |
| 9 | 8'4" | 1" | __ | 2" | Galvanized Steel | No | 1/4" | 0000000 | 00000 | 0000000 | 00000 |
| 10 | 9'4" | 1" | __ | 2" | Galvanized Steel | No | 1/4" | 0000000 | 00000 | 0000000 | 00000 |
Horizontal Track | |||||||||||
| 8 | 9'6" | 1" | 15" | 2" | Galvanized Steel | No | 1/4" | 0000000 | 00000 | 0000000 | 00000 |
| 9 | 10'6" | 1" | 15" | 2" | Galvanized Steel | No | 1/4" | 0000000 | 00000 | 0000000 | 00000 |
| 10 | 11'6" | 1" | 15" | 2" | Galvanized Steel | No | 1/4" | 0000000 | 00000 | 0000000 | 00000 |
