406 Products

Slotted Bit Sockets


	For Slotted Drives

Drive a slotted fastener with a ratchet or breaker bar instead of a screwdriver, gaining the torque and leverage needed for stubborn or high-volume fastener work. These steel bit sockets fit standard square-drive tools.

Replaceable Bit—Sockets with a replaceable bit allow you to switch out a worn or broken bit instead of replacing your entire bit socket.

	Bit Sockets							Replacement Socket Bits
	Drive Size	Overall Lg.	Material	Bit Replaceable	For Drive Style		Each		Each
1/4" Square Drive



		1/8"	1 1/8"	Chrome-Plated Steel	No	Slotted	55045A11	000000	———	0


		1/8"	1 1/2"	Chrome-Plated Steel	Yes	Slotted	55045A111	0000	55045A116	00000
		5/32"	1 1/2"	Chrome-Plated Steel	Yes	Slotted	55045A112	0000	55045A117	0000
		3/16"	1 7/8"	Chrome-Plated Steel	No	Slotted	55045A21	00000	———	0
		7/32"	1 1/2"	Chrome-Plated Steel	Yes	Slotted	55045A113	0000	55045A118	0000
		1/4"	1 7/8"	Chrome-Plated Steel	No	Slotted	55045A22	00000	———	0
		9/32"	1 7/16"	Chrome-Plated Steel	No	Slotted	55045A24	00000	———	0
		5/16"	1 1/8"	Chrome-Plated Steel	No	Slotted	93147A150	00000	———	0
		5/16"	1 1/2"	Chrome-Plated Steel	Yes	Slotted	55045A114	0000	———	0
		3/8"	1 5/8"	Chrome-Plated Steel	Yes	Slotted	55045A34	00000	55045A35	0000


		3/8" Square Drive



				1/4"	1 7/8"	Chrome-Plated Steel	Yes	Slotted	51395A38	00000	51395A51	0000


				5/16"	1 7/8"	Chrome-Plated Steel	Yes	Slotted	51395A39	00000	51395A61	0000
				3/8"	1 7/8"	Chrome-Plated Steel	Yes	Slotted	51395A41	00000	51395A52	0000
				11/16"	1 1/8"	Chrome-Plated Steel	No	Slotted	51395A42	00000	———	0
				No. 4	1 11/16"	Chrome-Plated Steel	No	Slotted	93147A220	00000	———	0
				No. 5	1 11/16"	Chrome-Plated Steel	No	Slotted	93147A230	00000	———	0
				No. 6	1 11/16"	Chrome-Plated Steel	No	Slotted	93147A240	00000	———	0


				1/2" Square Drive



						1/4"	2 3/16"	Chrome-Plated Steel	No	Slotted	93147A170	0000	———	0


						5/16"	2 3/16"	Chrome-Plated Steel	No	Slotted	93147A180	0000	———	0
						3/8"	2 5/16"	Chrome-Plated Steel	Yes	Slotted	55085A22	00000	55085A36	0000
						7/16"	3 3/16"	Black-Oxide Steel	No	Slotted	55085A23	00000	———	0
						1/2"	2 3/16"	Chrome-Plated Steel	No	Slotted	93147A190	0000	———	0
						1/2"	3 3/16"	Black-Oxide Steel	No	Slotted	55085A24	00000	———	0
						5/8"	2 3/16"	Chrome-Plated Steel	No	Slotted	93147A210	00000	———	0
						3/4"	1 5/8"	Chrome-Plated Steel	No	Slotted	55085A31	00000	———	0
						15/16"	1 5/8"	Chrome-Plated Steel	No	Slotted	55085A32	00000	———	0
						1 3/16"	1 11/16"	Chrome-Plated Steel	No	Slotted	55085A33	00000	———	0

Maintenance Bit Socket Sets


For Hex Drives	For Phillips Drives

For Slotted Drives	For Torx Drives

For Pozidriv® Drives	For Tamper-Resistant Torx Drives

Keep a convenient variety of drive styles and sizes of bit sockets on hand. For use with hand-drive tools only.

	Sockets Included	Material (Socket Style)	Container Type	For Drive Style		Each
1/4", 3/8" Square Drive



	32	3/8" Hex Bit Sockets (Inch): 1/8", 9/64", 5/32", 3/16", 7/32", 1/4" (1 7/8" O'all Lg.); 5/16", 3/8" (2" O'all Lg.) 3/8" Hex Bit Sockets (Metric): 4 mm, 5 mm, 6 mm, 7 mm (1 7/8" O'all Lg.); 8 mm, 9 mm, 10 mm (2" O'all Lg.) 1/4" Torx Bit Sockets: T10, T15, T20, T25, T27, T30 (1 7/16" O'all Lg.) 3/8" Phillips Bit Sockets: No. 1, No. 2, No. 3 (1 7/8" O'all Lg.) 3/8" Slotted Bit Sockets: 3/16" (1" O'all Lg.); 1/4", 5/16" (1 7/8" O'all Lg.); 3/8" (1" O'all Lg.) 3/8" Torx Bit Sockets: T40, T45, T47, T50 (2" O'all Lg.)	Chrome-Plated Steel (Bit Sockets)	Plastic Case	Hex, Phillips, Slotted, Torx	5534A22	000000


	3/8" Square Drive



			37	3/8" Hex Bit Sockets (Inch): 1/8", 5/32", 3/16", 7/32", 1/4", 5/16", 3/8" (2" O'all Lg.) 3/8" Hex Bit Sockets (Metric): 3 mm, 4 mm, 5 mm, 6 mm, 7 mm, 8 mm, 10 mm (2" O'all Lg.) 3/8" Torx Bit Sockets: T20, T27, T30, T40, T45, T50, T55 (2" O'all Lg.) 3/8" Tamper-Resistant Torx Bit Sockets: T15, T20, T25, T27, T30, T40, T45, T50, T55 (2" O'all Lg.) 3/8" Phillips Bit Sockets: No. 1, No. 2, No. 3 (2" O'all Lg.) 3/8" Slotted Bit Sockets: 4 mm, 5 mm, 6 mm (2" O'all Lg.) 3/8" Pozidriv Bit Sockets: No. 2 (2" O'all Lg.)	Chrome-Plated Steel (Bit Sockets)	Foam Tray	Hex, Phillips, Pozidriv®, Slotted, Tamper-Resistant Torx, Torx	93111A120	00000

Heavy Duty Open Cable and Hose Carriers

A more durable construction with a zinc-plated steel frame provides strength for a longer service life than other open cable and hose carriers.

A zinc-plated steel frame provides strength for a long service life as these carriers support and protect moving cable and hose. The crossbars twist out of the frame, so you can lay in cable and hose from the top and access it at any point along the length. The open design promotes air flow to prevent heat buildup and keeps cable and hose visible. Remove the pins in the links to make length adjustments.

					Loop
For Max. Cable OD	For Total Cable Wd.	Ht.	Wd.	Bend Radius	Ht.	Lg., ft.	Material	Crossbar Material	Temp. Range, ° F	Mounting Hardware Included	Choose a Length, ft.		Per Ft.
1"	2.7"	2"	4.7"	4.5"	11"	2	Zinc-Plated Steel	Aluminum	-10 to 265	No	1, 2, 3, 4, 5	56135K61	000000
1"	2.7"	2"	4.7"	6.1"	14.2"	2.5	Zinc-Plated Steel	Aluminum	-10 to 265	No	1, 2, 3, 4, 5	56135K62	00000
1"	4.3"	2"	6.7"	4.5"	11"	2	Zinc-Plated Steel	Aluminum	-10 to 265	No	1, 2, 3, 4, 5	56135K63	00000
1"	4.3"	2"	6.7"	6.1"	14.2"	2.5	Zinc-Plated Steel	Aluminum	-10 to 265	No	1, 2, 3, 4, 5	56135K64	00000
1.5"	5.9"	2.7"	9"	6.7"	16.1"	3	Zinc-Plated Steel	Aluminum	-10 to 265	No	1, 2, 3, 4, 5	56135K65	00000
1.5"	7.5"	2.7"	11"	6.7"	16.1"	3	Zinc-Plated Steel	Aluminum	-10 to 265	No	1, 2, 3, 4, 5	56135K66	000000

Mounting Bracket Sets

Image of Product. Front orientation. Cable Carrier Mounts. Heavy Duty Open Cable and Hose Carriers.

Mounting bracket sets include two brackets for the fixed end, two brackets for the moving end, and fasteners. They can mount inside or outside the carrier frame.

For Carrier Ht.	For Carrier Wd.		Each
2"	4.7", 6.7"	56135K71	000000
2.7"	9", 11"	56135K72	00000

Any-Which-Way Enclosed Cable and Hose Carriers

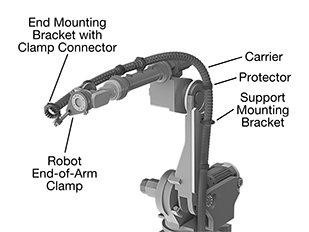

	Carrier Shown with Cable Installed

Bending and twisting up to 380° in any direction, these carriers organize and protect cable and hose around machines that are constantly moving, such as robotic arms and conveyors. They’re enclosed to keep out debris, making them better than open carriers for dusty environments, such as manufacturing facilities and distribution centers. Inside, there are channels to keep lines of cable and hose separate, reducing the wear they endure as these carriers move. Made of nylon, they resist solvents, fuels, and hydraulic and lubricating oils. Lay cable and hose into these carriers, instead of feeding it through.

For extra protection from the environment, cover these carriers with flexible sleeving. The ID of the sleeve should be slightly larger than the OD of the carrier.

2 Channels


	Disassembly Tool

Carriers with two channels have flexible openings, letting you push cable and hose straight into the channels. Each length of carrier is made of many links, which you can add or remove for a precise fit. For all other carriers, add links by pushing them on, and remove them with a screwdriver or disassembly tool.

Disassembly tools help you take links apart more quickly than you can with a screwdriver. They have a 90° tip that’s sized to fit in the ball and socket joints of these carriers.

2" Bend Radius—For carriers with a 2" bend radius, push them together or pull them apart with your hands.

7.2" Bend Radius—For carriers with a 7.2" bend radius, use a screwdriver to push down an internal bolt, then push them together or pull them apart manually.

	Carriers												Disassembly Tools
							1 ft. Long		3 ft. Long		6 ft. Long
	OD	For Max. Cable OD - 1	For Max. Cable OD - 2	Bend Radius	Color	Temp. Range, ° F		Each		Each		Each		Each
Nylon



		1.36" / 34.5 mm	0.3"	0.4"	2"	Black	-40 to 175	5614K421	000000	5614K422	0000000	5614K423	0000000	———	0


		1.69" / 43 mm	0.4"	0.5"	2.3"	Black	-40 to 175	5614K424	00000	5614K425	000000	5614K426	000000	5824N111	000000
		2.13" / 54 mm	0.6"	0.7"	3.1"	Black	-40 to 175	5614K427	00000	5614K428	000000	5614K429	000000	5824N112	00000
		2.56" / 65 mm	0.7"	0.8"	3.4"	Black	-40 to 175	5614K43	00000	5614K431	000000	5614K432	000000	5824N113	00000
		3.19" / 81 mm	0.8"	1"	4.3"	Black	-40 to 175	5614K433	00000	5614K434	000000	5614K435	000000	5824N113	00000
		3.72" / 94.5 mm	1"	1.2"	5.3"	Black	-40 to 175	5614K436	00000	5614K437	000000	5614K438	000000	5824N114	00000
		4 1/4" / 108 mm	1.2"	1.4"	5.7"	Black	-40 to 175	5614K439	000000	5614K44	000000	5614K441	000000	5824N115	00000
		5.31" / 135 mm	1.6"	1.6"	7.2"	Black	-40 to 175	5614K442	000000	5614K443	000000	5614K444	000000	———	0

Accessories for Carriers

Mounting Brackets


End Mounting Bracket	Swivel End Mounting Bracket	Clamp Connector End Mounting Bracket

Mount for Cable Holders Clamp Connector End Mounting Bracket	Support Mounting Bracket	Swivel Support Mounting Bracket

Swivel—Brackets that swivel rotate and rock to soften twisting and bending motions. This reduces how much the cable and hose move, extending their life.

End Mounting Bracket—End mounting brackets reduce the strain on cable and hose as it's pulled, so connections remain secure. Some have teeth that let you secure each line of cable or hose with cable ties.

Support Mounting Bracket—Support mounting brackets are spaced along an installation to keep carriers off machinery.

Clamp Connector—Brackets with a clamp connector can hold a robot end-of-arm-clamp (sold separately), which lets the carrier move with the robot arm without obstructing it.

Mount for Cable Holders—Brackets with a cable holder mount let you relieve strain on cable and hose by adding cable holders (sold separately), which give more support than cable ties, so they're good for large diameter or heavy lines.

	For Carrier OD	Mounting Fasteners Included	Mounting Hole Dia., mm	No. of Mounting Holes	Mounting Hole Ctr.-to-Ctr., mm	Cable Holder Type	Clamp ID, mm	Mfr.	For Mfr. Series	For Series No.	Component		Each
End Mounting Bracket







				Nylon

				1.36" / 34.5 mm	No	4.5	2	24	Tie	—	Igus	TRC, TRCF, TRE, TRL	30	Mounting Bracket	5824N116	000000


				1.69" / 43 mm	No	6.5	3	13.5	Tie	—	Igus	TRC, TRE, TRE.B, TRL	40, 40.B	Mounting Bracket	5614K5	00000
				2.13" / 54 mm	No	6.5	3	13.5	Tie	—	Igus	TRC, TRE, TRE.B	50, 50.B	Mounting Bracket	5824N117	00000
				2.56" / 65 mm	No	9	3	20	Tie	—	Igus	TRC, TRE, TRE.B, TRL	60, 60.B	Mounting Bracket	5614K6	00000
				3.19" / 81 mm	No	9	3	20	Tie	—	Igus	TRC, TRE, TRE.B, TRL	70, 70.B	Mounting Bracket	5614K7	000000
				3.72" / 94.5 mm	No	9	3	20	Tie	—	Igus	TRC, TRCF, TRE, TRE.B, TRLF	85.135, 85.135.B	Mounting Bracket	5824N119	00000
				4.25" / 108 mm	No	9	3	20	Tie	—	Igus	TRC, TRCF, TRE, TRE.B, TRL, TRLF	100, 100.B	Mounting Bracket	5614K8	00000


				End Mounting Bracket with Clamp Connector







								Nylon with Powder-Coated Steel Connector

								1.69" / 43 mm	—	—	—	—	Tie	30	Igus	TRC, TRE, TRE.B	40, 40.B	Mounting Bracket	5824N175	000000


								2.13" / 54 mm	—	—	—	—	Tie	30	Igus	TRC, TRE, TRE.B	50, 50.B	Mounting Bracket	5824N176	000000


								End Mounting Bracket with Clamp Connector and Mount for Cable Holders







												Nylon with Powder-Coated Steel Connector

												2.56" / 65 mm	—	—	—	—	Clamp	30	Igus	TRC, TRE, TRE.B	60, 60.B	Mounting Bracket	5824N177	000000


												3.19" / 81 mm	—	—	—	—	Clamp	30	Igus	TRC, TRE, TRE.B	70, 70.B	Mounting Bracket	5824N179	000000
												3.72" / 94.5 mm	—	—	—	—	Clamp	30	Igus	TRC, TRCF, TRE, TRE.B	85.135, 85.135.B	Mounting Bracket	5824N18	000000
												4.25" / 108 mm	—	—	—	—	Clamp	30	Igus	TRC, TRCF, TRE, TRE.B	100, 100.B	Mounting Bracket	5824N181	000000
												5.31" / 135 mm	—	—	—	—	Clamp	30	Igus	TRC, TRE	125	Mounting Bracket	5824N182	000000


												Swivel End Mounting Bracket







																Nylon

1.69" / 43 mm	No															8.4	2	65	Tie	—	Igus	TRC, TRE, TRE.B, TRL	40, 40.B	Mounting Bracket	5824N125	00000


2.13" / 54 mm	No															8.4	2	65	Tie	—	Igus	TRC, TRE, TRE.B	50, 50.B	Mounting Bracket	5824N126	000000
2.56" / 65 mm	No	10.5														2	87.5	Tie	—	Igus	TRC, TRE, TRE.B, TRL	60, 60.B	Mounting Bracket	5824N127	000000
3.19" / 81 mm	No	10.5	2													87.5	Tie	—	Igus	TRC, TRE, TRE.B, TRL	70, 70.B	Mounting Bracket	5824N129	000000
3.72" / 94.5 mm	No	10.5	2													87.5	Tie	—	Igus	TRC, TRCF, TRE, TRE.B, TRLF	85.135, 85.135.B	Mounting Bracket	5824N13	000000
4.25" / 108 mm	No	10.5	2													87.5	Tie	—	Igus	TRC, TRCF, TRE, TRE.B, TRL, TRLF	100, 100.B	Mounting Bracket	5824N131	000000


Support Mounting Bracket







																Nylon

																1.36" / 34.5 mm	No	4.5	2	24	—	—	Igus	TRC, TRCF, TRE, TRL	30	Mounting Bracket	5824N12	00000


				1.69" / 43 mm	No											6.5	3	13.5	—	—	Igus	TRC, TRE, TRE.B, TRL	40, 40.B	Mounting Bracket	5614K9	00000
				2.13" / 54 mm	No											6.5	3	13.5	—	—	Igus	TRC, TRE, TRE.B	50, 50.B	Mounting Bracket	5824N121	00000
				2.56" / 65 mm	No											9	3	20	—	—	Igus	TRC, TRE, TRE.B, TRL	60, 60.B	Mounting Bracket	5614K11	00000
				3.19" / 81 mm	No	9										3	20	—	—	Igus	TRC, TRE, TRE.B, TRL	70, 70.B	Mounting Bracket	5614K12	000000
				3.72" / 94.5 mm	No	9	3									20	—	—	Igus	TRC, TRCF, TRE, TRE.B, TRLF	85.135, 85.135.B	Mounting Bracket	5824N123	00000
				4.25" / 108 mm	No	9	3									20	—	—	Igus	TRC, TRCF, TRE, TRE.B, TRL, TRLF	100, 100.B	Mounting Bracket	5614K13	00000
				5.31" / 135 mm	No	9	2									64	—	—	Igus	TRC, TRE, TRLF	125	Mounting Bracket	5824N124	000000


				Swivel Support Mounting Bracket







								Nylon

								1.69" / 43 mm	No							8.4	2	65	—	—	Igus	TRC, TRE, TRE.B, TRL	40, 40.B	Mounting Bracket	5824N132	00000


								2.13" / 54 mm	No	8.4	2					65	—	—	Igus	TRC, TRE, TRE.B	50, 50.B	Mounting Bracket	5824N133	000000
								2.56" / 65 mm	No	10.5	2					87.5	—	—	Igus	TRC, TRE, TRE.B, TRL	60, 60.B	Mounting Bracket	5824N134	000000
								3.19" / 81 mm	No	10.5	2					87.5	—	—	Igus	TRC, TRE, TRE.B, TRL	70, 70.B	Mounting Bracket	5824N136	000000
								3.72" / 94.5 mm	No	10.5	2					87.5	—	—	Igus	TRC, TRCF, TRE, TRE.B, TRLF	85.135, 85.135.B	Mounting Bracket	5824N137	000000
								4.25" / 108 mm	No	10.5	2					87.5	—	—	Igus	TRC, TRCF, TRE, TRE.B, TRL, TRLF	100, 100.B	Mounting Bracket	5824N138	000000

Cable Holders


Cable Holder Shown Installed	Cable Holders

Cable Holders—Add cable holders to the end mounting brackets with cable holder mounts. They give you more support than cable ties, so they're good for large diameter or heavy lines. You'll need one cable holder for each cable you want to support.

						Set Screw
	For Cable OD	Color	Mount Type	Cable Holder Type	Holding Mechanism	Included	Material	Component		Each
Powder-Coated Steel



		0.24" to 0.47"	Black	Drop In	Clamp	Set Screw	Yes	Steel	Cable Holder	5824N183	000000


		0.47" to 0.55"	Black	Drop In	Clamp	Set Screw	Yes	Steel	Cable Holder	5824N184	00000
		0.55" to 0.63"	Black	Drop In	Clamp	Set Screw	Yes	Steel	Cable Holder	5824N185	00000
		0.63" to 0.71"	Black	Drop In	Clamp	Set Screw	Yes	Steel	Cable Holder	5824N186	00000
		0.71" to 0.79"	Black	Drop In	Clamp	Set Screw	Yes	Steel	Cable Holder	5824N187	00000
		0.79" to 0.87"	Black	Drop In	Clamp	Set Screw	Yes	Steel	Cable Holder	5824N188	00000
		0.87" to 1.02"	Black	Drop In	Clamp	Set Screw	Yes	Steel	Cable Holder	5824N189	00000
		1.02" to 1.18"	Black	Drop In	Clamp	Set Screw	Yes	Steel	Cable Holder	5824N19	00000
		1.18" to 1.34"	Black	Drop In	Clamp	Set Screw	Yes	Steel	Cable Holder	5824N191	00000

Robot End-of-Arm Clamps for Brackets with Clamp Connectors

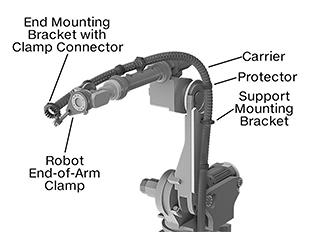

Clamp Shown Attached	Clamps

Robot End-of-Arm Clamps for Brackets with Clamp Connectors—Robot end-of-arm clamps connect the end of your robot arm to an end mounting bracket, so the cable carrier can move with the robot arm without obstructing it.

	Bar Dia., mm	Color	Clamp Type	Component		Each
Powder-Coated Steel



	ABB (IRB 6400) FANUC (S-420)	30	Black	Screw	Clamp	5827N21	0000000


	ABB (IRB 6620, IRB 6640, IRB 6650) KUKA Robotics (KR 125/1, 150/1, 200/1)	30	Black	Screw	Clamp	5827N23	000000
	FANUC (R-1000) Reis (RV 60-40, 60-60)	30	Black	Screw	Clamp	5827N16	000000
	FANUC (R-2000iA, R-2000iB) Reis (RV 130)	30	Black	Screw	Clamp	5827N13	000000
	ABB (IRB 7600; 500)	30	Black	Screw	Clamp	5827N25	000000
	Comau (NH3)	30	Black	Screw	Clamp	5827N22	000000
	Comau (NJ 130)	30	Black	Screw	Clamp	5827N2	000000
	FANUC (M-710iC 50, 70)	30	Black	Screw	Clamp	5827N14	000000
	FANUC (M-900iA 200P)	30	Black	Screw	Clamp	5827N27	000000
	FANUC (M-900iA 260L, 350)	30	Black	Screw	Clamp	5827N26	000000
	FANUC (M-900iA 400L, 600)	30	Black	Screw	Clamp	5827N28	000000


	Hyundai (HX 165)	30	Black	Screw	Clamp	5827N19	000000
	KUKA Robotics (KR 30-3 (HA), 60 L30-3 (HA), 60 L45-3 (HA), 60-3 (HA))	30	Black	Screw	Clamp	5827N11	000000
	KUKA Robotics (KR 120 R2700-2, 120 R3100-2, 150 R2700-2, 150 R3100-2, 210 R2700-2)	30	Black	Screw	Clamp	5827N18	000000
	KUKA Robotics (KR 125/3, 150/2 Series 2000, 150/3, 180 R2900-3, 180/2 Series 2000, 200/3, 210 R3100-2, 210/2 Series 2000, 240 R2900-2, 250 R2700-2, 300 R2700-2, 360/1, 500/1)	30	Black	Screw	Clamp	5827N12	000000
	KUKA Robotics (KR 360-2, 360-3, 500-2, 500-3)	30	Black	Screw	Clamp	5827N24	000000
	Staubli (TX200)	30	Black	Screw	Clamp	5827N17	000000
	Yaskawa/Motoman (HP, MH, UP 50)	30	Black	Screw	Clamp	5827N15	000000

Mounting Brackets with Built-In Robot Arm Clamp

Built-In Robot Arm Clamp—End and support mounting brackets with a built-in robot arm clamp connect the carrier and robot arm without needing separate components. They're designed for specific Universal Robots (UR) and KUKA robots. Use these brackets to reduce the strain on cable and hose as it's pulled, so connections remain secure. They have teeth that let you secure each line of cable or hose with cable ties.

	Mfr.	For Mfr. Series	For Series No.	Features		Each
End Mounting Bracket







	Nylon with Steel Bolt

	KUKA Robotics (LBR iiwa 7 R800, 14 R820)	1.36" / 34.5 mm	—	Igus	TRC, TRE, TRL	30	Built-In Robot Arm Clamp	5824N202	0000000


	KUKA Robotics (LBR iiwa 7 R800, 14 R820)	1.69" / 43 mm	—	Igus	TRC, TRE, TRE.B, TRL	40, 40.B	Built-In Robot Arm Clamp	5824N203	000000
	Universal Robots (UR10, UR10e)	1.36" / 34.5 mm	—	Igus	TRC, TRE, TRL	30	Built-In Robot Arm Clamp	5824N195	000000
	Universal Robots (UR10, UR10e)	1.69" / 43 mm	—	Igus	TRC, TRE, TRE.B, TRL	40, 40.B	Built-In Robot Arm Clamp	5824N2	000000
	Universal Robots (UR3, UR3e)	1.36" / 34.5 mm	Lower Robot Arm	Igus	TRC, TRE, TRL	30	Built-In Robot Arm Clamp	5824N193	000000
	Universal Robots (UR3, UR3e)	1.36" / 34.5 mm	Upper Robot Arm	Igus	TRC, TRE, TRL	30	Built-In Robot Arm Clamp	5824N192	00000
	Universal Robots (UR3, UR3e)	1.69" / 43 mm	Lower Robot Arm	Igus	TRC, TRE, TRE.B, TRL	40, 40.B	Built-In Robot Arm Clamp	5824N198	000000
	Universal Robots (UR3, UR3e)	1.69" / 43 mm	Upper Robot Arm	Igus	TRC, TRE, TRE.B, TRL	40, 40.B	Built-In Robot Arm Clamp	5824N197	000000
	Universal Robots (UR5, UR5e)	1.36" / 34.5 mm	Upper Robot Arm	Igus	TRC, TRE, TRL	30	Built-In Robot Arm Clamp	5824N194	000000
	Universal Robots (UR5, UR5e)	1.69" / 43 mm	Upper Robot Arm	Igus	TRC, TRE, TRE.B, TRL	40, 40.B	Built-In Robot Arm Clamp	5824N199	000000
	Universal Robots (UR10, UR10e)	1.36" / 34.5 mm	Lower Robot Arm	Igus	TRC, TRE, TRL	30	Built-In Robot Arm Clamp	5824N196	000000


	Universal Robots (UR10, UR10e)	1.69" / 43 mm	Lower Robot Arm	Igus	TRC, TRE, TRE.B, TRL	40, 40.B	Built-In Robot Arm Clamp	5824N201	000000


	Support Mounting Bracket







					Nylon with Steel Bolt

					KUKA Robotics (LBR iiwa 7 R800, 14 R820)	1.36" / 34.5 mm	—	Igus	TRC, TRE, TRL	30	Built-In Robot Arm Clamp	5824N214	000000


					KUKA Robotics (LBR iiwa 7 R800, 14 R820)	1.69" / 43 mm	—	Igus	TRC, TRE, TRE.B, TRL	40, 40.B	Built-In Robot Arm Clamp	5824N215	000000
					Universal Robots (UR10, UR10e)	1.36" / 34.5 mm	—	Igus	TRC, TRE, TRL	30	Built-In Robot Arm Clamp	5824N207	000000
					Universal Robots (UR10, UR10e)	1.69" / 43 mm	—	Igus	TRC, TRE, TRE.B, TRL	40, 40.B	Built-In Robot Arm Clamp	5824N212	000000
					Universal Robots (UR3, UR3e)	1.36" / 34.5 mm	Lower Robot Arm	Igus	TRC, TRE, TRL	30	Built-In Robot Arm Clamp	5824N205	000000
					Universal Robots (UR3, UR3e)	1.36" / 34.5 mm	Upper Robot Arm	Igus	TRC, TRE, TRL	30	Built-In Robot Arm Clamp	5824N204	00000
					Universal Robots (UR3, UR3e)	1.69" / 43 mm	Lower Robot Arm	Igus	TRC, TRE, TRE.B, TRL	40, 40.B	Built-In Robot Arm Clamp	5824N21	000000
					Universal Robots (UR3, UR3e)	1.69" / 43 mm	Upper Robot Arm	Igus	TRC, TRE, TRE.B, TRL	40, 40.B	Built-In Robot Arm Clamp	5824N209	000000
					Universal Robots (UR5, UR5e)	1.36" / 34.5 mm	Upper Robot Arm	Igus	TRC, TRE, TRL	30	Built-In Robot Arm Clamp	5824N206	000000
					Universal Robots (UR5, UR5e)	1.69" / 43 mm	Upper Robot Arm	Igus	TRC, TRE, TRE.B, TRL	40, 40.B	Built-In Robot Arm Clamp	5824N211	000000
					Universal Robots (UR10, UR10e)	1.36" / 34.5 mm	Lower Robot Arm	Igus	TRC, TRE, TRL	30	Built-In Robot Arm Clamp	5824N208	000000


					Universal Robots (UR10, UR10e)	1.69" / 43 mm	Lower Robot Arm	Igus	TRC, TRE, TRE.B, TRL	40, 40.B	Built-In Robot Arm Clamp	5824N213	000000

Retraction Systems

Image of Product. Front orientation. Cable and Hose Carrier Accessories. Any-Which-Way Enclosed Cable and Hose Carriers.

Retraction Systems

Retraction Systems—Retraction systems extend or pull back carriers as the robots move and prevent dangling slack from interfering. Their mounting brackets can accommodate many robot models. Check our CAD to confirm they'll fit your setup. Add an adapter plate (sold separately) to accommodate specific models.

	Fixed Side	Mounting Location	Component		Each
Linear Retraction



	2.56" / 65 mm	—	Upper Robot Arm	Retraction System	5824N151	000000000


	3.19" / 81 mm	—	Upper Robot Arm	Retraction System	5824N153	00000000
	3.72" / 94.5 mm	—	Upper Robot Arm	Retraction System	5824N154	00000000
	4.25" / 108 mm	—	Upper Robot Arm	Retraction System	5824N155	00000000


	Wheel Retraction



			1.69" / 43 mm	Left Side	Upper Robot Arm	Retraction System	5824N147	000000


			1.69" / 43 mm	Right Side	Upper Robot Arm	Retraction System	5824N148	000000
			2.13" / 54 mm	Left Side	Upper Robot Arm	Retraction System	5824N149	00000000
			2.13" / 54 mm	Right Side	Upper Robot Arm	Retraction System	5824N15	00000000

Robot Adapter Plates for Retraction Systems

Robot Adapter Plates

Robot Adapter Plates for Retraction Systems—Adapter plates attach retraction systems to your specific robot arm.

For Robot Arm Manufacturer	Mounting Fasteners Included	Mounting Location	Color	Component		Each
ABB (IRB 2400)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N16	0000000
ABB (IRB 2600, IRB 4600)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N17	000000
ABB (IRB 4400)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N162	000000
ABB (IRB 6400)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N163	000000
ABB (IRB 6600, IRB 6640, IRB 6650)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N158	000000
ABB (IRB 6620)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N168	000000
Comau (NH1 130-2.6; NH3 165-2.7, 220-2.7; NJ 110-3.0, 110-2.6; SMART5 NJ 165-3.0)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N159	000000
Comau (NM 16-3.1, 45-2.0)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N161	000000
FANUC (M-710iB 45)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N171	000000
FANUC (M-710iC 50, 70)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N174	000000
FANUC (M-900iA 260L, 350)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N164	000000
FANUC (M-900iA 600)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N167	000000
FANUC (M-900iB 700)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N173	000000
FANUC (R-1000iA, R-2000iA, R-2000iB, S-420, S-430)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N156	000000
KUKA Robotics (KR 5, 5arc, 6, 16)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N165	000000
KUKA Robotics KR 30 (HA), 60 (HA)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N169	000000
Reis (RV 10-16, 20-16, 30-26, 60-16, 60-26, 60-40, 60-60, 130)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N166	000000
Yaskawa/Motoman (UP 20, 50, 130, 165; MH 6; ES 165, 200, 280; HP 20, 50, 165)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N157	000000
Yaskawa/Motoman (MH 50)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N172	000000

Protectors

Protector

Protectors—Protectors are smooth cuffs that wrap around carriers to prevent abrasion where they rub against machinery.

	Color	Performance	Component		Each
Nylon



	1.69" / 43 mm	Black	Abrasion Resistant	Protector	5824N139	000000


	2.13" / 54 mm	Black	Abrasion Resistant	Protector	5824N14	00000
	2.56" / 65 mm	Black	Abrasion Resistant	Protector	5824N141	00000
	3.19" / 81 mm	Black	Abrasion Resistant	Protector	5824N143	00000
	3.72" / 94.5 mm	Black	Abrasion Resistant	Protector	5824N144	00000
	4.25" / 108 mm	Black	Abrasion Resistant	Protector	5824N145	00000
	5.31" / 135 mm	Black	Abrasion Resistant	Protector	5824N146	000000

3 Channels with Snap-Lock Cover

Image of Product. Front orientation. ZoomedIn view. Cable and Hose Carriers. Any-Which-Way Enclosed Cable and Hose Carriers, 3 Channels with Snap-Lock Cover.

Disassembly Tool

Image of Attribute. Front orientation. Contains Annotated. Cable and Hose Carriers. Any-Which-Way Enclosed Cable and Hose Carriers, 3 Channels with Snap-Lock Cover.

Carriers with three channels have snap-lock covers that flip open with a screwdriver for access to each channel. They’re more resistant to dirt and impact than carriers with two channels. Each length of carrier is made of many links, which you can add or remove for a precise fit. For all other carriers, add links by pushing them on, and remove them with a screwdriver or disassembly tool.

Disassembly tools help you take links apart more quickly than you can with a screwdriver. They have a 90° tip that’s sized to fit in the ball and socket joints of these carriers.

	Carriers													Disassembly Tools
								1 ft. Long		3 ft. Long		6 ft. Long
	OD	For Max. Cable OD - 1	For Max. Cable OD - 2	For Max. Cable OD - 3	Bend Radius	Color	Temp. Range, ° F		Each		Each		Each		Each
Nylon



		2.76" / 70.2 mm	0.8"	0.8"	0.8"	3.9"	Black	-40 to 245	5825N101	000000	5825N102	0000000	5825N103	0000000	5824N113	000000


		3.72" / 94.5 mm	1.1"	1.1"	1.1"	5.3"	Black	-40 to 245	5825N104	000000	5825N105	000000	5825N106	000000	5824N114	00000
		4 1/4" / 108 mm	1.2"	1.2"	1.2"	5.7"	Black	-40 to 245	5825N107	000000	5825N108	000000	5825N109	000000	5824N115	00000

Accessories for Carriers

Mounting Brackets


Swivel End Mounting Bracket	Support Mounting Bracket	Swivel Support Mounting Bracket

End Mounting Bracket	Mount for Cable Holders Clamp Connector End Mounting Bracket

Swivel—Brackets that swivel rotate and rock to soften twisting and bending motions. This reduces how much the cable and hose move, extending their life.

Support Mounting Bracket—Support mounting brackets are spaced along an installation to keep carriers off machinery.

Clamp Connector—Brackets with a clamp connector can hold a robot end-of-arm-clamp (sold separately), which lets the carrier move with the robot arm without obstructing it.

	No. of Mounting Holes	Mounting Hole Ctr.-to-Ctr., mm	Cable Holder Type	Clamp ID, mm	Mfr.	For Mfr. Series	For Series No.	Component		Each
End Mounting Bracket







	Nylon

	2.76" / 70.2 mm	No	9	3	20	Tie	—	Igus	TRCF, TRLF	65	Mounting Bracket	5824N118	000000


	3.72" / 94.5 mm	No	9	3	20	Tie	—	Igus	TRC, TRCF, TRE, TRE.B, TRLF	85.135, 85.135.B	Mounting Bracket	5824N119	00000
	4.25" / 108 mm	No	9	3	20	Tie	—	Igus	TRC, TRCF, TRE, TRE.B, TRL, TRLF	100, 100.B	Mounting Bracket	5614K8	00000


	End Mounting Bracket with Clamp Connector and Mount for Cable Holders







					Nylon with Powder-Coated Steel Connector

					2.76" / 70.2 mm	—	—	—	—	Clamp	30	Igus	TRCF	65	Mounting Bracket	5824N178	000000


					3.72" / 94.5 mm	—	—	—	—	Clamp	30	Igus	TRC, TRCF, TRE, TRE.B	85.135, 85.135.B	Mounting Bracket	5824N18	000000
					4.25" / 108 mm	—	—	—	—	Clamp	30	Igus	TRC, TRCF, TRE, TRE.B	100, 100.B	Mounting Bracket	5824N181	000000


					Swivel End Mounting Bracket







									Nylon

									2.76" / 70.2 mm	No	10.5	2	87.5	Tie	—	Igus	TRCF, TRLF	65	Mounting Bracket	5824N128	000000


									3.72" / 94.5 mm	No	10.5	2	87.5	Tie	—	Igus	TRC, TRCF, TRE, TRE.B, TRLF	85.135, 85.135.B	Mounting Bracket	5824N13	000000
									4.25" / 108 mm	No	10.5	2	87.5	Tie	—	Igus	TRC, TRCF, TRE, TRE.B, TRL, TRLF	100, 100.B	Mounting Bracket	5824N131	000000


									Support Mounting Bracket







													Nylon

													2.76" / 70.2 mm	No	9	3	20	—	—	Igus	TRCF, TRLF	65	Mounting Bracket	5824N122	000000


													3.72" / 94.5 mm	No	9	3	20	—	—	Igus	TRC, TRCF, TRE, TRE.B, TRLF	85.135, 85.135.B	Mounting Bracket	5824N123	00000
4.25" / 108 mm													No	9	3	20	—	—	Igus	TRC, TRCF, TRE, TRE.B, TRL, TRLF	100, 100.B	Mounting Bracket	5614K13	00000


Swivel Support Mounting Bracket







													Nylon

													2.76" / 70.2 mm	No	10.5	2	87.5	—	—	Igus	TRCF, TRLF	65	Mounting Bracket	5824N135	000000


													3.72" / 94.5 mm	No	10.5	2	87.5	—	—	Igus	TRC, TRCF, TRE, TRE.B, TRLF	85.135, 85.135.B	Mounting Bracket	5824N137	000000
													4.25" / 108 mm	No	10.5	2	87.5	—	—	Igus	TRC, TRCF, TRE, TRE.B, TRL, TRLF	100, 100.B	Mounting Bracket	5824N138	000000

Cable Holders


Cable Holder Shown Installed	Cable Holders

						Set Screw
	For Cable OD	Color	Mount Type	Cable Holder Type	Holding Mechanism	Included	Material	Component		Each
Powder-Coated Steel



		0.24" to 0.47"	Black	Drop In	Clamp	Set Screw	Yes	Steel	Cable Holder	5824N183	000000


		0.47" to 0.55"	Black	Drop In	Clamp	Set Screw	Yes	Steel	Cable Holder	5824N184	00000
		0.55" to 0.63"	Black	Drop In	Clamp	Set Screw	Yes	Steel	Cable Holder	5824N185	00000
		0.63" to 0.71"	Black	Drop In	Clamp	Set Screw	Yes	Steel	Cable Holder	5824N186	00000
		0.71" to 0.79"	Black	Drop In	Clamp	Set Screw	Yes	Steel	Cable Holder	5824N187	00000
		0.79" to 0.87"	Black	Drop In	Clamp	Set Screw	Yes	Steel	Cable Holder	5824N188	00000
		0.87" to 1.02"	Black	Drop In	Clamp	Set Screw	Yes	Steel	Cable Holder	5824N189	00000
		1.02" to 1.18"	Black	Drop In	Clamp	Set Screw	Yes	Steel	Cable Holder	5824N19	00000
		1.18" to 1.34"	Black	Drop In	Clamp	Set Screw	Yes	Steel	Cable Holder	5824N191	00000

Robot End-of-Arm Clamps for Brackets with Clamp Connectors


Clamp Shown Attached	Clamps

	Bar Dia., mm	Color	Clamp Type	Component		Each
Powder-Coated Steel



	ABB (IRB 6400) FANUC (S-420)	30	Black	Screw	Clamp	5827N21	0000000


	ABB (IRB 6620, IRB 6640, IRB 6650) KUKA Robotics (KR 125/1, 150/1, 200/1)	30	Black	Screw	Clamp	5827N23	000000
	FANUC (R-1000) Reis (RV 60-40, 60-60)	30	Black	Screw	Clamp	5827N16	000000
	FANUC (R-2000iA, R-2000iB) Reis (RV 130)	30	Black	Screw	Clamp	5827N13	000000
	ABB (IRB 7600; 500)	30	Black	Screw	Clamp	5827N25	000000
	Comau (NH3)	30	Black	Screw	Clamp	5827N22	000000
	Comau (NJ 130)	30	Black	Screw	Clamp	5827N2	000000
	FANUC (M-710iC 50, 70)	30	Black	Screw	Clamp	5827N14	000000
	FANUC (M-900iA 200P)	30	Black	Screw	Clamp	5827N27	000000
	FANUC (M-900iA 260L, 350)	30	Black	Screw	Clamp	5827N26	000000
	FANUC (M-900iA 400L, 600)	30	Black	Screw	Clamp	5827N28	000000


	Hyundai (HX 165)	30	Black	Screw	Clamp	5827N19	000000
	KUKA Robotics (KR 30-3 (HA), 60 L30-3 (HA), 60 L45-3 (HA), 60-3 (HA))	30	Black	Screw	Clamp	5827N11	000000
	KUKA Robotics (KR 120 R2700-2, 120 R3100-2, 150 R2700-2, 150 R3100-2, 210 R2700-2)	30	Black	Screw	Clamp	5827N18	000000
	KUKA Robotics (KR 125/3, 150/2 Series 2000, 150/3, 180 R2900-3, 180/2 Series 2000, 200/3, 210 R3100-2, 210/2 Series 2000, 240 R2900-2, 250 R2700-2, 300 R2700-2, 360/1, 500/1)	30	Black	Screw	Clamp	5827N12	000000
	KUKA Robotics (KR 360-2, 360-3, 500-2, 500-3)	30	Black	Screw	Clamp	5827N24	000000
	Staubli (TX200)	30	Black	Screw	Clamp	5827N17	000000
	Yaskawa/Motoman (HP, MH, UP 50)	30	Black	Screw	Clamp	5827N15	000000

Retraction Systems

	Mounting Location	Component		Each
Linear Retraction



	2.76" / 70.2 mm	Upper Robot Arm	Retraction System	5824N152	000000000


	3.72" / 94.5 mm	Upper Robot Arm	Retraction System	5824N154	00000000
	4.25" / 108 mm	Upper Robot Arm	Retraction System	5824N155	00000000

Robot Adapter Plates for Retraction Systems

Robot Adapter Plates

Robot Adapter Plates for Retraction Systems—Adapter plates attach retraction systems to your specific robot arm.

For Robot Arm Manufacturer	Mounting Fasteners Included	Mounting Location	Color	Component		Each
ABB (IRB 2400)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N16	0000000
ABB (IRB 2600, IRB 4600)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N17	000000
ABB (IRB 4400)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N162	000000
ABB (IRB 6400)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N163	000000
ABB (IRB 6600, IRB 6640, IRB 6650)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N158	000000
ABB (IRB 6620)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N168	000000
Comau (NH1 130-2.6; NH3 165-2.7, 220-2.7; NJ 110-3.0, 110-2.6; SMART5 NJ 165-3.0)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N159	000000
Comau (NM 16-3.1, 45-2.0)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N161	000000
FANUC (M-710iB 45)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N171	000000
FANUC (M-710iC 50, 70)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N174	000000
FANUC (M-900iA 260L, 350)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N164	000000
FANUC (M-900iA 600)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N167	000000
FANUC (M-900iB 700)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N173	000000
FANUC (R-1000iA, R-2000iA, R-2000iB, S-420, S-430)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N156	000000
KUKA Robotics (KR 5, 5arc, 6, 16)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N165	000000
KUKA Robotics KR 30 (HA), 60 (HA)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N169	000000
Reis (RV 10-16, 20-16, 30-26, 60-16, 60-26, 60-40, 60-60, 130)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N166	000000
Yaskawa/Motoman (UP 20, 50, 130, 165; MH 6; ES 165, 200, 280; HP 20, 50, 165)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N157	000000
Yaskawa/Motoman (MH 50)	No	Upper Robot Arm	Black	Robot Adapter Plate	5824N172	000000

Protectors

Protector

Protectors—Protectors are smooth cuffs that wrap around carriers to prevent abrasion where they rub against machinery.

	Color	Performance	Component		Each
Nylon



	2.76" / 70.2 mm	Black	Abrasion Resistant	Protector	5824N142	000000


	3.72" / 94.5 mm	Black	Abrasion Resistant	Protector	5824N144	00000
	4.25" / 108 mm	Black	Abrasion Resistant	Protector	5824N145	00000

Robot-Ready Cable and Hose Carrier Kits

Shown with Robot Arm

(Not Included)

Designed for specific robot models, these kits have all of the parts required to create a cable and hose carrier. Use them to organize and protect cable and hose without obstructing your robot’s movement. We also offer other any-which-way cable and hose carriers (not included).

Strap On

Kits that strap on have hook and loop closures that attach to robot arms, making them easier to put on and take off than kits that clamp on. They’re not as secure, however—use them with robots that operate at slow to average speeds, or to support a moderate weight of cable and tubing.

Clamps—Use clamps to suspend carriers over the widest part of FANUC CRX robot arms. These clamps help support heavy conduit and high-speed movements.

Carriers										Clamps
For Robot Arm Manufacturer (Series/Model No.)	Carrier OD	For Max. Cable OD	Bend Radius	Carrier Lg., ft.	Color	Temp. Range, ° F	Mounting Hardware Included		Each		Each
Universal Robots (UR3, UR3e, UR5, UR5e, UR10, UR10e, UR16, UR16e) Omron (TM 12, 14, 5-700, 5-900)	0.83" / 21 mm	0.65"	1.2"	6 1/2	Black	-55 to 300	Yes	5826N3	0000000	———	0
Universal Robots (UR3, UR3e, UR5, UR5e, UR10, UR10e, UR16, UR16e) Omron (TM 12, 14, 5-700, 5-900)	1.1" / 28 mm	0.88"	1.6"	6 1/2	Black	-55 to 300	Yes	5826N31	000000	———	0
Universal Robots (UR3, UR3e, UR5, UR5e, UR10, UR10e, UR16, UR16e) Omron (TM 12, 14, 5-700, 5-900)	1.34" / 34 mm	1.11"	2"	6 1/2	Black	-55 to 300	Yes	5826N32	000000	———	0
Universal Robots (UR3, UR3e, UR5, UR5e, UR10, UR10e, UR16, UR16e) Omron (TM 12, 14, 5-700, 5-900)	1.65" / 42 mm	1.41"	2.4"	6 1/2	Black	-55 to 300	Yes	5826N33	000000	———	0
FANUC (CRX 10iA, 10iA/L)	0.83" / 21 mm	0.65"	1.2"	10	Black	-55 to 300	Yes	5826N34	000000	5826N43	0000000
FANUC (CRX 10iA, 10iA/L)	1.1" / 28 mm	0.88"	1.6"	10	Black	-55 to 300	Yes	5826N35	000000	5826N44	000000
FANUC (CRX 10iA, 10iA/L)	1.34" / 34 mm	1.11"	2"	10	Black	-55 to 300	Yes	5826N36	000000	5826N45	000000
FANUC (CRX 10iA, 10iA/L)	1.65" / 42 mm	1.41"	2.4"	10	Black	-55 to 300	Yes	5826N37	000000	5826N46	000000

Clamp On

Kits that clamp on have metal straps that attach to robot arms, so they're more secure than kits that strap on. Use them on robots that work at fast speeds that cause vibration, or with heavy cable and tubing. Clamp-on mounts require a screwdriver to install and remove.

Clamps—Use clamps to suspend carriers over the widest part of FANUC CRX robot arms. These clamps help support heavy conduit and high-speed movements.

Carriers										Clamps
For Robot Arm Manufacturer (Series/Model No.)	Carrier OD	For Max. Cable OD	Bend Radius	Carrier Lg., ft.	Color	Temp. Range, ° F	Mounting Hardware Included		Each		Each
Universal Robots (UR3, UR3e)	0.83" / 21 mm	0.65"	1.2"	6 1/2	Black	-55 to 300	Yes	5826N18	0000000	———	0
Universal Robots (UR3, UR3e)	1.1" / 28 mm	0.88"	1.6"	6 1/2	Black	-55 to 300	Yes	5826N19	000000	———	0
Universal Robots (UR3, UR3e)	1.34" / 34 mm	1.11"	2"	6 1/2	Black	-55 to 300	Yes	5826N2	000000	———	0
Universal Robots (UR3, UR3e)	1.65" / 42 mm	1.41"	2.4"	6 1/2	Black	-55 to 300	Yes	5826N21	000000	———	0
Universal Robots (UR5, UR5e) Omron (TM 5-700, 5-900)	0.83" / 21 mm	0.65"	1.2"	6 1/2	Black	-55 to 300	Yes	5826N22	000000	———	0
Universal Robots (UR5, UR5e) Omron (TM 5-700, 5-900)	1.1" / 28 mm	0.88"	1.6"	6 1/2	Black	-55 to 300	Yes	5826N23	000000	———	0
Universal Robots (UR5, UR5e) Omron (TM 5-700, 5-900)	1.34" / 34 mm	1.11"	2"	6 1/2	Black	-55 to 300	Yes	5826N24	000000	———	0
Universal Robots (UR5, UR5e) Omron (TM 5-700, 5-900)	1.65" / 42 mm	1.41"	2.4"	6 1/2	Black	-55 to 300	Yes	5826N25	000000	———	0
Universal Robots (UR10, UR10e, UR16, UR16e) Omron (TM 12, 14)	0.83" / 21 mm	0.65"	1.2"	6 1/2	Black	-55 to 300	Yes	5826N26	000000	———	0
Universal Robots (UR10, UR10e, UR16, UR16e) Omron (TM 12, 14)	1.1" / 28 mm	0.88"	1.6"	6 1/2	Black	-55 to 300	Yes	5826N27	000000	———	0
Universal Robots (UR10, UR10e, UR16, UR16e) Omron (TM 12, 14)	1.34" / 34 mm	1.11"	2"	6 1/2	Black	-55 to 300	Yes	5826N28	000000	———	0
Universal Robots (UR10, UR10e, UR16, UR16e) Omron (TM 12, 14)	1.65" / 42 mm	1.41"	2.4"	6 1/2	Black	-55 to 300	Yes	5826N29	000000	———	0
FANUC (CRX 10iA, 10iA/L)	0.83" / 21 mm	0.65"	1.2"	10	Black	-55 to 300	Yes	5826N38	000000	5826N43	0000000
FANUC (CRX 10iA, 10iA/L)	1.1" / 28 mm	0.88"	1.6"	10	Black	-55 to 300	Yes	5826N39	000000	5826N44	000000
FANUC (CRX 10iA, 10iA/L)	1.34" / 34 mm	1.11"	2"	10	Black	-55 to 300	Yes	5826N41	000000	5826N45	000000
FANUC (CRX 10iA, 10iA/L)	1.65" / 42 mm	1.41"	2.4"	10	Black	-55 to 300	Yes	5826N42	000000	5826N46	000000

Screw On

Kits that screw on mount directly to robot arms for a secure hold.

Retraction System—Those with a retraction system extend or pull back carriers as the robots move to prevent dangling slack from interfering.

For Robot Arm Manufacturer (Series/Model No.)	Carrier OD	For Max. Cable OD - I	For Max. Cable OD - II	Bend Radius	Carrier Lg., ft.	Color	Mounting Hardware Included	Includes		Each
FANUC (R-2000iA 130U, 165F, 165R, 200F, 200FO, 200R, 210F; R-2000iB 100H, 150U, 165F, 165R, 200R, 210F, 210WE, 220U, 250F; R-2000iC 165F, 210F, 165R, 210R)	2.56" / 65 mm	0.89"	0.77"	3.4"	9	Black	Yes	Retraction System	5826N14	000000000
FANUC (R-2000iA 130U, 165F, 165R, 200F, 200FO, 200R, 210F; R-2000iB 100H, 150U, 165F, 165R, 200R, 210F, 210WE, 220U, 250F; R-2000iC 165F, 210F, 165R, 210R)	3.72" / 94 mm	1.3"	1.1"	5.3"	9	Black	Yes	Retraction System	5826N15	00000000
FANUC (CR 7iA/L)	1.69" / 43 mm	0.59"	0.51"	2.3"	5 1/2	Black	Yes	—	5826N13	00000000
FANUC (LR Mate 200iD, 200iD/7C, 200iD/7WP, 200iD/7H)	1.69" / 43 mm	0.59"	0.51"	2.3"	1	Black	Yes	—	5826N11	00000000
FANUC (LR Mate 200iD/7L, 200iD/7LC)	1.69" / 43 mm	0.59"	0.51"	2.3"	1 1/2	Black	Yes	—	5826N12	00000000
FANUC (M-710iC 45M, 50, 50T, 70, 70T)	2.56" / 65 mm	0.89"	0.77"	3.4"	8	Black	Yes	Retraction System	5826N17	00000000
FANUC (M-710iC 45M, 50, 50T, 70, 70T)	2.56" / 65 mm	0.89"	0.77"	3.4"	9	Black	Yes	Retraction System	5826N16	00000000

Low-Vibration Snap-Together Open Cable and Hose Carriers

Mounting Brackets

Designed for smooth, quiet travel, these carriers minimize clicking and jumping in vibration-sensitive applications such as printing and scanning. The snap-on crossbars open for access at any point along the length of these carriers so you can lay in cable and hose. The open design promotes air flow to prevent heat buildup and keeps cable and hose visible. These carriers are made of nylon and can be used in Fed Std. Class 1 and ISO Class 3 clean rooms. Connect lengths of carrier without tools—snap the links together to create the exact length you need. Disassemble them with a screwdriver. Build your own custom connectors to add connection and disconnection points for easy setup and maintenance.

Mounting Brackets—Mounting brackets (sold separately) do not include fasteners.

Carriers															Mounting Brackets
					Loop
For Max. Cable OD	For Total Cable Wd.	Ht.	Wd.	Bend Radius	Ht.	Lg., ft.	Material	Color	Temp. Range, ° F	Mounting Hardware Included	Clean Room Std.	Choose a Length, ft.		Per Ft.		Pair
0.9"	1.7"	1.4"	2.6"	3"	7.5"	0.9	Nylon	Black	-40 to 155	No	Fed. Std. Class 1, ISO Class 3	1, 3, 6	5607K94	000000	5607K101	000000
1.2"	2"	1.7"	3.1"	3"	9"	1	Nylon	Black	-40 to 155	No	Fed. Std. Class 1, ISO Class 3	1, 3, 6	5607K95	00000	5607K102	00000
1.4"	2.1"	2.1"	3.2"	3"	8.2"	1	Nylon	Black	-40 to 155	No	Fed. Std. Class 1, ISO Class 3	1, 3, 6	5607K96	00000	5607K103	00000
1.8"	2.5"	2.6"	4"	3"	8.7"	1	Nylon	Black	-40 to 155	No	Fed. Std. Class 1, ISO Class 3	1, 3, 6	5607K97	00000	5607K104	00000
2.1"	2.9"	3.3"	5"	5"	13"	1.5	Nylon	Black	-40 to 155	No	Fed. Std. Class 1, ISO Class 3	1, 3, 6	5607K98	00000	5607K105	00000
2.8"	3.3"	4.3"	6"	6"	20.3"	2	Nylon	Black	-40 to 155	No	Fed. Std. Class 1, ISO Class 3	1, 3, 6	5607K99	000000	5607K106	000000

Snap-Together Enclosed Cable and Hose Carriers


		Mounting Brackets

By completely surrounding the cable and hose, these carriers protect cable and hose from dirt, chips, and debris. Use to support and protect moving cable and hose. The snap-on lids or crossbars open for access at any point along the length of these carriers so you can lay in cable and hose. Connect lengths of carrier together to create the exact length you need. Disassemble them with a screwdriver. Build your own custom connectors to add connection and disconnection points for easy setup and maintenance.

Mounting Brackets—Mounting brackets (sold separately) do not include fasteners.

Carriers														Mounting Brackets
					Loop
For Max. Cable OD	For Total Cable Wd.	Ht.	Wd.	Bend Radius	Ht.	Lg., ft.	Material	Color	Temp. Range, ° F	Mounting Hardware Included	Choose a Length, ft.		Per Ft.		Pair
0.9"	1.2"	1.4"	2.1"	3.9"	9.3"	1.4	Nylon	Black	-40 to 245	No	1, 3, 6	4591T11	000000	4556T82	000000
0.9"	1.2"	1.4"	2.1"	4.9"	11.2"	1.6	Nylon	Black	-40 to 245	No	1, 3, 6	4591T12	00000	4556T82	00000
0.9"	1.8"	1.4"	2.9"	3.9"	9.3"	1.4	Nylon	Black	-40 to 245	No	1, 3, 6	4591T13	00000	4556T83	00000
0.9"	1.8"	1.4"	2.9"	4.9"	11.2"	1.6	Nylon	Black	-40 to 245	No	1, 3, 6	4591T14	00000	4556T83	00000
0.9"	2.4"	1.4"	3.7"	3.9"	9.3"	1.4	Nylon	Black	-40 to 245	No	1, 3, 6	4591T15	00000	4556T84	00000
0.9"	2.4"	1.4"	3.7"	4.9"	11.2"	1.6	Nylon	Black	-40 to 245	No	1, 3, 6	4591T16	00000	4556T84	00000
0.9"	3.3"	1.4"	4.7"	3.9"	9.3"	1.4	Nylon	Black	-40 to 245	No	1, 3, 6	4591T17	00000	4556T85	00000
0.9"	3.3"	1.4"	4.7"	4.9"	11.2"	1.6	Nylon	Black	-40 to 245	No	1, 3, 6	4591T18	00000	4556T85	00000
1.3"	1.6"	2"	2.6"	3.9"	9.8"	1.6	Nylon	Black	-40 to 245	No	1, 3, 6	4591T19	00000	4556T65	00000
1.3"	1.6"	2"	2.6"	5.9"	13.8"	2.1	Nylon	Black	-40 to 245	No	1, 3, 6	4591T21	00000	4556T65	00000
1.3"	2.4"	2"	3.6"	3.9"	9.8"	1.6	Nylon	Black	-40 to 245	No	1, 3, 6	4591T22	00000	4556T66	00000
1.3"	2.4"	2"	3.6"	5.9"	13.8"	2.1	Nylon	Black	-40 to 245	No	1, 3, 6	4591T23	00000	4556T66	00000
1.3"	3.2"	2"	4.6"	3.9"	9.8"	1.6	Nylon	Black	-40 to 245	No	1, 3, 6	4591T24	00000	4556T67	00000
1.3"	3.2"	2"	4.6"	5.9"	13.8"	2.1	Nylon	Black	-40 to 245	No	1, 3, 6	4591T25	00000	4556T67	00000
1.5"	4.7"	2.5"	7"	5.9"	14.4"	2	Nylon	Black	-40 to 245	No	1, 5	4617T51	00000	4617T81	00000
1.5"	4.7"	2.5"	7"	7.9"	18.3"	2.5	Nylon	Black	-40 to 245	No	1, 5	4617T52	00000	4617T81	00000
1.7"	2.4"	2.5"	3.7"	5.9"	14.4"	2.4	Nylon	Black	-40 to 245	No	1, 3, 6	4591T27	00000	4556T68	00000
1.7"	2.4"	2.5"	3.7"	7.9"	22.2"	3	Nylon	Black	-40 to 245	No	1, 3, 6	4591T28	00000	4556T68	00000
1.7"	3.6"	2.5"	5.3"	5.9"	14.4"	2.4	Nylon	Black	-40 to 245	No	1, 3, 6	4591T31	00000	4556T69	00000
1.7"	3.6"	2.5"	5.3"	7.9"	22.2"	3	Nylon	Black	-40 to 245	No	1, 3, 6	4591T32	00000	4556T69	00000
1.7"	5.5"	2.5"	7.7"	5.9"	14.4"	2.4	Nylon	Black	-40 to 245	No	1, 3, 6	4591T34	00000	4556T71	00000
1.7"	5.5"	2.5"	7.7"	7.9"	22.2"	3	Nylon	Black	-40 to 245	No	1, 3, 6	4591T35	00000	4556T71	00000
2"	4.7"	3.3"	7.3"	5.9"	15.2"	2.5	Nylon	Black	-40 to 245	No	1, 5	4617T57	00000	4617T84	00000
2"	4.7"	3.3"	7.3"	7.9"	19.1"	3	Nylon	Black	-40 to 245	No	1, 5	4617T58	00000	4617T84	00000
2.9"	4.7"	4.3"	7.9"	5.9"	16.1"	2.2	Nylon	Black	-40 to 245	No	1, 5	4617T64	000000	4617T87	00000
2.9"	4.7"	4.3"	7.9"	7.9"	20"	2.7	Nylon	Black	-40 to 245	No	1, 5	4617T65	000000	4617T87	00000

Feed-Through Snap-Together Open Cable and Hose Carriers


		Mounting Brackets

Thread cable and hose through these carriers—they support and protect moving cable and hose. The open design promotes air flow to prevent heat buildup and keeps cable and hose visible. Connect lengths of carrier without tools—snap the links together to create the exact length you need. Disassemble them with a screwdriver. Build your own custom connectors to add connection and disconnection points for easy setup and maintenance.

Mounting Brackets—Mounting brackets (sold separately) do not include fasteners.

Carriers														Mounting Brackets
					Loop
For Max. Cable OD	For Total Cable Wd.	Ht.	Wd.	Bend Radius	Ht.	Lg., ft.	Material	Color	Temp. Range, ° F	Mounting Hardware Included	Choose a Length, ft.		Per Ft.		Pair
0.2"	0.2"	0.6"	0.5"	1.1"	2.8"	0.4	Nylon	Black	-40 to 245	No	1, 3, 6	4516T44	000000	4556T31	00000
0.3"	0.3"	0.6"	0.7"	1.1"	2.8"	0.4	Nylon	Black	-40 to 245	No	1, 3, 6	4516T45	00000	4556T32	0000
0.3"	0.3"	0.8"	0.7"	1.5"	3.7"	0.5	Nylon	Black	-40 to 245	No	1, 3, 6	4516T52	00000	4556T38	00000
0.3"	0.5"	0.6"	0.9"	1.1"	2.8"	0.4	Nylon	Black	-40 to 245	No	1, 3, 6	4516T46	00000	4556T33	00000
0.3"	0.6"	0.6"	1.1"	1.1"	2.8"	0.4	Nylon	Black	-40 to 245	No	1, 3, 6	4516T47	00000	4556T34	00000
0.3"	0.9"	0.6"	1.5"	1.1"	2.8"	0.4	Nylon	Black	-40 to 245	No	1, 3, 6	4516T48	00000	4556T35	00000
0.3"	1.3"	0.6"	1.9"	1.1"	2.8"	0.4	Nylon	Black	-40 to 245	No	1, 3, 6	4516T49	00000	4556T36	00000
0.3"	1.6"	0.6"	2.3"	1.1"	2.8"	0.4	Nylon	Black	-40 to 245	No	1, 3, 6	4516T51	00000	4556T37	00000
0.5"	0.5"	0.8"	0.9"	1.5"	3.7"	0.5	Nylon	Black	-40 to 245	No	1, 3, 6	4516T53	00000	4556T39	00000
0.5"	0.5"	0.9"	1"	1.5"	3.9"	0.6	Nylon	Black	-40 to 245	No	1, 3, 6	55835K93	00000	55835K121	00000
0.5"	0.6"	0.8"	1.1"	1.5"	3.7"	0.5	Nylon	Black	-40 to 245	No	1, 3, 6	4516T54	00000	4556T41	00000
0.5"	0.9"	0.8"	1.5"	1.5"	3.7"	0.5	Nylon	Black	-40 to 245	No	1, 3, 6	4516T55	00000	4556T42	00000
0.5"	1.3"	0.8"	1.9"	1.5"	3.7"	0.5	Nylon	Black	-40 to 245	No	1, 3, 6	4516T56	00000	4556T43	00000
0.5"	1.6"	0.8"	2.3"	1.5"	3.7"	0.5	Nylon	Black	-40 to 245	No	1, 3, 6	4516T57	00000	4556T44	00000
0.6"	0.8"	0.9"	1.4"	1.5"	3.9"	0.6	Nylon	Black	-40 to 245	No	1, 3, 6	55835K94	00000	55835K122	00000
0.6"	1.2"	0.9"	1.9"	1.5"	3.9"	0.6	Nylon	Black	-40 to 245	No	1, 3, 6	55835K95	00000	55835K123	00000
0.6"	1.6"	0.9"	2.4"	1.5"	3.9"	0.6	Nylon	Black	-40 to 245	No	1, 3, 6	55835K96	00000	55835K124	00000
0.9"	1.2"	1.4"	2.1"	2.2"	5.7"	0.9	Nylon	Black	-40 to 245	No	1, 3, 6	4516T21	00000	4556T82	00000
0.9"	1.2"	1.4"	2.1"	3.9"	9.3"	1.4	Nylon	Black	-40 to 245	No	1, 3, 6	4516T22	00000	4556T82	00000
0.9"	1.2"	1.4"	2.1"	4.9"	11.2"	1.6	Nylon	Black	-40 to 245	No	1, 3, 6	4516T23	00000	4556T82	00000
0.9"	1.8"	1.4"	2.9"	2.2"	5.7"	0.9	Nylon	Black	-40 to 245	No	1, 3, 6	4516T24	00000	4556T83	00000
0.9"	1.8"	1.4"	2.9"	3.9"	9.3"	1.4	Nylon	Black	-40 to 245	No	1, 3, 6	4516T25	00000	4556T83	00000
0.9"	1.8"	1.4"	2.9"	4.9"	11.2"	1.6	Nylon	Black	-40 to 245	No	1, 3, 6	4516T26	00000	4556T83	00000
0.9"	2.4"	1.4"	3.7"	2.2"	5.7"	0.9	Nylon	Black	-40 to 245	No	1, 3, 6	4516T27	00000	4556T84	00000
0.9"	2.4"	1.4"	3.7"	3.9"	9.3"	1.4	Nylon	Black	-40 to 245	No	1, 3, 6	4516T28	00000	4556T84	00000
0.9"	2.4"	1.4"	3.7"	4.9"	11.2"	1.6	Nylon	Black	-40 to 245	No	1, 3, 6	4516T29	00000	4556T84	00000
0.9"	3.3"	1.4"	4.7"	2.2"	5.7"	0.9	Nylon	Black	-40 to 245	No	1, 3, 6	4516T31	00000	4556T85	00000
0.9"	3.3"	1.4"	4.7"	3.9"	9.3"	1.4	Nylon	Black	-40 to 245	No	1, 3, 6	4516T32	00000	4556T85	00000
0.9"	3.3"	1.4"	4.7"	4.9"	11.2"	1.6	Nylon	Black	-40 to 245	No	1, 3, 6	4516T33	00000	4556T85	00000
1.3"	1.6"	2"	2.6"	2.5"	7.1"	1.1	Nylon	Black	-40 to 245	No	1, 3, 6	4516T34	00000	4556T65	00000
1.3"	1.6"	2"	2.6"	3.9"	9.8"	1.6	Nylon	Black	-40 to 245	No	1, 3, 6	4516T35	00000	4556T65	00000
1.3"	1.6"	2"	2.6"	5.9"	13.8"	2.1	Nylon	Black	-40 to 245	No	1, 3, 6	4516T36	00000	4556T65	00000
1.3"	2.4"	2"	3.6"	2.5"	7.1"	1.1	Nylon	Black	-40 to 245	No	1, 3, 6	4516T37	00000	4556T66	00000
1.3"	2.4"	2"	3.6"	3.9"	9.8"	1.6	Nylon	Black	-40 to 245	No	1, 3, 6	4516T38	00000	4556T66	00000
1.3"	2.4"	2"	3.6"	5.9"	13.8"	2.1	Nylon	Black	-40 to 245	No	1, 3, 6	4516T39	00000	4556T66	00000
1.3"	3.2"	2"	4.6"	2.5"	7.1"	1.1	Nylon	Black	-40 to 245	No	1, 3, 6	4516T41	00000	4556T67	00000
1.3"	3.2"	2"	4.6"	3.9"	9.8"	1.6	Nylon	Black	-40 to 245	No	1, 3, 6	4516T42	00000	4556T67	00000
1.3"	3.2"	2"	4.6"	5.9"	13.8"	2.1	Nylon	Black	-40 to 245	No	1, 3, 6	4516T43	00000	4556T67	00000

Lay-In Snap-Together Open Cable and Hose Carriers


		Mounting Brackets

The hinged snap-on lids or crossbars open for access at any point along the length of these carriers so you can lay in cable and hose. They support and protect moving cable and hose. The open design promotes air flow to prevent heat buildup and keeps cable and hose visible. Connect lengths of carrier together to create the exact length you need. Disassemble them with a screwdriver. Build your own custom connectors to add connection and disconnection points for easy setup and maintenance.

Mounting Brackets—Mounting brackets (sold separately) do not include fasteners.

Carriers														Mounting Brackets
					Loop
For Max. Cable OD	For Total Cable Wd.	Ht.	Wd.	Bend Radius	Ht.	Lg., ft.	Material	Color	Temp. Range, ° F	Mounting Hardware Included	Choose a Length, ft.		Per Ft.		Pair
0.2"	0.2"	0.6"	0.5"	1.1"	2.8"	0.4	Nylon	Black	-40 to 245	No	1, 3, 6	4409T21	000000	4556T31	00000
0.3"	0.3"	0.6"	0.7"	1.1"	2.8"	0.4	Nylon	Black	-40 to 245	No	1, 3, 6	4409T22	00000	4556T32	0000
0.3"	0.3"	0.8"	0.7"	1.5"	3.7"	0.5	Nylon	Black	-40 to 245	No	1, 3, 6	4409T28	00000	4556T38	00000
0.3"	0.5"	0.6"	0.9"	1.1"	2.8"	0.4	Nylon	Black	-40 to 245	No	1, 3, 6	4409T23	00000	4556T33	00000
0.3"	0.6"	0.6"	1.1"	1.1"	2.8"	0.4	Nylon	Black	-40 to 245	No	1, 3, 6	4409T24	00000	4556T34	00000
0.3"	0.9"	0.6"	1.5"	1.1"	2.8"	0.4	Nylon	Black	-40 to 245	No	1, 3, 6	4409T25	00000	4556T35	00000
0.3"	1.3"	0.6"	1.9"	1.1"	2.8"	0.4	Nylon	Black	-40 to 245	No	1, 3, 6	4409T26	00000	4556T36	00000
0.3"	1.6"	0.6"	2.3"	1.1"	2.8"	0.4	Nylon	Black	-40 to 245	No	1, 3, 6	4409T27	00000	4556T37	00000
0.5"	0.5"	0.8"	0.9"	1.5"	3.7"	0.5	Nylon	Black	-40 to 245	No	1, 3, 6	4409T29	00000	4556T39	00000
0.5"	0.5"	0.9"	1"	1.5"	3.9"	0.6	Nylon	Black	-40 to 245	No	1, 3, 6	4409T35	00000	55835K121	00000
0.5"	0.6"	0.8"	1.1"	1.5"	3.7"	0.5	Nylon	Black	-40 to 245	No	1, 3, 6	4409T31	00000	4556T41	00000
0.5"	0.9"	0.8"	1.5"	1.5"	3.7"	0.5	Nylon	Black	-40 to 245	No	1, 3, 6	4409T32	00000	4556T42	00000
0.5"	1.3"	0.8"	1.9"	1.5"	3.7"	0.5	Nylon	Black	-40 to 245	No	1, 3, 6	4409T33	00000	4556T43	00000
0.5"	1.6"	0.8"	2.3"	1.5"	3.7"	0.5	Nylon	Black	-40 to 245	No	1, 3, 6	4409T34	00000	4556T44	00000
0.6"	0.8"	0.9"	1.4"	1.5"	3.9"	0.6	Nylon	Black	-40 to 245	No	1, 3, 6	4409T36	00000	55835K122	00000
0.6"	1.2"	0.9"	1.9"	1.5"	3.9"	0.6	Nylon	Black	-40 to 245	No	1, 3, 6	4409T37	00000	55835K123	00000
0.6"	1.6"	0.9"	2.4"	1.5"	3.9"	0.6	Nylon	Black	-40 to 245	No	1, 3, 6	4409T38	00000	55835K124	00000
0.9"	1.2"	1.4"	2.1"	2.2"	5.7"	0.9	Nylon	Black	-40 to 245	No	1, 3, 6	4409T51	00000	4556T82	00000
0.9"	1.2"	1.4"	2.1"	3.9"	9.3"	1.4	Nylon	Black	-40 to 245	No	1, 3, 6	4409T52	00000	4556T82	00000
0.9"	1.2"	1.4"	2.1"	4.9"	11.2"	1.6	Nylon	Black	-40 to 245	No	1, 3, 6	4409T53	00000	4556T82	00000
0.9"	1.8"	1.4"	2.9"	2.2"	5.7"	0.9	Nylon	Black	-40 to 245	No	1, 3, 6	4409T54	00000	4556T83	00000
0.9"	1.8"	1.4"	2.9"	3.9"	9.3"	1.4	Nylon	Black	-40 to 245	No	1, 3, 6	4409T55	00000	4556T83	00000
0.9"	1.8"	1.4"	2.9"	4.9"	11.2"	1.6	Nylon	Black	-40 to 245	No	1, 3, 6	4409T56	00000	4556T83	00000
0.9"	2.4"	1.4"	3.7"	2.2"	5.7"	0.9	Nylon	Black	-40 to 245	No	1, 3, 6	4409T57	00000	4556T84	00000
0.9"	2.4"	1.4"	3.7"	3.9"	9.3"	1.4	Nylon	Black	-40 to 245	No	1, 3, 6	4409T58	00000	4556T84	00000
0.9"	2.4"	1.4"	3.7"	4.9"	11.2"	1.6	Nylon	Black	-40 to 245	No	1, 3, 6	4409T59	00000	4556T84	00000
0.9"	3.3"	1.4"	4.7"	2.2"	5.7"	0.9	Nylon	Black	-40 to 245	No	1, 3, 6	4409T61	00000	4556T85	00000
0.9"	3.3"	1.4"	4.7"	3.9"	9.3"	1.4	Nylon	Black	-40 to 245	No	1, 3, 6	4409T62	00000	4556T85	00000
0.9"	3.3"	1.4"	4.7"	4.9"	11.2"	1.6	Nylon	Black	-40 to 245	No	1, 3, 6	4409T63	00000	4556T85	00000
1.3"	1.6"	2"	2.6"	2.5"	7.1"	1.1	Nylon	Black	-40 to 245	No	1, 3, 6	4409T64	00000	4556T65	00000
1.3"	1.6"	2"	2.6"	3.9"	9.8"	1.6	Nylon	Black	-40 to 245	No	1, 3, 6	4409T65	00000	4556T65	00000
1.3"	1.6"	2"	2.6"	5.9"	13.8"	2.1	Nylon	Black	-40 to 245	No	1, 3, 6	4409T66	00000	4556T65	00000
1.3"	2.4"	2"	3.6"	2.5"	7.1"	1.1	Nylon	Black	-40 to 245	No	1, 3, 6	4409T67	00000	4556T66	00000
1.3"	2.4"	2"	3.6"	3.9"	9.8"	1.6	Nylon	Black	-40 to 245	No	1, 3, 6	4409T68	00000	4556T66	00000
1.3"	2.4"	2"	3.6"	5.9"	13.8"	2.1	Nylon	Black	-40 to 245	No	1, 3, 6	4409T69	00000	4556T66	00000
1.3"	3.2"	2"	4.6"	2.5"	7.1"	1.1	Nylon	Black	-40 to 245	No	1, 3, 6	4409T71	00000	4556T67	00000
1.3"	3.2"	2"	4.6"	3.9"	9.8"	1.6	Nylon	Black	-40 to 245	No	1, 3, 6	4409T72	00000	4556T67	00000
1.3"	3.2"	2"	4.6"	5.9"	13.8"	2.1	Nylon	Black	-40 to 245	No	1, 3, 6	4409T73	00000	4556T67	00000
1.5"	4.7"	2.5"	7"	5.9"	14.4"	2	Nylon	Black	-40 to 245	No	1, 5	4617T31	00000	4617T71	00000
1.5"	4.7"	2.5"	7"	7.9"	18.3"	2.5	Nylon	Black	-40 to 245	No	1, 5	4617T32	00000	4617T71	00000
1.7"	2.4"	2.5"	3.7"	3.9"	10.4"	1.6	Nylon	Black	-40 to 245	No	1, 3, 6	4409T74	00000	4556T68	00000
1.7"	2.4"	2.5"	3.7"	5.9"	14.4"	2.4	Nylon	Black	-40 to 245	No	1, 3, 6	4409T75	00000	4556T68	00000
1.7"	2.4"	2.5"	3.7"	7.9"	18.3"	3	Nylon	Black	-40 to 245	No	1, 3, 6	4409T76	00000	4556T68	00000
1.7"	3.6"	2.5"	5.3"	3.9"	10.4"	1.6	Nylon	Black	-40 to 245	No	1, 3, 6	4409T77	00000	4556T69	00000
1.7"	3.6"	2.5"	5.3"	5.9"	14.4"	2.4	Nylon	Black	-40 to 245	No	1, 3, 6	4409T78	00000	4556T69	00000
1.7"	3.6"	2.5"	5.3"	7.9"	18.3"	3	Nylon	Black	-40 to 245	No	1, 3, 6	4409T79	00000	4556T69	00000
1.7"	5.5"	2.5"	7.7"	3.9"	10.4"	1.6	Nylon	Black	-40 to 245	No	1, 3, 6	4409T81	00000	4556T71	00000
1.7"	5.5"	2.5"	7.7"	5.9"	14.4"	2.4	Nylon	Black	-40 to 245	No	1, 3, 6	4409T82	00000	4556T71	00000
1.7"	5.5"	2.5"	7.7"	7.9"	18.3"	3	Nylon	Black	-40 to 245	No	1, 3, 6	4409T83	00000	4556T71	00000
2"	4.7"	3.3"	7.3"	5.9"	15.2"	2.5	Nylon	Black	-40 to 245	No	1, 5	4617T37	00000	4617T74	00000
2"	4.7"	3.3"	7.3"	7.9"	19.1"	3	Nylon	Black	-40 to 245	No	1, 5	4617T38	00000	4617T74	00000
2.9"	4.7"	4.3"	7.9"	5.9"	16.1"	2.2	Nylon	Black	-40 to 245	No	1, 5	4617T44	00000	4617T77	00000
2.9"	4.7"	4.3"	7.9"	7.9"	20"	2.7	Nylon	Black	-40 to 245	No	1, 5	4617T45	00000	4617T77	00000
