Drawbar Couplers
Also known as pintle hitches, these are used with drawbar rings to connect a trailer to your vehicle for towing. Maximum trailer weight is the total weight being towed. Vertical capacity (also known as tongue weight) represents the weight of the load on the drawbar ring or hitch ball. Use Grade 8 fasteners (included with some couplers) for mounting. Mount couplers directly to a vehicle or use a mounting plate insert to mount them to a hitch receiver. See Mounting Plate Inserts for Drawbar Couplers and Hitch Receivers.
Combination ball/eye couplers include a ball for use with hitch-ball connections.
Couplers with a vertical latch move up to open. They are the most common type. Couplers with a horizontal latch swing open sideways. Use these if there is not enough space above the coupler to open a vertical latch.
Note: Capacity is reduced 25% in off-road use.

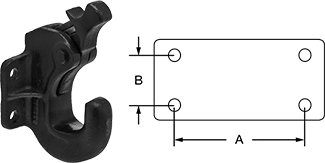

Mounting Hole | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| For Max. Trailer Wt., lbs. | Vertical Capacity, lbs. | For Min. Drawbar Ring ID | For Max. Drawbar Ring Thick. | Overall Dp. | Material | Locking Mechanism | Mounting Fasteners Included | Dia. | Ctr.-to-Ctr. (A) | Ctr.-to-Ctr. (B) | Ctr.-to-Ctr. (C) | Each | ||
Vertical Latch | ||||||||||||||
| 1 | 20,000 | 4,000 | 2" | 1 5/8" | 6 3/8" | Steel | Spring-Loaded Pin | Yes | 17/32" | 3 3/8" | 1 3/4" | __ | 00000000 | 000000 |
| 1 | 30,000 | 6,000 | 2" | 1 5/8" | 6 3/16" | Steel | Spring-Loaded Pin | Yes | 17/32" | 3 3/8" | 1 3/4" | __ | 00000000 | 00000 |
| 1 | 40,000 | 8,000 | 2" | 1 5/8" | 6 5/8" | Steel | Spring-Loaded Pin | Yes | 19/32" | 3 3/8" | 1 3/4" | __ | 00000000 | 000000 |
| 2 | 20,000 | 4,000 | 1 3/4" | 2" | 6 9/16" | Steel | Lever, Pin | Yes | 1/2" | 3 1/2" | 2" | 3" | 00000000 | 00000 |
| 2 | 30,000 | 6,000 | 1 3/4" | 2" | 6 9/16" | Steel | Lever, Pin | Yes | 1/2" | 3 1/2" | 2" | 3" | 00000000 | 000000 |
| 2 | 60,000 | 12,000 | 1 3/4" | 2" | 6 9/16" | Steel | Lever, Pin | Yes | 1/2" | 3 1/2" | 2" | 3" | 00000000 | 000000 |
| 3 | 60,000 | 15,000 | 2 3/8" | 1 5/8" | 7 3/8" | Steel | Spring-Loaded Pin | Yes | 25/32" | 4 1/2" | 4 1/2" | __ | 00000000 | 000000 |
Hitch Ball | Mounting Hole | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| For Max. Trailer Wt., lbs. | Vertical Capacity, lbs. | For Min. Drawbar Ring ID | For Max. Drawbar Ring Thick. | Overall Dp. | Material | Dia. | Material | Locking Mechanism | Mounting Fasteners Included | Dia. | Ctr.-to-Ctr. (A) | Ctr.-to-Ctr. (B) | Each | ||
Vertical Latch | |||||||||||||||
| 4 | 16,000 | 3,000 | 2 1/16" | 2" | 7 3/4" | Steel | 2" | Chrome-Plated Steel | Lever, Pin | No | 1/2" | 3 3/8" | 1 3/4" | 000000 | 0000000 |
| 4 | 16,000 | 3,000 | 2 3/8" | 1 13/16" | 7 3/4" | Steel | 2 5/16" | Chrome-Plated Steel | Lever, Pin | No | 1/2" | 3 3/8" | 1 3/4" | 000000 | 000000 |
| 5 | 30,000 | 4,000 | 2 3/8" | 1 9/16" | 7 7/16" | Steel | 2 5/16" | Chrome-Plated Steel | Spring-Loaded Pin | No | 19/32" | 3 3/8" | 1 3/4" | 00000000 | 000000 |
Horizontal Latch | |||||||||||||||
| 6 | 20,000 | 5,000 | 2 1/4" | 1 7/8" | 6 5/8" | Steel | 2" | Chrome-Plated Steel | Lever, Pin | No | 1/2" | 3 3/8" | 1 3/4" | 00000000 | 000000 |
Mounting Hole | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| For Max. Trailer Wt., lbs. | Vertical Capacity, lbs. | For Min. Drawbar Ring ID | For Max. Drawbar Ring Thick. | Overall Dp. | Material | Locking Mechanism | Mounting Fasteners Included | Dia. | Ctr.-to-Ctr. (A) | Ctr.-to-Ctr. (B) | Ctr.-to-Ctr. (C) | Each | ||
Vertical Latch | ||||||||||||||
| 7 | 30,000 | 4,500 | 2" | 1 1/2" | 6" | Steel | Lever | No | 5/8" | 4" | 2 5/8" | __ | 000000 | 0000000 |
| 8 | 70,000 | 30,000 | 2 1/4" | 1 7/8" | 6 7/8" | Steel | Lever | No | 3/4" | 6 1/2" | 3" | 5 1/4" | 00000000 | 000000 |
| 9 | 90,000 | 18,000 | 2 3/8" | 1 5/8" | 7 1/4" | Iron | Spring-Loaded Pin | No | 3/4" | 6 1/2" | 3" | 5 1/4" | 00000000 | 000000 |
Horizontal Latch | ||||||||||||||
| 10 | 30,000 | 5,000 | 2 1/4" | 1 7/8" | 6" | Steel | Lever, Pin | No | 1/2" | 3 3/8" | 1 3/4" | __ | 00000000 | 000000 |
Mounting Hole | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| For Max. Trailer Wt., lbs. | Vertical Capacity | For Min. Drawbar Ring ID | For Max. Drawbar Ring Thick. | Overall Dp. | Material | Mounting Fasteners Included | Dia. | Ctr.-to-Ctr. | Each | ||
Vertical Latch | |||||||||||
| 11 | 12,000 | Not Rated | 2" | 1" | 5 13/16" | Steel | No | 5/8" | 4.25" | 000000 | 0000000 |
Mounting Hole | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| For Max. Trailer Wt., lbs. | Vertical Capacity | For Min. Drawbar Ring ID | For Max. Drawbar Ring Thick. | Overall Dp. | Material | Mounting Fasteners Included | Dia. | Ctr.-to-Ctr. | Each | ||
Vertical Latch | |||||||||||
| 12 | 60,000 | Not Rated | 2" | 1 13/16" | 5" | Steel | No | 1" | 6.5" | 000000 | 0000000 |
Drawbar Rings
These rings mount to a trailer and connect to the drawbar coupler or tow hook on a vehicle to create a towing connection. Maximum trailer weight is the total weight being towed. Vertical capacity (also known as tongue weight) represents the weight of the load on the drawbar ring.
Note: Capacity is reduced 25% in off-road use.
Overall | Ring | Mounting Hole | Mounting Plate | Thread | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | For Max. Trailer Wt., lbs. | Vertical Capacity, lbs. | Dp. | Ht. | Material | ID | Thick. | Dia. | Ctr.-to-Ctr. (A) | Ctr.-to-Ctr. (B) | Wd. | Ht. | Stud Length | Size | Length | Each | |
Bolt On | |||||||||||||||||
| 1 | 42,000 | 7,000 | 6 11/16" | 6" | Steel | 2 1/2" | 1 1/4" | 5/8" | 4 1/2" | 4 1/2" | 6" | 6" | __ | __ | __ | 00000000 | 0000000 |
| 2 | 60,000 | 15,000 | 6 13/16" | 6 3/8" | Steel | 3" | 1 5/8" | 3/4" | 4 1/2" | 4 1/2" | 6 5/8" | 6 3/8" | __ | __ | __ | 00000000 | 000000 |
| 2 | 100,000 | 20,000 | 6 13/16" | 6 3/8" | Steel | 3" | 1 5/8" | 7/8" | 4 1/2" | 4 1/2" | 6 5/8" | 6 3/8" | __ | __ | __ | 00000000 | 000000 |
Threaded Stud | |||||||||||||||||
| 3 | 15,000 | 3,000 | 9 1/8" | __ | Steel | 2 1/2" | 1 1/2" | __ | __ | __ | __ | __ | 3 1/4" | 1 1/2"-6 | 1 3/4" | 00000000 | 000000 |
Weld On | |||||||||||||||||
| 4 | 12,000 | 1,800 | 8 9/16" | __ | Steel | 2" | 7/8" | __ | __ | __ | __ | __ | __ | __ | __ | 00000000 | 000000 |
| 5 | 90,000 | 13,500 | 9 5/16" | __ | Steel | 2 3/8" | 1 5/8" | __ | __ | __ | __ | __ | __ | __ | __ | 00000000 | 000000 |
Tow Hooks
Add an anchor point to pull stuck vehicles out of mud, snow, or ditches. Mount these hooks to a bumper or trailer and then attach a tow strap or chain. The maximum trailer weight is the total weight being towed.
Weld-on hooks have a narrow throat and curved profile, so chains will catch and not slip off.
Double hooks bolt to both sides of a vehicle for balanced towing. You can also use only one of the hooks to tow, but someone must counter-steer in the towed vehicle to keep it in a straight line.
Powder-coated steel hooks offer more corrosion resistance than uncoated steel in wet environments.
Note: Capacity is reduced 25% in off-road use.
For Chain | Overall | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| For Max. Trailer Wt., lbs. | Grade | Thick. | Dp. | Ht. | Material | Hook Opening Wd. | Mounting Plate Thick. | Each | |
Single Hook | |||||||||
| 3,500 | 43 | 5/16" | 3 1/8" | 3 7/8" | Steel | 5/8" | 1 1/16" | 0000000 | 00000 |
| 5,000 | 43 | 3/8" | 2 3/8" | 3" | Steel | 1/2" | 13/16" | 0000000 | 0000 |
| 6,500 | 70 | 3/8" | 2 1/4" | 3" | Steel | 9/16" | 11/16" | 0000000 | 0000 |
| 9,000 | 43 | 1/2" | 3 1/8" | 3 7/8" | Steel | 11/16" | 1" | 0000000 | 0000 |
Overall | Mounting Holes | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| For Max. Trailer Wt., lbs. | Dp. | Ht. | Material | Hook Opening Wd. | No. of | Dia. | Ctr.-to-Ctr. | Mounting Plate Thick. | Each | |
Single Hook | ||||||||||
| 10,000 | 3 1/4" | 5" | Powder-Coated Steel | 1 5/8" | 2 | 1/2" | 1 3/8" | 1" | 000000 | 00000 |
| 20,000 | 4 7/8" | 5 3/8" | Powder-Coated Steel | 2 1/8" | 3 | 1/2" | 2 13/16" 2 1/2" | 1" | 0000000 | 00000 |
| 30,000 | 5 1/4" | 6" | Powder-Coated Steel | 2 1/8" | 4 | 1/2" | 2 3/4" 2 1/4" | 3/4" | 0000000 | 00000 |
Double Hooks | ||||||||||
| 13,500 | 5 1/4" | 8 1/2" | Powder-Coated Steel | 2 3/16" | 2 | 3/4" | 4 1/4" | 1 1/2" | 0000000 | 00000 |
| 44,000 | 5 7/16" | 9 1/4" | Steel | 2 1/2" | 1 1 | 3/4" 5/8" | 4 3/16" | 1 7/16" | 0000000 | 000000 |
