    19 Products

    Drawer Slides

    Image of Product. With Lever Drawer Release. Front orientation. Contains Annotated, MultipleImages. Drawer Slides. Drawer Slides, Lever Drawer Release.
    Image of Product. With Button Drawer Release. Front orientation. Contains Annotated, MultipleImages. Drawer Slides. Drawer Slides, Button Drawer Release.

    With Lever Drawer Release

    With Button Drawer Release

    Image of Product. Without Drawer Release. Front orientation. Contains Annotated, MultipleImages. Drawer Slides. Drawer Slides, Without Release.

    Without Drawer Release

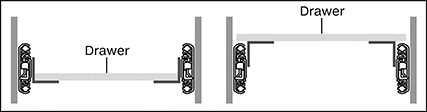

    These slides fully extend for convenient access to the back of drawers. All have ball bearing rollers for smooth, quiet operation. They mount to the sides of drawer openings in cabinets.
    304 Stainless Steel—Stainless steel slides resist corrosion, so they’re great for areas that get wet or require regular cleaning.
    Aluminum—Aluminum slides are durable, and they weigh less than stainless steel slides. However, they’re still not as durable as stainless steel slides, and they aren’t as corrosion resistant.
    Lever Drawer Release—Slides with drawer release let you remove your drawer from its cabinet by separating the inner part of the slide from its outer track.
    Without Release—Slides without drawer release are more secure than slides that let you remove your drawer because the inner and outer track don’t disconnect. That makes these slides better for drawers with heavy items.
    Mounting
    Closed
    Lg.
    Travel
    Lg.
    For Max.
    Drawer Wd.
    Wd.
    Ht.
    Wt. Cap. per
    Pair, lb.
    Roller Type
    Fasteners
    Included
    Screw
    Size
    Extension
    Pair
    Steel

    Without Release
    12"12"42"3/4"2 1/16"230Ball BearingYesNo. 10
    Full1277A78000000

    304 Stainless Steel

    Button Drawer Release
    12"13 3/4"24"3/4"2 3/16"140Ball BearingNoNo. 8
    Full12345A22000000

    Without Release
    12"12 9/16"24"15/16"2 13/16"595Ball BearingNoNo. 8
    Full12555A22000000
    12"12 13/16"24"3/4"1 7/16"130Ball BearingNoNo. 8
    Full13875A5100000

    Aluminum

    Lever Drawer Release
    12"12"36"3/8"1 9/16"120Ball BearingNoNo. 8
    Full1694A14000000


    Soft-Closing Drawer Slides

    Image of Product. Front orientation. Contains MultipleImages. Drawer Slides. Soft-Closing Drawer Slides.
    Before drawers can slam shut, a damper and spring on these slides catch your drawer and gently guide it closed. This mechanism protects the drawer, its contents, and cabinets from damage caused by harsh slams. Ball bearing rollers help them glide smoothly and quietly in and out of cabinets. They’re ideal for use in quiet environments, such as offices and hospitals. Mount them to the sides of drawer openings. If you need to remove your drawer from its cabinet, these slides have a lever release that separates the slide parts.
    Mounting
    Closed
    Lg.
    Travel
    Lg.
    For Max.
    Drawer Wd.
    Wd.
    Ht.
    Wt. Cap. per
    Pair, lb.
    Roller Type
    Fasteners
    Included
    Screw
    Size
    Extension
    Pair
    Steel

    Lever Drawer Release
    12"9 5/8"42"3/4"2 1/16"100Ball BearingNoM4, No. 8
    Partial7088N11000000


    Partial-Extension Drawer Slides

    Image of Product. With Pull-Out Drawer Release. Front orientation. Contains Annotated, MultipleImages. Drawer Slides. Partial-Extension Drawer Slides, Pull-Out Drawer Release.
    Image of Product. Without Drawer Release. Front orientation. Contains Annotated, MultipleImages. Drawer Slides. Partial-Extension Drawer Slides, Without Release.

    With Pull-Out Drawer Release

    Without Drawer Release

    Slides only extend 3/4 of the closed length to reduce the chance that a heavy load will tip your cabinet. All have ball bearing rollers for smooth, quiet operation. They mount to the sides of drawer openings in cabinets.
    304 Stainless Steel—Stainless steel slides won’t rust in wet or frequently cleaned environments.
    Pull-Out Drawer Release—Slides with a pull-out drawer release have a brake to stop them from coming apart when a drawer is fully extended. To remove a drawer from your cabinet, pull forcefully to disassemble the slide.
    Without Release—Slides without a drawer release prevent drawers from being removed. Because they don’t come apart, these slides provide the most support for drawers containing heavy items.
    Mounting
    Closed
    Lg.
    Travel
    Lg.
    For Max.
    Drawer Wd.
    Wd.
    Ht.
    Wt. Cap. per
    Pair, lb.
    Roller Type
    Fasteners
    Included
    Screw
    Size
    Extension
    Pair
    304 Stainless Steel

    Pull-Out Drawer Release
    12"9"24"3/8"1 3/8"105Ball BearingNoNo. 8
    Partial12155A22000000

    Without Release
    12"8 3/4"24"1/2"2 13/16"250Ball BearingNoNo. 8
    Partial12805A22000000


    Lock-Open/Lock-Closed Drawer Slides

    Image of Product. With Lever Drawer Release. Front orientation. Contains Annotated, MultipleImages. Drawer Slides. Lock-Open/Lock-Closed Drawer Slides, Lever Drawer Release.

    With Lever Drawer Release

    Image of Product. Without Drawer Release. Front orientation. Contains Annotated, MultipleImages. Drawer Slides. Lock-Open/Lock-Closed Drawer Slides, Without Release.

    Without Drawer Release

    A lever locks the drawer in place whether it’s open or closed; push the lever to release the lock. Often used in utility trucks and emergency vehicles, these slides keep drawers from opening or closing unexpectedly while you’re in motion. They extend fully to give you access to the back of drawers. All have ball bearing rollers for smooth, quiet operation. They mount to the sides of drawer openings in cabinets.
    Lever Drawer Release—Slides with a lever drawer release allow you to separate the inner slide from the outer track and remove the drawer. They extend farther than slides without a drawer release, so they’re helpful when an overhang blocks access to the back of a drawer.
    Without Release—Slides without a drawer release prevent drawers from being removed. Because they don’t come apart, these slides provide the most support for drawers containing heavy items.
    Mounting
    Closed
    Lg.
    Travel
    Lg.
    For Max.
    Drawer Wd.
    Wd.
    Ht.
    Wt. Cap. per
    Pair, lb.
    Roller Type
    Fasteners
    Included
    Screw
    Size
    Pair
    Steel

    Lever Drawer Release—Over Extension
    12"13"16"1/2"2"100Ball BearingNoNo. 8
    6603A340000000

    Without Release—Full Extension
    12"12"42"3/4"3"360Ball BearingNo1/4"
    6603A32000000

    Accessories for Drawer Slides

    Base-Mount Drawer Slides

    Image of Product. Without Drawer Release. Front orientation. Contains Annotated, MultipleImages. Drawer Slides. Base-Mount Drawer Slides, Without Release.

    Without Drawer Release

    When you don't have enough clearance for side-mount or under-the-counter slides, mount these to the base of your drawer. The slides fully extend for convenient access to the back of drawers. All have ball bearing rollers for smooth, quiet operation.
    Without Release—Slides without a drawer release prevent drawers from being removed. Because they don’t come apart, these slides provide the most support for drawers containing heavy items.
    Mounting
    Closed
    Lg.
    Travel
    Lg.
    For Max.
    Drawer Wd.
    Wd.
    Ht.
    Wt. Cap. per
    Pair, lb.
    Roller Type
    Fasteners
    Included
    Screw
    Size
    Extension
    Pair
    Steel

    Without Release
    12"12"32"3"3/4"180Ball BearingNo1/4", M6
    Full1102A320000000


    Lock-Open Drawer Slides

    Image of Product. Front orientation. Contains Annotated, MultipleImages. Drawer Slides. Lock-Open Drawer Slides.
    Prevent drawers from closing unexpectedly. These drawer slides lock open, so they're useful for tasks that require access to items inside a drawer for extended periods. Use the lever to lock them open; release the lever to close the drawer. For convenient access to the back of drawers, they extend fully. All have ball bearing rollers for smooth, quiet operation. They mount to the sides of drawer openings in cabinets. To remove your drawer from its cabinet, these slides also have a release lever that separates the inner part of the slide from the outer track.
    Mounting
    Closed
    Lg.
    Travel
    Lg.
    For Max.
    Drawer Wd.
    Wd.
    Ht.
    Wt. Cap. per
    Pair, lb.
    Roller Type
    Fasteners
    Included
    Screw
    Size
    Extension
    Pair
    Steel

    Lever Drawer Release
    12"13"16"1/2"2"150Ball BearingYesNo. 8
    Full63835A410000000

    Rail-Mounting Brackets for Slides With Lever Drawer Release

    Partial-Extension Lock-Open Drawer Slides

    Image of Product. Front orientation. Contains Annotated, MultipleImages. Drawer Slides. Partial-Extension Lock-Open Drawer Slides.
    Slides only extend 3/4 of the closed length to reduce the chance that a heavy load will tip your cabinet. Levers lock the drawer in the open position; release the lever to close or remove it from the cabinet. All slides have ball bearing rollers for smooth, quiet operation. They mount to the sides of drawer openings in cabinets.
    Mounting
    Closed
    Lg.
    Travel
    Lg.
    For Max.
    Drawer Wd.
    Wd.
    Ht.
    Wt. Cap. per
    Pair, lb.
    Roller Type
    Fasteners
    Included
    Screw
    Size
    Extension
    Pair
    Steel

    Lever Drawer Release
    12"8"16"3/8"1 3/8"140Ball BearingYesNo. 8
    Partial63835A31000000

    Rail-Mounting Brackets for Slides With Lever Drawer Release

    Long-Life Lock-Open Drawer Slides

    Image of Product. Front orientation. Contains Annotated, MultipleImages. Drawer Slides. Long-Life Lock-Open Drawer Slides.
    With fewer moving parts than other lock-open drawer slides, these collect less debris for a longer service life. Locking levers keep the drawer in the open position; press the levers to close. The slides fully extend for convenient access to the back of drawers. They mount to the sides of drawer openings in cabinets. To remove your drawer from its cabinet, these slides also have release levers to disconnect the inner part of the slide from the outer track.
    All have tight-fitting components that are coated with a dry film lubricant.
    Anodized Aluminum—Made of aluminum, these slides are a lightweight but durable alternative to stainless steel slides. They resist corrosion, so they can be used in wet environments.
    Mounting
    Closed
    Lg.
    Travel
    Lg.
    For Max.
    Drawer Wd.
    Wd.
    Ht.
    Wt. Cap. per
    Pair, lb.
    Fasteners
    Included
    Screw
    Size
    Color
    Extension
    Pair
    Anodized Aluminum

    Lever Drawer Release
    12"12"25"3/8"1 11/16"130NoNo. 8
    BlackFull1694A430000000
