    4 Products

    Drill Bit Guides

    Image of ProductInUse. Front orientation. Contains Annotated, MultipleImages. Drill Bit Guides. Drill Bit Guides.
    Image of Product. Front orientation. Drill Bit Guides. Drill Bit Guides.

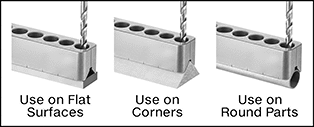

    Place these guides on your workpiece to drill precise holes without building a fixture. They'll even work on corners and round surfaces. Lines marked on the side allow you to align your holes accurately. Made of hardened steel, they’re tough enough to withstand frequent use.
    For Drill Bit Size, mm
    For Drill Bit Size Decimal Equiv.
    Lg.
    Wd.
    Ht.
    Material
    Each
    10, 10.5, 11, 11.5, 12, 12.5, 13, 13.5, 140.3937", 0.4134", 0.4331", 0.4528", 0.4724", 0.4921", 0.5118", 0.5315", 0.5512"5 1/4"1"1 5/8"Steel9550T18000000

    High-Speed Steel Drill Bits for Plastic

    The precision-ground, 60° point penetrates gradually to prevent cracking and chipping. It also reduces heat that can deform the material. Use these bits for drilling into acrylic, laminate, and other plastics. They're made of wear-resistant high-speed steel.
    Jobbers' LengthAbout Jobbers' Length
    Image of Product. Front orientation. Drill Bits. High-Speed Steel Drill Bits for Plastic, Jobbers' Length.
    Shank
    Drill Bit
    Size, mm
    Decimal Size
    Equiv.
    Overall
    Lg., mm
    Max. Drilling
    Dp., mm
    Type
    Size,
    mm
    Point
    Angle
    Drill Bit
    Point Type
    Each
    Uncoated
    14
    		0.5512"
    		160108Round
    		1460°Standard
    		27465A435000000


    Quick-Change Hex Shank Drill Taps for Drills and Screwdrivers

    Image of Product. Front orientation. Drill Taps. Quick-Change Hex Shank Drill Taps for Drills and Screwdrivers.
    Save time when you need to change drill taps frequently. The grooved shank snaps directly into drills, power screwdrivers, and other tools that accept a 1/4" hex shank. However, they’re not rated for impact drivers. With a drill bit point to drive into the workpiece, these taps can drill and tap holes in a single step. They’re made of high-speed steel and are for use on most metal and plastic.
    Their spiral flutes keep chips clear by drawing them back toward the tap and out of the hole. All have a plug chamfer with 3-5 chamfered cutting threads, so they’re suitable for start-to-finish tapping.
    Uncoated High-Speed Steel—Uncoated taps are strong enough for most tapping jobs but have the shortest tool life.
    Titanium Nitride (TiN)-Coated High-Speed Steel—Titanium Nitride (TiN) coated taps resist heat and wear better than uncoated taps, letting them last up to twice as long.
    Thread
    Drill Bit
    Plug Chamfer
    Size
    Lg.
    Overall
    Lg.
    Size,
    mm
    Decimal Size
    Equiv.
    Point
    Angle
    Flute
    Type
    No. of
    Flutes
    Thread
    Type
    Pitch Dia.
    Limit
    Hex Shank
    Size
    Each
    Uncoated High-Speed Steel
    M16 × 2 mm1 3/4"6 1/16"14
    		0.5512"118°Spiral4Metric
    		D71/4"3464A75000000

    Titanium Nitride (TiN)-Coated High-Speed Steel
    M16 × 2 mm1 3/4"6 1/16"14
    		0.5512"118°Spiral2Metric
    		D71/4"3464A13400000
