3 Products

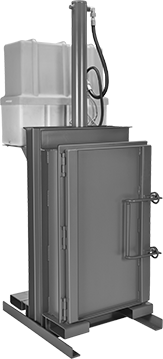

Drum Crusher/Compactors

Image of Product. Front orientation. Crusher/Compactors.

When used as a crusher, this machine can force a 55-gallon drum down to 6" high in under one minute. To compact waste within a 55-gallon drum, remove the drum-crushing plate and it will reduce the drum's contents to 20% of their original height. This crusher/compactor has an oil reservoir for ISO-32 hydraulic oil. This unit has a keyed on/off switch and watertight, double locking handle. It will only function when the door is securely shut for safety. A drip pan, which fits below the base to collect any liquid waste remaining in the drums, is included.

								Mounting
Ht.	Wd.	Dp.	Oil Reservoir Cap., gal.	Motor Electrical Phase	Electrical Connection Type	Current @ Voltage	Freq., Hz	Location	Fasteners Included	Hole Dia.	No. of Keys Included	Specs. Met		Each
90"	37"	39"	15	Three	Hardwire	10 amp @ 460V AC 20 amp @ 230V AC	60	Floor	No	3/4"	2	ANSI Z245.5, OSHA Compliant 29 CFR 1910.212	44565T12	000000000

Compactors


Manual	Air Powered

Pull the lever to reduce the contents of a 55-gallon drum to 25% of the original height. Drum not included.

							Air Inlet
Power Source	Ht.	Wd.	Dp.	Handle Lg.	Material	Req. Airflow @ Pressure	Thread Type	Gender	Pipe Size	Features		Each
Manual	90"	29"	27"	30"	Steel	—	—	—	—	—	40245T23	000000000
Air	76"	36"	27"	46"	Steel	8 ft³/min @ 100 psi	NPT	Female	1/4	Two-Handed Safety Lever	40585T12	00000000
