A fine-adjustment dial allows tighter control of airflow and cylinder speed than with other flow control valves. These valves control the speed of air-powered equipment by adjusting the volume of airflow. They control flow in one direction as air moves from the inlet to the outlet. Air flows freely in the opposite direction. The elbow shape allows you to mount them directly to cylinder ports, eliminating additional tubing or piping between the cylinder and valve for better control and consistency than inline valves.

Meter out valves control flow as it exits the cylinder. Meter in valves control flow as it enters the cylinder.

Valves with push-to-connect ports are for use with plastic or soft metal tubing. Insert tubing into the port.

Flow coefficient (Cv) is a measurement that indicates how much airflow can pass through a valve. When selecting between valves with the same port size, choose the valve with the higher flow coefficient to ensure it provides enough airflow to operate your system.

A flow indicator on these valves provides a relative measure of the air flowing through the valve, from off to full volume, similar to the volume dial on a speaker. The indicator’s numeric increments make it easy to set the valve to the same flow rate with each use. These valves adjust the volume of air exiting an air cylinder (meter out) to control the speed of air-powered equipment. They control flow in one direction as air moves from the inlet to the outlet. Air flows freely in the opposite direction. The elbow shape allows you to mount them directly to cylinder ports, eliminating additional tubing between the cylinder and valve for better control and consistency than inline valves. Insert plastic or soft metal tubing into the push-to-connect outlet ports.

Flow coefficient (Cv) is a measurement that indicates how much airflow can pass through a valve. When selecting between valves with the same port size, choose the valve with the higher flow coefficient to ensure it provides enough airflow to operate your system.

Mount these valves directly to cylinder ports, eliminating additional tubing or piping between the cylinder and valve for better control than inline valves. Made of stainless steel and plastic parts, they’re more corrosion resistant than valves made of brass, aluminum, or zinc. Use them to control the speed of air-powered equipment by adjusting the volume of airflow. They control flow in one direction as air moves from the inlet to the outlet. Air flows freely in the opposite direction. Insert plastic or soft metal tubing into the push-to-connect ports.

Meter out valves control flow as it exits the cylinder. Meter in valves control flow as it enters the cylinder.

Valves with a pressure-release button allow you to exhaust any trapped air pressure from the system after shut down.

Flow coefficient (Cv) is a measurement that indicates how much airflow can pass through a valve. When selecting between valves with the same port size, choose the valve with the higher flow coefficient to ensure it provides enough airflow to operate your system.

Made of PBT, these plastic valves are more corrosion resistant than valves made of aluminum or nylon. A single dial regulates the speed of airflow in two directions as it enters (meter in) and exits (meter out) equipment, and are often used to control the extension and retraction speed of an air cylinder at the same time. Insert plastic or soft metal tubing into the push-to-connect outlet ports; the outlet ports swivel 360° so you can make a connection from any direction. The elbow shape allows you to mount these valves directly to cylinder ports, eliminating additional tubing between the cylinder and valve for better control and consistency than inline valves.

Flow coefficient (Cv) is a measurement that indicates how much airflow can pass through a valve.

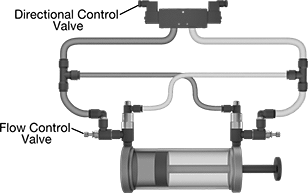

Protect air-powered equipment in emergency shut-off situations—when system pressure drops, the air pilot signal stops and these valves automatically close to stop cylinder motion, even at a mid-stroke. They control the speed of air-powered equipment by adjusting the volume of airflow. A pressure-release button allows you to exhaust any trapped air pressure from the system after shut down. Install them in pairs on cylinder exhaust ports, and use tee connectors (not included) to direct exhaust air from the cylinder to the air pilot of the opposite valve, and to connect valves to a directional control valve. The elbow shape allows you to mount them directly to cylinder ports, eliminating additional tubing or piping between the cylinder and valve for better control and consistency than inline valves.

One direction valves control flow as air exits the cylinder (meter out) and moves from the inlet to the outlet.

Valves with push-to-connect ports are for use with plastic or soft metal tubing. Insert tubing into the port.

Flow coefficient (Cv) is a measurement that indicates how much airflow can pass through a valve.

Also known as blocking valves, these valves are activated by an air signal to turn equipment on and off. They allow airflow when an air signal is applied to the air pilot. When the air supply is removed, the valve closes, trapping air in the system.

Valves with push-to-connect ports are for use with plastic or soft metal tubing. Insert tubing into the port.

Flow coefficient (Cv) is a measurement that indicates how much airflow can pass through a valve. When selecting between valves with the same port size, choose the valve with the higher flow coefficient to ensure it provides enough airflow to operate your system.

Start or stop flow with the flip of a toggle switch or the push of a button. These valves are often used in testing and sampling applications where you need to dispense a small amount of liquid. They fit through a cutout, so the body of the valve stays safe inside your instrumentation panel.

Nickel-plated brass valves resist corrosion better than plain brass valves.

Manual-return valves stay open until you flip the toggle off. Since they don't need to be held open, they’re often used to dispense larger samples than spring-return valves. It’s also easy to check if these valves are open or not based on the toggle’s position. Spring-return valves automatically close when you release the toggle or push button. They’re ideal for intermittent use and precise flow control to prevent spills.

Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.

Push a button or flip a toggle switch to start or stop flow. Often used in testing and sampling, these valves are useful when you need to dispense a small amount of liquid.

Nickel-plated brass valves resist corrosion better than plain brass valves.

Push-button valves automatically open or close when you take your finger off the button. They’re ideal for intermittent use and applications where you want to monitor flow closely to avoid spills. The button is colored to make it easy to tell different valves apart. Normally open valves close when you push their button. Normally closed valves open when you push their button.

Toggle valves stay open until you flip them closed. Since they don't need to be held open, they’re often used to dispense larger samples than push-button valves. You can see if these valves are open or not based on the toggle's position.

Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.

Control flow in passageways of manifolds and valve mounting blocks without external pipes. Also known as cartridge valves, they slide into unthreaded holes and secure in place with the included set screw. These valves are ideal for testing and sampling applications because you can quickly open and close them with a toggle or button.

Toggle-switch valves stay open until you flip them closed. Since they don’t need to be held open, they’re often used to dispense large samples. The toggle’s position shows you if they’re open or closed.

Push-button valves open when you press the button. When released, the button springs back and automatically stops flow. They’re ideal for intermittent use and controlling flow to avoid spills.

Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.

For easy installation from any direction, the body on these valves swivels 360°. They have barbs to securely grip tubing. Often used in testing and sampling applications, they quickly open and close with a toggle or button.

Toggle-switch valves stay open until you flip them closed. Since they don’t need to be held open, they’re often used to dispense large samples. The toggle’s position shows you if they’re open or closed.

Push-button valves open when you press the button. When released, the button springs back and automatically stops flow. They’re ideal for intermittent use and controlling flow to avoid spills.

Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.

Flip a switch or push a button to control flow while your line stays protected behind an instrument panel. These valves come with a nut to mount the switch or button to the panel. They’re often used to dispense small amounts of liquid for testing and sampling since they allow you to turn flow on and off quickly. Barbs on these valves grip tubing for a secure hold behind the panel. For good corrosion resistance in wet environments, the body is nickel-plated brass.

Toggle-switch valves stay open until you flip them closed. They don't need to be held open, so they’re often used to dispense larger samples than push-button valves. You’ll know at a glance if these valves are open or closed based on the toggle's position.

Push-button valves open when you press the button. The button springs back to the closed position when you release it, automatically stopping flow. They’re ideal for intermittent use and applications where you want to monitor flow closely to avoid spills.

Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.
