    4 Products

    Electric Plate Bevelers

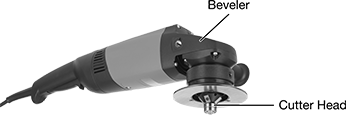

    Image of System. Components Sold Separately. Front orientation. Contains Annotated. Bevelers. Electric Plate Bevelers.

    Components Sold Separately

    Create beveled edges, contours, and cutouts on flat plates in order to prepare them for welding and give them a finished look. For a complete setup, you’ll need a beveler and a cutter head with the right angle for your application.
    Bevelers
    Image of Product. Front orientation. Bevelers. Electric Plate Bevelers, Bevelers.
    Bevelers have an electric motor to remove material quickly. Maneuver them using the rotating handle. To set the length of the bevel and make sure it’ll be even, they have an adjustable guide you hold against the plate as you cut. When it’s time to change cutter heads, these bevelers have a spindle lock that stops the spindle from rotating, which makes the switch quicker and safer.
    Max. Rotation
    Speed, rpm
    Current,
    amp
    Voltage,
    V AC
    Mobility
    Speed Control
    Type
    Overall
    Lg.
    Wt.,
    lb.
    Features
    Each
    6,60015120PortableFixed22 1/2"21Adjustable Guide, Rotating Handle, Spindle Lock0000000000000000

    Cutter Heads
    Image of Product. Front orientation. Bevelers. Electric Plate Bevelers, Cutter Heads.
    Image of Product. Front orientation. Beveler Cutter Head Inserts.

    Replacement Beveler

    Cutter Head Inserts

    Cutter heads produce an accurate, consistent bevel angle and a smooth finish. Swap between heads for different angles and replace them when they get worn out or damaged.
    Bevelers
    Replacement Beveler
    Cutter Head Inserts
    For Use On
    Cutting
    Pattern
    Bevel
    Angle
    Insert Material
    No. of Inserts
    Included
    Each
    Pkg.
    Qty.
    Pkg.
    2 Cutting Edges per Insert
    Aluminum, Brass, Bronze, Copper, Iron, Plastic, Stainless Steel, Steel, Tool SteelStraight Bevel30°Titanium Aluminum Nitride (TiAlN)-Coated Carbide3000000000000001000000000000000
    Aluminum, Brass, Bronze, Copper, Iron, Plastic, Stainless Steel, Steel, Tool SteelStraight Bevel45°Titanium Aluminum Nitride (TiAlN)-Coated Carbide30000000000000100000000000000
